Lly Duramax Fuel Line Diagram 2026: Troubleshooting Guide

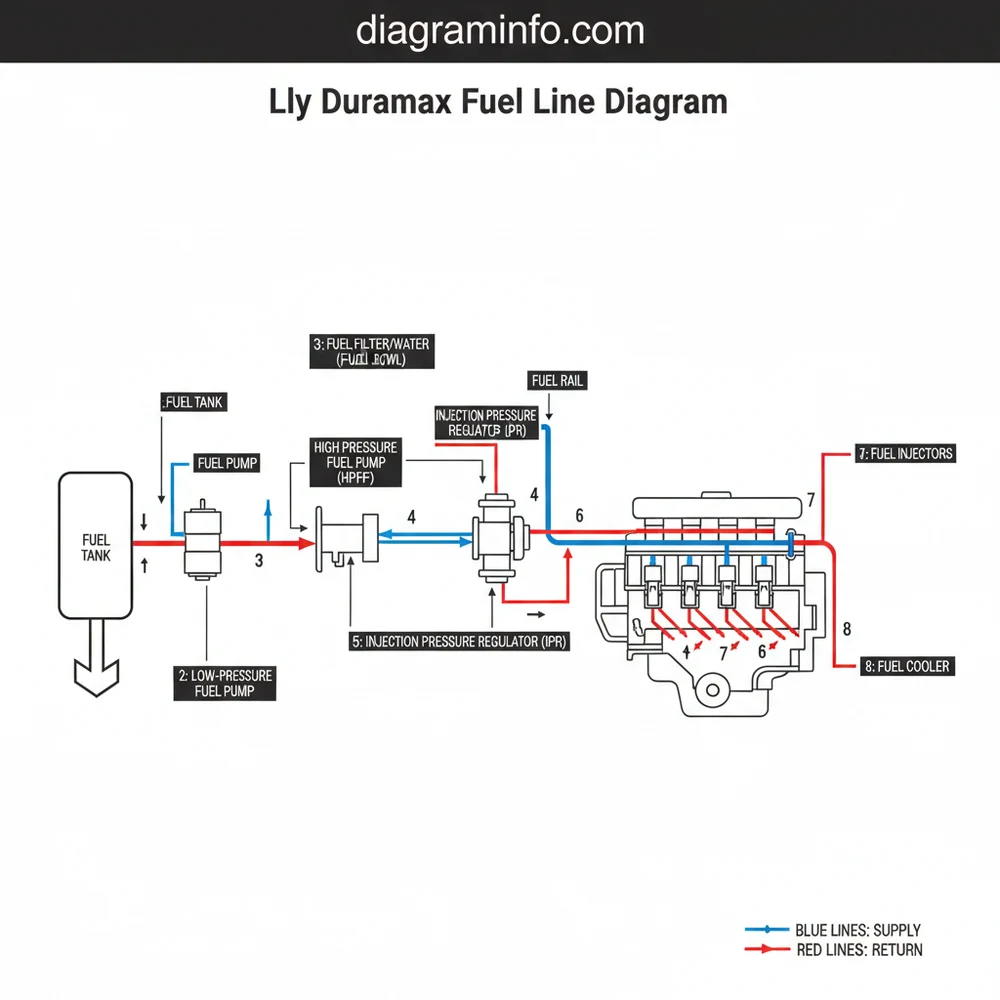

The lly duramax fuel line diagram shows component layout, connection points, and routing paths. Use it to identify parts, diagnose issues, and follow correct installation or repair procedures.
📌 Key Takeaways
- Understanding the lly duramax fuel line diagram is essential for proper implementation
- Each component has a specific role and connection point
- Following safety guidelines prevents common mistakes
- This diagram serves as a reference for practical applications
- Regular review helps maintain accurate understanding
The LLY Duramax engine, manufactured from mid-2004 through 2005, represents a pivotal generation in GM’s heavy-duty diesel lineup. Understanding its complex fuel system is paramount for accurate diagnosis and maintenance. This article provides a comprehensive overview of the LLY Duramax fuel line diagram, detailing each component’s function, common failure points, and essential repair procedures. Technicians and experienced DIYers will find this guide invaluable for tracing fuel flow, identifying potential issues, and performing precise service on these robust 6.6L diesel powerplants. Proper comprehension of this system is critical for maintaining optimal engine performance and longevity.
FUEL SYSTEM COMPONENTS BREAKDOWN
The LLY Duramax fuel system is a sophisticated high-pressure common rail design, meticulously engineered to deliver precise fuel delivery. Unlike some later Duramax iterations, the LLY relies solely on the High Pressure Fuel Pump (HPFP) to draw fuel from the tank. As depicted in the accompanying LLY Duramax fuel line diagram, the fuel path begins at the tank and culminates at the injectors, with a robust return network.
Fuel is initially drawn from the Fuel Tank via a pickup tube, then travels through the main Fuel Supply Line to the engine bay. The first significant component encountered is the Fuel Filter Housing, often referred to as the “fuel bowl.” This critical assembly integrates several functions: it houses the primary Fuel Filter element, separating particulates and water from the diesel fuel. Within this housing, a Water-in-Fuel (WIF) Sensor alerts the ECM to water contamination, while an electric Fuel Heater ensures fuel viscosity remains optimal in cold conditions. The integral Primer Pump is manually operated, essential for bleeding air from the system after filter replacement or fuel system work.
From the fuel bowl, conditioned fuel flows to the High Pressure Fuel Pump (HPFP), specifically the Bosch CP3 pump on the LLY. This pump serves a dual role: it draws fuel from the tank and boosts its pressure to extremely high levels (up to 23,000 PSI or 1600 bar). The HPFP is precisely regulated by the Fuel Pressure Regulator (FPR), also known as the MPROP or Quantity Control Valve, which controls the volume of fuel sent to the high-pressure pumping elements. High-pressure fuel then travels from the HPFP to the two Fuel Rails (one per cylinder bank). Each fuel rail acts as an accumulator, maintaining a consistent high pressure for instantaneous delivery. The Fuel Rail Pressure (FRP) Sensor monitors this pressure, providing feedback to the Engine Control Module (ECM). An Injection Pressure Regulator (IPR) or pressure relief valve is integrated into one of the rails as a safety mechanism, preventing over-pressurization.
Finally, high-pressure fuel is delivered to each of the eight Fuel Injectors, which are electronically controlled solenoids that precisely spray atomized fuel directly into the combustion chambers. Any excess fuel from the HPFP, fuel rails, or injectors, along with heated fuel, is directed back to the fuel tank through the Fuel Return Line network. This return line often passes through a Fuel Cooler mounted on the chassis to reduce fuel temperature before it re-enters the tank, preventing fuel degradation and vapor lock issues.
The LLY Duramax is unique among common rail diesels for its lack of a factory-installed electric lift pump. The CP3 HPFP is solely responsible for pulling fuel from the tank. This design characteristic makes the system particularly susceptible to issues like air intrusion and restrictive fuel filters.
COMMON FAILURE POINTS & SYMPTOMS
The LLY Duramax fuel system, while robust, has specific components prone to wear and failure, leading to distinct symptoms that mechanics and owners must recognize. Understanding these common failure points is critical for effective diagnosis.
1. Fuel Filter Housing (Fuel Bowl) & Primer Pump:
Symptoms: Hard starting, particularly after fuel filter changes or if the vehicle sits for extended periods. Reduced power, engine stuttering, or stalling. Visible fuel leaks around the filter housing.
Diagnosis: Air in the fuel system (visible in a clear line before the HPFP), a malfunctioning primer pump unable to build pressure, or cracked plastic housing/seals allowing air intrusion. A leaking water-in-fuel (WIF) sensor o-ring is a common cause of external fuel leaks.
2. High Pressure Fuel Pump (HPFP – CP3):
Symptoms: Intermittent or consistent loss of power, engine surging, hard starting (crank but no start), rough idle, or a check engine light with diagnostic trouble codes (DTCs) such as P0087 (Fuel Rail Pressure Too Low), P0088 (Fuel Rail Pressure Too High), or P1093 (Fuel Pressure Regulator Performance).
Diagnosis: Monitoring actual vs. desired fuel rail pressure using a scan tool. A significant discrepancy, especially under load, points to a failing HPFP or its integral Fuel Pressure Regulator (FPR). Contaminated fuel is a primary contributor to premature HPFP wear.
3. Fuel Injectors:
Symptoms: Excessive smoke (white, blue, or black), rough idle, engine misfires, knocking noises, increased fuel consumption, or fuel entering the crankcase (oil dilution).
Diagnosis: Performing injector balance rates test with a scan tool. A cylinder with a significantly high positive or negative balance rate indicates an issue. Visual inspection for external leaks or carbon buildup around the injector body. Fuel return flow tests can identify injectors that are “leaking” excessively to the return side, causing low rail pressure.
4. Fuel Rail Pressure (FRP) Sensor / Injection Pressure Regulator (IPR) Relief Valve:
Symptoms: Similar to HPFP failure: low power, surging, rough idle, hard starts, or DTCs P0087/P0088. If the IPR relief valve fails open, it acts like a permanent leak, leading to persistent low fuel rail pressure.
Diagnosis: Scan tool data for FRP sensor readings. If readings are erratic or pegged, the sensor may be faulty. A specialized test involving capping the return line from the IPR relief valve can determine if it’s opening prematurely, allowing excessive pressure to bleed off.
5. Fuel Lines & Connections:
Symptoms: Visible fuel leaks, fuel odor, air intrusion causing hard starts or stalling, especially after the vehicle has sat. Wet spots or staining underneath the vehicle.
Diagnosis: Thorough visual inspection of all fuel lines, especially at connection points and under clamps, for chafing, cracks, or loose fittings. Look for bubbles in clear fuel lines if installed, indicating air ingress. Fuel system dye tests can pinpoint subtle leaks.
Working on the LLY Duramax fuel system involves extremely high fuel pressures. Always depressurize the system before disconnecting any high-pressure components. Wear appropriate personal protective equipment (PPE) including eye protection and gloves. Diesel fuel is highly flammable and under pressure can cause severe injury.
REPAIR & REPLACEMENT STEPS
A common and critical maintenance procedure for the LLY Duramax fuel system is replacing the fuel filter and properly bleeding the system. This directly impacts the lifespan of the HPFP and injectors. Refer to the LLY Duramax fuel line diagram for component locations.
- Gather Tools & Materials:
- New ACDelco TP1263 fuel filter or equivalent (e.g., Baldwin PF7977).
- 1-1/8 inch wrench (for filter canister).
- Drain pan for diesel fuel.
- Shop rags or towels.
- Gloves and safety glasses.
- Torque wrench.
- Safety Precautions:
- Ensure the engine is off and cool.
- Disconnect the negative battery terminals to prevent accidental starting or electrical shorts.
- Position the drain pan directly below the fuel filter housing on the driver’s side of the engine.
- Drain Fuel Filter Housing:
- Locate the yellow water-in-fuel (WIF) sensor at the bottom of the fuel filter housing (fuel bowl), as seen in the diagram.
- Open the drain valve by slowly turning the WIF sensor counter-clockwise by hand until fuel begins to flow into the drain pan.
- Allow the housing to drain completely. Once drained, close the valve by turning the WIF sensor clockwise until snug. Do not overtighten, as this is a plastic component. Manufacturer specifications indicate hand-tight plus a quarter turn is sufficient for the WIF sensor.
- Remove Old Fuel Filter:
- Using the 1-1/8 inch wrench, carefully loosen the fuel filter canister by turning it counter-clockwise.
- Once loose, slowly remove the filter by hand. Be prepared for a small amount of residual fuel to spill. Dispose of the old filter and any collected fuel responsibly.
- Install New Fuel Filter:
- Ensure the new filter’s rubber seal (o-ring) is properly seated in its groove on the top of the filter. You may lightly lubricate the o-ring with clean diesel fuel to aid installation and ensure a good seal.
- Thread the new fuel filter onto the housing by hand, turning clockwise.
- Once the filter makes contact with the housing, use the 1-1/8 inch wrench to tighten it an additional 3/4 to 1 full turn. Do not overtighten, as this can damage the filter housing.
- Prime the Fuel System:
- Locate the square-shaped primer pump on top of the fuel filter housing.
- Push the primer pump down repeatedly until it becomes firm to the touch. This can take anywhere from 30 to 60 pumps, sometimes more if the system was completely drained or air was introduced. A firm pump indicates the system is full of fuel and air has been expelled. Listen for a distinct change in the pump’s resistance.
- While priming, inspect all fuel lines visible in the diagram for any signs of leaks around the filter housing or other connections.
- Final Steps:
- Reconnect the negative battery terminals.
- Start the engine and let it idle for a few minutes. Check for any fuel leaks around the filter housing.
- If the engine struggles to start or runs rough, it may indicate residual air in the system. Re-prime the system as necessary until a steady idle is achieved. For detailed troubleshooting on common Duramax diagnostic trouble codes, refer to our comprehensive guide on DTC P0087 and P0088.
Fuel Filter Canister Torque: Hand tight, then 3/4 to 1 full turn with wrench.
WIF Sensor Torque: Hand tight, then 1/4 turn with wrench.
Recommended Fuel Filter Interval: Every 10,000-15,000 miles or annually, whichever comes first. Refer to your owner’s manual for specific OEM recommendations.
FAQ
What is the function of the LLY Duramax fuel cooler?
The LLY Duramax fuel cooler, typically located along the frame rail, is part of the fuel return line network. Its primary function is to reduce the temperature of the excess fuel returning from the engine (HPFP, fuel rails, and injectors) before it re-enters the fuel tank. This cooling process prevents fuel degradation, minimizes the formation of vapor in the fuel tank, and maintains proper fuel density for optimal engine performance and longevity of fuel system components. High fuel temperatures can lead to decreased power and efficiency.
Does the LLY Duramax have a lift pump, and should I add one?
No, the LLY Duramax does not come with a factory-installed electric lift pump. The Bosch CP3 High Pressure Fuel Pump (HPFP) is designed to draw fuel directly from the tank. Many LLY owners choose to install an aftermarket lift pump (e.g., FASS, AirDog) to improve fuel filtration, ensure positive fuel pressure to the CP3, and potentially extend the life of the HPFP and injectors by preventing cavitation and air intrusion. While not strictly necessary for operation, adding a quality lift pump is a common and recommended modification for enhanced reliability and performance, particularly in modified trucks or those used for heavy towing. For more information on aftermarket fuel system upgrades, see our guide on Duramax performance modifications.
What causes low fuel rail pressure codes (P0087) on an LLY Duramax?
Low fuel rail pressure codes like P0087 on an LLY Duramax typically indicate that the ECM detects the actual fuel rail pressure is significantly lower than the desired pressure. Common causes include a restricted fuel filter, air intrusion into the fuel system (often from the fuel filter housing or cracked lines), a failing High Pressure Fuel Pump (HPFP), a faulty Fuel Pressure Regulator (FPR) on the HPFP, or an Injection Pressure Regulator (IPR) relief valve that is opening prematurely. Worn fuel injectors that leak excessive fuel to the return side can also contribute to low rail pressure. Diagnosing P0087 requires monitoring fuel rail pressure parameters with a scan tool and performing targeted tests on each component of the high-pressure system.
How can I prevent common LLY fuel system issues?
Preventative maintenance is key to avoiding common LLY fuel system issues. The most critical step is regular fuel filter replacement using high-quality OEM or equivalent filters, typically every 10,000-15,000 miles. Always ensure the system is properly primed after filter changes to avoid introducing air. Use clean, high-quality diesel fuel and consider reputable fuel additives, especially those that boost lubricity and provide water separation. Regularly inspect fuel lines for leaks or chafing, and address any hard starting or rough running symptoms promptly. As mentioned, an aftermarket lift pump can also significantly improve fuel system longevity.
