Polaris Indy 500 Fuel Line Diagram: Component & Repair Guide 2026
The Polaris Indy 500 fuel system typically routes from the fuel tank through an in-line filter, to the mechanical fuel pump, then to the carburetor. A fuel return line may connect from the carb or fuel pump back to the tank to regulate pressure and prevent vapor lock, ensuring consistent fuel delivery. Check for blockages in the fuel bowl or lines.
📌 Key Takeaways
- The Polaris Indy 500 utilizes a carburetor-based fuel system, not an HPFP, with a mechanical fuel pump and specific fuel line routing.
- Proper identification of the fuel feed and fuel return line is crucial to avoid misconnections that can lead to engine starvation or flooding.
- Always relieve fuel system pressure before disconnecting lines; use appropriate clamps and ensure fuel-rated hose and fittings for repairs.
- Clogged fuel filters or sediment in the fuel bowl are the most common causes of fuel delivery issues in these carbureted models.
- For persistent fuel flow problems, especially after line and filter replacement, consult a professional to inspect the fuel pump and carburetor.
The Polaris Indy 500, known for its robust performance and straightforward design, relies on a critical fuel delivery system to power its two-stroke engine. This article provides a comprehensive overview of the Polaris Indy 500 fuel line diagram, focusing on typical configurations found in models equipped with the Fuji 488cc liquid-cooled engine, common across various production years (e.g., 1989-2000). Understanding this diagram is essential for accurate diagnostics, routine maintenance, and effective troubleshooting of fuel-related issues, ensuring your snowmobile operates at peak efficiency. This detailed guide will assist mechanics and experienced DIYers in identifying components, interpreting fuel flow, and addressing common failures.

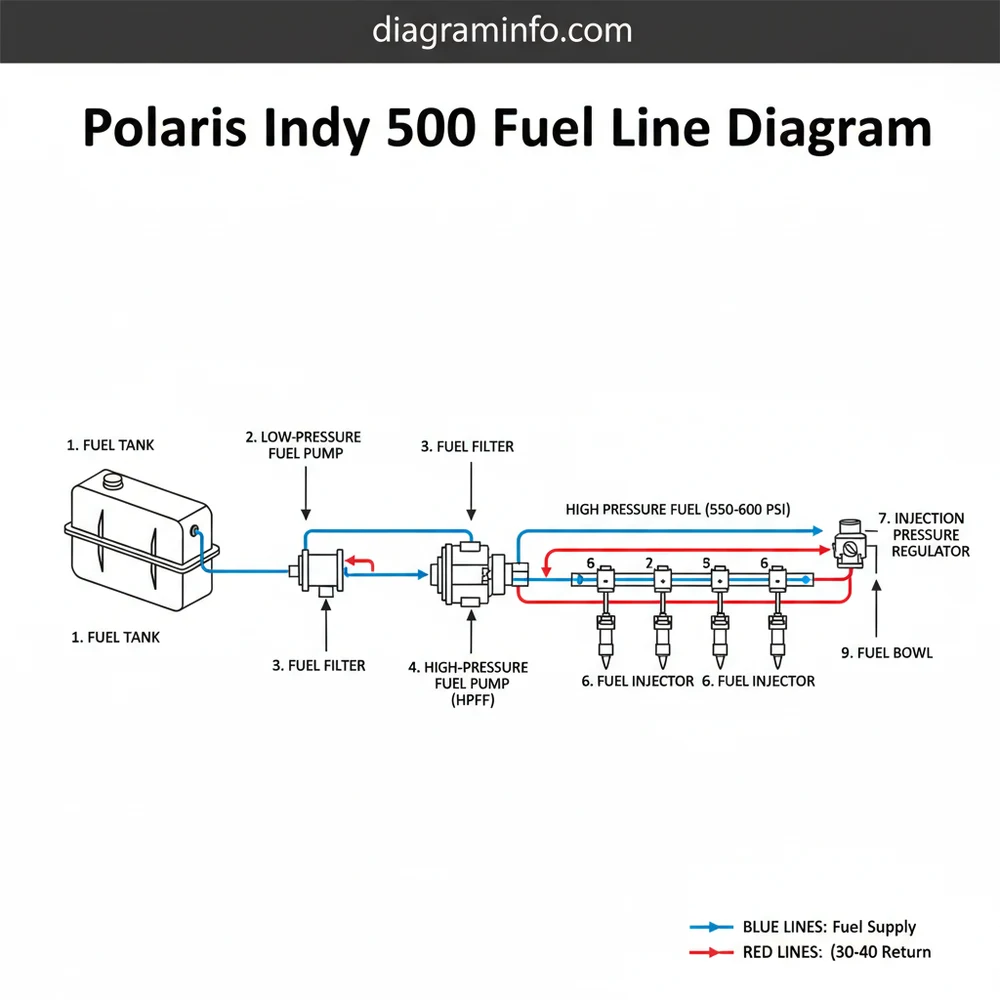

FUEL SYSTEM COMPONENTS BREAKDOWN
The fuel system of a Polaris Indy 500, particularly models utilizing the ubiquitous Fuji 488cc engine, is a relatively straightforward vacuum-operated design, differing significantly from modern electronically fuel-injected (EFI) systems. Each component plays a vital role in delivering a consistent supply of fuel to the carburetors.
| Component ID | Component Name | Function |
|---|---|---|
| 1 | Fuel Tank | Stores the gasoline supply for the engine. Includes a fuel sender for gauge readings and a vent line to prevent vacuum lock. |
| 2 | Fuel Filter | Inline filter designed to trap contaminants and debris before they reach the fuel pump or carburetors. Typically a replaceable cartridge type. |
| 3 | Fuel Pump (Vacuum Operated) | A diaphragm-type pump, actuated by pulsating vacuum pressure from the engine’s crankcase, which draws fuel from the tank and delivers it under low pressure to the carburetors. Unlike modern high pressure fuel pump (HPFP) units, this pump operates at pressures typically below 5 PSI. |
| 4 | Vacuum Line (Pulse Line) | Connects the engine’s crankcase to the fuel pump, providing the necessary pressure pulses to operate the pump diaphragm. Critical for fuel pump function. |
| 5 | Primer Pump | A manual pump (often plunger-type) that injects a small amount of raw fuel directly into the carburetors or intake manifold for easier cold starting. Features a supply line and an output line. |
| 6 | Fuel Lines (Supply & Return) | Hoses transporting fuel throughout the system. The main supply line runs from the tank, through the filter and pump, to the carburetors. A fuel return line is not typically present on a standard carbureted Indy 500, as excess fuel is regulated within the carburetor’s fuel bowl via a float and needle valve assembly, eliminating the need for high-pressure recirculation. Any overflow from the carburetor generally vents to the atmosphere or a catch can. |
| 7 | Carburetors (x2 for twin cylinder) | Mixes air and fuel in the correct proportions before combustion. Each carburetor contains a fuel bowl where fuel level is maintained by a float and needle valve. These components regulate the incoming fuel flow, effectively acting as an analog to an injection pressure regulator (IPR) by controlling fuel volume to the jets. |
| 8 | Fuel Heater (Optional/Accessory) | While not standard on all Indy 500 models, some setups or aftermarket kits may include a fuel heater to prevent fuel gelling or ice formation in extremely cold conditions, particularly if using fuels susceptible to such issues. Similarly, a dedicated fuel cooler is generally absent, as the low-pressure carbureted system does not generate significant heat requiring active cooling. |
For a direct comparison, modern EFI systems would feature a high pressure fuel pump (HPFP) located in or near the tank, delivering fuel at hundreds or thousands of PSI. An injection pressure regulator (IPR) would then precisely control this high pressure for injection. The Polaris Indy 500’s carbureted system, in contrast, operates at significantly lower pressures and relies on mechanical regulation within the carburetor fuel bowl for accurate fuel delivery.
COMMON FAILURE POINTS & SYMPTOMS
Understanding the typical failure modes of the Polaris Indy 500 fuel system components is crucial for rapid and accurate diagnosis. Below are common issues and their associated symptoms and diagnostic approaches.
1. Fuel Filter Clogging:
Symptom: Engine stalls under load, loss of top-end power, inconsistent idle, hard starting, or engine runs for a short period then dies.
Diagnosis: Visually inspect the inline fuel filter (Component 2 in the diagram). A dirty or discolored filter element indicates clogging. Disconnect the fuel line before and after the filter and check for fuel flow. A restricted filter will significantly impede flow.
Action: Replace with a new OEM or equivalent specified filter.
2. Deteriorated Fuel Lines:
Symptom: Fuel leaks (visible or by smell), cracking/hardening of lines, air entering the system leading to lean conditions, hard starting, or erratic engine operation. Ethanol in modern fuels accelerates deterioration.
Diagnosis: Conduct a thorough visual inspection of all fuel lines (Component 6) for cracks, chafing, swelling, or softness. Pay close attention to connections and bends. A clear fuel line might show air bubbles if there’s a leak on the suction side of the pump.
Action: Replace all affected fuel lines with ethanol-resistant, marine-grade (SAE J1527 or J30R9) lines.
3. Vacuum Fuel Pump Failure:
Symptom: Engine cranks but won’t start, engine sputters and dies, or loss of power under acceleration. No fuel reaching the carburetors despite fuel in the tank.
Diagnosis:
No Fuel Flow: Disconnect the fuel line from the pump outlet to the carburetors. Crank the engine (with spark plugs removed for safety) and check for fuel pulsing out of the pump.
Insufficient Pressure: If a fuel pressure gauge is available, connect it to the pump’s output line. Pressure should typically be 2-5 PSI when cranking.
Vacuum Line Integrity: Inspect the vacuum line (Component 4) for cracks, kinks, or loose connections. A compromised vacuum line will prevent the pump from operating.
Action: Replace the fuel pump (Component 3) and ensure the vacuum line is intact.
4. Primer Pump Malfunction:
Symptom: Difficult cold starting, especially after extended periods of rest. Engine requires excessive cranking or choke application to start.
Diagnosis: Manually operate the primer pump (Component 5). Listen for the distinct sound of fuel being injected into the carburetors or visually check if the primer lines are flowing fuel. Inspect the primer pump itself for leaks or a stiff plunger action.
Action: Replace the primer pump assembly or its internal seals if repairable. Ensure all primer lines are clear and connected.
5. Carburetor Fuel Bowl Issues (Float/Needle Valve):
Symptom:
Too Rich (Flooding): Fuel overflowing from the carburetor vents, strong fuel smell, fouled spark plugs, poor fuel economy, rough idle, black smoke.
Too Lean (Starvation): Engine bogs down, lack of power, engine overheating, “lean seizure” risk, hard starting.
Diagnosis:
Flooding: Visually inspect for fuel drips from carburetor overflows. Remove carburetors and inspect float height according to manufacturer specifications. Check needle valve and seat for wear or debris.
Starvation: Check fuel level in the float bowl (if translucent or by draining). Ensure main and pilot jets are clear. This often indicates a fuel delivery issue to the carburetor, but can also be caused by a stuck float or clogged inlet screen within the carburetor.
Action: Disassemble and clean the carburetors (Component 7). Replace worn float needles, seats, and adjust float height as per the service manual. For comprehensive carburetor maintenance, refer to our [Polaris Indy 500 Carburetor Rebuild Guide].
Always work in a well-ventilated area when dealing with gasoline. Ensure no open flames, sparks, or ignition sources are present. Have a fire extinguisher readily available. Wear appropriate personal protective equipment, including fuel-resistant gloves and eye protection. Disconnect the negative battery terminal before beginning any work to prevent accidental starting or electrical shorts.
REPAIR & REPLACEMENT STEPS: FUEL LINE REPLACEMENT
Deteriorated fuel lines are a very common problem, particularly on older Polaris Indy 500 models, largely due to the corrosive effects of ethanol-blended fuels. This procedure outlines the steps for replacing all primary fuel lines.
Tools and Materials Required:
New fuel lines (SAE J30R9 or equivalent, typically 1/4″ and 3/16″ ID, ethanol-resistant)
Fuel line clamps (Oetiker or worm-drive type)
Needle-nose pliers, hose clamp pliers, or screwdriver (depending on clamp type)
Utility knife or hose cutter
Drain pan or fuel-safe container
Shop rags
Zip ties or cable ties
Safety glasses and fuel-resistant gloves
1. Preparation and Safety:
Park the snowmobile on a level surface.
Ensure the engine is cool.
Locate the fuel shut-off valve (if present, typically on the fuel tank outlet) and turn it to the “OFF” position. If no valve, proceed with caution, minimizing spillage.
Place a drain pan beneath the fuel tank outlet and carburetors to catch any spilled fuel.
Disconnect the negative battery cable.
2. Access Fuel Lines:
Remove any covers, side panels, or airbox components that obstruct access to the fuel tank, fuel pump, and carburetors. Refer to your specific model’s service manual for panel removal.
3. Drain Fuel (Optional but Recommended):
If the fuel tank is full or you suspect contaminated fuel, disconnect the main fuel line from the tank outlet and allow the tank to drain into a suitable, labeled container.
4. Disconnect Old Fuel Lines:
Starting from the fuel tank outlet, identify each fuel line (supply, vacuum, primer) as shown in the Polaris Indy 500 fuel line diagram.
Using appropriate pliers or a screwdriver, loosen and slide back the existing fuel line clamps.
Carefully twist and pull the old fuel lines off their fittings. If they are stubborn, use a utility knife to carefully slit the end of the hose, taking care not to damage the barb fitting.
Immediately cap or plug any open fittings on the fuel tank or carburetors to prevent debris entry.
5. Measure and Cut New Fuel Lines:
For each section, lay the new, ethanol-resistant fuel line alongside the old line and cut it to the exact same length. Ensure clean, straight cuts.
It is critical to use fuel lines rated for modern ethanol-blended fuels (e.g., SAE J30R9 or marine-grade) to prevent premature deterioration. Standard vinyl or older rubber lines will degrade rapidly.
6. Install New Fuel Lines:
Install new clamps onto each end of the new fuel line sections before attaching the lines to fittings.
Connect the new fuel lines to their respective fittings, ensuring they are fully seated over the barbs.
Slide the clamps into position over the barbs and securely tighten them. Do not overtighten worm-drive clamps, as this can damage the line. Oetiker clamps require a specific tool for crimping.
Follow the fuel flow path: Tank → Filter → Fuel Pump → Carburetors for the main supply. Ensure the vacuum line is routed correctly from the crankcase to the fuel pump.
Reconnect all primer lines.
Route the lines carefully, avoiding sharp bends, kinking, or contact with hot engine components or moving parts. Use zip ties to secure lines where necessary, maintaining appropriate slack. For assistance with proper routing and component placement, consult a detailed [Polaris Indy 500 Service Manual fuel system] section.
7. Reconnect and Test:
Reconnect the negative battery cable.
Refill the fuel tank if drained.
Open the fuel shut-off valve.
Prime the fuel system by operating the primer pump several times until fuel is observed in the carburetors (if visible) or until resistance is felt.
Check all new connections for leaks.
Start the engine and allow it to warm up. Carefully re-inspect all fuel line connections for any signs of leakage with the engine running.
Check for smooth idle and throttle response. You may need to perform a carburetor sync or idle adjustment if major components were removed or disturbed. For more information on electrical components related to starting, see our [Polaris Indy 500 Wiring Diagram Guide].
Recommended Fuel Line Material: SAE J30R9 or J30R10 (for immersion) for ethanol resistance.
Typical Fuel Line Diameter: 1/4 inch (6.35mm) for main fuel supply, 3/16 inch (4.76mm) for vacuum and primer lines.
Fuel Pump Pressure: 2-5 PSI (not to be confused with high pressure fuel pump outputs of EFI systems).
Torque Spec for Fuel Pump Screws: Refer to specific service manual; typically 35-50 in-lbs (4-6 Nm) for small engine fasteners.
FAQ
What is the difference between a vacuum fuel pump and a high pressure fuel pump (HPFP)?
A vacuum fuel pump, common in Polaris Indy 500 models, is a low-pressure diaphragm pump operated by engine crankcase pressure pulses, delivering fuel typically between 2-5 PSI to carburetors. It does not contain an internal injection pressure regulator (IPR). A high pressure fuel pump (HPFP), on the other hand, is found in modern electronically fuel-injected (EFI) systems and delivers fuel at much higher pressures (hundreds to thousands of PSI) to fuel injectors, often with an integrated or separate injection pressure regulator to control the system pressure precisely. The Indy 500 does not utilize an HPFP or IPR.
Do I need a fuel return line on my Polaris Indy 500?
Typically, a standard carbureted Polaris Indy 500 does not utilize a dedicated fuel return line in the same way modern EFI systems do. Excess fuel pressure is managed within the carburetor’s fuel bowl by the float and needle valve assembly, which stops the flow once the desired fuel level is reached. Some systems might have an overflow vent from the carburetor bowl, but this is not a high-pressure recirculation return.
How often should I replace the fuel filter on my Indy 500?
Polaris recommends inspecting the fuel filter annually and replacing it every 2-3 years, or more frequently if you encounter fuel contamination issues or primarily use fuel from sources of questionable quality. A clogged fuel filter is a common cause of poor engine performance, particularly loss of power at higher RPMs, and neglecting it can lead to premature fuel pump failure.
What kind of fuel lines should I use for replacement?
Due to the widespread use of ethanol in gasoline, it is critical to use fuel lines rated as “ethanol-resistant.” Look for lines that meet SAE J30R9 or SAE J30R10 (for in-tank lines) specifications. These materials are designed to resist the corrosive and degrading effects of ethanol, which can cause older, non-resistant lines to crack, harden, or swell, leading to fuel leaks and air ingress into the fuel system.
Step-by-Step Guide to Understanding the Polaris Indy 500 Fuel Line Diagram: Component & Repair Guide 2026
Identify – Locate the fuel tank, fuel lines (feed and return), fuel filter, mechanical fuel pump, and carburetor on your Polaris Indy 500.
Locate – Reference the Polaris Indy 500 fuel line diagram to trace the complete fuel path, noting all connection points and component placement.
Reference – Use the diagram to confirm the correct routing of both the main fuel line and any fuel return line for proper flow and pressure.
Connect/Route – Securely connect new fuel lines, ensuring they follow the diagram’s specified path, avoiding sharp bends or contact with hot engine parts.
Verify – After installation or repair, start the engine and visually inspect all connections for fuel leaks, especially around the fuel pump and fuel bowl.
Troubleshoot – If fuel flow issues persist, re-check the diagram for missed connections, blocked lines, or an incorrectly installed fuel filter, and verify pump operation.
Frequently Asked Questions
What are the main components of the polaris indy 500 fuel line diagram?
The main components shown in the Polaris Indy 500 fuel line diagram include the fuel tank, fuel filter, mechanical fuel pump, carburetor, and associated fuel lines. Some diagrams also illustrate a fuel return line system. Understanding these parts is crucial for diagnosing any fuel delivery issues in your snowmobile’s system.
What are symptoms of a failing polaris indy 500 fuel line diagram pump?
Symptoms of a failing Polaris Indy 500 mechanical fuel pump include difficulty starting, loss of power under acceleration, engine stalling, or inconsistent RPMs. You might also notice fuel leaking from the pump diaphragm or a lack of fuel flow to the carburetor, indicating insufficient pressure for optimal engine operation.
How do I diagnose a fuel leak in polaris indy 500 fuel line diagram?
To diagnose a fuel leak in the Polaris Indy 500 fuel line diagram, visually inspect all fuel lines, clamps, and connections from the tank to the carburetor. Look for wet spots, drips, or strong fuel odors, especially around the fuel pump, fuel filter, and the fuel bowl. Check for cracked or brittle lines, particularly the fuel return line.
What is the fuel pressure spec for polaris indy 500 fuel line diagram?
The Polaris Indy 500 typically uses a low-pressure carbureted system. Fuel pressure specifications are usually in the range of 2-5 PSI from the mechanical fuel pump. Exceeding this, as with a high pressure fuel pump, is not applicable. Always consult your specific model’s service manual for precise pressure values to ensure correct operation.
How long does polaris indy 500 fuel line diagram fuel pump last?
A Polaris Indy 500 mechanical fuel pump can last many years, often 5-10 years or more, depending on maintenance and usage. Factors like ethanol in fuel, prolonged storage, or worn diaphragms can shorten its lifespan. Regular fuel filter replacement and keeping the fuel system clean helps extend the fuel pump’s service life.
Can I replace the polaris indy 500 fuel line diagram fuel filter myself?
Yes, replacing the Polaris Indy 500 fuel filter is a straightforward DIY task. The filter is typically an in-line type located between the fuel tank and the fuel pump. Ensure the engine is cold, shut off the fuel supply, use fuel clamps, and replace the filter, noting the flow direction. Check for leaks afterward.
