LLY Duramax Fuel System Diagram: Component & Repair Guide 2026

This technical overview provides a comprehensive examination of the LLY Duramax (6.6L V8, 2004.5-2005 model years) common rail fuel injection system. Detailed in the accompanying LLY Duramax fuel system diagram, we delineate the flow path from the fuel tank through the low-pressure and high-pressure stages to the fuel injectors. Understanding this complex system is paramount for accurate diagnostics, effective maintenance, and optimizing the performance of your LLY Duramax engine. We will identify each critical component and its role in maintaining precise fuel delivery and injection pressures.

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

Fuel System Components Breakdown

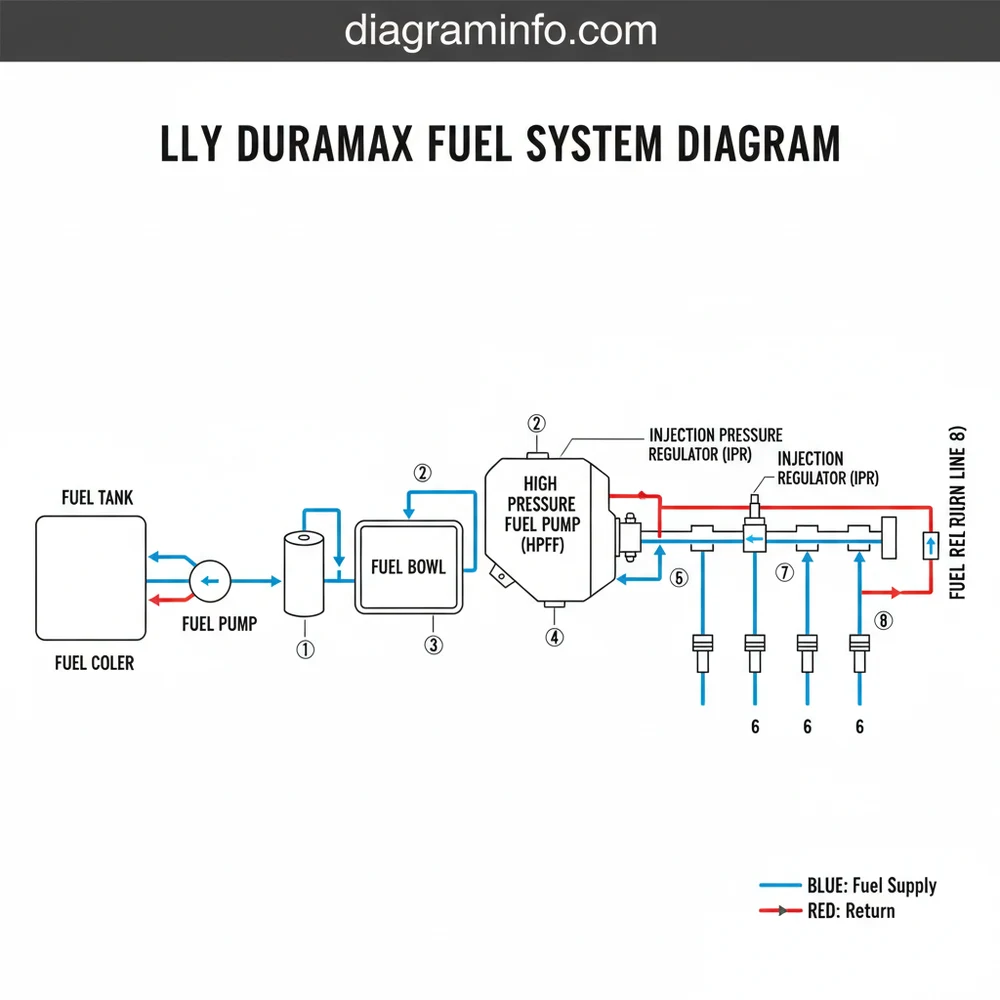

The LLY Duramax fuel system is a sophisticated high-pressure common rail design, distinct in certain aspects from earlier LB7 and later LBZ/LMM generations. As illustrated in the LLY Duramax fuel system diagram, fuel delivery is a multi-stage process involving precise pressure regulation and filtration.

1. Fuel Tank: Stores diesel fuel. The LLY, like other Duramax models, relies on the high-pressure pump for initial fuel draw, not a lift pump in the tank.
2. Fuel Supply Line: Carries fuel from the tank to the fuel filter housing. This is the primary low-pressure feed.
3. Fuel Filter Housing / Fuel Bowl: Houses the replaceable fuel filter element. It also typically incorporates the water-in-fuel (WIF) sensor and the primer pump. This component is crucial for removing contaminants and water from the fuel before it reaches the high-pressure pump.
4. Primer Pump: A manual hand pump integral to the fuel filter housing. It is used to prime the fuel system after filter replacement or if the system runs out of fuel, ensuring the low-pressure side is filled and air-free.
5. Fuel Heater: Located within or near the fuel bowl, this electric element heats the fuel to prevent gelling in cold weather conditions, ensuring consistent fuel flow.
6. Fuel Lines (Low Pressure): Connect the fuel filter housing to the high-pressure fuel pump and the low-pressure side of the engine.
7. High Pressure Fuel Pump (HPFP) / CP3 Pump: The heart of the LLY fuel system, this component (specifically a Bosch CP3) is engine-driven and serves two primary functions:
   • It draws fuel from the tank, acting as the primary low-pressure transfer pump.
   • It pressurizes the fuel to extremely high levels (up to 23,200 PSI or 160 MPa) and delivers it to the fuel rails.

   Refer to our CP3 Pump Upgrades Guide for advanced performance modifications.

8. Fuel Rail Pressure Sensor: Located on the common fuel rail, this sensor monitors the actual fuel pressure in the rail and sends this data to the Engine Control Module (ECM).
9. Fuel Rail: A common reservoir that receives highly pressurized fuel from the HPFP and distributes it to each injector. It dampens pressure pulsations and ensures even pressure distribution.
10. Fuel Injectors: Electronically controlled, precision devices that spray atomized fuel directly into the combustion chambers under extremely high pressure. The LLY Duramax uses solenoid-actuated injectors.
11. Injection Pressure Regulator (IPR) / Fuel Pressure Regulator (FPR) / Fuel Quantity Regulator (FQR): Located on the high pressure fuel pump, this valve is controlled by the ECM. It regulates the amount of fuel entering the high-pressure pumping chambers of the CP3 pump, thereby controlling the output pressure to the fuel rails. Accurate regulation here is critical for engine performance.
12. Fuel Return Line: Carries excess fuel (both low-pressure bypass fuel from the CP3 pump and un-injected fuel from the injectors) back to the fuel tank. This constant circulation helps cool the fuel and the pump.
13. Fuel Cooler: Positioned in the fuel return line, this component dissipates heat from the returning fuel before it re-enters the tank, preventing excessive fuel temperature buildup.

Common Failure Points & Symptoms

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

Understanding potential failure points in the LLY Duramax fuel system is critical for proactive maintenance and efficient troubleshooting. Many issues can be traced back to contamination or pressure regulation problems.

1. Fuel Filter / Fuel Bowl:
   • Symptom: Reduced engine power, stumbling, hard starting, or no start. DTC P0087 (Fuel Rail Pressure Too Low).
   • Diagnosis: A clogged fuel filter restricts flow, leading to fuel starvation at the HPFP. Check filter replacement history. Inspect the fuel bowl for leaks or damage to the WIF sensor or drain valve. A leaking primer pump can also introduce air.
2. High Pressure Fuel Pump (HPFP) / CP3 Pump:
   • Symptom: Extended crank times, hard starting (especially when hot), rough idle, power loss under load, black smoke, or repeated DTCs like P0087, P0088 (Fuel Rail Pressure Too High), P1093 (Fuel Pressure Control Valve Malfunction).
   • Diagnosis: A failing CP3 pump can’t maintain commanded rail pressure. Monitor actual vs. desired fuel rail pressure with a scan tool. A common internal failure is the fuel pressure regulator valve. Contaminants can damage the pumping elements. Refer to OEM diagnostic procedures for pressure tests.
3. Injection Pressure Regulator (IPR) / FPR:
   • Symptom: Similar to HPFP failure: erratic rail pressure, poor starting, rough idle, stalling, DTC P1093, P0087, or P0088.
   • Diagnosis: The IPR valve on the HPFP can stick, wear, or become contaminated, preventing precise pressure regulation. A clogged or faulty IPR can cause the CP3 to over or under-pressurize the fuel rail. Electrical checks of the IPR circuit and monitoring IPR commanded vs. actual percentages with a scan tool are key.
4. Fuel Injectors:
   • Symptom: Misfires, excessive smoke (white, blue, or black depending on failure mode), poor fuel economy, engine knocking, fuel in the oil (dilution), or a strong diesel smell.
   • Diagnosis: Injector failure can manifest as excessive fuel return line flow, poor spray patterns, or internal leaks. A balance rate test with a capable scan tool can identify cylinders with underperforming injectors. Visual inspection for external leaks or corrosion is also necessary. For detailed diagnostic steps, consult our Duramax Injector Replacement Guide.
5. Fuel Lines / Fuel Return Line:
   • Symptom: Hard start, air in fuel, fuel leaks, loss of power.
   • Diagnosis: Look for cracked, chafed, or loose fuel lines, especially in the low-pressure sections. Air intrusion in the suction side can cause significant drivability issues. Observe fuel flow for bubbles in clear return lines.
6. Water-in-Fuel (WIF) Sensor:
   • Symptom: WIF light on dashboard, potentially leading to fuel system damage if not addressed.
   • Diagnosis: The sensor detects water accumulation in the fuel bowl. Ensure regular draining of the fuel bowl. If the light persists after draining, the sensor itself may be faulty. Refer to Common Duramax DTCs for specific WIF-related codes.

Repair & Replacement Steps: Fuel Filter & Primer Pump Assembly

The fuel filter and primer pump assembly is one of the most frequently serviced components on the LLY Duramax. Regular maintenance is crucial to protect the HPFP and injectors from contamination. This procedure outlines the replacement of the fuel filter element and inspection of the primer pump.

Required Tools and Materials:

• New OEM or equivalent quality fuel filter element (ACDelco TP1263B or equivalent).
• Drain pan or container (approx. 2-liter capacity).
• Fuel filter wrench (strap wrench or specific cup-style wrench).
• Clean shop rags.
• Gloves and eye protection.
• Torque wrench.
• Clean diesel fuel (for pre-filling, optional but recommended).

Procedure:

1. Preparation & Safety:

   Ensure the engine is off and cool. Disconnect the negative battery terminal to prevent accidental starting or electrical shorts. Place a drain pan directly under the fuel filter housing on the driver’s side of the engine block.
2. Drain Fuel Filter Housing:

   Open the drain valve at the bottom of the fuel bowl. Allow all fuel to drain into the collection pan. Once drained, close the valve.

3. Disconnect Electrical Connectors:

   Unplug the Water-in-Fuel (WIF) sensor connector from the bottom of the filter assembly. Also, disconnect the fuel heater electrical connector if present (typically a two-wire connector near the top of the bowl). Be gentle, as these plastic connectors can become brittle with age.
4. Remove Old Filter Element:

   Using a fuel filter wrench, carefully loosen and unscrew the filter housing counter-clockwise. Once loose, carefully lower the entire filter assembly. The WIF sensor will unscrew with the filter. Be prepared for a small amount of residual fuel to spill.

5. Inspect & Clean:

   Inspect the inside of the fuel bowl and the sealing surfaces for any debris, damage, or excessive sediment. Clean thoroughly with a clean rag. Examine the condition of the WIF sensor O-rings. If the sensor is leaking or damaged, consider replacing it. Note the presence and condition of the fuel heater element within the bowl. For regular Duramax fuel system maintenance, consult our guide on Duramax Fuel Filter Maintenance.
6. Prepare New Filter:

   Apply a thin coat of clean diesel fuel to the O-ring of the new fuel filter element. Some technicians choose to pre-fill the new filter with clean diesel fuel to aid in priming, but this must be done with extreme care to avoid introducing contaminants. If not pre-filled, the primer pump will require more strokes.

7. Install New Filter:

   Carefully thread the new fuel filter element onto the filter head by hand. Ensure it engages correctly to avoid cross-threading. Tighten until the gasket seats, then tighten an additional 3/4 to 1 full turn by hand or with the specified torque. Over-tightening can damage the filter housing or O-ring.

   🔧 Specification

   Refer to OEM specifications for exact filter torque. Typically, this is hand-tight plus 3/4 to 1 turn, or approximately 22-26 ft-lbs (30-35 Nm) if using a filter wrench with a torque adapter.
8. Reconnect Electricals:

   Reattach the WIF sensor connector and the fuel heater connector securely.

9. Prime the System:

   Actuate the primer pump plunger on top of the filter housing repeatedly until it becomes firm. This indicates the low-pressure system is full of fuel and free of air. Typically, 30-60 firm pumps are required if the filter was not pre-filled.
10. Final Checks:

    Reconnect the negative battery terminal. Turn the ignition to the “ON” position (do not start) for 15-30 seconds to allow the ECM and fuel system to cycle. Repeat this step 2-3 times. Then, start the engine. Check for any fuel leaks around the filter housing. Allow the engine to idle for several minutes, checking for smooth operation and re-checking for leaks. The primer pump should remain firm.

FAQ

What is the function of the Injection Pressure Regulator (IPR) on an LLY Duramax?

The Injection Pressure Regulator (also known as the Fuel Pressure Regulator or Quantity Regulator) is an ECM-controlled solenoid valve located on the high pressure fuel pump. Its primary function is to precisely control the amount of fuel entering the high-pressure pumping chambers of the CP3 pump. By modulating fuel flow, the IPR directly regulates the fuel pressure delivered to the common rail, ensuring the engine receives the exact pressure commanded by the ECM for optimal performance and emissions.

Why does my LLY Duramax not have an in-tank lift pump?

The LLY Duramax, like all early Duramax engines (LB7, LLY, LBZ, LMM), was designed without an in-tank or frame-mounted lift pump. Instead, the high pressure fuel pump (HPFP), specifically the Bosch CP3, is engineered to be a self-priming pump capable of drawing fuel directly from the fuel tank. While this design is functional, it places more reliance on a pristine fuel filter and a properly functioning primer pump to prevent air intrusion and ensure adequate fuel supply to the CP3.

How often should the fuel filter be replaced on an LLY Duramax?

General recommendations for the LLY Duramax fuel filter replacement vary, but most OEM and reputable aftermarket sources suggest replacement every 10,000 to 15,000 miles (16,000 to 24,000 km) or annually, whichever comes first. However, if you frequently use low-quality fuel, operate in dusty environments, or experience symptoms of fuel starvation, more frequent replacement may be necessary. Regular draining of the fuel bowl to remove water is also critical to extend filter life and protect the fuel system components.

What role does the fuel cooler play in the LLY fuel system?

The fuel cooler is an essential component located in the fuel return line on the LLY Duramax. Its purpose is to dissipate the heat generated by the high pressure fuel pump and the injectors, as much of the fuel circulated by the CP3 and not injected is returned to the tank. Without the fuel cooler, the continuously circulating fuel would steadily increase in temperature, potentially leading to vapor lock, reduced fuel density (affecting power), and accelerated wear on fuel system components. It helps maintain optimal fuel temperature for efficient operation.

Can aftermarket performance modifications affect the LLY Duramax fuel system?

Yes, aftermarket performance modifications such as power programmers, larger injectors, or HPFP upgrades can significantly impact the LLY Duramax fuel system. While these modifications can increase power, they also place additional stress on components. Increased fuel demands may push the stock CP3 pump beyond its efficient operating range, potentially requiring a CP3 Pump Upgrade. It’s crucial to ensure that any modifications are supported by appropriate fueling system enhancements and professional tuning to maintain reliability and prevent premature component failure, especially considering the already robust but sensitive nature of the common rail system.
