Diagram How to Jump Fuel Pump Relay on Chevy Truck: Guide

If your Chevrolet truck is cranking but failing to start, or if you suspect your fuel pump has reached the end of its lifespan, knowing the correct diagram how to jump fuel pump relay on chevy truck can be the difference between being stranded and getting back on the road. This diagnostic procedure bypasses the complex switching logic of the vehicle’s computer to provide direct power to the fuel pump. By understanding the specific pinouts and electrical flow within the fuse block, you can quickly determine if your starting issue lies with the pump itself, the relay, or the control signals sent by the engine management system. This guide provides a comprehensive breakdown of the relay architecture and a safe, step-by-step methodology for testing your fuel system integrity.

The internal wiring of a standard GM fuel pump relay follows a specific ISO 280 pattern, typically consisting of four or five pins. To successfully jump the relay, you must understand the distinction between the “load side” and the “control side” of the circuit. The load side consists of Pin 30 and Pin 87. Pin 30 is the high-current battery feed, which is protected by a dedicated fuel pump fuse. Pin 87 is the output terminal that sends that voltage directly down the wire to the fuel pump assembly located in the gas tank. On the other side of the diagram, Pins 85 and 86 represent the control circuit. These pins receive a low-current signal from the ECU (Engine Control Unit) to energize a small electromagnetic coil inside the relay. When this coil is energized, it pulls a physical contact bridge closed, connecting Pin 30 to Pin 87.

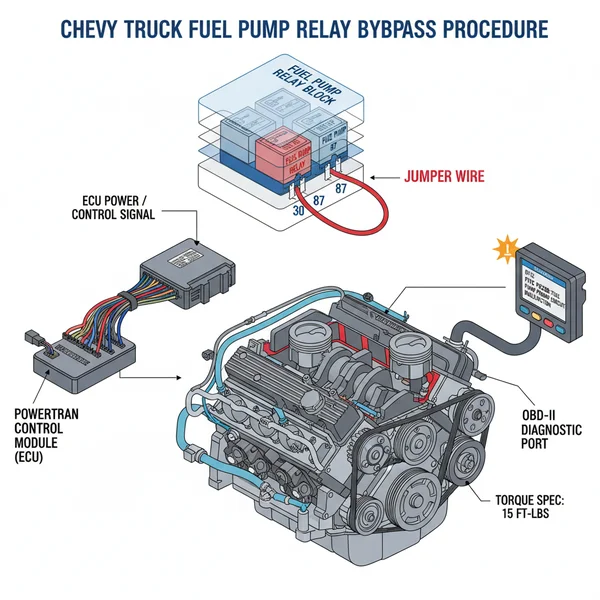

In most Chevy trucks, the fuel pump relay is located in the Underhood Fuse Block (UHFB), usually situated on the driver’s side fender well. The diagram printed on the underside of the fuse box cover is your primary map; however, it only shows the location of the relay, not the internal pin configuration. When you remove the relay and look at its base, you will see the numbers 30, 87, 85, and 86 etched next to the metal blades. In some newer models, these may be labeled 1, 2, 3, and 5, but the functional logic remains identical. The diagram below illustrates the physical orientation of these terminals as they appear when looking down into the empty relay socket on the fuse panel.

Performing a relay jump is a high-level diagnostic task that requires precision. Follow these steps to interpret the diagram and execute the jump safely:

• ✓ Step 1: Preparation and Safety. Ensure the truck is in Park with the emergency brake engaged. Because you are working with live electrical circuits near the battery, remove any loose jewelry. Have a fire extinguisher nearby, as you will be manually activating a fuel system component.
• ✓ Step 2: Locate the Relay. Open the hood and find the black plastic fuse box. Remove the lid and locate the “FUEL PMP” relay using the legend on the underside of the cover. Pull the relay straight up to remove it from the socket.
• ✓ Step 3: Verify Power at Pin 30. Use a multimeter or a test light to check Pin 30 in the fuse box socket. It should have a constant 12 volts even with the ignition key off. If there is no power here, your issue is likely a blown primary fuse or a fusible link, rather than the relay or the pump.
• ✓ Step 4: Prepare the Jumper Wire. Use a short piece of 14-gauge insulated copper wire with the ends stripped, or a specialized fused jumper tool. Do not use a thin paperclip for extended periods, as the fuel pump draws significant amperage and can cause a thin wire to melt or burn your fingers.
• ✓ Step 5: Bridge Pins 30 and 87. Insert one end of your jumper wire into the socket corresponding to Pin 30. Insert the other end into the socket for Pin 87.
• ✓ Step 6: Listen for Pump Activation. As soon as the connection is made, you should hear a “whirring” or “humming” sound coming from the fuel tank area. This indicates the fuel pump motor is functional and receiving power.
• ✓ Step 7: Attempt to Start the Engine. With the jumper wire in place, try to start the truck. If the truck starts and runs perfectly, you have confirmed that your fuel pump is good, but the relay or the ECU signal circuit (Pins 85/86) is faulty.
• ✓ Step 8: Disconnect the Jumper. Once testing is complete, remove the jumper wire immediately. Leaving the pump running while the engine is off can drain the battery and potentially overheat the pump motor, as fuel flow is what cools the internal components.

If you follow the diagram and jump the relay but the truck still won’t start, several common issues might be at play. First, if you jump Pins 30 and 87 and hear nothing, use a multimeter at the fuel pump connector (located near the tank) to see if power is reaching the pump. If power is present at the tank but the pump is silent, the pump motor has failed. If no power reaches the tank, there is a break in the wiring harness between the fuse box and the rear of the truck.

Another frequent problem involves the OBD-II system. If the Check Engine Light is illuminated, use a scanner to check for a diagnostic code such as P0230 (Fuel Pump Primary Circuit Malfunction). This code suggests that the ECU has detected an electrical fault in the control side of the relay (Pins 85/86). While the relay jump might get the truck running, it won’t fix the underlying wiring issue or a failing ECU driver. Furthermore, always check for signs of corrosion beneath the fuse block. Chevy trucks are known for road salt and moisture seeping into the UHDFB, which can rot the underside of the fuel pump relay terminals, making a successful jump impossible even if the pump is brand new.

When performing these repairs, always adhere to proper maintenance standards. If you end up replacing the fuel pump, ensure you clean the fuel tank of any debris to prevent premature failure of the new unit. Additionally, pay attention to related mechanical systems. While a fuel issue is common, verify that your accessory belt is intact and the timing chain isn’t showing signs of excessive slack, as these can also cause no-start conditions that mimic fuel delivery problems.

For those who must replace electrical components, always use high-quality OEM or equivalent relays. Cheap aftermarket relays often have lower heat tolerances and may fail under the high-amperage load required by the fuel pump. When reassembling any electrical ground wires you may have loosened during diagnosis, ensure they are cleaned to bare metal and tightened to the correct torque spec to prevent voltage drops. Proper electrical contact is crucial; even a small amount of resistance can impede coolant flow if it affects the electric fans, or stall the engine if it affects the fuel system. By meticulously following the diagram how to jump fuel pump relay on chevy truck and observing these best practices, you ensure a reliable repair that keeps your truck on the road for years to come.
