Ford 501 Sickle Mower Parts Diagram: 2026 Breakdown
The Ford 501 sickle mower parts diagram details the 3-point hitch assembly, pitman drive mechanism, inner/outer shoes, and cutter bar system. It maps the 7-foot or 6-foot bar configuration, knife section register, wear plates, ledger plates, and hold-down clips, driven by a 540 RPM PTO pulley setup.
📌 Key Takeaways
- The 540 RPM PTO shaft drives a counterbalanced flywheel and flexible pitman arm assembly
- Blade register requires knife section tips to align centrally on guards at stroke end
- Torque hold-down clip bolts to 35-45 ft-lbs while keeping knife back clearance under 1/32 inch
- Worn ledger plates and loose pitman sockets cause ragged cutting and excessive vibration
- Replace cracked frame components professionally while performing guard alignment via DIY
Maintaining the legendary Ford 501 rear-mounted sickle bar mower requires a precise technical understanding of its mechanical assembly and structural driveline. Designed for Category 1 three-point hitch hookups and standard 540 RPM power take-off (PTO) systems, this implement relies on precise mechanical tolerances, proper section registration, and exact belt tensioning. Utilizing an authentic ford 501 sickle mower parts diagram enables technicians and equipment operators to identify worn drive components, set correct cutter bar lead angles, order exact OEM replacement part numbers, and perform complete overhaul procedures without relying on guesswork.
Ford 501 Sickle Mower Parts Diagram Structural Breakdown
The Ford 501 sickle bar mower functions through four interconnected sub-assemblies: the primary 3-point mounting frame, the V-belt drive transmission system, the pitman drive assembly, and the cutter bar structural frame. According to OEM engineering specifications, power flows from the tractor PTO stub shaft through a shielded universal joint driveline into the primary drive sheave. This 12-inch cast-iron pulley multiplies torque via a heavy-duty B-section V-belt to drive the eccentric flywheel, which converts rotational motion into linear reciprocating motion through the wooden or composite pitman arm.
The lower structural frame consists of a rigid tubular A-frame connected to an adjustable drag bar and breakaway safety latch. The breakaway mechanism is engineered to release the cutter bar when encountering submerged field obstacles, pivoting the entire assembly backward up to 45 degrees to protect the inner and outer shoe castings. Understanding these spatial relationships via the schematic layout is essential for setting proper operating geometry and preserving knife section longevity.
| Component Name | OEM Part Reference | Functional Description | Torque / Clearance Spec |
|---|---|---|---|
| Pitman Stick Assembly | 141151 / 141152 | Transfers reciprocating motion from flywheel to knife head | 3/8″ carriage bolts: 30-35 lb-ft |
| Rock Guard (Double/Single) | 141019 / 141381 | Protects sections and provides ledger shear edge | 7/16″ guard bolts: 45-50 lb-ft |
| Knife Hold-Down Clip | 141024 | Maintains section contact against ledger plates | 0.010″ – 0.020″ gap clearance |
| Wear Plate Assembly | 141026 | Supports back edge of knife bar to prevent binding | 0.015″ maximum rear clearance |
| Breakaway Latch Spring | 141203 | Provides tensioned release under impact loading | Preload length: 4.25 inches |
Manufacturer specs indicate that knife sections must utilize 5.5 countersunk rivets or grade-8 section bolts (7/32″ x 5/8″) torqued to 85 in-lbs. Always inspect the back flange of the cutter bar for straightness; total runout across a 7-foot bar must not exceed 1/16 inch.
Drive System Layout and Flywheel Assembly
The drive housing configuration relies on a balanced eccentric flywheel (Part No. 141120) supported by tapered roller bearings (Timken 15123/15245 cone and cup combination). The primary drive shaft is keyed to the belt pulley with a 1/4-inch square key and secured via a locknut tightened to 110-120 lb-ft. Radial play in the flywheel shaft indicates bearing cup wear, which rapidly causes pitman stick failure if not corrected immediately.
Cutter Bar System and Knife Section Alignment
The cutter bar layout incorporates heavy-duty high-carbon steel sections bolted or riveted to a 1/4-inch thick main knife back. Guard lip height relative to the wear plates determines the precision of the scissor-like shear action. When referencing our comprehensive cutter bar ledger plate replacement procedure, notice how the guard ledger plates form the lower stationary cutting edge while underserrated or smooth knife sections act as the moving blade.
How to Read the Ford 501 Sickle Mower Schematic Blueprint

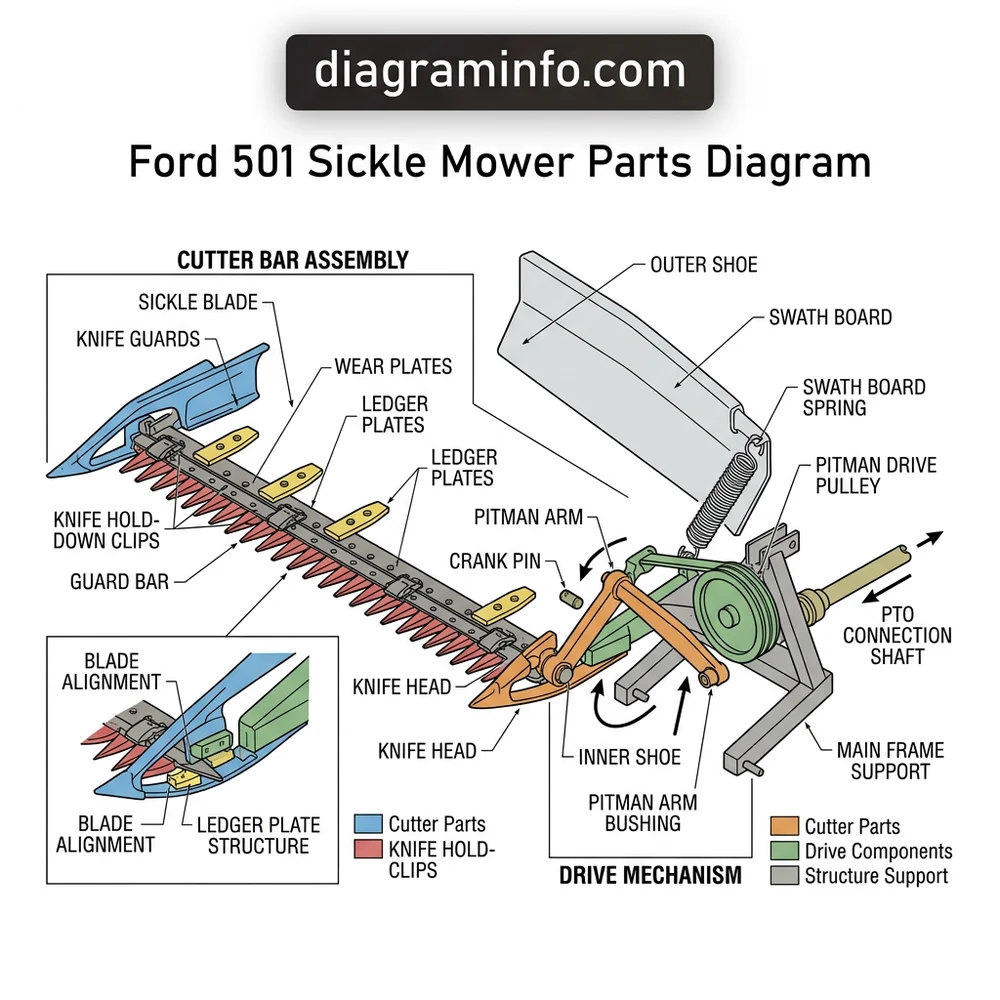

Interpreting a technical schematic blueprint for the Ford 501 requires tracing force vectors and rotational paths starting from the PTO input yoke down to the outer shoe assembly. On official factory diagrams, numerical callouts correspond directly to exploded view groups. Dotted lines indicate mechanical alignment axes, such as the pivot pin centerline on the inner shoe hinge bracket or the drag bar adjustment yoke.
To analyze the mechanical linkage correctly, begin at the 3-point hitch connection points. The lower lift pins (Category 1, 7/8-inch diameter) establish the primary lateral datum line. The top link pin controls the fore-aft tilt pitch of the entire frame assembly. When viewing the blueprint overview, locate the main pivot assembly where the cutter bar attaches to the inner shoe casting; this point serves as the reference origin for all angle and lead adjustments.
When adjusting the cutter bar, ensure the tractor is parked on a flat, level concrete pad with the PTO disengaged, engine off, and 3-point hitch hydraulics locked out. Refer to our detailed three-point hitch geometry adjustment guide for setting correct lower arm stabilizer bar tension before establishing cutter bar lead.
Mapping the PTO Driveline to the Pitman Flywheel
Follow the mechanical sequence from the tractor power shaft through the primary drive shaft. The primary PTO shaft features a 1-3/8 inch 6-spline quick-disconnect yoke operating through two universal joint cross-and-bearing kits (OEM # 140022). Power transfers from the front input shaft to the main drive sheave. Ensure the drive belt tracks true within the pulley V-groove; misalignment exceeding 1/8 inch across the pulley faces causes rapid belt rollover and thermal degradation.
Tracing the Breakaway Latch and Drag Bar Configuration
The safety release mechanism shown on the ford 501 sickle mower parts diagram consists of an upper latch housing, a hardened latch latch pin, and a heavy coil compression spring. The drag bar extends from the main frame diagonally to the inner shoe socket. Under normal operating draft loads, the latch holds the drag bar rigid. When the bar strikes a hidden obstacle, the spring compresses, allowing the latch pin to ride over the wedge stop, freeing the cutter bar to swing rearward behind the tractor wheels.
Calibrating Sickle Bar Register and Guard Alignment
Knife registration is critical for clean cutting performance. “In register” means that at both ends of the pitman stroke, the individual knife sections center precisely within the guard slots. Follow these exact steps using the schematic layout as your guide:
1. Rotate the main drive flywheel manually until the pitman arm reaches the absolute inner dead-center position of its stroke.
2. Observe the position of the individual knife section tips relative to the centerlines of the rock guards.
3. Rotate the flywheel 180 degrees to the outer dead-center position and re-check section alignment.
4. If the knife sections favor one side of the guard centerline at the end of both strokes, adjust the total length of the pitman stick or thread the pitman ball socket eyelet in or out until complete centering is achieved on both stroke ends.
5. Check clearance between the top of each knife section and the underside of the hold-down clip using a feeler gauge. Tap hold-down clips lightly with a 2-pound brass hammer to achieve the required 0.010 to 0.020-inch clearance gap.
Troubleshooting Mechanical Failures Using the Ford 501 Component Overview
Diagnosing operational faults on the Ford 501 requires systematically inspecting parts against factory tolerances shown in the mechanical component layout. Wear in secondary components, such as worn pitman box bushings or loose hinge pins, manifests as severe vibration, ragged crop cutting, or repeated shear pin breakage.
Never attempt to unclog crop debris or inspect section registration while the tractor engine is running or the PTO shaft is engaged. Kinetic energy stored in the heavy flywheel can cycle the cutter bar unexpectedly even after PTO disengagement.
Excessive Cutter Bar Vibration and Pitman Arm Shear
Severe cutter bar chatter or broken pitman sticks typically stem from improper registration, binding wear plates, or worn flywheel bearing journals. Inspect the pitman strap attachment bolts for loss of clamp load. If the wooden pitman stick splits repeatedly, inspect the pitman box bearing (OEM # 141158) for excessive radial slop. If the bearing clearance exceeds 0.035 inches, the cyclic bending load transferred to the pitman stick will cause structural fatigue fracture within 2 to 5 hours of operation.
Improper Cutter Bar Lead Angle and Breakaway Unlatching
During normal operation, grass resistance pushes the outer end of the cutter bar backward. To compensate for this rearward deflective force, the cutter bar must be set with a “lead angle” when static. Factory specifications require the outer shoe tip to lead the inner shoe by approximately 1/4 inch per foot of bar length (1.5 inches forward for a 6-foot bar; 1.75 inches forward for a 7-foot bar).
If the cutter bar constantly unlatches without hitting an obstacle, inspect the breakaway latch wedge for rounded catch corners. Replace worn latch pins (Part No. 141201) and adjust spring compression via the threaded adjustment nut until the release force equals approximately 250 to 300 pounds of pull force applied at the outer shoe tip. For additional driveline service steps, consult our comprehensive tractor PTO driveline maintenance manual.
Uneven Grass Cutting, Section Jamming, and Plugging
Plugging occurs when forage slips between the knife section and the guard ledger plate instead of being sheared cleanly. Refer to the layout diagram to check three critical parameters: ledger plate sharpness, hold-down clip height, and wear plate forward positioning. If wear plates demonstrate a deep groove worn into their front edge, the knife back slips backward, creating a gap between section and ledger plate. Replace wear plates when front edge thickness wears down by more than 1/16 inch from original specs.
Ford 501 Sickle Mower Parts Diagram Technical Reference FAQ
What is the correct pitman stick length and registration setting on a Ford 501 sickle mower?
The standard wooden pitman stick for the Ford 501 measures 37-1/2 inches from center-of-hole to center-of-hole for standard 6-foot and 7-foot cutter bars. Registration is adjusted so that at both the extreme inner and outer stroke positions, the point of each knife section rests directly over the precise vertical center line of its corresponding rock guard. If sections do not center evenly, thread the pitman strap ball-and-socket eyelet on the pitman end in or out to fine-tune section position without altering overall drive stroke length.
How do you adjust the lead angle of the cutter bar using the layout schematic?
Cutter bar lead angle is adjusted via the eccentric adjustment bushing located on the rear drag bar attachment point at the inner shoe or by threading the drag bar turnbuckle assembly. To verify lead, stretch a string parallel to the tractor’s rear axle directly behind the cutter bar assembly. Measure the distance from the string to the back edge of the knife bar at the inner shoe, then measure the distance at the outer shoe tip. The outer shoe measurement must be shorter by 1-1/2 inches (for a 6-foot bar) or 1-3/4 inches (for a 7-foot bar) compared to the inner shoe reading.
Where can original OEM Ford 501 part numbers be cross-referenced for replacement guards and sections?
Original Ford 501 part numbers can be cross-referenced through modern New Holland equipment catalogs, as CNH Industrial maintains historical tooling records for legacy Ford implements. Key universal cross-references include double rock guard OEM # 141019 (often replaced by modern forged guards like MC141019 or BU55), standard smooth section # 141088, underserrated section # 141089, and knife hold-down clip # 141024. Third-party agricultural supply manufacturers also maintain direct part-number mapping using standard 1/2-inch or 7/16-inch guard bolt center dimensions.
How does the breakaway safety mechanism operate according to the system configuration?
The breakaway mechanism consists of a spring-loaded latch block pinned to the main frame tubular drag arm. When the cutter bar impacts a fixed obstruction such as a stump or rock, the horizontal load force overcomes the pre-tensioned compression spring (OEM # 141203). This allows the latch hook to slip off the hold pin, releasing the drag bar and allowing the cutter bar to swing back behind the tractor wheel. To reset the mechanism, reverse the tractor slowly until the latch snaps back into engagement, or manually pull the bar forward until the spring latch re-seats firmly over the stop block pin.
What grease types and service intervals apply to the Ford 501 drive components?
All grease zerks on the Ford 501—including the pitman drive wrist pin, pitman bearing box, inner shoe hinge pins, main drive shaft bearings, and PTO universal joints—require NLGI Grade 2 lithium-complex extreme-pressure (EP) grease. Under heavy operating conditions, lubricate the pitman wrist pin and ball socket every 2 to 4 operating hours. Lubricate PTO shaft universal joints, drive shaft pillow blocks, and inner shoe pivots every 8 hours. Apply a light coat of clean SAE 30 machine oil along the knife sections and wear plates prior to storage to prevent flash rust on machined cutting edges.
Step-by-Step Guide to Understanding the Ford 501 Sickle Mower Parts Diagram
Identify – Inspect the diagram drive configuration and locate the PTO input shaft, belt shield, and pitman flywheel.
Locate – Position the cutter bar assembly, identifying the knife head connection, hold-down clips, and wear plates.
Reference – Check callout numbers on the schematic to verify proper hardware orientation, shims, and bolt lengths.
Connect/Route – Install the pitman stick to the knife head drive socket, tightening hardware to manufacturer specs.
Verify – Turn the drive pulley by hand to ensure blade sections register centered over rock guards at full stroke.
Troubleshoot – Adjust wear plates and tap guards with a mallet if knife sections bind or show excessive vertical play.
