2-Wire Actuator Wiring Diagram: Troubleshooting 2026
A 2-wire actuator wiring diagram illustrates a simple DC motor circuit where dynamic movement depends on polarity reversal. Applying 12V positive to the red hot wire and negative to the black ground wire extends the shaft, while swapping polarity retracts it. AC 2-wire actuators utilize line hot and neutral wire connections.
📌 Key Takeaways
- Most 12V DC 2-wire linear actuators use red for positive (+12V) and black for ground/negative chassis wire.
- Reversing polarity between the two terminals changes the mechanical extension or retraction direction.
- Standard 12V 2-wire systems typically require 16 AWG or 14 AWG wire to prevent excessive voltage drop.
- Incorrect pin assignment or improper fusing can cause thermal overload and burnt internal brush contacts.
- Always install a 10A-15A inline fuse on the hot wire before connecting to a DPDT switch or relay.
Proper wiring of a 2-wire linear or rotary actuator requires a clear understanding of direct current (DC) reversible polarity circuits. Whether installing door lock actuators, HVAC blend door motors, or heavy-duty industrial equipment actuators, a comprehensive 2-wire actuator wiring diagram provides the critical electrical schematic needed to prevent short circuits, thermal overload, and premature motor breakdown. Unlike multi-wire proportional actuators that utilize dedicated position feedback potentiometers, standard 2-wire actuators rely on bidirectional current reversal across an internal DC motor to accomplish extension and retraction. This technical guide outlines exact wire color code conventions, terminal block pin assignments, relay control matrix configurations, system operating voltages, and step-by-step installation methodologies for automotive and equipment technicians.

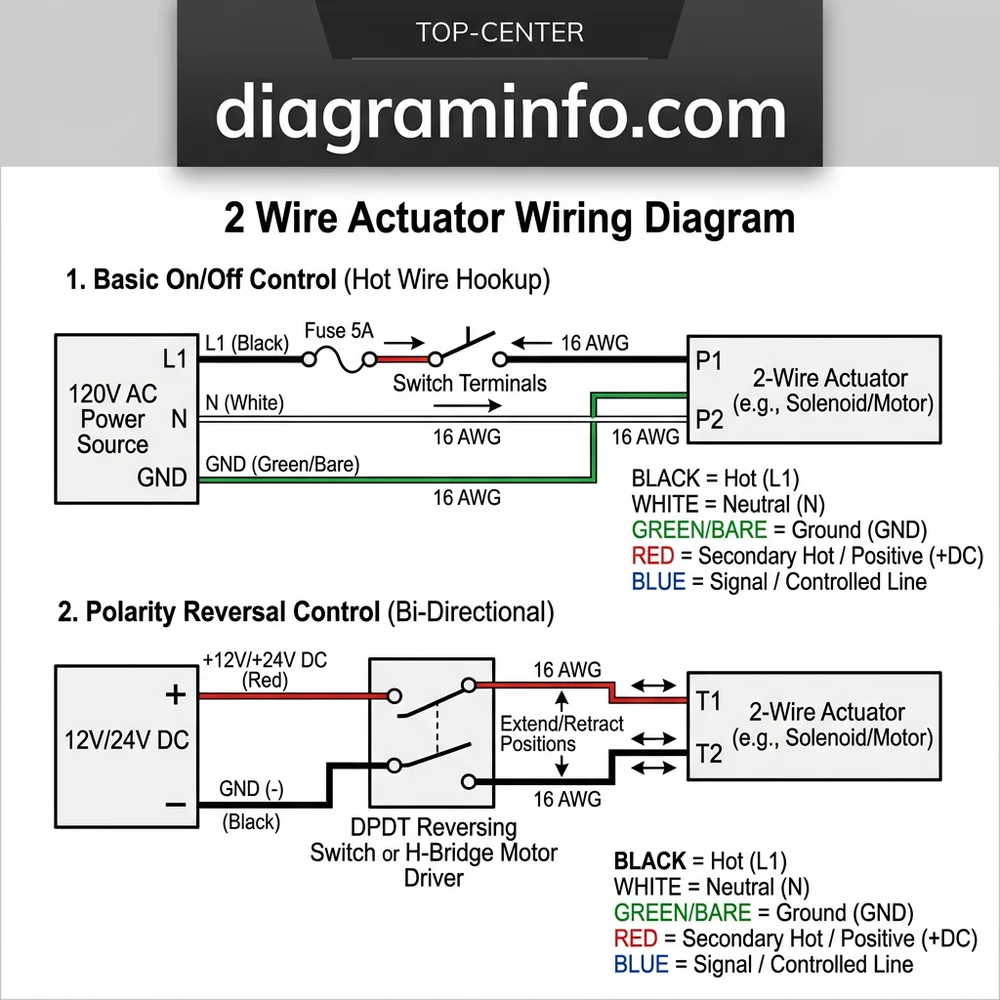

Understanding the 2-Wire Actuator Wiring Diagram and Reversing Polarity Mechanics
A standard 2-wire DC actuator operates without complex integrated logic boards. Inside the housing sits a permanent magnet DC motor connected to a mechanical leadscrew or gear assembly. Because DC electric motors change rotational direction when the electrical polarity across their terminals is flipped, driving a 2-wire actuator requires a control system capable of swapping the supply polarity.
In a standard resting state, both actuator leads should either remain floating or be tied to ground to prevent accidental energative drift. To extend the shaft, lead A is connected to positive power while lead B is connected to system ground. To retract the shaft, the circuit configuration must reverse: lead A is switched to system ground while lead B receives positive power. This switching action is typically managed through a double-pole double-throw (DPDT) switch or a pair of standard Bosch-style 5-pin Single Pole Double Throw (SPDT) automotive relays.
Most high-grade commercial 2-wire actuators feature built-in limit switches wired in series with internal diodes. These switches automatically cut power to the internal motor once full stroke extension or retraction is reached, while still permitting current flow in the reverse direction when polarity is inverted.
When incorporating an automated controller, such as a body control module (BCM) or programmable logic controller (PLC), the output stage typically employs an H-bridge driver circuit. For custom automotive or equipment installations where low-current switches are used, refer to our detailed 5-pin relay wiring diagram to build an external reversing matrix capable of handling high continuous current draw without damaging sensitive control switches.
Internal limit switches inside typical 12V DC actuators are factory calibrated. Do not attempt to force mechanical extension beyond specified physical limits, as this will bypass diode isolation and stall the motor, leading to instantaneous current spikes up to 400% of full-load amperage.
2-Wire Actuator Wiring Diagram Color Code and Terminal Block Specifications
Manufacturers across automotive and industrial sectors utilize distinct color coding schemas depending on the application standards. While functional roles remain identical—one lead acts as the primary feed while the other acts as the return path—identifying terminal assignments prevents shorting through terminal blocks or relay sockets.
| Wire Color Code | Primary Function | Pin / Terminal Assignment | Circuit Operational Notes |
|---|---|---|---|
| Red / Black (Standard Automotive) | Lead A: Motor (+ Extend / – Retract) Lead B: Motor (- Extend / + Retract) |
Terminal 1 (Red) / Terminal 2 (Black) | Red = Hot Wire during extension; Black = Ground Wire during extension. Reverses during retraction. |
| Blue / Green (Universal Door Lock) | Lead A: Actuator Drive (+ Lock) Lead B: Actuator Drive (+ Unlock) |
Pin A (Blue) / Pin B (Green) | Common on standard secondary market door lock solenoids and heavy-duty tailgate latch systems. |
| Brown / White (Industrial Heavy Equipment) | Lead A: Forward Actuation Lead B: Reverse Actuation |
Terminal Block Pos 1 / Pos 2 | Used in 24V DC mobile equipment systems. Neither wire is permanently bonded to chassis ground. |
| Yellow / Blue (Marine / Commercial HVAC) | Lead A: Valve Open Lead B: Valve Close |
Screw Terminal 1 / Screw Terminal 2 | Connected to marine-grade terminal block. Requires isolated dual polarity supply feed. |
When integrating into an existing wiring harness, always verify continuity and lead resistance using a digital multimeter (DMM). Never assume chassis ground is permanently wired to either terminal. Because the ground wire and hot wire swap roles dynamically depending on physical stroke direction, both actuator wires must be kept completely isolated from vehicle chassis ground throughout their entire run to the reversing controller.
Step-by-Step Installation Guide Using the 2-Wire Actuator Wiring Diagram
Follow this precise step-by-step connection procedure when wiring a standard 2-wire DC actuator into a dual 5-pin SPDT relay control circuit. Ensure system power is completely disconnected before proceeding with mechanical routing and crimping.
- Disconnect System Power and Prepare Harness: Disconnect the negative battery terminal or main power distribution lug. Route a two-conductor jacketed cable of appropriate conductor gauge from the control box location directly to the actuator mounting site.
- Configure Relay Ground Matrix (Pins 87a): Mount two standard 40A 5-pin SPDT automotive relays side-by-side. Connect terminal pin 87a of Relay 1 to terminal pin 87a of Relay 2. Run a heavy-gauge jumper from this bridge to a dedicated chassis ground point. This ensures both motor leads rest at ground potential when non-energized.
- Supply High-Current Battery Voltage (Pins 87): Run a fused hot wire directly from the main power block to terminal pin 87 on Relay 1, and bridge it over to terminal pin 87 on Relay 2. Install an inline ATO/ATC fuse holder within 12 inches of the battery connection point.
- Attach Actuator Leads to Relay Output Pins (Pins 30): Connect Lead A (typically Red or Blue) of the actuator to terminal pin 30 (common) of Relay 1. Connect Lead B (typically Black or Green) of the actuator to terminal pin 30 (common) of Relay 2 using waterproof heat-shrink butt connectors.
- Wire the Control Switch Matrix (Pins 85 and 86): Connect pin 86 on both relays to system ground. Connect terminal pin 85 of Relay 1 to the “Extend” output signal wire of your control switch. Connect terminal pin 85 of Relay 2 to the “Retract” output signal wire. If using a manual switch, review our DPDT switch reversing circuit guide for alternative direct-wired configurations.
- Perform Insulation and Termination Resistance Checks: Set your multimeter to measure resistance (Ω). Measure resistance across the output terminals at the terminal block; a typical operational 12V DC motor should read between 2.0 Ω and 15.0 Ω of internal coil resistance. Check resistance between each pin and chassis ground; it must read infinite (∞) Ohms to guarantee no ground faults exist.
- Energize and Verify Actuation Direction: Reconnect primary power. Trigger the “Extend” command to check for correct physical movement. If the actuator moves in the opposite direction of the switch label, swap the positions of Lead A and Lead B at the terminal block connection.
Do not wire both Relay 1 and Relay 2 coil terminals (Pin 85) to a single energizing source without diode isolation. Simultaneously energizing both relays applies positive voltage to both actuator terminals at the same time, preventing actuation and placing the system into a high-amperage state without stroke movement.
Electrical Specifications, Wire Gauge Sizing, and Operating Voltage Parameters
Proper conductor selection is essential for reliable actuator operation. Excessive voltage drop along undersized supply wires degrades motor torque, increases operating cycle times, and causes excessive internal heat build-up inside the actuator motor housing.
According to standard electrical engineering standards, total continuous voltage drop in high-torque DC motor circuits must not exceed 3% under peak load conditions. Use the table below to select the appropriate American Wire Gauge (AWG) size based on total circuit length (distance from power source to actuator and back) and peak operating amperage.
| Current Draw (Amps) | 0 – 10 Feet Wire Run | 10 – 20 Feet Wire Run | 20 – 30 Feet Wire Run | Recommended Fuse Size |
|---|---|---|---|---|
| 0 – 5 Amps (Light Duty / HVAC) | 18 AWG | 16 AWG | 14 AWG | 7.5 Amp ATO/ATC |
| 5 – 10 Amps (Door Locks / Latches) | 16 AWG | 14 AWG | 12 AWG | 15 Amp ATO/ATC |
| 10 – 20 Amps (Standard Linear Actuator) | 14 AWG | 12 AWG | 10 AWG | 25 Amp MAXI / ATO |
| 20 – 30 Amps (Heavy Hydraulic/Electric Rams) | 12 AWG | 10 AWG | 8 AWG | 40 Amp MAXI Fuse |
For additional details on conductor selection, temperature derating factors, and voltage loss formulas across longer vehicle chassis lengths, consult our automotive wire gauge selection guide.
Diagnostic Routines and 2-Wire Actuator Wiring Diagram Troubleshooting
Diagnosing 2-wire actuator failures requires systematic voltage and resistance testing at key junction points along the circuit paths. Common installation mistakes and electrical faults can be quickly isolated using a digital multimeter and an inline amp clamp.
Mistake 1: Bonding One Motor Wire Directly to Vehicle Chassis Ground
Consequence: When power polarity is flipped to reverse the actuator, the positive supply wire connects directly through the relay to chassis ground, creating an immediate short circuit that blows the system fuse or damages control circuitry.
Correction: Both wires coming out of a 2-wire actuator must remain fully insulated and floated relative to ground. Chassis ground must only be attached at terminal pin 87a of the controlling relays or the neutral ground pole of a dedicated reversing switch.
Mistake 2: Thermal Overload Tripping Due to Excessive Voltage Drop
Consequence: The actuator operates slowly and stops halfway through its extension stroke. Measured voltage at the actuator terminals drops below 10.0V DC under load on a 12V DC system.
Correction: Inspect wire gauge size against current length parameters. Replace undersized cabling, verify screw tension on the terminal block, and burnish ground lugs to eliminate resistance from oxidation.
Mistake 3: Reversed Shaft Travel Direction Relative to System Command
Consequence: Pressing “Extend” retracts the actuator arm, while pressing “Retract” extends it.
Correction: Swap the physical output connections at the terminal block (exchange Lead A and Lead B positions), or swap relay trigger signals at terminal pins 85 on the respective control relays.
Mistake 4: Burned Internal Limit Switch Diodes from Over-Voltage
Consequence: The actuator extends fully but fails to retract when polarity is reversed, or refuses to move in either direction despite proper voltage present at the leads.
Correction: Disconnect the actuator leads and check internal continuity with a DMM in diode-test mode. If current passes in both directions or neither direction regardless of lead polarity, the internal limit switch diode has suffered electrical breakdown. Replace the actuator assembly.
Frequently Asked Technical Questions on 2-Wire Actuator Wiring
How do I wire a 2-wire actuator using two standard 5-pin SPDT relays?
Connect terminal pin 87 of both relays to fused battery positive, and connect pin 87a of both relays to ground. Connect Lead A of the actuator to terminal pin 30 of Relay 1, and Lead B to terminal pin 30 of Relay 2. Tie pin 86 of both relays to ground. Applying a +12V control signal to pin 85 of Relay 1 extends the actuator, while applying +12V to pin 85 of Relay 2 retracts it.
Can a 2-wire actuator be controlled using a single DPDT switch?
Yes, a standard 6-terminal DPDT switch (configured with a momentary ON-OFF-ON layout) can reverse polarity directly without external relays, provided the switch contacts are rated for the full running and stall current of the motor. Wire power and ground in an “X” cross pattern across the outer four terminals, and attach the two actuator leads to the center common terminals.
Why does my 2-wire actuator stall before reaching its full stroke extension?
Premature stalling typically stems from excessive voltage drop across undersized supply wiring, high mechanical binding on the output shaft, or an under-rated power source unable to supply peak running current. Measure operational voltage directly at the actuator plug while under load to verify input voltage stays within manufacturer tolerances (typically ±10% of nominal voltage rating).
How do internal limit switches function inside a 2-wire DC linear actuator?
Internal limit switches are wired in series with directional steering diodes at the extreme physical ends of the leadscrew. When the actuator reaches full extension, the extension limit switch opens to break the current path, stopping the motor. Because a diode bypasses the open switch in the reverse electrical direction, applying inverted polarity allows current to flow freely, enabling immediate retraction.
What is the primary difference between a 2-wire actuator and a 5-wire actuator?
A 2-wire actuator contains only the electrical connections required to drive the internal DC motor in forward and reverse directions. A 5-wire actuator contains those same two motor drive leads plus three additional wires connected to an internal single-pole double-throw microswitch, which provides dry contact switch status back to an external monitoring system or alarm panel to verify physical locking state.
