To use a Moody diagram, first calculate the Reynolds number on the horizontal axis and relative roughness on the right vertical axis. Trace these values to their intersection point, then project horizontally to the left vertical axis to identify the correct Darcy-Weisbach friction factor for your piping system layout.
📌 Key Takeaways
- Reynolds number values below 2300 indicate laminar flow, while values above 4000 signal turbulent flow along the horizontal axis
- Relative roughness ratio (epsilon divided by pipe inner diameter) establishes the correct curve on the right vertical scale
- Darcy-Weisbach friction factor extracted from the left axis is critical for calculating pressure drop head loss
- Most common miscalculation occurs from confusing internal pipe diameter with nominal pipe size during ratio configuration
- Use chart for standard Newtonian fluid flow; non-Newtonian or multiphase fluids require specialized computational fluid dynamics
In high-performance automotive cooling loops, heavy equipment hydraulic circuits, and custom fluid transfer networks, calculating pressure drop and line losses requires precise hydrodynamic analysis. The Moody diagram (also known as the Moody chart) is the foundational engineering schematic plotting the Darcy-Weisbach friction factor against the Reynolds number across various relative pipe roughness curves. Master mechanics and equipment technicians rely on this visual framework to size fluid lines, diagnose pressure restrictions, and verify hydraulic pump performance. Understanding how to read Moody diagram charts enables technical professionals to calculate major head losses accurately without running complex differential equations.
Understanding Moody Diagram Structure and System Blueprint Parameters
To accurately interpret a Moody chart, you must understand how its four primary parameters interact within a single visual grid. The chart organizes fluid mechanics data using logarithmic scales to accommodate broad performance ranges across different automotive and industrial equipment configurations.
Recommended Best Deal Products
Darcy Friction Factor Vertical Axis
The primary vertical axis on the left displays the dimensionless Darcy friction factor ($f$), spanning typically from 0.008 to 0.10. This value correlates directly to wall friction losses inside fluid conduits. Technicians must note that the Darcy friction factor differs from the Fanning friction factor used in some chemical processing schematics; the Darcy value is precisely four times larger than the Fanning equivalent ($f_{Darcy} = 4 \times f_{Fanning}$).
Reynolds Number Horizontal Axis
Located along the bottom logarithmic scale, the Reynolds number ($Re$) expresses the ratio of inertial forces to viscous forces within the moving fluid. Values span from $10^3$ (1,000) to $10^8$ (100,000,000). The layout clearly separates flow behavior into distinct hydrodynamic regimes: laminar flow ($Re < 2300$), transitional flow ($2300 \le Re \le 4000$), and turbulent flow ($Re > 4000$).
Relative Line Roughness Curves
The right-hand vertical axis outlines relative pipe roughness ($\epsilon/D$), defined as absolute wall roughness ($\epsilon$) divided by line inner diameter ($D$). These family curves arc downward from right to left across the diagram layout. Smooth conduits (such as drawn copper or polished aluminum) follow the lowest boundary line, whereas aged cast iron or pitted steel lines track along higher roughness values.
| Piping Material / Conduit Type | Absolute Roughness $\epsilon$ (mm) | Absolute Roughness $\epsilon$ (inches) |
|---|---|---|
| Drawn Tubing (Copper, Brass, Plastic) | 0.0015 mm | 0.000005 in |
| Commercial Steel / Welded Seamless Pipe | 0.045 mm | 0.0018 in |
| Galvanized Iron Hose Fittings | 0.15 mm | 0.006 in |
| Asphalt-Coated Cast Iron | 0.12 mm | 0.0048 in |
For custom hydraulic build applications, cross-reference line material specs with our comprehensive hydraulic system design guide to confirm baseline pipe wall tolerances.

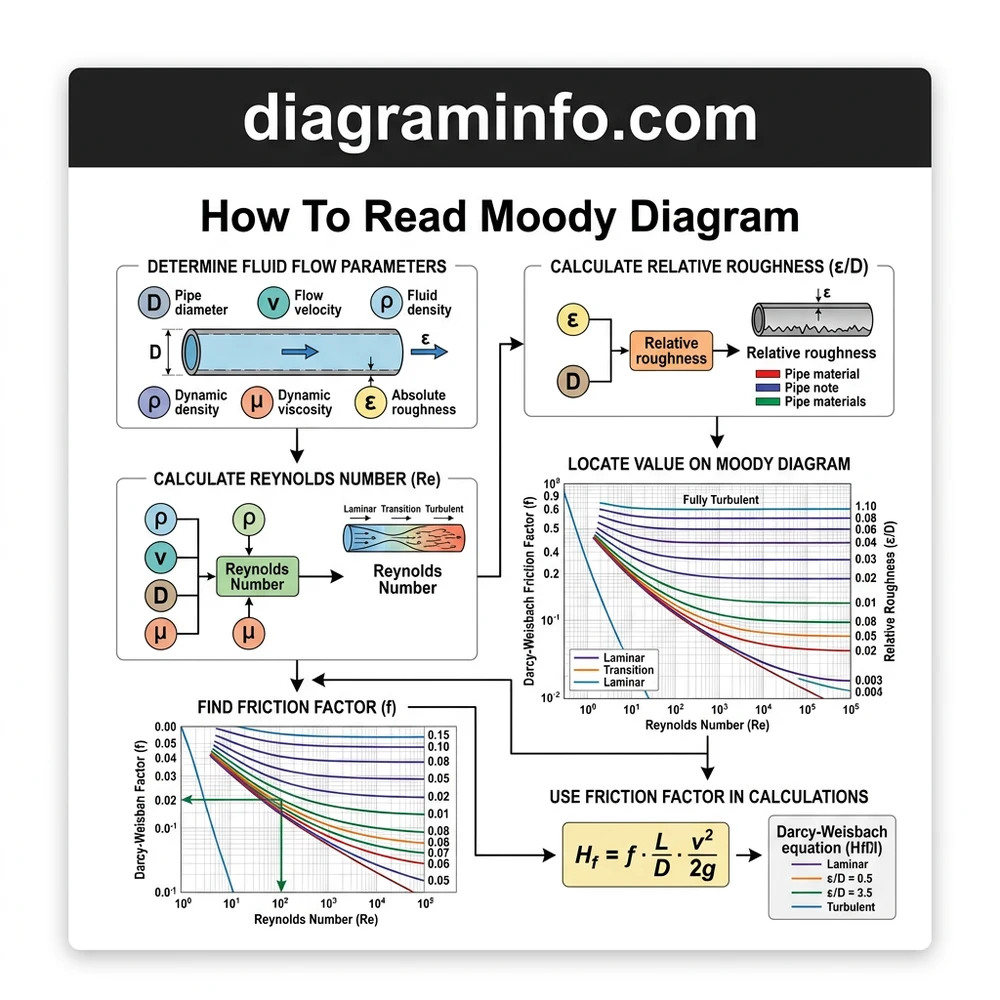

How to Read Moody Diagram Calculations Step by Step
Estimated Time: 15 to 20 minutes per flow path evaluation.
Tools Needed: Scientific calculator, fluid property tables (kinematic/dynamic viscosity), digital caliper or blueprint pipe chart, straight edge.
Safety Precautions: Depressurize high-pressure fluid circuits and lockout hydraulic pump power before taking physical pipe wall measurements or taking fluid samples for viscosity testing.
Recommended Best Deal Products
Step 1: Calculate the System Reynolds Number
Measure or extract fluid density ($\rho$), dynamic viscosity ($\mu$), average flow velocity ($V$), and internal pipe diameter ($D$). Calculate $Re$ using the standard formula:
$$Re = \frac{\rho \cdot V \cdot D}{\mu} = \frac{V \cdot D}{\nu}$$
Where $\nu$ represents kinematic viscosity. For example, a heavy equipment transmission line flowing fluid at $V = 3.2\text{ m/s}$ through a $D = 0.025\text{ m}$ pipe with kinematic viscosity $\nu = 2.2 \times 10^{-5}\text{ m}^2/\text{s}$ yields $Re \approx 3,636$.
Step 2: Determine Relative Pipe Roughness
Identify the absolute roughness ($\epsilon$) of your line material from the engineering spec table above. Divide absolute roughness by internal pipe diameter ($D$), ensuring both dimensions use identical units (e.g., millimeters):
$$\text{Relative Roughness} = \frac{\epsilon}{D}$$
For a commercial steel hydraulic line ($0.045\text{ mm}$ roughness) with an inner diameter of $25\text{ mm}$, relative roughness is $0.045 / 25 = 0.0018$.
Step 3: Plot the Intersection Point on the Grid
Locate your calculated Reynolds number along the bottom horizontal logarithmic axis. Trace a straight vertical line upward from this value. Next, locate your calculated relative roughness curve ($\epsilon/D = 0.0018$) along the right-hand axis and trace along the curved line toward the left. Mark the exact point where your vertical Reynolds line intersects the relative roughness curve.
Step 4: Extract Friction Factor and Calculate Pressure Loss
From the intersection point, project horizontally to the left to align with the vertical Darcy friction factor scale. For $Re = 3.5 \times 10^4$ and $\epsilon/D = 0.0018$, the friction factor reads approximately $f = 0.028$. Apply this value directly into the Darcy-Weisbach head loss equation:
$$h_f = f \cdot \left(\frac{L}{D}\right) \cdot \left(\frac{V^2}{2g}\right)$$
To convert head loss into psi or kPa pressure drop across equipment components, consult our detailed fluid mechanics pressure drop tutorial.
Common How to Read Moody Diagram Errors and System Diagnosis
Failure to account for fluid operating temperature changes will invalidate chart readings. Viscosity decreases as fluid warms up, shifting system operating points significantly to the right on the Moody scale.
Mismatched Fluid Thermal Viscosity Inputs
Evaluating hydraulic oil or engine coolant at ambient temperature ($20^\circ\text{C}$) rather than normal operating temperature ($80^\circ\text{C}$ to $100^\circ\text{C}$) leads to severe calculation error. Warmer fluid exhibits substantially lower kinematic viscosity, which artificially inflates the calculated Reynolds number. Always obtain dynamic viscosity values calibrated to actual working fluid temperatures before plotting your layout position.
Operating Within the Critical Transition Zone
When calculated $Re$ falls between 2,300 and 4,000, flow enters an unstable critical region. Laminar flow breaks down into turbulence unpredictably, causing line pressure drops to fluctuate. On Moody schematics, this area is intentionally left open or shaded. Avoid configuring equipment lines in this regime; increase conduit diameter to force laminar behavior or decrease diameter to push fully into stable turbulent flow.
Confusing Absolute Roughness Units and Scale Types
Mixing metric ($\text{mm}$) and imperial ($\text{inches}$) units when calculating relative roughness introduces scale errors of up to 2,540%. Additionally, using a Fanning-based equation with a Darcy Moody chart results in a 400% error in pressure loss calculations. Review overall line routing specs against our automotive cooling system schematics to verify system flow configurations.
How To Read Moody Diagram Technical Questions Answered
What is the difference between Darcy and Fanning friction factors on a Moody schematic?
The Darcy friction factor ($f_D$) is four times larger than the Fanning friction factor ($f_F$). Moody diagrams universally use the Darcy friction factor in conjunction with the standard Darcy-Weisbach head loss equation. If you are referencing engineering tables that use the Fanning friction factor ($f_F$), multiply that friction factor by four before applying values extracted from a Moody chart.
How does internal pipe degradation over time affect chart readings?
As equipment lines age, scale buildup, corrosion pitting, and chemical oxidation increase internal surface roughness ($\epsilon$). This increases the relative roughness value ($\epsilon/D$), shifting the system upward onto higher curve lines. Consequently, friction factors increase, resulting in higher pressure drops and reduced overall hydraulic efficiency despite maintaining constant pump speed.
Why do roughness curves become flat horizontal lines at high Reynolds numbers?
In the fully turbulent (wholly rough) flow region, the viscous sublayer along the pipe wall becomes thinner than the physical surface asperities ($\epsilon$). At this point, wall friction is governed entirely by turbulent eddy resistance generated by physical surface roughness rather than fluid viscosity or velocity. As a result, the friction factor becomes constant regardless of further increases in $Re$.
Can you read Moody diagram charts for square or rectangular equipment ducting?
Yes. You can adapt non-circular cross-sections to a standard Moody chart by calculating the hydraulic diameter ($D_h$) instead of inner diameter ($D$). Use the equation $D_h = \frac{4A}{P}$, where $A$ is the cross-sectional flow area and $P$ is the wetted perimeter. Substitute $D_h$ for $D$ in both the Reynolds number and relative roughness calculations.
Step-by-Step Guide to Understanding the How To Read Moody Diagram
Identify – Determine fluid density, dynamic viscosity, flow velocity, and internal pipe diameter specs.
Locate – Calculate the Reynolds number and plot the value on the bottom horizontal logarithmic scale.
Reference – Determine the material roughness value and divide by pipe inner diameter to find relative roughness on the right vertical axis.
Connect/Route – Follow the relative roughness curve leftward until it intersects the vertical line drawn from your calculated Reynolds number.
Verify – Project horizontally straight to the left vertical axis to extract the Darcy-Weisbach friction factor.
Troubleshoot – Adjust inputs for fluid temperature shifts or internal pipe corrosion scale build-up if flow rate measurements deviate from expected values.
