Pharmacology Routes of Drug Administration Diagram: Proper Routing 2026
The routes of drug administration diagram maps enteral (oral, sublingual), parenteral (intravenous 100% bioavailability, intramuscular, subcutaneous), and topical systemic pathways. It details structural tissue layers—epidermis, dermis, subcutaneous, and vascular targets—and highlights first-pass hepatic metabolism pathways, tissue depth parameters, site selection, and absorption configurations for clinical accuracy.
📌 Key Takeaways
- Intravenous (IV) pathways provide 100% bioavailability with immediate systemic circulation access.
- Intramuscular (IM) delivery targets deep tissue configuration using a precise 90-degree needle alignment.
- Subcutaneous (SC) injections enter adipose tissue structures at 45 to 90 degrees for steady release.
- Enteral routes undergo first-pass hepatic metabolism, lowering active systemic concentration.
- Crucial anatomical verification prevents tissue necrosis, nerve damage, or incorrect systemic dosage.
Understanding a comprehensive routes of drug administration diagram requires analyzing physiological delivery pathways, vascular access points, and pharmacokinetic transport mechanisms. Whether configuring automated biomedical infusion pumps, evaluating microfluidic delivery apparatus, or mapping clinical administration protocols, navigating this visual blueprint ensures precise therapeutic dosing and system safety. The schematic categorizes delivery pathways into enteral, parenteral, topical, and inhalation circuits, detailing how active compounds navigate biological barriers to reach systemic circulation. This technical reference breaks down each pathway component, structural layout, bioavailability metric, and diagnostic procedure for identifying administration flow anomalies in clinical and biomedical systems.
System Configuration and Routes Of Drug Administration Diagram Breakdown

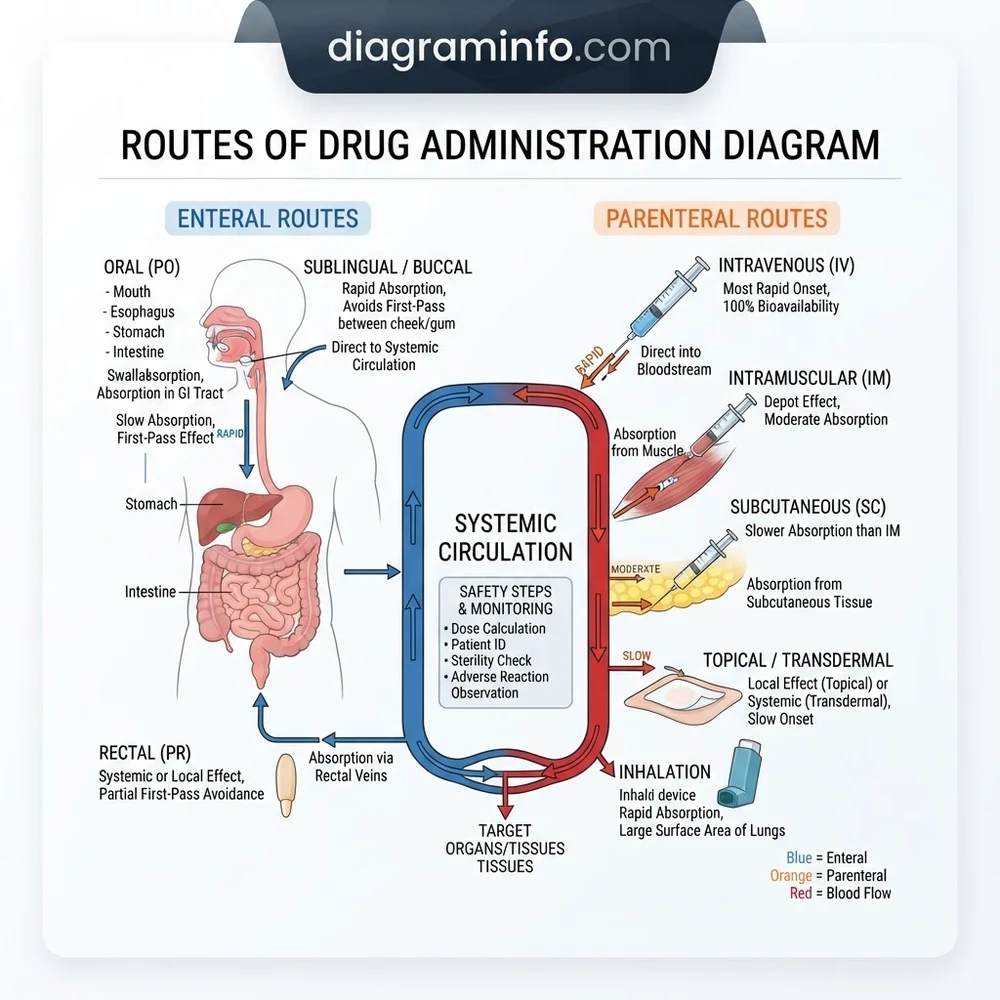

A standard routes of drug administration diagram organizes anatomical delivery pathways based on entry vector, absorption rate, and systemic bioavailability. As illustrated in the schematic blueprint, these pathways are split into four primary functional categories: Enteral, Parenteral, Inhalation, and Topical/Transdermal systems. Each circuit exhibits distinct thermodynamic and physiological constraints that dictate chemical formulation and hardware delivery mechanisms.
According to clinical engineering standards, mapping these entry portals is essential for designing microfluidic dosing equipment and understanding vascular distribution dynamics. You must evaluate how the structural layout of each path impacts final concentration ($C_{max}$) and time-to-peak exposure ($T_{max}$). Referencing related pharmacokinetic absorption rate schematics can further assist in calculating systemic clearance rates across different anatomical targets.
Manufacturer specifications and clinical standards dictate precise entry angles for parenteral injection systems: Intramuscular (IM) at 90° (deep muscle tissue), Subcutaneous (SC) at 45° (adipose tissue layer), Intravenous (IV) at 25° (lumen of peripheral vein), and Intradermal (ID) at 10° to 15° (dermal layer above subcutaneous fat).
Enteral System Pathways
The enteral circuit encompasses pathways traversing the gastrointestinal (GI) tract. The Oral (PO) pathway requires mucosal dissolution and gastric absorption, routing fluid through the hepatic portal system where first-pass metabolism degrades compound fraction. The Sublingual (SL) and Buccal sub-circuits bypass hepatic metabolism by directly accessing rich capillary beds under the tongue and mucosal lining, delivering compounds straight to the superior vena cava. The Rectal (PR) pathway provides partial bypass (~50%) of hepatic first-pass clearance, making it a critical secondary enteral circuit in specialized dosing configurations.
Parenteral Fluid Circuits
Parenteral routes bypass the alimentary canal entirely, delivering formulations directly into vascular pathways or tissue beds. The Intravenous (IV) vector represents the direct systemic circuit, yielding immediate bio-availability ($F = 100\%$) without an absorption barrier phase. The Intramuscular (IM) circuit deposits fluids into vascularized muscular tissue, creating a sustained-release depot. The Subcutaneous (SC) configuration targets the vascularized sub-dermal adipose layer, suitable for slow, continuous diffusion of low-volume liquids. The Intradermal (ID) path targets the highly immunogenic dermal layer for micro-volume delivery.
Pulmonary and Transdermal Delivery Layouts
The Inhalation System utilizes large alveolar surface areas (~100 $m^2$) and minimal endothelial thickness (0.2–0.5 $\mu m$) for rapid alveolar-capillary passive transport. Transdermal Systems utilize continuous passive diffusion across the lipophilic stratum corneum layer into cutaneous micro-vessels, providing steady-state delivery rates over extended operational cycles.

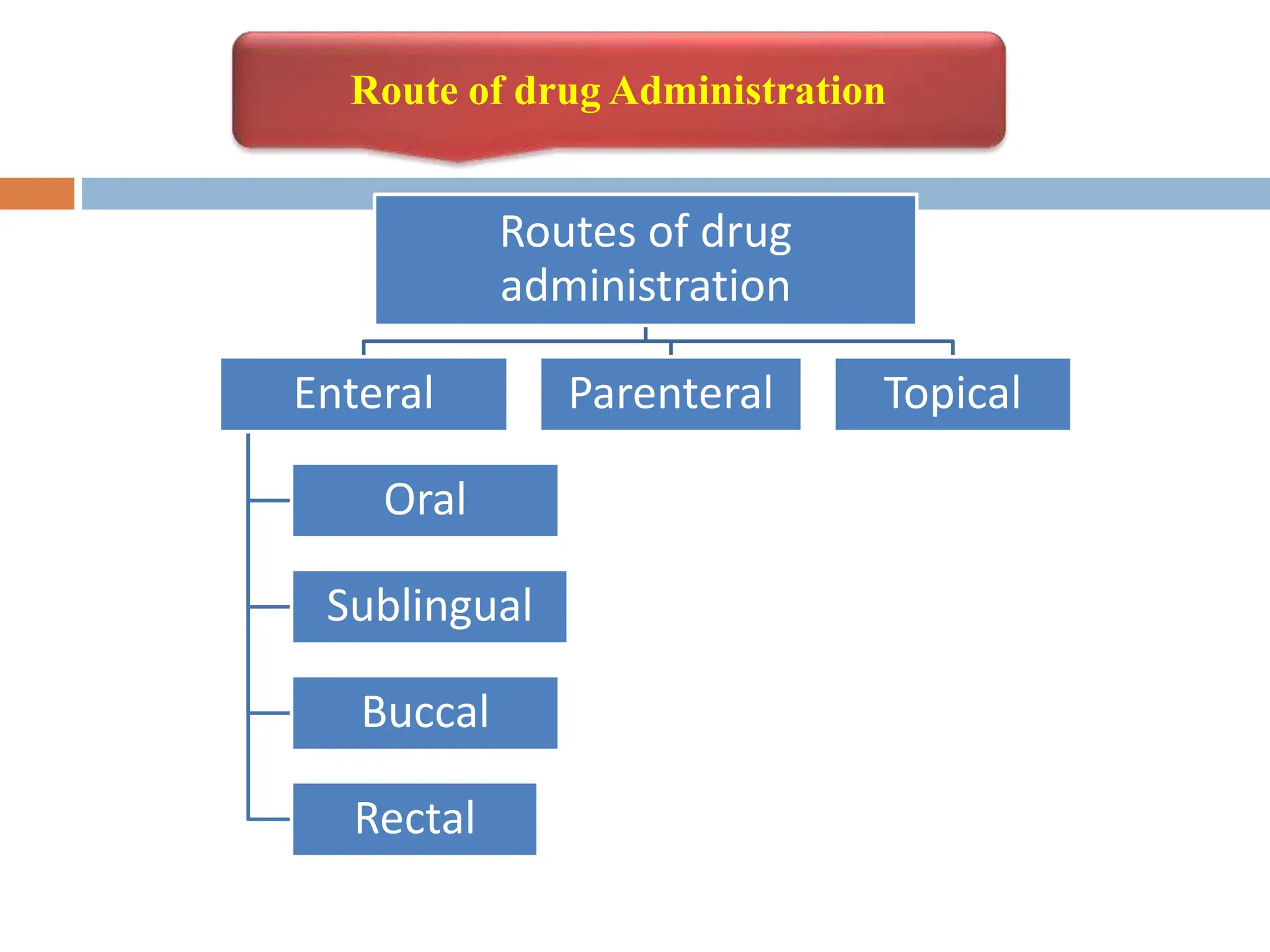

How to Analyze a Routes Of Drug Administration Diagram Layout
To systematically interpret a routes of drug administration diagram, follow this step-by-step diagnostic workflow. This method allows biomedical technicians and clinical practitioners to trace chemical delivery vectors from entry portal to systemic receptor sites.
Phase 1: Direct Entry Portal Identification
Locate the primary delivery entry portal on the schematic layout. Determine whether the flow is targeted for direct systemic injection (parenteral) or indirect absorption (enteral, transdermal, pulmonary). Verify target site tissue characteristics, including local perfusion rates and enzymatic activity levels, using standard OEM delivery guidelines.
Phase 2: Tracing First-Pass Hepatic Filtration Circuits
Trace the downstream flow from the entry point. Enteral oral lines pass directly into the hepatic portal vein, subjecting the active agent to liver enzyme metabolism before systemic distribution. Note that sublingual, inhalation, transdermal, and parenteral lines bypass this hepatic filter, maintaining full initial chemical stability prior to venous return.
Phase 3: Evaluating Bioavailability and Absorption Kinetics
Cross-reference the route selected in the schematic against standard pharmacokinetic absorption profiles. Calculate expected line losses caused by physiological absorption barriers using the baseline data provided in the system reference table below.
| Administration Vector | Anatomical Target / Portal | Bioavailability ($F$) Range | Absorption Profile / Onset |
|---|---|---|---|
| Intravenous (IV) | Peripheral / Central Veins | 100% (Instantaneous) | Immediate (30–60 seconds) |
| Intramuscular (IM) | Deltoid / Gluteus Tissue | 75% – 100% | Rapid to Sustained (10–30 min) |
| Subcutaneous (SC) | Sub-dermal Adipose Layer | 75% – 100% | Slow, Continuous (15–30 min) |
| Oral (PO) | Gastric / Intestinal Mucosa | 5% – <100% (First-Pass) | Delayed Onset (30–90 min) |
| Sublingual (SL) | Sublingual Capillary Bed | 75% – <100% | Rapid Onset (3–5 min) |
| Inhalation (INH) | Alveolar Epithelium | 50% – <100% | Ultra-Rapid (2–3 min) |
| Transdermal (TD) | Epidermal Dermis Interface | 80% – 100% (Slow Rate) | Extended Delay (1–24 hours) |
Phase 4: Mapping Systemic Clearance and Elimination Pathways
Track the clearance pathways leaving systemic circulation. Standard schematics map elimination back through hepatic metabolism (cytochrome P450 enzymatic extraction) and renal filtration (glomerular clearance into urinary excretion). Ensure your operational delivery configuration aligns with calculated clearance half-lives ($t_{1/2}$). Consult documented parenteral fluid transfer protocols to calibrate volumetric pump rates against patient clearance capabilities.
Troubleshooting Delivery Circuit Deviations and Absorption Anomalies
When actual clinical outcomes or delivery pump monitoring data deviate from baseline expectations outlined in your routes of drug administration diagram, systemic troubleshooting is required. Circuit deviations typically stem from mechanical line resistance, physiological tissue perfusion failure, or improper injection configuration angles.
Failure to verify peripheral needle placement prior to high-pressure automated infusion can cause vessel rupture and tissue extravasation. Always inspect catheter lumen patency and aspiration blood return before connecting high-volumetric automated injection circuits.
To isolate delivery anomalies in parenteral line configurations, check for line occlusions, venous collapse, or subcutaneous infiltration (extravasation). If delivery pressure spikes above target thresholds, inspect the catheter site for displacement from the vascular lumen into surrounding interstitial space. For automated enteral systems, check feed-line occlusion sensors and verify gastric residual volumes to prevent reflux anomalies.
Unexpectedly low serum drug concentrations following oral or enteral administration often signal severe hepatic first-pass extraction or altered gastric pH. Shift administration vectors to sublingual or parenteral routes on the blueprint to bypass metabolic extraction and achieve consistent systemic dosing profiles.
When servicing microfluidic delivery hardware or infusion apparatus, calibrate pressure transducers and line integrity monitoring systems against biomedical infusion pump calibration guides to prevent delivery rate drift during extended continuous infusions.
Routes Of Drug Administration Diagram Overview: Technical FAQ
Which pathway in the schematic bypasses hepatic first-pass clearance completely?
All parenteral pathways (intravenous, intramuscular, subcutaneous, intradermal), sublingual/buccal routes, transdermal systems, and direct inhalation circuits completely bypass hepatic first-pass metabolism. They deliver active compounds directly into systemic venous circulation or target target capillary beds, preventing initial metabolic degradation by liver enzymes.
How does the blueprint differentiate parenteral from enteral infusion circuits?
Enteral circuits route fluids through the alimentary tract (mouth, stomach, intestines, rectum) and rely on biological absorption across mucosal membranes into the portal vein. Parenteral circuits utilize invasive access devices (needles, catheters) to bypass mucosal barriers entirely, depositing fluids directly into blood vessels or specific tissue strata.
What layout factors cause bioavailability variance in transdermal delivery systems?
Transdermal bioavailability variations are governed by stratum corneum thickness, skin hydration levels, local cutaneous blood perfusion, surface area contact size, and active matrix drug concentration gradients. Disruptions in skin barrier integrity or localized hypoperfusion significantly alter absorption kinetics.
Why does the IV route show 100% bioavailability on pharmacokinetic schematics?
The intravenous vector introduces active fluid directly into the vascular system lumen, eliminating the physiological absorption barrier phase. Because no drug mass is lost through GI destruction, mucosal non-absorption, or first-pass hepatic metabolism, the entire administered dose reaches systemic circulation ($F = 1.0$).
What angle adjustments are required when shifting from IM to SC injection pathways?
Shifting from intramuscular (IM) to subcutaneous (SC) delivery requires reducing the insertion angle from 90° (perpendicular to muscle tissue) down to 45° (or 90° for short, specialized SC micro-needles) to ensure fluid reaches the sub-dermal adipose layer without penetrating underlying deep skeletal muscle structures.
Step-by-Step Guide to Understanding the Routes Of Drug Administration Diagram
Identify – Determine the target therapeutic pathway (enteral, parenteral, topical, or inhalation) required for the specific compound.
Locate – Find the corresponding anatomical administration site on the layout, checking local vascular and muscular structures.
Reference – Cross-check tissue layer depth configuration (such as dermis, subcutaneous fat, or deep muscle) using diagram angle specs.
Connect/Route – Align the delivery instrument to the mapped insertion angle (e.g., 90° for IM, 45° for SC, 10-15° for ID).
Verify – Check for direct vascular entry or hepatic bypass requirements as specified by the system flow diagram.
Troubleshoot – If resistance or pain occurs, re-evaluate tissue structure thickness, injection angle, and anatomical landmarks immediately.
