Whirlpool Gas Stove Parts Diagram: Component Breakdown (2026)
A Whirlpool gas stove parts diagram illustrates the internal and surface layout, including the surface burners, spark igniters powered via a 120V spark module, gas safety valve, pressure regulator set to 5 inches W.C. for natural gas, oven igniter drawing 3.2 to 3.6 amps, and control manifold system.
📌 Key Takeaways
- Electric spark igniters operate on 120V AC power, routing high-voltage pulses from the spark module to igniter electrodes.
- The gas pressure regulator is configured for 5.0 in W.C. on Natural Gas and 10.0 in W.C. on Liquid Propane.
- A functioning hot-surface oven igniter must draw 3.2 to 3.6 amps to signal the safety valve to open.
- Clogged burner orifice ports and cracked ceramic igniters represent the most frequent failure points.
- Surface component replacements are suitable for DIYers, but internal manifold and gas valve repairs require professional service.
Accurate component identification and electrical circuit mapping are essential when performing repairs on Whirlpool gas ranges, such as the WFG505M0BS or WEG745H0FS series. Utilizing an official whirlpool gas stove parts diagram provides field technicians and advanced service engineers with the precise spatial layout, part references, and structural assembly required to service burner systems, gas delivery lines, and electronic igniter circuits. This guide breaks down the physical layout, schematic interpretation, and component diagnostics for modern Whirlpool freestanding and slide-in gas ranges according to OEM specifications.

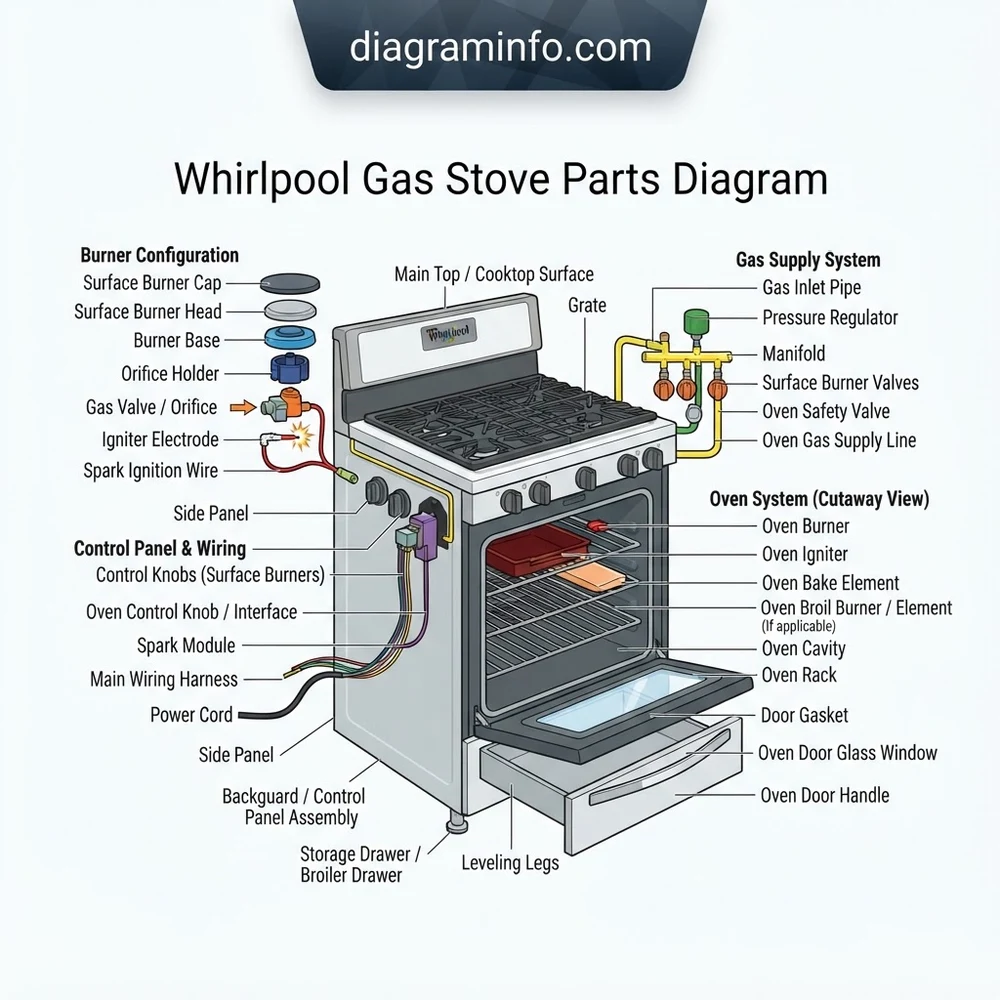

Whirlpool Gas Stove Parts Diagram: Major System Components Layout
Modern Whirlpool gas ranges rely on an integrated structure combining mechanical gas flow assemblies, low-voltage control circuits, and high-voltage spark ignition systems. Analyzing a complete system schematic requires dividing the unit into four distinct mechanical and electrical sub-assemblies.
The primary cooktop configuration consists of sealed gas burners (ranging from 5,000 BTUSimmer to 18,000 BTU Power Burners), brass orifice spuds, gas manifold tubes, and dual-spark electrode modules. Gas flow to the cooktop is regulated by mechanical valve switches wired directly to the spark module (OEM Part #WPW10331688). When a burner knob is turned to “Lite,” the switch closes a 120V circuit to the spark module, generating high-voltage pulses to ground across the electrode gap.
The oven heating assembly functions via a series-wired gas ignition system. It incorporates a silicon carbide igniter (glow bar), a dual-solenoid gas safety valve (OEM Part #WPW10293048), and a thermal cutoff fuse. According to manufacturer specs, the silicon carbide igniter must draw between 3.2 and 3.6 Amps to heat sufficiently, lowering its electrical resistance and allowing current to trigger the bi-metal actuator inside the safety valve.
| Component Name | Standard OEM Reference | Electrical / Mechanical Spec |
|---|---|---|
| Gas Pressure Regulator | WPW10170508 | 5″ W.C. (Natural Gas) / 10″ W.C. (LP) |
| Oven Igniter (Glow Bar) | DSI / WPW10918546 | 3.2 – 3.6 Amps AC draw; 40-400 Ω cold |
| Dual Gas Safety Valve | WPW10293048 | 2.5V – 3.0V AC coil voltage drop during ignition |
| Oven Temperature Sensor (RTD) | WPW10181986 | 1,080 Ω at 70°F (21°C) ambient temp |
| Spark Ignition Module | WPW10331688 | 120V AC Input / 12-15kV DC Pulse Output |
Always cross-reference your range model’s serial prefix when ordering parts. Fastener torque specs for gas manifold mounting screws must not exceed 25 in-lbs to prevent stripping aluminum manifold threads.
How to Read and Apply a Whirlpool Gas Stove Parts Diagram Schematic
Understanding a Whirlpool gas range schematic requires mapping physical components against the structural blueprint. exploded-view parts diagrams designate components with numeric callout keys (e.g., Key #12 for the manifold pipe, Key #4 for top burner caps) that reference specific factory part numbers in the manual legend.
When using an electrical schematic, trace wire colors and connector configurations from the main Electronic Range Control (ERC) board. Typical wire color conventions in Whirlpool gas systems include:
- L1 Power Line: Solid Black conductor delivering 120V AC from the power cord terminal block.
- Neutral Return: Solid White conductor returning circuit paths to the line terminal block.
- Gas Valve Feed: Yellow/Red tracer wire carrying current from the bake/broil relay to the igniter circuit.
- Spark Module Line: Blue or Violet conductor feeding 120V AC across cooktop microswitches.
- RTD Sensor Circuit: Purple or White twisted pair delivering low-voltage signal to the oven control board.
To safely isolate components for replacement, first consult the structural diagram to locate hidden retaining hardware. On sealed-burner units, access to the cooktop manifold requires removing T-20 Torx screws securing each burner head to the main top panel. For deeper technical reference on wiring routing, consult our guide on Whirlpool gas range oven control board wiring diagrams.
When replacing surface burner orifice spuds during an LP conversion, refer to the LP gas conversion kit instructions to match orifice drill sizes (e.g., #56 for NG vs #68 for LP) according to BTU ratings indicated on the schematic key.
Diagnosing Appliance Failures Using the Gas Range Blueprint
System failures in Whirlpool gas ranges generally stem from electrical open circuits, component resistance drift, or mechanical gas flow blockages. Utilizing the schematic blueprint allows technicians to isolate faults using systematic meter diagnostics rather than replacing parts randomly.
If an oven bake igniter glows red but fails to ignite the burner, do not assume the gas safety valve is defective. A glowing silicon carbide igniter may still fail if its resistance has increased, dropping current below the 3.2-Amp threshold needed to open the bi-metal valve coil. Connect a clamp-on ammeter around the igniter feed wire; if current reads under 3.1 Amps AC, replace the igniter.
Always shut off the main gas supply line and disconnect the 120V AC power source prior to removing cabinet panels or testing internal components for continuity. Failure to do so creates severe explosion and shock hazards.
For surface burner ignition failure where no clicking sound is heard across any burner valve position, trace power input to the spark module pin terminals. Test for 120V AC between the input terminal and chassis ground while engaging a valve switch. If voltage is present but no spark is generated at any electrode, the spark module circuit has failed. If spark occurs at some burners but not others, check electrode ceramic bodies for hairline cracks or review our oven temperature sensor resistance chart for associated temperature-sensing faults.
Frequently Asked Questions About Whirlpool Gas Stove Parts Diagrams
Where Can I Find the Model Number Plate on My Whirlpool Gas Range?
The model and serial number tag is typically located in one of three places: behind the lower storage or warming drawer on the left side frame, inside the burner box under the lift-up cooktop lid, or along the front frame behind the oven door jamb. You must have the exact model suffix (e.g., WFG505M0BS3) to match the corresponding exploded-view parts diagram.
How Do I Identify a Blown Thermal Cutoff Fuse on the Wiring Blueprint?
The thermal cutoff fuse is represented on the schematic inline with the L1 power feed to the oven valve relay. Using a digital multimeter set to Ohms (Ω), disconnect power and test for continuity across the fuse terminals. A functional fuse reads approximately 0 Ω (closed circuit); an open circuit (infinite resistance / OL) indicates the fuse has tripped due to an over-temperature condition and requires replacement.
Are Whirlpool Gas Range Igniters Interchangeable Across Different Models?
No. While silicon carbide igniters may appear visually similar, current draw specs vary significantly between models. Whirlpool manufactures both 3.2-3.6 Amp igniters and lower amperage (2.5-3.0 Amp) igniters designed for direct spark ignition (DSI) control boards. Installing an incorrect igniter spec will prevent the safety valve from opening or shorten the life of the control board relay.
What Electrical Voltage Should Be Measured at the Gas Safety Valve Terminal?
During active bake ignition, measuring across the safety valve terminals should show a voltage drop between 2.5V AC and 3.0V AC. Because the safety valve solenoid is wired in series with the igniter glow bar, attempting to measure voltage at the valve with an open or missing igniter will yield 0V AC.
Step-by-Step Guide to Understanding the Whirlpool Gas Stove Parts Diagram
Identify – Locate the model number sticker inside the oven door frame or behind the lower drawer to match the exact Whirlpool gas stove parts diagram.
Locate – Map out the main gas line inlet, pressure regulator, and 120V power cord connection on the structural schematic.
Reference – Trace the fuel gas distribution paths from the manifold configuration to the surface burner valves and oven safety valve.
Connect/Route – Verify spark module wiring routes to each burner electrode according to the electrical system color configuration.
Verify – Perform a leak test on all disturbed gas fittings and verify 3.2-3.6A current draw at the oven igniter.
Troubleshoot – Inspect ceramic igniters for hairline cracks or clean clogged burner orifice ports if igniter sparks but fails to light.
