Hayward Sand Filter Parts Diagram: 2026 Component Guide
A Hayward sand filter parts diagram details the top-mounted 6-position Vari-Flo multiport valve, heavy-duty clamp flange, upper diffuser, rigid central standpipe, folding lateral assembly array at the base, and lower drain assembly. It illustrates how water flows down through silica sand media and returns through 8-10 lateral fold-out fingers.
📌 Key Takeaways
- Multiport valve O-rings and internal spider gaskets direct system water flow under normal working pressures up to 35 PSI.
- The folding umbrella lateral assembly rotates upward for insertion through the top tank flange and opens fully at the tank base.
- Molded polymeric sand filter tanks operate at a maximum design pressure threshold of 50 PSI.
- Cracked lateral fingers or a broken standpipe hub allow sand to escape back into the pool return lines.
- Always torque the flange clamp ring bolts evenly and apply silicone-based lube exclusively to all elastomeric seals.
Hayward ProSeries and VL Series high-rate sand filtration systems utilize a pressurized hydraulic media configuration engineered to capture suspended particulate down to 20 to 40 microns. Accurately diagnosing pressure differentials, internal bypass issues, or mechanical fluid leaks requires a comprehensive understanding of the unit’s mechanical layout. By analyzing a precise Hayward sand filter parts diagram, service technicians and facility operators can systematically identify worn lateral underdrain assemblies, degraded multiport valve spider gaskets, fractured diffusers, and compromised tank closures. This technical reference manual analyzes the complete structural schematic, cross-referencing factory component specifications, diagnostic workflows, and repair protocols.
Hayward Sand Filter Parts Diagram: System Overview and Component Layout
The structural design of top-mount Hayward ProSeries sand filters (such as the S180T, S210T, S244T, and S310T series) relies on a high-density, corrosion-proof polymeric tank vessel housing an internal hydraulic distribution system. Fluid entering the system passes through a multi-port control valve down through a top air-relief diffuser, distributing evenly over the media bed composed of #20 silica sand (0.45 mm to 0.55 mm grain size).
Recommended Best Deal Products
Factory Maximum Working Pressure: 50 PSI (3.45 bar). Standard Continuous Operating Pressure Range: 8 to 22 PSI depending on total dynamic head (TDH). Sand Media Specification: Standard Grade #20 Silica Sand (Uniformity Coefficient < 1.75).
The core structural and hydraulic components identified on the primary schematic layout include:
- Vari-Flo Control Valve Assembly (SP0714T / SP071620T): A 6-position or 7-position manual multiport valve manufactured from heavy-duty ABS. It controls fluid direction for Filter, Backwash, Rinse, Waste, Recirculate, and Closed positions.
- Flange Clamp Assembly (GMX600NM): A high-tensile two-piece clamp structure secured by stainless steel fasteners, compressing the valve flange O-ring against the tank neck top lip.
- Upper Diffuser & Internal Pipe Assembly (SX240D / SX202DA): Positioned at the upper neck, this component distributes influent water horizontally across the top sand layer without disturbing media bed levelling.
- Center Pipe & Folding Lateral Assembly (SX240DA / SX200QN): Extends vertically down the center axis of the vessel, connecting the top valve junction to the lower radial hub.
- Folding Radial Laterals (SX200L): A set of 8 to 10 slotted lateral umbrella arms attached to the lower hub. Slotted apertures are precision-engineered to 0.010 inches (0.25 mm) to allow maximum fluid flow while blocking silica sand grains from entering the return plumbing.
- Sand & Water Drain Assembly (SX180LA / SP1022C): Located at the base of the vessel, featuring a dual-function threaded plug, outer cap, screen baffle, and high-nitrile sealing gasket for rapid winterization or total media extraction.

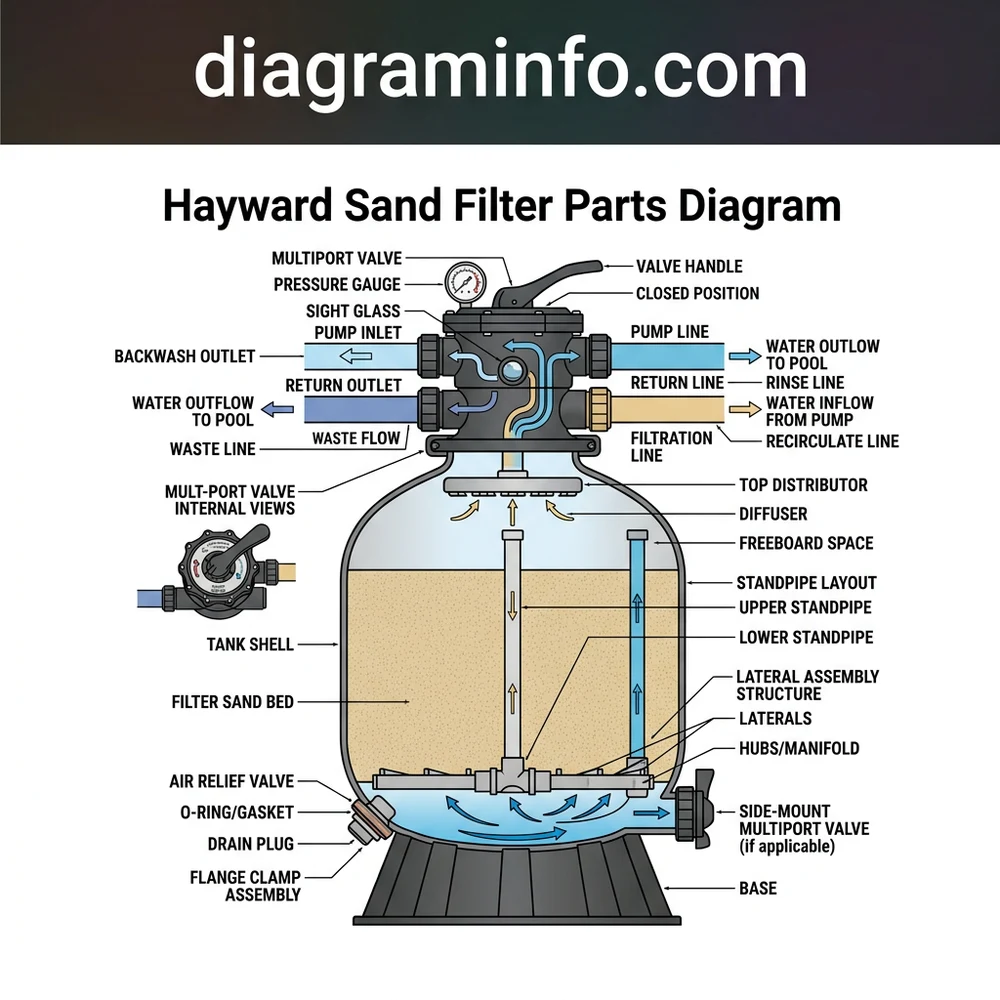

How to Read the Hayward Sand Filter Parts Diagram Schematic
Interpreting a technical Hayward sand filter parts diagram schematic requires reading hydraulic pathways from the control interface down through the internal hub assembly. Exploded diagrams isolate mechanical assemblies into distinct, numbered sub-components to clarify proper assembly sequencing, mechanical tolerance zones, and seal placement points.
Always depressurize the filter vessel completely via the manual air relief valve on the multiport housing before loosening the flange clamp nuts. Attempting service under static pressure can lead to catastrophic component displacement and severe mechanical injury.
When using the schematic blueprint to perform system service or structural overhauls, follow this three-stage identification protocol:
1. Multiport Valve Hydraulic Tracing
Refer to the upper section of the diagram to trace fluid paths through the Vari-Flo valve. Inspect the diverter rotor, handle assembly spring (SPX0710Z16), and heavy-duty spider gasket (SPX0714L). Note that fluid isolation between the inlet, outlet, and backwash waste ports relies entirely on the precise seating of the vulcanized rubber spider gasket inside the valve body channels.
2. Internal Underdrain and Hub Alignment
Examine the center column on the schematic blueprint. The vertical standpipe must sit completely perpendicular inside the vessel base alignment recess. Notice the hinged joints on the self-cleaning folding laterals. During installation, these laterals pivot upward to clear the narrow tank neck opening and swing down 90 degrees into a horizontal radial array once cleared inside the lower tank cavity.
3. Fastener Torque Specifications and Sealing Interfaces
Review all secondary mechanical seals, including the valve-to-tank O-ring (SPX0714H), sight glass gasket (SPX1070C), and pressure gauge thread connection (1/4-inch NPT). Verify that the flange clamp assembly is drawn with a defined mechanical gap between clamp halves. Tighten clamp nuts evenly to a torque specification of 50 to 60 in-lbs (5.6 to 6.8 Nm) to prevent flange deformation.
Troubleshooting Hayward Sand Filter Systems Using Valve and Tank Schematics
Field diagnostics often reveal hydraulic degradation, pressure spikes, or media discharge into the pool return lines. Utilizing the component breakdown layout allows technicians to perform root-cause failure analysis by isolating physical structural faults within specific assemblies.
For complementary diagnostic procedures on system circulation loops, consult our technical guides on pool pump housing schematics, inspect detailed multiport valve rebuild diagrams, or evaluate full commercial filtration layout specs.
Common operational failures and their corresponding structural diagram locations include:
Sand Discharge Into Pool Return Lines
If silica media bypasses the filter vessel and enters the return plumbing, refer to the lower lateral array on the parts blueprint. Inspect the following failure points:
- Cracked or Fractured Lateral Arm (SX200L): Hairline structural cracks in the slot openings cause media to pass directly into the center pipe.
- Dislodged Lateral Arm: Internal thread stripping at the lower hub (SX240DA) junction dislodges the arm under hydraulic backwash force.
- Cracked Top Diffuser Assembly (SX240D): Allows un-diffused media slurry to bypass the top standpipe column during reverse flow operation.
Persistent Leakage From Multiport Valve Waste Line
Refer to the internal mechanical breakdown of the Vari-Flo valve on the schematic layout. Internal port bypass almost always stems from a distorted, unseated, or eroded spider gasket (SPX0714L). Debris trapped under the diverter shoe scores the sealing lip, allowing high-pressure fluid from the pump port to cross over directly into the waste channel during standard filtering mode.
High System Operating Pressure and Reduced Volumetric Flow
When backwashing fails to lower tank pressure back to baseline specs (8-12 PSI clean operating pressure), evaluate media calcification or lower underdrain restriction. Refer to the lateral assembly diagram to verify slotted opening dimensions. Calcified mineral deposits or chemical binding agents block the 0.010-inch slots, causing elevated backpressure across the underdrain array.
Technical Component Specifications and OEM Reference Chart
The following technical reference table details primary replacement components, dimensions, material compositions, and installation locations cross-referenced from official factory Hayward sand filter parts diagrams.
| Component Name | OEM Part Number | Material / Dimensional Spec | Diagram Location & Torque Spec |
|---|---|---|---|
| 1.5″ Vari-Flo Multiport Valve | SP0714T | ABS Molded / 1.5″ SKT Plumbing Connections | Top Tank Mount Flange / Hand-tight unions |
| Valve Spider Gasket | SPX0714L | 5-Vane Vulcanized EPDM Rubber | Inside Vari-Flo Lower Body Channels |
| Tank Flange Clamp Set | GMX600NM | Glass-Filled Polypropylene w/ Stainless Hardware | Valve-to-Tank Junction / 50-60 in-lbs |
| Folding Lateral Sub-Assembly | SX240DA | ABS Center Hub w/ 10 Folding Arm Connections | Tank Bottom Floor / Perpendicular Seating |
| Pressure Gauge (0-60 PSI) | ECX27121 | Brass Internals / 1/4″ NPT Rear Mount Thread | Multiport Valve Upper Body Port / 23 turns PTFE tape |
| Tank Drain Plug Assembly | SX180LA | ABS Plug, Retaining Screen & Nitrile Cap Gasket | Lower Base Vessel Port / Hand Tighten + 1/4 Turn |
Frequently Asked Questions Regarding Hayward Sand Filter Blueprints
How do I determine whether my Hayward sand filter requires 1.5-inch or 2-inch multiport valve components from the schematic?
Check the model designation stamped on the filter serial plate and verify port sizes on the valve blueprint. Standard ProSeries units up to 24-inch tank diameters (S180T, S210T, S244T) utilize 1.5-inch NPT/SKT ports (SP0714T valve). Larger commercial and residential tanks, such as the 31-inch S310T or S360T series, mandate 2-inch plumbing connections utilizing the SP071620T control valve assembly to handle higher flow rates (up to 120 GPM).
What specific component on the Hayward sand filter parts diagram stops media from flowing back to the pool during backwash?
The lower folding radial laterals (SX200L) and center pipe assembly (SX240DA) prevent media escaping. The micro-slotted apertures on each lateral arm are sized strictly to 0.010 inches. Water passes freely through these slots into the hollow interior of the arm and up the center pipe, while the larger #20 silica sand grains (minimum size 0.45 mm / 0.0177 inches) are physically held back in the tank bed.
What is the procedure for replacing the valve spider gasket shown in the top-mount schematic?
First, isolate the filter system by shutting off power to the pump motor and closing intake/return isolation valves. Remove the top valve cover screws (SPX0710Z1A) and lift out the key handle diverter assembly. Scraping out the damaged EPDM spider gasket (SPX0714L) requires a flat gasket scraper tool. Clean the track channels thoroughly with isopropyl alcohol, apply a light coat of OEM-approved cyanoacrylate adhesive or marine silicone to the channel base, seat the new gasket flat side down, and allow it to cure fully before reassembling.
How do the internal components of top-mount and side-mount Hayward filter diagrams differ?
Top-mount configurations combine the valve mount and upper diffuser into a single top opening clamp interface connected to a straight center pipe. Side-mount blueprints (such as the ProSeries S200 or S240 side-port models) feature an upper domed closure cap with a manual air bleed assembly, while the valve mounts externally onto two dedicated side ports via bulkheads. Internally, side-mount layouts utilize a curved upper elbow diffuser tube instead of a direct vertical down-pipe.
Why does the flange clamp assembly on the diagram show a gap between the two metal halves when properly tightened?
The two-piece flange clamp (GMX600NM) is designed intentionally with an engineered operational gap between clamp half ends. Tightening the fasteners brings uniform circumferential compression onto the V-groove channel, forcing the multiport valve flange down tightly against the tank lip O-ring (SPX0714H). The clamp halves should never touch metal-to-metal; maintaining a balanced 1/8-inch to 1/4-inch gap on both sides ensures equal, uninterrupted sealing force around the complete 360-degree flange circumference.
Step-by-Step Guide to Understanding the Hayward Sand Filter Parts Diagram
Identify – Locate your specific model number on the tank label to reference the correct Hayward sand filter parts diagram.
Locate – Isolate the multiport valve, flange clamp, standpipe, and bottom lateral assembly in the diagram layout.
Reference – Match part numbers from the schematic, such as the spider gasket, tank O-ring, or lateral fingers, before ordering.
Connect/Route – Assemble the central standpipe and folding lateral hub, ensuring all lateral fingers lock securely inside the tank base.
Verify – Seat the top valve head and clamp ring properly, torquing clamp bolts evenly to prevent high-pressure water leaks.
Troubleshoot – If sand discharges into the pool after reassembly, re-examine the lateral hub for cracked fingers or unseated pipe connections.
