5 Pin Fuel Pump Relay Diagram: Wiring and Installation
A 5 pin fuel pump relay diagram illustrates how to control high-current fuel pumps using a low-current switch. In trailer applications, this often involves managing auxiliary power from an RV blade connector to ensure reliable fuel transfer while protecting delicate components like the brake controller and lighting circuits from power surges.
📌 Key Takeaways
- Identifies the standard terminal numbering for 12V automotive relays
- Distinguishes between the low-current trigger and high-current load circuits
- Prevents electrical damage to the vehicle’s brake controller and signaling systems
- Ensures a dedicated power path for auxiliary fuel pumps or accessories
- Essential for troubleshooting power delivery issues in custom trailer builds
When you are troubleshooting a vehicle that refuses to start or an RV that isn’t receiving power to its onboard systems, understanding the 5 pin fuel pump relay diagram is an essential skill. Whether you are dealing with a standard automotive fuel system or integrating a high-draw auxiliary circuit for a trailer, this specific relay configuration acts as the “brain” of your electrical distribution. Having the correct diagram prevents costly wiring mistakes that can lead to blown fuses, melted wires, or even electrical fires. In this guide, you will learn exactly how to interpret the pinouts, wire a relay from scratch, and integrate it into your existing towing or fuel delivery setup.
Decoding the 5 Pin Fuel Pump Relay Diagram
The 5 pin fuel pump relay, often referred to as a Bosch-style relay, is a versatile electromagnetic switch. To read a 5 pin fuel pump relay diagram correctly, you must first understand the numbering convention found on the bottom of the relay housing. These numbers—30, 85, 86, 87, and 87a—are standardized across the industry.
A 5-pin relay differs from a 4-pin relay by the inclusion of Pin 87a. This pin provides power when the relay is “off” (normally closed), making it ideal for complex circuits like security overrides or alternating light systems.

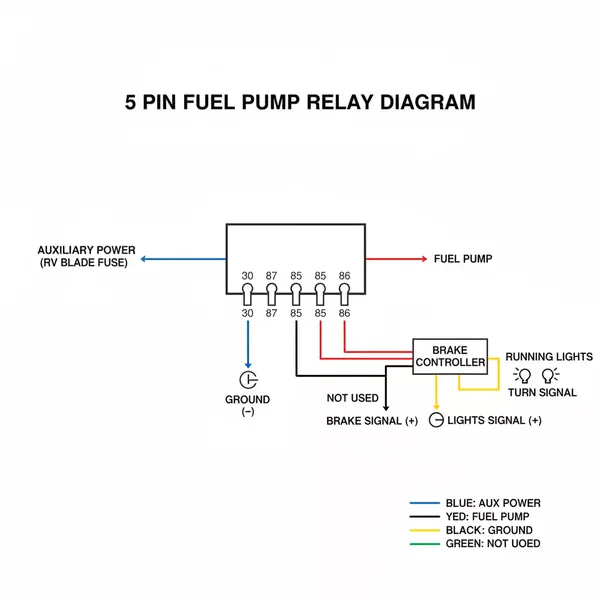

The diagram typically visualizes the relay in two parts: the control circuit and the load circuit. The control circuit consists of pins 85 and 86, which power an internal electromagnet. The load circuit consists of pins 30, 87, and 87a. When you look at the schematic, you will see a switch that moves between 87a and 87 based on whether the electromagnet is energized.
Pin 30: Common Feed (Battery Positive)
Pin 85: Ground (Relay Coil)
Pin 86: Trigger/Switch (Relay Coil)
Pin 87: Normally Open (Output to Fuel Pump/Auxiliary Power)
Pin 87a: Normally Closed (Alternative Output)
Color-coding varies by manufacturer, but in many trailer and RV applications, you will find that the 5 pin fuel pump relay diagram uses red for high-current battery feed (Pin 30) and blue or green for the triggered output (Pin 87). In a towing context, this relay is frequently used to manage the auxiliary power line that runs to your RV blade connector, ensuring that your trailer battery charges only when the engine is running.
Step-by-Step Installation and Wiring Guide
Implementing a 5 pin fuel pump relay diagram into your vehicle or trailer wiring requires a methodical approach. This process ensures that your high-draw components, such as a fuel pump or an electric brake system charging line, receive clean, consistent voltage without overloading your primary ignition switch.
Required Tools and Materials:
- ✓ Multimeter or Test Light
- ✓ Wire Strippers and Professional Crimpers
- ✓ 12-gauge or 10-gauge Primary Wire (for load)
- ✓ 18-gauge Wire (for trigger)
- ✓ Heat-shrink Insulated Terminals
- ✓ In-line Fuse Holder (30A or 40A)
Always disconnect the negative battery terminal before beginning any electrical work. Working on a live fuel pump circuit can cause sparks near fuel vapors, creating a significant fire hazard.
Follow these steps to wire the relay:
1. Mount the Relay: Secure the relay to a dry, accessible location in the engine bay or near the trailer’s flat connector junction box. Keep it away from extreme heat sources like exhaust manifolds.
2. Connect Pin 30 (Main Power): Run a heavy-gauge wire (12 AWG or thicker) from the positive battery terminal to Pin 30. You must install an in-line fuse within 12 inches of the battery connection to protect the circuit.
3. Establish the Ground Pin (Pin 85): Connect Pin 85 to a clean, unpainted metal surface on the vehicle chassis. This is your ground pin. A poor ground is the leading cause of relay failure and “chattering.”
4. Identify the Trigger Source (Pin 86): For a fuel pump, this usually comes from the ECU or the ignition switch. If you are using this relay for trailer auxiliary power, you might tap into the running lights or a dedicated ignition-switched source so the trailer doesn’t drain your vehicle battery when the engine is off.
5. Connect the Load (Pin 87): Connect Pin 87 to the positive lead of your fuel pump or the auxiliary power terminal on your 7-way RV blade socket. When the relay is triggered, power will flow from Pin 30 to Pin 87.
6. Insulate the Unused Pin (Pin 87a): In a standard fuel pump setup, Pin 87a is usually not used. Cover it with a heat-shrink cap or an insulated female spade connector to prevent accidental grounding.
7. Verify Connectivity: Use your multimeter to check for continuity between your ground pin and the chassis. Ensure there is no resistance, as this ensures the coil can pull the internal switch shut efficiently.
8. Final Test: Reconnect the battery. Turn the ignition to the “On” position. You should hear a distinct “click” from the relay, indicating the internal electromagnet has engaged and is now sending power to the load.
Common Issues & Troubleshooting
Even with a perfect 5 pin fuel pump relay diagram, electrical gremlins can occur. The most common symptom of a failing relay is a vehicle that cranks but won’t start, or trailer systems (like interior lights or a brake controller battery charge line) that remain dead.
If you suspect the relay is faulty, start by listening. If you don’t hear a click when the ignition is turned, the problem is likely in the control circuit (Pins 85 or 86). Check the fuse for the trigger wire and ensure the ground pin is making full contact with the chassis. If the relay clicks but no power reaches the fuel pump or RV blade, the internal contacts of the relay may be burnt, or the main fuse on Pin 30 has blown.
Carry a spare 5-pin relay in your glove box. Since they are standardized, you can often “borrow” a relay from a less critical system, like the air conditioning, to get your fuel pump running in an emergency.
Voltage drop is another frequent issue, especially in long trailer runs. If your turn signal or running lights seem dim when the fuel pump or auxiliary power is active, you may have insufficient wire gauge or a corroded connection at the flat connector. Use a multimeter to check the voltage at Pin 30 and Pin 87 while the circuit is under load. A drop of more than 0.5 volts indicates a wiring bottleneck.
Tips & Best Practices for Long-Term Reliability
To ensure your wiring stands the test of time, especially in harsh environments involving road salt and moisture, follow these best practices for implementing your 5 pin fuel pump relay diagram.
First, always use marine-grade heat shrink terminals. Standard crimp connectors can vibrate loose or corrode over time, leading to intermittent power delivery to your electric brake system or fuel pump. For trailer applications, applying a small amount of dielectric grease to the pins of the relay and the RV blade connector will prevent oxidation.
When selecting components, don’t settle for the cheapest relay available. High-quality relays from reputable manufacturers are rated for millions of cycles and handle heat much better. If your application involves a high-performance fuel pump or a heavy-duty auxiliary power draw for an RV, consider a relay rated for 40 or 50 amps rather than the standard 30-amp version.
- ✓ Use a relay socket instead of individual spade connectors for a cleaner, more secure installation.
- ✓ Label every wire near the relay so you can troubleshoot on the side of the road without a diagram.
- ✓ Bundle your wires using split-loom tubing to protect against abrasion and engine heat.
- ✓ Keep the relay upright to prevent water from pooling inside the plastic housing.
Finally, always match your wire gauge to the fuse and the load. For a 5 pin fuel pump relay diagram to function safely, the wire must be capable of carrying more current than the fuse’s rating. This ensures the fuse blows before the wire melts. Following these guidelines will provide a professional-grade electrical system that keeps your vehicle and trailer running smoothly for years to come.
Frequently Asked Questions
What is 5 pin fuel pump relay diagram?
A 5 pin fuel pump relay diagram is a visual schematic showing how to wire an electromagnetic switch to control a high-draw fuel pump. It identifies the standard terminal numbers—30, 85, 86, 87, and 87a—to help DIYers and mechanics safely isolate high-voltage circuits from low-voltage control switches in trailer or vehicle systems.
How do you read 5 pin fuel pump relay diagram?
Reading the diagram involves matching the numbered terminals to your wiring harness. Terminal 30 typically connects to the battery, while 85 and 86 are for the coil trigger. Terminal 87 provides power when the relay is active. Understanding these paths ensures that auxiliary power reaches the pump without overloading the system.
What are the parts of 5 pin fuel pump relay?
The main parts include the coil (terminals 85 and 86), the common terminal (30), the normally open contact (87), and the normally closed contact (87a). In a trailer context, these pins work together to manage functions like the brake controller or auxiliary power by switching current based on the trigger signal.
Why is auxiliary power important?
Auxiliary power is vital for operating equipment like fuel transfer pumps or charging batteries while towing. By using a relay, you ensure that high-current demands do not melt the standard wiring for running lights or turn signals. It provides a dedicated, fused path for power, enhancing overall safety and system reliability.
What is the difference between running lights and turn signal wiring?
Running lights provide constant low-intensity illumination for visibility, whereas a turn signal requires a pulsed signal for flashing. In a 7-way RV blade setup, these are wired to separate pins. A relay helps prevent electrical backfeed between these circuits, ensuring that signaling remains distinct from constant power or braking functions.
How do I use 5 pin fuel pump relay diagram?
Use the diagram to map out your wiring harness before making any connections. Start by grounding the relay and then wiring the trigger source, such as an ignition switch. Finally, connect the fuel pump to terminal 87. This systematic approach ensures that the relay functions correctly, protecting your vehicle’s electronics.
