NEC Above Ground Pool Bonding Diagram: 2026 Setup
An above ground pool bonding diagram details the equipotential bonding loop designed to eliminate voltage gradients. Per NEC Article 680, run a continuous #8 AWG solid copper conductor attaching to four evenly spaced points on the metal frame, the pump motor bonding lug, water heater, and inline water bond fixture using stainless steel or brass bonding clamps.
📌 Key Takeaways
- NEC Code (680.26) requires a solid #8 AWG copper wire to tie all metallic pool elements into a continuous bonding grid.
- Steel wall structures must have bonding lugs attached at four perimeter points 18 to 24 inches deep or along upright supports.
- Water bonding is mandatory and requires an inline stainless steel plate exposed to at least 9 square inches of pool water.
- Loose, corroded, or painted clamp connections are the leading cause of stray voltage and elevated resistance measurements.
- While DIY wiring layout setup is common, final ground fault verification and bonding grid inspection require a licensed electrician.
An above ground pool bonding diagram establishes the electrical blueprint required to equalize voltage potential across all metallic components and water bodies surrounding an installation. Per National Electrical Code (NEC) Article 680.26, equipotential bonding prevents dangerous voltage gradients that cause electric shock. Unlike equipment grounding—which provides a low-impedance path back to the breaker panel to trip an overcurrent device—bonding connects all conductive structural elements, equipment housings, and pool water into a unified continuous loop. Understanding the physical layout, conductor routing, and mechanical connection points is vital for code compliance and user safety.
Above Ground Pool Bonding Diagram: Essential System Components
Every above ground pool bonding system relies on specific hardware designed to withstand corrosion, direct burial, and continuous exposure to moisture. Tracing the layout requires identifying six critical components across the structure and mechanical pad.
All bonding hardware must comply with UL 467 standards for grounding and bonding equipment. Conductors must consist of continuous #8 AWG bare solid copper wire (or larger) routed around the perimeter.
| Component Reference | Hardware Specification | Installation/Torque Requirement |
|---|---|---|
| Main Bonding Conductor | #8 AWG Bare Solid Copper (C11000 alloy) | Continuous run, buried 4–6 inches deep, 18–24 inches from pool wall |
| Direct Burial Lugs | Copper/Bronze Lay-In Lugs (DB stamped) | Torque to 25–35 in-lbs using stainless steel 18-8 hardware |
| Pool Wall Connector | Stainless steel bolt assembly on metal upright/wall | Requires minimum 9 sq. in. contact area or manufacturer lug point |
| Water Bond Assembly | Inline stainless steel pipe fitting or skimmer plate | Must maintain continuous contact with at least 9 sq. in. of pool water |
| Pump Motor Lug | External bonding terminal on OEM motor frame | Torque to manufacturer spec (typically 20–25 in-lbs) |
| Ladder & Handrail Sockets | Cast bronze or stainless steel mounting cups with lugs | Attach directly to perimeter wire ring before pouring concrete/decking |
The system works by connecting these distinct metal masses to a shared wire loop. The metal shell of the pool, structural steel wall uprights, pump motor casing, water heater heat exchanger, metallic filtration plumbing, ladder mounting brackets, and inline water bonding plate must all tie into this single conductor path. If you are integrating secondary filtration, review your sub-panel grounding configurations to ensure line voltage grounding remains separated from structural equipotential bonding circuits.

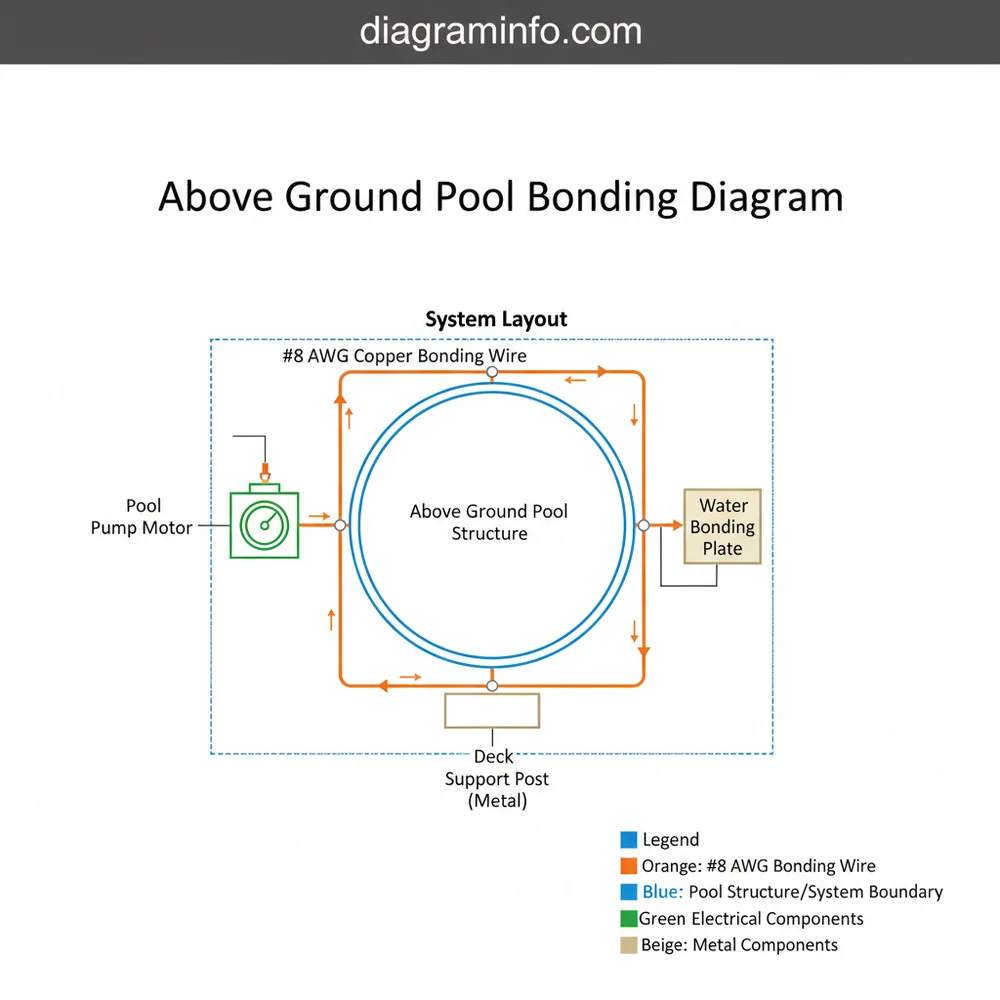

How to Read and Execute an Above Ground Pool Bonding Schematic
A standard above ground pool bonding schematic depicts a continuous perimeter ring encircling the outer boundary of the pool shell. To implement the configuration accurately, field installers must trace the uninterrupted wire path and attach branches using split-bolt connectors or continuous lay-in lugs.
Tracing the Perimeter Loop Layout
The main conductor forms a closed loop 18 to 24 inches outward from the outer rim of the pool wall, buried at a depth of 4 to 6 inches below subgrade. This perimeter loop acts as the primary voltage stabilizer in the soil matrix around the pool shell. The wire must remain continuous; unclosed breaks or loose splices degrade the ring’s ability to collapse voltage differentials during localized ground faults or static buildup.
Connecting Structural and Mechanical Nodes
From the main perimeter loop, tap lines extend to each non-exempt component:
- Metal Pool Wall and Uprights: Secure a bronze lay-in lug near the base of the pool wall on a structural upright. Remove paint or protective coatings down to bare metal to ensure low contact resistance.
- Water Bond Plate: Route the #8 AWG solid copper wire directly to the skimmer faceplate bond or an inline metal pipe connector positioned downstream of the filter system.
- Pump Motor and Sanitation Equipment: Run the wire to the external bonding terminal on the pool pump housing. For installations featuring auxiliary equipment, cross-reference pool pump wiring schematics to distinguish the external bonding lug from the internal green ground terminal located inside the junction box.
- Removable Accessories: Secure bonding leads to bronze anchor sockets supporting metal ladders or entry stairs.
NEC 680.26 explicitly prohibits relying on driven ground rods as the primary bonding mechanism. Driving a ground rod does not eliminate voltage gradients between conductive components and the water; it introduces an alternate path to earth that can elevate stray voltage potential across the pool area.
Troubleshooting Above Ground Pool Bonding System Grid Voltage and Continuity Issues
When an above ground pool bonding system fails, users typically report a mild tingling sensation upon entering or exiting the water, touching metal handrails, or adjusting the pump assembly. Resolving these symptoms requires systematic electrical testing to identify open loops or elevated contact resistance.
Diagnosing Stray AC Voltage Gradients
To detect unwanted voltage gradients across the grid, set a digital multimeter (DMM) to AC Volts (0–20V AC scale):
- Place one reference probe into the pool water (attach probe lead to a clean copper plate immersed in the water).
- Touch the second probe to metal handrails, the pool wall upright, pump motor casing, and surrounding damp soil.
- Reading Analysis: Any voltage differential exceeding 0.5V AC indicates an unbonded or high-resistance component within the equipotential grid. Zero volts AC confirms proper voltage equalization across components.
Testing Loop Resistance and High-Resistance Corrosion
Power down all branch circuits at the main panel prior to resistance testing. Using a low-resistance ohmmeter or standard DMM set to Ohms ($\Omega$):
Total resistance between any two bonded points (e.g., ladder lug to pump housing lug) must measure less than 1.0 Ohm (ideally below 0.2 Ohms). Resistance readings above 1.0 Ohm indicate severe oxidation, loose set screws, or broken wire strands within buried splices.
If high resistance is identified at aluminum pool uprights, inspect for galvanic corrosion. Direct contact between copper wire/lugs and aluminum uprights causes rapid galvanic degradation. Install stainless steel bi-metallic star washers and apply conductive anti-oxidant compound (e.g., Ideal Noalox or Burndy PENETROX) to maintain low contact impedance. For persistent pump circuit tripping, review GFCI breaker troubleshooting guides to rule out internal motor winding insulation breakdown.
Above Ground Pool Bonding Configuration FAQs
What wire size and type is specified in an above ground pool bonding diagram?
NEC Section 680.26 requires a minimum #8 AWG bare solid copper conductor. Stranded wire is strictly prohibited for underground perimeter bonding runs because moisture accelerates inter-strand corrosion, leading to high resistance and grid failure over time.
Does an above ground pool pump require both grounding and bonding connections?
Yes. The pump motor requires an insulated equipment grounding conductor (EGC) routed inside the feed conduit to clear internal line-to-case electrical faults via the GFCI breaker. Simultaneously, the motor housing requires an external #8 AWG bare solid copper bond wire connected to its exterior lug to integrate the motor frame into the continuous equipotential grid.
Do resin or non-metallic above ground pools require an equipotential bonding loop?
Yes. While resin uprights or composite top rails do not require bonding lugs, the system still demands a #8 AWG perimeter loop buried 18–24 inches from the pool edge. Furthermore, the water bond plate, pool filtration pump motor, heater, and any metal hardware (such as skimmer screws or ladders) must remain fully bonded into the grid.
Where should the water bonding plate be located according to system blueprints?
The water bonding assembly must be installed where it maintains constant, uninterrupted contact with pool water (minimum 9 square inches of surface area). Standard locations include an inline stainless steel nipple placed in the filtration return line or a specialized stainless steel bonding plate mounted inside the skimmer basket assembly below the water line.
Step-by-Step Guide to Understanding the Above Ground Pool Bonding Diagram
Identify – Identify all metallic pool components requiring connection, including pool walls, pump motor lug, water bond plate, and ladder.
Locate – Locate bonding lug attachment points on structural upright posts and the pump motor casing as shown in the layout.
Reference – Reference the bonding schematic to establish a continuous perimeter loop route around the pool structure.
Connect/Route – Route #8 AWG solid copper wire continuous loop and secure all connections using approved direct-burial brass clamps.
Verify – Verify total resistance across all connected bonding points using a multimeter to ensure less than 1 ohm of resistance.
Troubleshoot – Troubleshoot high resistance readings by sanding paint from metal wall contacts and re-tightening loose lug hardware.
