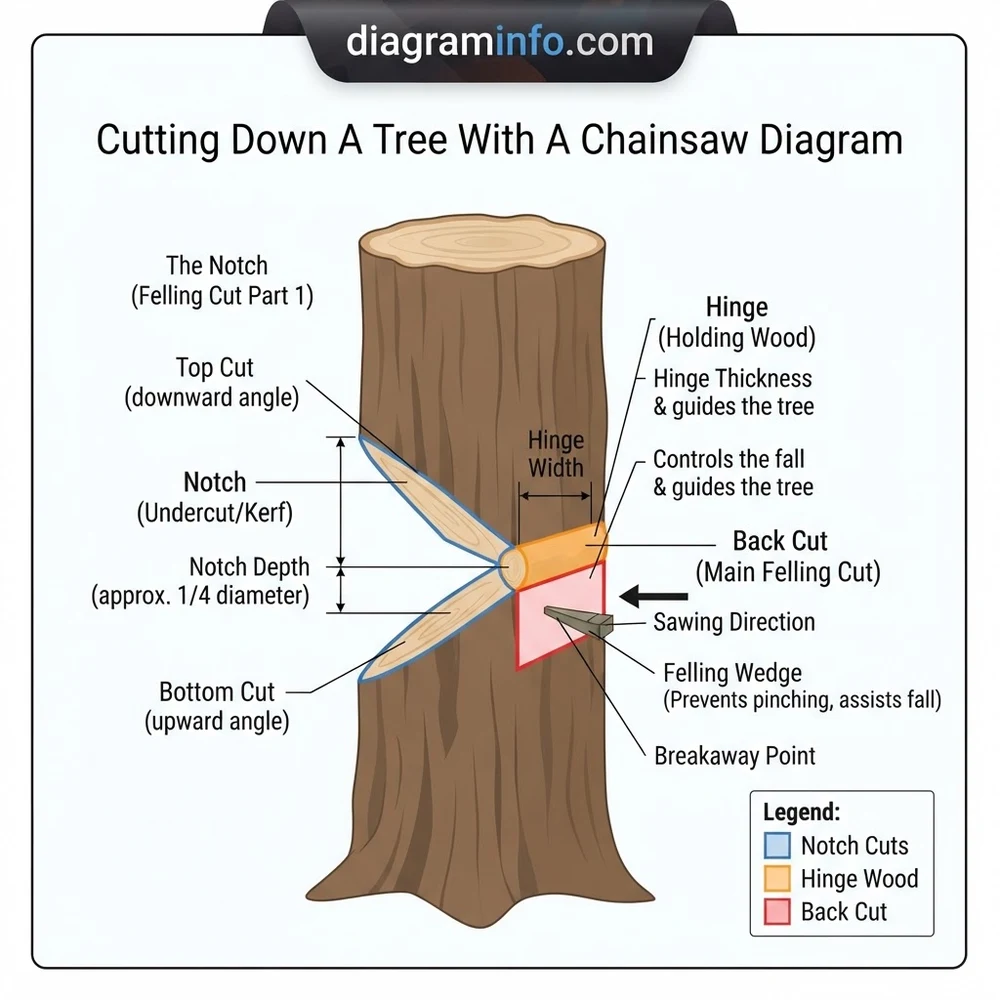

A directional felling diagram illustrates the 70° open-face notch layout, a holding hinge sized at 10% of trunk diameter, and a horizontal back cut positioned 1 to 2 inches above the notch apex. This structural configuration prevents barber-chairing and controls fall direction along the designated escape route.
📌 Key Takeaways
- Maintain a holding hinge width equal to 10% of the tree diameter at breast height (DBH).
- Establish a 45-degree angled escape path opposite the natural directional lean of the tree.
- Position the horizontal back cut 1 to 2 inches (2.5-5 cm) above the notch apex line.
- Common hazard: Cutting through the hinge causes total loss of directional fall control.
- Consult a certified arborist if the tree exceeds 15 degrees lean or shows internal decay.
Executing precision forestry work requires a deep mechanical understanding of tension, compression, and center-of-gravity manipulation. When analyzing a cutting down a tree with a chainsaw diagram, professional timber fallers and arborists evaluate the precise geometric cuts required to control a tree’s descent vector safely. Felling operations rely on creating a dynamic mechanical hinge within the wood fibers, converting potential energy into a predictable rotational fall path. Modern directional felling protocols adhere strictly to ANSI Z133 and OSHA 1910.266 timber harvesting standards. This technical manual details the anatomical components, mathematical layouts, procedural sequences, and corrective protocols depicted in professional chainsaw felling schematics.
Cutting Down a Tree with a Chainsaw Diagram: Structural Layout and Key Components
A comprehensive cutting down a tree with a chainsaw diagram details both the equipment setup and the specific geometric cuts executed on the trunk. Understanding the mechanical interaction between the saw’s cutting system and the timber’s structural fibers is essential for directional control.
Recommended Best Deal Products
directional control depends entirely on retaining unbroken wood fibers across the hinge zone. Never cut completely through the tree trunk. The dynamic hinge acts as a mechanical pivot, stabilizing the tree against wind shear and side-lean until it reaches a 45-degree angle of fall.
Primary Cut Geometry Components
The core structure of any felling schematic consists of three primary cuts that form the directional layout:
- The Directional Face Notch: Cut into the side facing the intended fall path. It consists of a top horizontal cut and an angled bottom cut that meet precisely at an apex line without overcutting.
- The Mechanical Hinge (Holding Wood): Uncut wood fiber left between the apex of the directional notch and the horizontal back cut. The hinge thickness directly regulates fall velocity and trajectory.
- The Back Cut (Felling Cut): A horizontal severance cut initiated on the opposite side of the tree. Positioned slightly higher than the horizontal floor of the face notch to create a structural safety step.
Chainsaw Equipment Configuration
The operational saw layout must match the diameter at breast height (DBH) of the target timber. Professional setups require guide bar lengths equal to or exceeding the tree diameter, though specialized double-cut techniques can accommodate larger timber. High-torque 2-stroke engines operating at 9,000–13,000 RPM drive full-chisel or semi-chisel saw chains. Bumper spikes (felling dogs) mounted to the crankcase serve as the primary fulcrum point, allowing the operator to leverage engine power directly into the cut line without inducing bar pinch or engine lugging. Operators should consult our chainsaw chain sharpener angle guide to ensure cutter top-plate angles match timber density before starting high-stress felling operations.
| Diagram Feature | Dimensional Standard / Angle | Mechanical Function |
|---|---|---|
| Open-Face Notch Angle | 70° to 90° opening angle | Allows tree to reach ground before notch closes and snaps hinge. |
| Hinge Thickness | 8% to 10% of DBH (Trunk Diameter) | Maintains alignment, resists twisting, prevents premature drop. |
| Back Cut Elevation Step | 1 to 2 inches (25-50 mm) above notch line | Prevents kickback, staves off trunk kickup, guides forward shift. |
| Escape Route Vector | 45° angle rearward opposite fall vector | Establishes safe operator retreat away from root-plate reaction. |
Executing the Felling Configuration: Step-by-Step Guide to Reading the Blueprint
Translating a cutting down a tree with a chainsaw diagram into real-world forestry practice requires systematic execution. Each phase of the operation builds upon the previous geometrical reference lines cut into the trunk.
Recommended Best Deal Products
Failure to align the notch cuts precisely will cause premature fiber fracture. If the top and bottom cuts bypass each other (over-cutting), the effective thickness of the hinge is compromised, leading to unpredictable directional drift or destructive barber-chairing.
Phase 1: Directional Notch Alignment and Execution
Begin by sighting the gunning marks on the chainsaw housing along the intended lay line. Execute the top cut of the face notch at an angle of 60° to 70° off horizontal. Cut downward until reaching roughly 20% to 25% of the trunk’s total diameter depth. Next, perform the lower notch cut horizontally or at an upward 20° slope (for Humboldt configurations). Ensure the two cuts meet cleanly along a perfectly level horizontal line, known as the apex point. Remove the wood wedge created by the notch to leave a clean, unobstructed open face.
Phase 2: Calculating Hinge Thickness and Setting the Back Cut Offset
Move to the rear of the tree opposite the open notch. Mark the horizontal level of the back cut precisely 1 to 2 inches above the notch apex line. This offset provides crucial kickback protection if the tree rebounds off the stump during the final fall stage. As shown in the diagram above, establish a cutting line perpendicular to the fall direction. Engage the saw throttle to 100% full speed and drive the bumper spikes into the wood casing behind the hinge line.
For medium-to-hardwood timber (e.g., Oak, Hickory, Maple), maintain a strict hinge thickness calculated as: Hinge Thickness = DBH × 0.10. For soft pine or diseased wood, increase hinge thickness to 12-15% of DBH to offset lower fiber tensile strength.
Phase 3: Deploying Wedges and Retreating Along Safe Vectors
As the back cut penetrates deep enough to clear the guide bar tail, pause cutting and drive high-impact polymer felling wedges into the kerf behind the saw bar. Drive the wedges uniformly using a sledgehammer or axe poll to relieve mechanical weight from the saw bar and force the tree’s center of mass forward over the open notch. Continue cutting toward the apex, constantly measuring hinge depth. Once the calculated 10% hinge thickness is reached, stop cutting, engage the chain brake, remove the saw, and immediately evacuate along the designated 45-degree escape path.
Troubleshooting Common Felling System Failures and Structural Deviations
Unintended wood structure variations, compression dynamics, and incorrect cut execution can disrupt the felling system blueprint. Recognizing visual indicators and operational feedback allows technicians to take prompt corrective measures.
Addressing Kerf Pinch and Mechanical Lockup
If the back cut kerf begins closing onto the guide bar before hinge depth is reached, the tree possesses unidentified rearward lean or compression wood dynamics. Do not force the saw engine, as this damages the clutch assembly and oil pump drive gears (refer to our power equipment engine maintenance manual for centrifugal clutch tolerances). Immediately insert a high-lift mechanical wedge or secondary aluminum alloy wedge into the back cut kerf line behind the bar. Drive the wedge forward using firm strikes to re-open the kerf and elevate the center of gravity past the neutral vertical axis.
Preventing Trunk Barber-Chairing on Lean Vectors
When trees possess heavy forward lean, initiating a standard rear back cut induces immense tension on the back fibers, causing the tree to split vertically upward before the cut is complete. This lethal dynamic, known as barber-chairing, is mitigated by converting the standard layout schematic into a plunge-cut (bore-cut) configuration.
- Plunge-Cut Execution: Establish the open-face notch per standard procedure.
- Bore Initiation: Place the lower edge of the guide bar tip against the center of the trunk behind the hinge position. Bore straight through the core of the tree horizontally.
- Creating the Holding Strap: Cut backward toward the rear shell, leaving a 2- to 3-inch outer trigger strap at the back of the tree, preserving the intact hinge at the front.
- Final Release: Sever the rear holding strap cleanly at a 45-degree downward angle from the outside to initiate controlled release.
Compensating for Internal Rot and Heartwood Decay
Trees exhibiting fungal conks, hollow bases, or soft center wood lack structural core integrity. When executing cuts based on the cutting down a tree with a chainsaw diagram, decay requires shifting reliance entirely onto the outer sapwood shell. Increase the total hinge width across the entire trunk face and widen the holding wood thickness by 30-50%. If the core is hollow, utilize a side-hinge or corner-hinge geometry, retaining extra lateral fiber thickness on the structurally sound perimeter. High-capacity winching configurations may be necessary; see our guide on heavy-duty logging winch setup for mechanical anchor specifications.
Chainsaw Felling Blueprint and Cut Geometry Technical FAQ
What is the optimal hinge thickness calculation in a cutting down a tree with a chainsaw diagram?
The standard industry calculation for structural hinge thickness is 8% to 10% of the tree’s Diameter at Breast Height (DBH). For example, a tree measuring 20 inches in diameter requires a solid, uncut wood hinge thickness of 1.6 to 2.0 inches. In soft, rotting, or high-wind environments, this specification should be increased to 12% to 15% of DBH to maintain directional control throughout the arc of the fall.
When should a bore cut configuration be used instead of a standard back cut layout?
A bore cut (or plunge cut) configuration is mandated whenever a tree exhibits significant forward lean, heavy crown weight, or severe tension along its rear vertical axis. By boring directly into the center of the trunk behind the hinge and cutting backward, the operator isolates the holding wood and creates a dedicated rear holding strap. This completely eliminates internal fiber strain that causes catastrophic vertical splitting (barber-chairing).
How does chain pitch and cutter geometry impact directional control during felling?
Chainsaw chain configuration dictates cut smoothness, kerf clearance width, and cutting speed. Full-chisel cutters with sharp square corners cut aggressively through sound timber but dull rapidly in dirty bark, increasing physical vibration and drift off the layout lines. Semi-chisel cutters feature rounded corner radii that maintain tracking precision through dense or frozen hardwoods, ensuring the back cut stays perfectly horizontal and parallel to the face notch line.
Why is the back cut offset crucial for structural hinge integrity?
The back cut offset—positioning the horizontal back cut 1 to 2 inches higher than the internal apex line of the face notch—creates a physical wood step on the stump. This step acts as a mechanical barrier during the final phase of descent, preventing the butt end of the tree from slipping backward off the stump toward the operator or kicking up unpredictably as the hinge snaps.
How do you modify the felling schematic for trees with heavy side lean?
For side-leaning timber, modify the dynamic hinge configuration into an asymmetric shape (a tapered hinge). The hinge should be cut thicker on the side opposite the lean vector to pull the falling stem back toward the intended lay line. Additionally, perform a heavy side-bore cut on the lean side to release lateral tension before completing the back cut through the held side.
