Rheem Gas Water Heater Installation Diagram: 2026 Setup
A gas water heater installation diagram illustrates cold water supply lines with shut-off valves, hot water outlets, drip legs, and draft hoods attached to a metal vent pipe. Connections use standard 3/4-inch NPT fittings, with a T&P discharge pipe routed down toward a floor drain assembly or secondary drain pan for proper thermal safety.
📌 Key Takeaways
- Requires 3/4-inch NPT water connections and a 1/2-inch or 3/4-inch gas supply line with a 3-inch black iron sediment trap.
- The metal vent pipe must maintain a minimum upward slope of 1/4 inch per foot to safely exhaust dangerous carbon monoxide.
- Temperature and Pressure (T&P) relief valve discharge piping must extend down to within 6 inches of the floor drain assembly.
- Backdrafting from improper vent pipe diameter or loose draft hood attachment is the most common safety failure point.
- Hire a licensed plumber if gas line extension, chimney liner installation, or code-compliant vent pipe re-routing is required.
Properly executing atmospheric or power-vent water heater setups requires strict adherence to system plumbing schematics and local building codes (IPC/UPC). As illustrated in the comprehensive gas water heater installation diagram, correctly placing components—such as the thermal expansion tank, draft hood, pressure relief line, and fuel delivery assembly—is necessary for operational safety and system efficiency. This guide covers technical specifications, clearance tolerances, and plumbing code integration, enabling commercial plumbers, technicians, and experienced equipment mechanics to complete reliable, code-compliant installations. Related system layouts can be referenced in our guides on residential hydronic boiler diagrams and gas line sizing schematics.

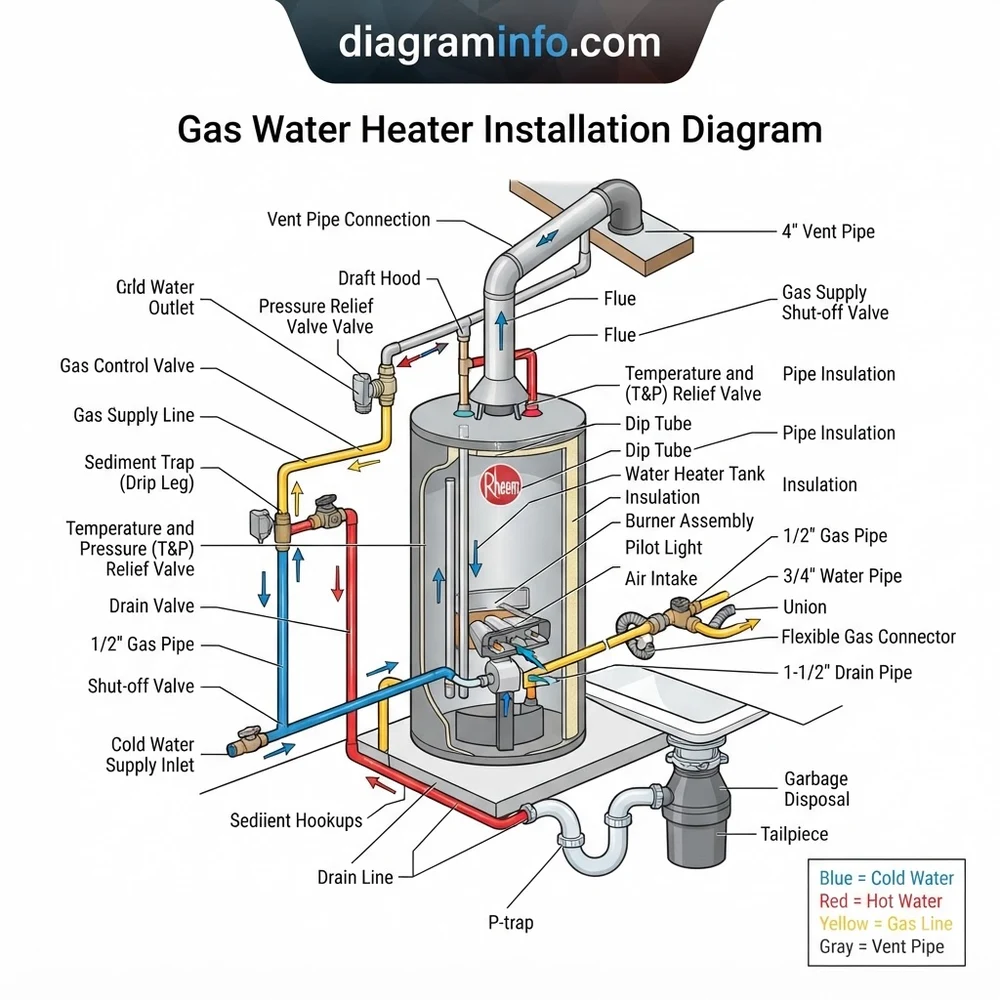

Gas Water Heater Installation Diagram: Critical Plumbing and Gas Components
According to OEM manufacturer specifications and universal plumbing codes, a standard gas water heater installation relies on distinct hydraulic, gas, and exhaust sub-assemblies. Referencing the gas water heater installation diagram above, each component serves a specific safety and functional role within the mechanical room layout.
Always install dielectric unions on cold and hot water connections when transitioning from copper piping to steel tank nipples. Failure to isolate dissimilar metals results in galvanic corrosion, leading to premature fitting failure and localized water leaks.
The primary cold water inlet incorporates a full-port ball valve, a thermal expansion tank sized to system volume, and a heat trap nipple to limit parasitic thermal siphoning. Opposite the cold supply, the hot water outlet feeds the distribution manifold. The Temperature and Pressure (T&P) relief valve is installed directly into the designated top or side tank port, with its discharge pipe routed downward to within 6 inches of the floor or into an approved indirect waste drain assembly.
The lower system region includes the gas control valve/thermostat block, burner door, and sediment trap (drip leg). The exhaust pathway features the draft hood connected to a rigid metal vent pipe, which transports combustion byproducts outside through a vertical or sidewall chase.
| Component Name | Technical Specification | Code / Installation Requirement |
|---|---|---|
| Cold Water Inlet Valve | 3/4-inch FNPT Full-Port Brass Ball Valve | Must be installed within line-of-sight; full flow unrestricted |
| Thermal Expansion Tank | 2.1 to 4.5 Gallon Pre-charged Diaphragm Tank | Pre-charge pressure must match incoming static water pressure |
| T&P Relief Valve | 150 PSI / 210°F Rated Valve with Copper/CPVC Tubing | Discharge line must slope downward, terminate 2-6 inches above floor |
| Vent Pipe Assembly | Type B Double-Wall or Single-Wall Galvanized (3″ or 4″) | Requires minimum 1/4-inch per foot upward slope toward chimney/vent stack |
| Gas Drip Leg / Sediment Trap | 3/4-inch or 1/2-inch Black Iron NPT Tee & Nipple | Must be positioned downstream of manual shutoff, minimum 3-inch cap depth |
Executing the Installation: Step-by-Step Plumbing Schematics
Completing an atmospheric gas water heater installation requires roughly 3 to 5 hours. Follow these technical sequences to maintain code compliance and system integrity.
Required Tools, Materials, and Safety Protocols
- Pipe wrenches (12-inch and 14-inch)
- Tubing cutter and deburring tool
- Propane/MAPP torch with lead-free solder or press tool
- Non-corrosive gas leak detection fluid
- Calibrated water pressure gauge
- Yellow PTFE tape (for gas threads) and blue/white PTFE tape (for water threads)
- Dielectric unions, brass shutoff valve, black iron pipe fittings
- Schedule 40 PVC or CPVC pipe for indirect drain line and drain pan assembly
Turn off the main gas supply line and isolate electrical circuits serving nearby appliances before starting work. Never apply a open flame from a soldering torch directly to factory water heater nipples containing plastic dip tubes or heat-trap inserts.
Sequence 1: Cold and Hot Water Piping Assembly
1. Position the water heater inside the drain pan. Ensure proper clearances from combustible materials (typically 2 inches minimum on sides and rear, 6 inches in front of gas valve, 18 inches above vent hood).
2. Thread dielectric unions onto the cold water inlet and hot water outlet nipples using PTFE thread sealant. Tighten with a pipe wrench to 30-40 ft-lbs torque.
3. Install the expansion tank on the cold supply line downstream of the main shutoff valve. Support the expansion tank weight independently using pipe straps anchored to wall studs.
4. Connect the cold water supply piping, incorporating a 3/4-inch full-port ball valve. Solder or press rigid copper lines, ensuring no heat transfers directly to the tank bushings.
5. Thread the T&P relief valve into the designated tank opening. Extend a 3/4-inch rigid copper, CPVC, or metallic relief line downward. Terminate the end using an unthreaded end within 6 inches of the floor drain or indirect waste receptor.
Sequence 2: Gas Line Connection and Vent Pipe Integration
1. Assemble the gas supply manifold starting from the rigid supply pipe. Install an approved gas shutoff valve, followed by a black iron pipe tee to construct a 3-inch sediment trap (drip leg) at the bottom port.
2. Run a flexible stainless-steel gas connector or rigid black pipe from the tee outlet to the gas control valve inlet thread using approved yellow PTFE tape or gas-rated pipe dope.
3. Attach the factory draft hood to the top opening of the water heater tank using sheet metal screws. Align the vent pipe collar over the hood output.
4. Connect the Type-B double-wall vent pipe to the draft hood, securing it with three sheet metal screws per joint. Verify a constant upward slope of at least 1/4 inch per linear foot toward the termination point.
5. Fill the tank completely by opening a hot water fixture downstream to bleed trapped air until a steady stream flows. Pressurize the gas system and perform a bubble test on all gas joints using leak detector solution.
Troubleshooting Vent Pipe, Pressure, and Gas Valve Failures
When system performance strays from the layout specified in the gas water heater installation diagram, perform diagnostic checks on exhaust flow, water pressure, and burner operation.
Gas inlet static pressure must read between 5.0 and 10.5 inches Water Column (W.C.) for Natural Gas, or 11.0 to 13.0 inches W.C. for Liquid Propane (LP) at the gas control valve manifold port.
Correcting Vent Pipe Exhaust Backdrafting
Exhaust backdrafting occurs when combustion gases flow back into the mechanical space through the draft hood instead of exiting via the vent pipe stack. Verify vent pipe pitch—ensure it does not dip or run horizontally for excessive distances. Check for negative pressure caused by heavy kitchen exhaust fans or unsealed mechanical room air returns. Clear any bird nests or creosote buildup from the roof cap assembly.
Addressing Thermal Expansion and T&P Valve Discharges
If the T&P valve drips intermittently during heating cycles, check the system water pressure using a gauge attached to the lower drain assembly hose bib. Pressure spikes above 80 PSI indicate a failed or under-pressurized thermal expansion tank bladder, or a failing main pressure-reducing valve (PRV). Adjust the expansion tank pre-charge to match static household water pressure while the tank is unpressurized on the hydraulic side.
Gas Water Heater Installation Diagram Technical FAQ
Can a water heater drain assembly connect directly to a sink tailpiece or garbage disposal?
No. Plumbing codes strictly prohibit connecting a water heater T&P relief discharge line or drain assembly directly to a sink tailpiece, slip joint, or garbage disposal drain assembly. The T&P line must discharge through an air gap into an indirect waste receptor, such as a floor drain or drain pan line, to prevent cross-contamination and back-siphonage of contaminated wastewater into the potable water supply.
What code rules apply to the vent pipe connection?
Atmospheric gas water heaters require Category I venting materials (typically Type B double-wall metal vent pipe). The pipe must maintain a minimum 1-inch clearance to combustible materials, maintain a continuous 1/4-inch per foot upward slope, and fasten securely at each joint using three equidistant sheet metal screws. Direct-vent and power-vent units use distinct PVC, CPVC, or polypropylene piping according to OEM installation instructions.
How does an AAV valve function in mechanical room drainage?
An Air Admittance Valve (AAV valve) is a one-way mechanical device used to vent secondary gravity drain lines, such as those servicing a nearby mechanical room utility sink or indirect waste receptor. When wastewater drains through the P-trap, the negative pressure opens the AAV valve to draw in fresh air, balancing pressure and preventing siphonage of the trap seal without releasing sewer gas into the structure.
Why is a drip leg required on the gas valve line?
A drip leg (sediment trap) is required by fuel gas codes (NFPA 54 / IFGC) immediately upstream of the gas control valve input. It uses gravity to trap moisture, debris, pipe scale, and joint compound from the gas stream before these contaminants enter the precise internal orifices of the gas control valve assembly, preventing burner blockages and valve failure.
