Miller Bobcat 225G Parts Diagram: 2026 Component Breakdown
The Miller Bobcat 225G parts diagram details the engine assembly (Onan Performer P218G/P220G), generator rotor/stator setup, control panel configuration, and fuel system layout. It maps component part numbers, brush assembly structures, and harness wire routings to simplify welder-generator maintenance and electrical diagnostics.
📌 Key Takeaways
- Onan P218G/P220G twin-cylinder engine schematic details oil filter (#122-0800) and spark plug gaps set to 0.025 in.
- Rotor resistance measured across slip rings should typically range between 3.5 and 4.2 ohms for correct excitation.
- Carbon brush assembly configuration requires replacement when brush length wears below 5/16 inch.
- Incorrect flashing diode or bridge rectifier terminal pinout causes zero AC/DC auxiliary generator power output.
- Always cross-reference the control panel switch schematic before replacing selector rheostats or circuit breakers.
The Miller Bobcat 225G is a heavy-duty, engine-driven welder and generator combination engineered for industrial applications, structural steel fabrication, and high-duty-cycle stick or TIG welding. Powered by a twin-cylinder Onan gas engine (typically P216G or P218G models) directly coupled to a 4-pole rotating field generator, maintaining optimal performance requires precise knowledge of its mechanical and electrical architecture. Utilizing an accurate miller bobcat 225g parts diagram allows field technicians and equipment mechanics to isolate faulty sub-assemblies, identify OEM part numbers, and verify complex wire harness routing. For complete engine overhauls, reviewing an Onan engine maintenance guide or checking Miller generator slip ring servicing procedures ensures all repairs adhere to strict manufacturer tolerances.

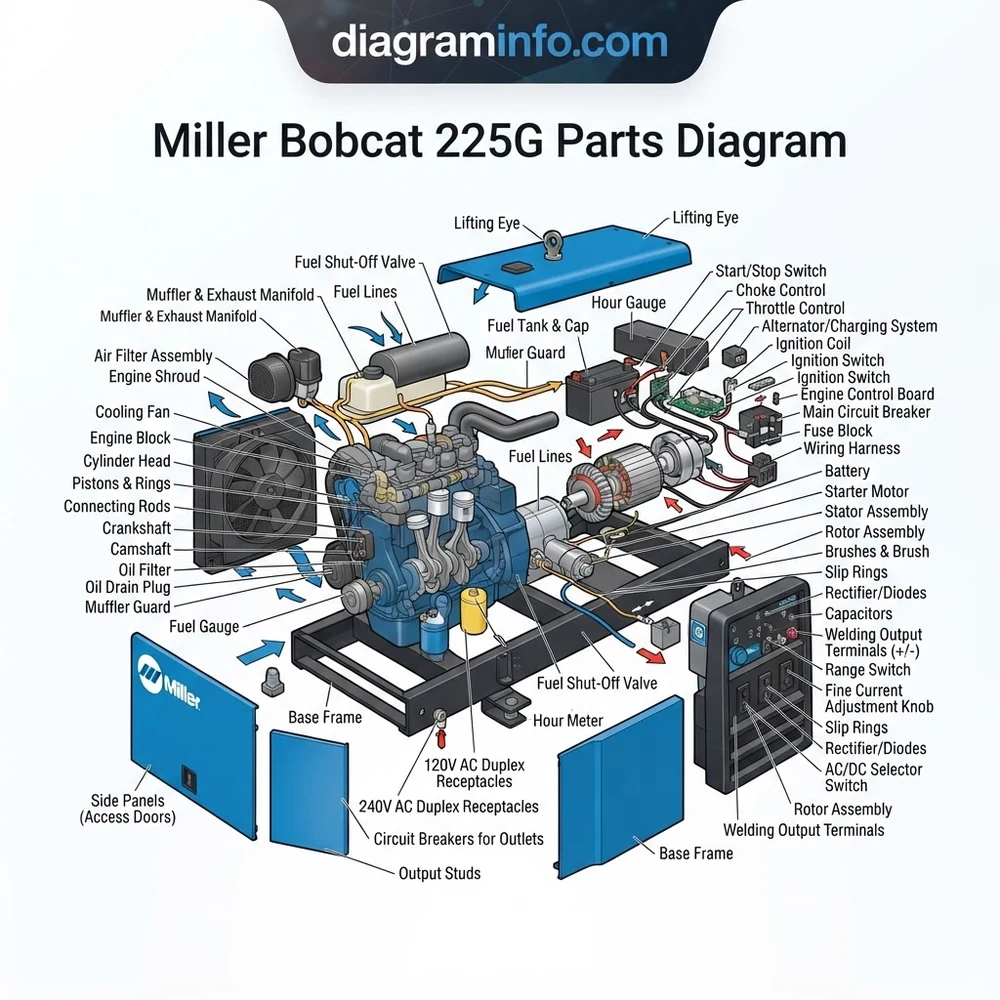

Miller Bobcat 225G Parts Diagram: Major System Components Labeled
Analyzing the master exploded view reveals three distinct engineering assemblies: the internal combustion drive engine, the high-output AC/DC generator rotor/stator cluster, and the front-panel control conditioning sub-system. Each sub-assembly features specific callout numbers in the OEM manual that correspond to exact part specifications and fastening torques.
Main Rotor Resistance: 3.8 to 4.2 Ohms (at 68°F / 20°C). Stator Power Winding Resistance: 0.11 to 0.14 Ohms across lead pairs. Rotor Shaft Rear Bearing Retention Torque: 35 ft-lbs.
The primary power generation system relies on a revolving field design where excitation voltage passes through carbon brush contacts directly onto dual brass slip rings mounted on the main rotor shaft. The stationary stator contains multiple dedicated windings: the main power output windings, the 120V/240V auxiliary generator windings, and the low-voltage excitation sensing circuit. Downstream from the generator stator, the heavy-duty power rectifiers convert raw multi-phase AC into smooth DC output for CC (constant current) welding applications.
| Diagram Ref # | Component Description | OEM Part Number | Technical Function & Specs |
|---|---|---|---|
| Ref 12 | Main Rotor Assembly | #134589 | 4-Pole rotating field shaft, 1800 RPM base speed |
| Ref 18 | Carbon Brush Rig Assembly | #098234 | Dual brush holder with 5/16″ wear-limit indicators |
| Ref 24 | Heavy Duty Bridge Rectifier | #035704 | 150A continuous, heat-sink mounted aluminum block |
| Ref 31 | Fine Amperage Control Rheostat | #005231 | 15-Ohm, 150-Watt vitreous enamel variable resistor |
| Ref 42 | Field Excitation Capacitor | #045612 | 30µF, 370 VAC metalized film rating |
The control panel interface houses the coarse range selector switch, fine adjustment rheostat, output studs, and thermal overload circuit breakers. When inspecting the secondary control circuit within the miller bobcat 225g parts diagram, ensure wire harness leads 42, 43, and 14 are connected securely to the primary selector contacts to prevent phase arc flash.
Navigating the Miller Bobcat 225G Schematic and Blueprint Layout
Reading a factory schematic or structural blueprint requires tracking electrical current pathways from the primary engine-driven alternator through the control conditioning circuits to the output terminals. System schematics utilize standard NEMA electrical symbols alongside physical component location blueprints.
Decoding Wiring Callouts and Lead Numbering Conventions
Every wire in the Bobcat 225G wiring harness is stamped with a specific numerical identifier along its jacket at 3-inch intervals. Wire 10 connects the ignition switch directly to the engine starter solenoid. Leads 21 and 22 carry 120V AC auxiliary power from the stator secondary windings to the front panel GFCI receptacles. Wire 42 carries field excitation current from the PC1 control board directly to the positive brush holder terminal. Always match wire numbers against the blueprint index key rather than relying on color coding alone, as aged harnesses may suffer thermal fading.
Tracing the Exciter Field and Auto-Idle Circuit Pathways
The excitation circuit begins when the engine reaches its 1800 RPM initial idle threshold. Residual magnetism in the rotor core induces a micro-voltage in stator winding 33/34. This AC voltage passes through bridge rectifier SR1, supplying initial DC field current to the rotor via wires 42 (+) and 43 (-). Once the PC1 idle module senses current demand via current transformer CT1 on the main weld output cable, it signals solenoid L1 to pull the governor linkage to weld speed (3600 RPM). Inspecting these line paths on the schematic helps mechanics quickly spot broken control loops.
When cross-referencing mechanical exploded views, note that hardware torque specs differ between steel panel fasteners (25-30 in-lbs) and aluminum generator housing bolts (18-22 ft-lbs). Always clean slip rings with a non-conductive Scotch-Brite pad during reassembly.
Exploded Structural Assembly and Mechanical Alignment
The mechanical footprint layout shows how the Onan engine flywheel connects to the rotor shaft via a tapered stub-shaft coupler. When reassembling the power head, align the rotor drive pin with the flywheel recess precisely. Incorrect shaft key insertion or uneven bolt torquing on the adapter ring causes high-frequency mechanical vibration, leading to premature bearing failure and stator winding abrasion.
Common Miller Bobcat 225G Parts Diagram Faults and Diagnoses
System failures on the Bobcat 225G generally stem from wear in the high-current brush contacts, breakdown of the excitation diodes, or mechanical governor degradation on the engine. Using the circuit diagram alongside targeted meter testing systematically narrows down root causes.
High voltage is present across generator stator leads and auxiliary outlets during running diagnostic tests. Always disconnect the battery ground strap before testing diode continuity or replacing internal components.
Loss of Auxiliary AC Power and Zero Weld Output Current
If the engine operates at correct RPM but the machine produces no auxiliary power or arc voltage, the excitation circuit is interrupted. Check 10-amp fuse F1 on the control panel. If F1 is intact, locate field flashing diode D1 on the wiring schematic. A shorted D1 diode prevents field flashing voltage from reaching slip ring lead 42. Disconnect lead 42 and measure rotor resistance directly across the rings. A reading below 3.0 Ohms indicates shorted internal windings; an infinite reading indicates an open winding or completely worn carbon brushes.
Unstable Weld Arc and Fine Control Voltage Fluctuation
Fluting or erratic welding arc characteristics usually indicate a failing R1 fine current adjustment rheostat or carbon tracking on the range selector switch contacts. Locate switch S1 in the schematic. Inspect physical switch contacts for pitting or blrowning caused by changing range settings under active arc loads. Measure resistance across rheostat R1 terminals while rotating the dial; the resistance should transition smoothly from 0 to 15 Ohms without dead spots or infinite resistance spikes. For broader electrical system faults, consult specialized engine welder troubleshooting protocols.
Engine Idle Solenoid Fails to Hold High RPM Under Load
When current transformer CT1 fails to send a millivolt signal to the PC1 automatic idle circuit board, the engine governor stays at low idle (1800 RPM) when striking an arc. Verify that sensing lead 51 passes cleanly through the CT1 donut core as depicted in the wiring diagram layout. Inspect idle solenoid L1 plunger for mechanical binding, and confirm 12V DC presence at module terminal 1 when load demand is applied.
Miller Bobcat 225G System Configuration Frequently Asked Questions
Where is the machine serial number callout located on the Bobcat 225G frame diagram?
The serial number plate is riveted to the front lower frame base, directly below the control panel. Serial prefixes starting with “LA” through “LC” denote production years with Onan P216G engines, whereas later “KD” prefixes designate revised stator mounting hardware and updated control board connector wiring.
How do I test the excitation bridge rectifier listed on the parts schematic?
Isolate the bridge rectifier (SR1) by disconnecting wires 31, 32, 42, and 43. Set a digital multimeter to Diode Test mode. Test forward and reverse bias across the AC input terminals and DC output studs. Forward voltage drop should read between 0.4V and 0.7V, while reverse bias must read infinite (open circuit) on all terminal combinations.
What is the minimum acceptable brush length on the generator rotor slip ring assembly?
According to OEM mechanical specifications, new carbon brushes measure 1.25 inches in length. Replace the brush set immediately when wear reaches the 5/16-inch minimum wear line stamped on the brass holder housing, or if spring tension drops below 12 ounces of force.
Why does my schematic show two different resistor values for the fine current control?
Early-production Miller Bobcat 225G configurations utilized a 15-Ohm, 150-Watt control rheostat paired with high-impedance reactor coils. Mid-cycle revisions updated the secondary reactor assembly to improve arc stability, requiring a 10-Ohm, 150-Watt rheostat. Always match replacement parts to your specific machine serial number revision.
Step-by-Step Guide to Understanding the Miller Bobcat 225G Parts Diagram
Identify – Identify the target system or failed component using the main Miller Bobcat 225G parts diagram index key.
Locate – Locate the specific sub-assembly section, such as the Onan engine, front control panel, or generator housing structure.
Reference – Reference the callout numbers against the parts list to confirm OEM part numbers and proper component orientation.
Connect/Route – Connect or route harness wiring, fuel lines, and mechanical linkages according to the exploded layout view.
Verify – Verify terminal pinouts, brush alignment, and bolt torque specifications using a digital multimeter and torque wrench.
Troubleshoot – Troubleshoot unexpected power loss or engine starting issues by tracing electrical connections back through the schematic breakdown.
