A water dispenser plumbing diagram details the freshwater supply line feeding the chilling tank and the drain assembly routed from the drip tray through a 1-1/2-inch tailpiece into a dedicated P-trap or garbage disposal line. Proper vent pipe integration prevents back-siphoning and ensures rapid, overflow-free drainage during continuous operation.
📌 Key Takeaways
- Standard dispenser drain assemblies utilize a 1-1/4 inch or 1-1/2 inch tailpiece connected to a water-sealed P-trap.
- A dedicated vent pipe is critical to maintain air balance and prevent slow basin draining or gurgling.
- Connecting drip tray waste lines to a garbage disposal requires removing the disposal inlet knock-out plug first.
- Mineral scale accumulation inside the solenoid valve and tailpiece is the leading cause of internal leaks and slow flow.
- DIY repairs on water lines are safe up to the shutoff valve, but main supply taps require a licensed plumber.

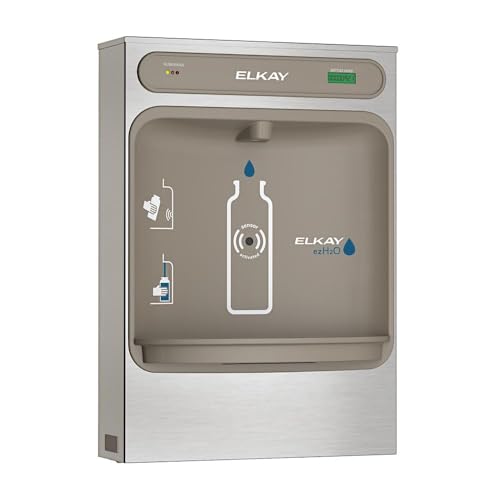

Commercial and high-capacity water dispenser installations—such as bottle refilling stations, recessed drinking fountains, and under-counter dispensing manifolds—require precise coordination between the pressurized water supply line and the gravity-fed waste drainage network. Understanding how each plumbing component integrates into the overall system prevents code violations, severe water damage, and foul sewer gas intrusion. According to Uniform Plumbing Code (UPC) and International Plumbing Code (IPC) standards, mapping the physical layout through a detailed schematic ensures optimal hydraulic performance, adequate drainage pitch, and simplified maintenance access across both standalone installations and garbage disposal-integrated configurations.

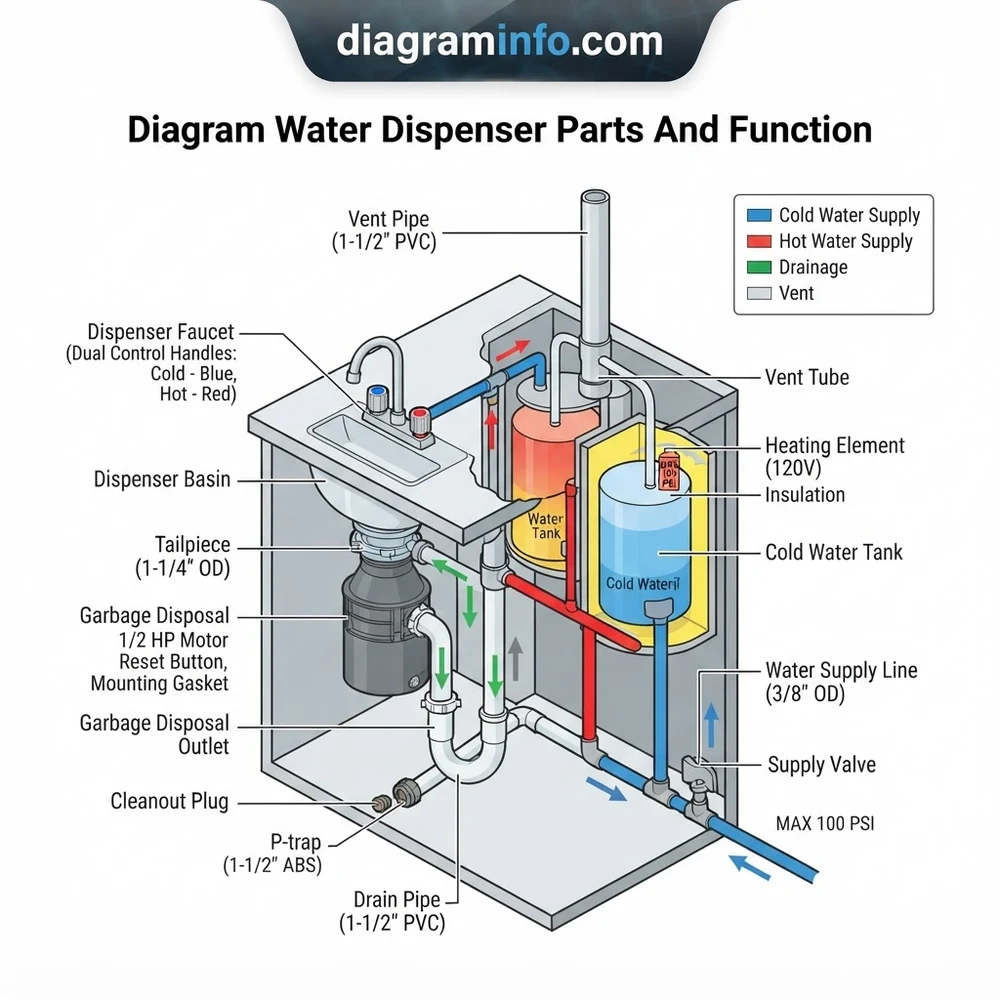

Diagram Water Dispenser Parts and Function: Full Drain Assembly Breakdown
A commercial or residential plumbing schematic maps out two distinct fluid pathways: incoming potable water supply lines operating under static pressures between 30 and 90 PSI, and gravity-fed drain assemblies operating under atmospheric pressure. Below is a detailed technical analysis of the primary components governing the waste and venting side of a water dispensing fixture.
Drain Tailpiece OD: 1-1/4″ (31.75 mm) or 1-1/2″ (38.1 mm) tubular brass/PVC. Minimum P-Trap Water Seal Depth: 2.0 inches (50.8 mm) to 4.0 inches (101.6 mm). Minimum Drainage Slope: 1/4-inch drop per linear foot (2% pitch). Inlet Water Solenoid: 120V AC, 60 Hz, 0.5A or 24V DC solenoid valve.
- Drain Strainer Assembly & Basin Basin: Positioned directly below the dispensing nozzle, the corrosion-resistant stainless steel basin collects waste water. The threaded drain tailpiece flange drops directly through the cabinet base to transfer fluid to the waste line.
- Tailpiece Extension: A vertical section of 1-1/4 inch or 1-1/2 inch Schedule 40 PVC or chrome-plated brass pipe that channels runoff liquid down to the trap inlet. In units with built-in filtration backwash, an air gap fitting is integrated into this section.
- Slip Joint Fittings: Compression couplings consisting of a threaded slip nut and a bevel-edge rubber, silicone, or poly washer. Slip joints allow vertical and horizontal adjustment without rigid solvent welding, accommodating vibration and thermal expansion.
- P-Trap Assembly: Consists of a U-bend (dip) and a wall bend arm. The structural dip maintains a continuous water barrier (trap seal) that isolates sewer gases from escaping through the water dispenser basin.
- Air Admittance Valve (AAV Valve): A one-way mechanical valve used in unvented branch lines. Under negative pressure conditions (when wastewater flows down the pipe), the valve seal lifts to draw in room air, balancing system pressure without releasing volatile organic compounds (VOCs) or odors.
- Garbage Disposal Drain Branch: In residential or breakroom setups, an auxiliary discharge tailpiece tee redirects water dispenser waste into an inline garbage disposal unit or dedicated inlet port.
- Schedule 40 PVC Waste Line & Vent Pipe: The main vertical and horizontal piping network that transports fluid to the municipal waste stack while maintaining atmospheric equalization through vertical roof vent stacks or local AAV valves.
How to Read the Diagram Water Dispenser Parts and Function for Installation
When reviewing installation schematics for bottle filler stations and commercial dispensers, technicians must trace fluid paths linearly from the inlet supply down through the waste evacuation route. Correct installation requires balancing hydraulic flow rates with gravity drainage principles, ensuring that secondary systems such as a commercial chilled water fountain or an inline reverse osmosis manifold plumbing setup do not overwhelm the drain pipe capacity.
Tracing Liquid Flow from Basin Tailpiece to Waste Stack
Start by identifying the basin drain outlet at the top of the plumbing riser. Wastewater enters the top flanged tailpiece, traveling vertically past the upper slip joint connection. If the dispenser integrates an automatic auto-flush or RO membrane reject line, trace these smaller 1/4-inch or 3/8-inch polyethylene lines into the air-gap manifold above the tailpiece to ensure backflow isolation compliant with a backflow preventer inspection guide.
Aligning Slip Joints and Establishing 1/4-Inch Pitch Drop
Horizontal pipe runs from the outlet of the P-trap to the sanitary tee must maintain a precise downward pitch of 1/4 inch per foot (approx. 20 mm per meter). Over-tightening slip joint nuts can split the internal compression washer; hand-tighten nuts plus an additional 1/4 turn using channel-lock pliers (approx. 5–8 ft-lbs torque).
Air Admittance Valves must be installed vertically at least 4 inches above the horizontal drain branch centerline, and at least 6 inches above the flood level rim of the highest fixture being served when acting as an individual vent.
Integrating an AAV Valve or Dedicated Vent Pipe Loop
Where connection to a primary vertical vent stack is structurally restricted, install an AAV valve on a vertical branch tee downstream of the P-trap weir. Verify that the valve remains accessible for future mechanical diaphragm inspection and replacement.
| Component | Standard Material | Nominal Size | Torque / Connection Spec |
|---|---|---|---|
| Basin Strainer | 304 Stainless Steel / Brass | 1-1/4″ NPSM | 15-20 ft-lbs (Locknut) |
| Tailpiece Pipe | Chrome Brass / DWV PVC | 1-1/4″ or 1-1/2″ OD | Slip Joint Friction Washer |
| P-Trap Union | Schedule 40 PVC / Tubular Poly | 1-1/2″ Solvent / Threaded | Hand-tight + 1/4 Turn |
| AAV Valve Thread | ABS / PVC with Neoprene Seal | 1-1/2″ NPT or MPT | PTFE Thread Tape (2-3 Wraps) |
| Waste Branch Line | Schedule 40 PVC DWV | 1-1/2″ or 2″ IPS | Solvent Weld (Primer + Cement) |
Troubleshooting P-Trap, AAV Valve, and Waste Line Discharge Issues
System failures in modern water dispenser drain networks typically manifest as slow drainage, basin overflow, leaking slip connections, or strong sewer gases emitting from the fixture catch. Diagnostic efforts should isolate whether the root cause is mechanical blockage, improper venting hydraulics, or component degradation.
Never use harsh caustic drain cleaners (such as concentrated sodium hydroxide or sulfuric acid) on thin-wall tubular brass tailpieces or dispenser rubber seals. Caustics damage internal solenoids, degrade silicone gaskets, and can cause catastrophic line failure under pressure.
Diagnose failure modes using the standard mechanical steps outlined below:
- Sewer Odors at the Dispenser Basin: Check the P-trap water seal depth. High velocity discharge in nearby lines or wind gusts across an open vent pipe can siphon the trap dry. If an AAV valve is present, a failed internal rubber diaphragm trapped in the open position will allow sewer gas escape; replace the valve unit immediately.
- Gurgling Sounds During Dispensing Cycle: Indicates localized negative pressure due to a blocked vertical vent pipe or a stuck-closed AAV valve. Inspect the top air inlet ports of the AAV for lint or debris accumulation.
- Water Backing Up in the Strainer: Remove the tailpiece assembly to inspect for biological slime, coffee grounds, or mineral scale build-up inside the narrow 1-1/4 inch elbow. Clear rigid PVC lines using a hand auger (snake); avoid over-pressurizing sealed drain networks with compressed air.
- Persistent Dripping at Slip Joint Nuts: Inspect alignment. Misaligned pipes create uneven washer compression. Replace flattened, dried rubber washers with high-durability silicone bevel seals, and re-torque nuts evenly.
Diagram Water Dispenser Parts and Function Frequently Asked Questions
What is the correct P-trap water seal depth according to mechanical codes?
Standard plumbing codes (IPC/UPC) mandate a liquid trap seal depth between a minimum of 2 inches (50 mm) and a maximum of 4 inches (100 mm). A seal depth under 2 inches is prone to rapid evaporation, leading to sewer gas leakage, while a depth exceeding 4 inches creates excessive hydraulic resistance, resulting in sluggish basin drainage.
When should an AAV valve be used instead of a traditional roof vent pipe?
An Air Admittance Valve (AAV) is deployed when running a dedicated vertical vent pipe through structural walls or roofs is impractical or cost-prohibitive. AAVs are mechanically engineered one-way pressure equalization valves suitable for retrofit applications, provided local municipal codes permit their use in lieu of open atmospheric vents.
Can a commercial water dispenser share a tailpiece branch with a garbage disposal?
Yes, provided an approved directional baffle tee or dedicated high-branch disposal inlet adapter is utilized. The waste line must include a check valve or air-gap fitting to prevent food waste slurry inside the garbage disposal from back-flowing into the water dispenser catch tray during operation.
How do slip joint fittings differ from solvent-welded PVC joints in water dispenser plumbing?
Slip joint fittings use thread-driven mechanical compression washers to form a removable, watertight seal, allowing easy disassembly for trap cleaning and maintenance. Solvent-welded PVC joints use chemical primers and cements to permanently fuse pipes and fittings, offering higher pressure resistance suitable for concealed waste lines inside structural walls.
Why does my water dispenser P-trap dry out periodically?
P-trap dry-out occurs due to thermal evaporation during low-use periods, thermal drafting, or siphoning caused by improper branch venting. In low-frequency commercial areas, installing a trap primer valve or pouring a small quantity of non-evaporating vegetable glycerin or trap sealant down the drain maintains the hydraulic gas barrier.
Step-by-Step Guide to Understanding the Diagram Water Dispenser Parts And Function
Identify – Locate the main water inlet shutoff valve and electrical power source on the dispenser layout diagram.
Locate – Find the waste drain assembly beneath the drip basin, tracing the line through the tailpiece.
Reference – Cross-check tube colors and pipe diameters on the diagram to ensure proper size alignment.
Connect/Route – Route the waste line down into the target P-trap or garbage disposal port without sharp bends.
Verify – Turn on the water supply, activate the dispenser solenoid, and inspect all joints for leaks.
Troubleshoot – If draining is sluggish, clear debris from the tailpiece and inspect the vent pipe for blockage.
