Wayne Crawl Space Sump Pump Diagram: Installation Setup 2026
The crawl space sump pump diagram illustrates a 1/2 HP submersible pump set inside a perforated basin. It integrates a 1.5-inch Schedule 40 PVC discharge line, dual tether float switches, a silent check valve, and dedicated 115V GFCI power. Drainage from HVAC evaporator coils and dehumidifiers routes directly into this basin.
📌 Key Takeaways
- Requires a dedicated 115V, 15-amp GFCI circuit with 14/2 AWG wiring to prevent breaker tripping under load.
- Check valves must be installed 12 to 18 inches above the discharge outlet to prevent water backflow and pump cycling.
- Integrates HVAC evaporator condensate lines safely to prevent moisture accumulation near the compressor and blower motor air handler.
- Primary failure point is a stuck float switch caused by sediment or restricted clearance inside the basin.
- DIY installation is straightforward for surface routing, but electrical panel taps and exterior perimeter drainage require professional contractor oversight.
Managing moisture in conditioned or unconditioned encapsulated foundations requires an integrated environmental control system. A comprehensive crawl space sump pump diagram illustrates the mechanical and electrical relationships between ground-water removal units, local drainage networks, and crawl-space-mounted HVAC equipment. When an air handler, crawl space dehumidifier, or high-efficiency furnace is positioned below floor joists, its condensate disposal system directly interfaces with the sump basin. Interpreting this schematic accurately ensures seamless operation between secondary drain pans, high-water emergency cut-off switches, and high-head submersible pumps, preventing costly structural water intrusion, foundation settlement, and system short-cycling.

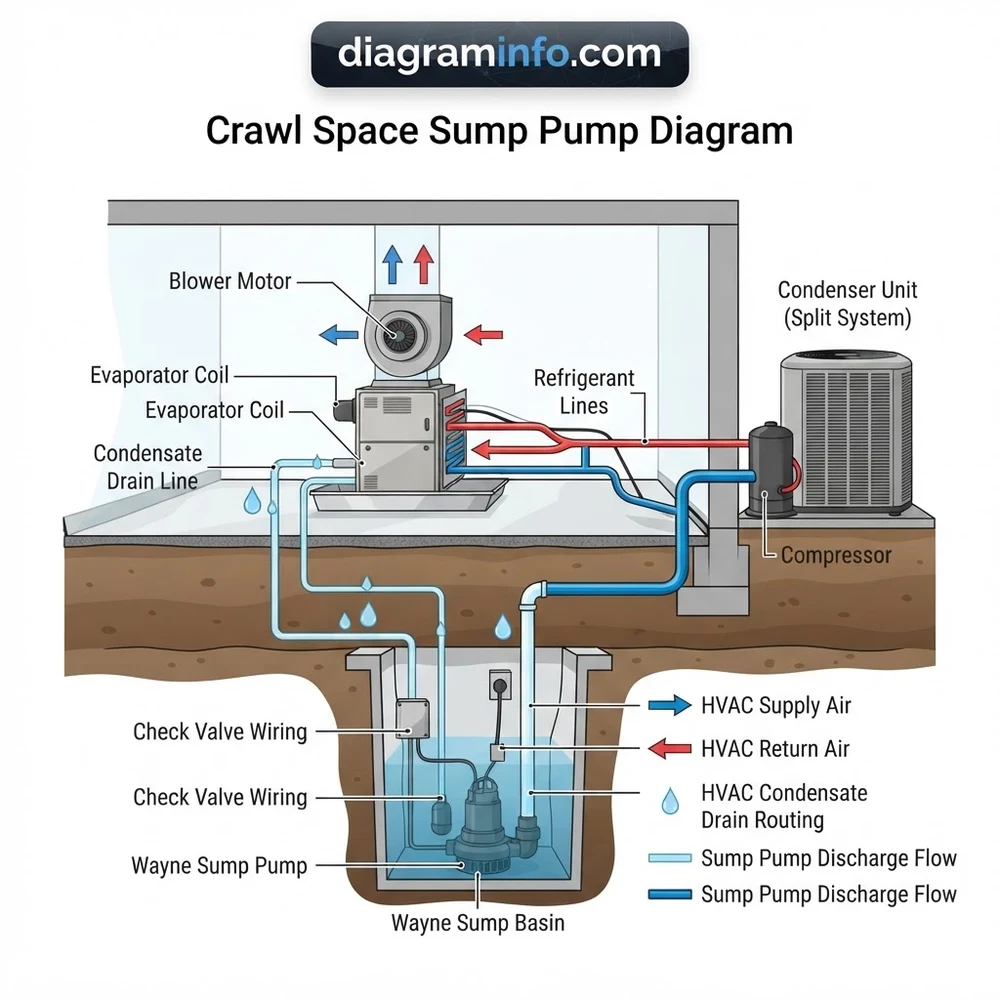

Crawl Space Sump Pump Diagram: Critical Component Identification
According to OEM installation standards, an integrated crawl space environmental circuit combines heavy-duty fluid management with low-voltage HVAC safety interlocks. Understanding every module in the schematic is vital before performing maintenance or installing replacement equipment.
Recommended Best Deal Products
Submersible Sump Pump, Basin, and Mechanical Float Assembly
At the center of the diagram is the corrosion-resistant sump pit, typically housing a 1/3 HP or 1/2 HP cast-iron submersible sump pump. Operating at 120V AC (single-phase, 60 Hz), the motor draws between 4.5A and 9.5A under full load. The mechanical float switch—either a tethered switch or a vertical piggyback float—senses water elevation inside the basin. As water rises to the cut-in height (typically 8 to 12 inches above the pit base), the float contacts close, energizing the pump motor winding. A check valve rated for 1-1/2 inch NPT piping is plumbed directly above the pump discharge port to prevent backflow into the pit when the cycle terminates.
Evaporator Coil Condensate Lines and Air Handler Integration
The system schematic details the primary condensate line extending from the indoor evaporator coil casing located within the air handler assembly. As warm, humid air moves over the cold evaporator fins, moisture drops out of suspension and accumulates in the primary drain pan. The condensate flows by gravity through a 3/4-inch Schedule 40 PVC drain line equipped with a running trap (minimum 2-inch trap depth). This line routes directly into the top cover of the crawl space sump basin. If you are servicing an existing setup, consult our comprehensive guide on HVAC Condensate Drain Line Schematics for specific trap depth calculations.
Dehumidifier Refrigerant Circuit: Compressor, Condenser, and Evaporator Discharge
Heavy-duty crawl space dehumidifiers operate using a sealed refrigerant loop containing R-410A or R-32. The hermetic compressor pumps vaporized refrigerant through the condenser coil after pulling warmth out of the evaporator section. Moisture harvested during condensation drains into a secondary port leading into the main sump basin. High capacity horizontal dehumidifiers feature internal purge pumps with vertical lift capabilities up to 15 feet, which interface electrically with the safety shutoff circuit shown on the diagram.
Return Ducting, Heat Exchanger, and Blower Motor Safety Relays
Conditioned air is drawn into the crawl space system through the main return duct network. The internal blower motor forces this air across the primary heat exchanger (in gas furnace applications) or electric heating elements. To protect these electrical components from flooding, high-water safety float switches are wired in series with the 24V AC “R” or “Y” thermostat circuit. If the sump pump fails and water overflows the basin into the secondary emergency pan, the switch opens, removing power from the blower motor and compressor contactor to cease condensation generation.
When connecting a negative-pressure air handler evaporator coil drain to a sump pit, ensure the PVC trap is primed with water prior to startup. Negative static pressure from the blower motor can pull sewer or pit gases back into the return ductwork if the trap runs dry.
Recommended Best Deal Products
How to Interlock HVAC Controls on a Crawl Space Sump Pump Diagram
Properly wiring and plumbing an integrated crawl space drainage system requires adhering strictly to National Electrical Code (NEC) Section 422 and local mechanical codes. Follow this systematic process to trace, wire, and verify the installation using the diagram.
Tracing 120V AC Power Lines and 24V Low-Voltage Control Circuits
Referencing the electrical legend on the schematic, differentiate between high-voltage power feeds and low-voltage control loops:
- 120V AC Line Voltage: Depicted as solid black (Hot), white (Neutral), and green (Ground) lines. This branch circuit originates from a dedicated 15A or 20A GFCI circuit breaker supplying the sump pump receptacle and the secondary condensate removal pump.
- 24V AC Low Voltage: Depicted as dashed red, yellow, and blue signal wires running between the thermostat, the air handler control board, and safety cut-off float switches.
Wiring Emergency Overflow Float Switches to the Air Handler Control Board
To establish automatic equipment shutdown during a pump failure, wire the emergency float switch into the HVAC control circuit as follows:
- Disconnect main 120V power to the air handler furnace at the local disconnect switch.
- Locate the 24V control terminal strip inside the air handler access panel. Locate the “R” (24V Power) or “Y” (Compressor Signal) wire.
- Interruption Method: Sever the “R” conductor leading to the thermostat or cut the “Y” wire going to the outdoor condensing unit/dehumidifier contactor.
- Connect the two leads from the Normally Closed (NC) contacts of the overflow float switch (mounted on the sump pit rim or secondary overflow pan) to the broken signal wire using wire nuts rated for 18-22 AWG.
- Verify circuit continuity: With the float sitting flat (normal water level), the switch contacts must register 0 Ohms. Elevating the float manually must yield an Open Circuit (infinite Ohms), instantly breaking the circuit to the compressor and blower motor. For detailed wiring diagrams on thermostat control loops, refer to our guide on Low-Voltage HVAC Safety Relay Wiring.
Plumbing Condensate Drains, Discharge Lines, and Check Valves
Mechanical installation requires isolating the pressurized discharge line from gravity condensate feeds:
- Install a schedule 40 1-1/2 inch PVC discharge line off the submersible pump outlet. Solvent weld all joints using purple primer and medium-bodied PVC cement.
- Position a spring-loaded inline check valve vertically between 12 and 24 inches above the pump outlet. Ensure the direction-of-flow arrow stamped on the valve body points upward toward the exterior exit point.
- Drill a 3/16-inch air-bleed hole into the discharge pipe inside the pit, situated between the pump outlet and the check valve base. This prevents air-lock conditions when the pit fills rapidly.
- Route the 3/4-inch PVC condensate line from the air handler evaporator coil and dehumidifier with a slope of at least 1/4 inch per linear foot into the top lid entry grommets of the sealed sump basin.
Never hard-pipe an HVAC condensate line directly into the pressure side of a sump pump discharge pipe. Sump pump discharge pressure (typically 5 to 15 PSI) will force water backward through the condensate drain pan, overflowing the air handler and flooding the heat exchanger and electronic control boards.
Troubleshooting Crawl Space Sump Pump Diagram Electrical and Fluid Failures
Diagnosing anomalies in a crawl space mechanical system requires systematically testing electrical switches, checking hydraulic head pressures, and verifying system controls.
Diagnosing Float Switch Contacts and Motor Relay Continuity
When the submersible pump fails to activate despite rising water in the basin:
- Inspect the piggyback plug connection at the GFCI outlet. Unplug the pump from the float switch harness and plug the pump directly into the outlet. If the motor turns on immediately, the pump motor is functional, indicating a failed float switch.
- Use a digital multimeter set to AC Volts to check input voltage at the outlet. If 0V is read, check for a tripped GFCI device or tripped circuit breaker on the main panel.
- If using a vertical magnetic switch, check for debris accumulation along the guide rod. Sump pit silt can bind the sliding float, holding contacts open. Clean the assembly with solvent or replace the float switch module.
Resolving Evaporator Condensate Backups and Air Handler Shutoffs
If the thermostat displays active cooling (“Cool On”) but the indoor blower motor or outdoor unit remains completely dead, inspect the water level inside the secondary drain pan and sump basin:
- Check if the emergency overflow float switch has tripped due to an elevated water level inside the primary pit.
- If the sump basin is clear but the air handler pan is full of water, clear the 3/4-inch PVC condensate line using a nitrogen purge or wet/dry vacuum to remove algae and biological buildup blocking the evaporator pan drain port.
- Check the operation of secondary condensate removal pumps if utilized. If the internal float in the mini-pump binds, the high-water safety switch opens the 24V “Y” signal circuit to protect the heat exchanger from moisture exposure. If you are integrating secondary pumps, review our detailed schematic breakdown on Dual-Stage Condensate Pump Wiring Procedures.
Correcting Refrigerant Line Lock, Vapor Locks, and Check Valve Failures
Hydraulic and thermal issues can cause mechanical noise and reduced drainage rates:
- Vapor Lock: If the pump motor runs continuously but fails to displace water, verify that the 3/4-inch relief hole below the check valve is free of obstructions. Clear debris using a small drill bit or pick.
- Check Valve Slap: A loud thumping noise at the end of each pumping cycle indicates water hammer. Replace standard swing check valves with a spring-loaded, soft-close check valve to damp hydraulic shock waves.
- Refrigerant Frost Build-up: If the dehumidifier or air handler evaporator coil freezes into a solid ice block, condensate flow stops entirely. Test refrigerant operating pressures (low suction pressure indicates a leak or restricted metering device) and inspect the air filter on the return duct for airflow restrictions.
Recommended Pump Capacities: Minimum 30 GPM (Gallons Per Minute) at 10 ft Total Dynamic Head (TDH) for residential crawl spaces under 2,000 sq ft. For encapsulated crawl spaces with active HVAC condensate discharge, utilize a dual-float sealed pit setup rated at minimum 1/2 HP.
Crawl Space Sump Pump and Air Handler Technical Specifications
Use the following technical reference table to verify component ratings, wire sizing, supply voltages, and operational parameters when installing or inspecting systems based on the wiring schematic.
| Component Name | Electrical Rating / Spec | Conductor / Pipe Size | Operational Threshold / Function |
|---|---|---|---|
| Submersible Sump Pump | 120V AC, 60Hz, 1/3 – 1/2 HP, 4.5A-9.8A | 14/2 AWG w/ Ground (1-1/2″ NPT Discharge) | Activates at 8″-12″ water depth; cuts off at 2″-4″ depth |
| Emergency Safety Float Switch | 24V AC, 0.5A – 2.0A (Dry Contacts) | 18/2 AWG Solid Copper Thermostat Wire | Normally Closed (NC); opens on high water to cut HVAC power |
| Evaporator Coil Drain Trap | Gravity Flow / Atmospheric Pressure | 3/4″ Schedule 40 PVC | Minimum 2″ liquid seal prevents negative pressure air bypass |
| Crawl Space Dehumidifier | 120V AC, 8.0A – 12.0A (R-410A / R-32) | 12/2 AWG Dedicated GFCI Circuit | Senses RH %; pumps condensate out via internal purge system |
| Inline Discharge Check Valve | Max Working Pressure: 45 PSI | 1-1/2″ NPT Slip x Slip PVC | Spring-loaded rubber flapper prevents fluid backflow into basin |
Crawl Space Sump Pump Diagram FAQs and Installation Technical Guidance
Why does the air handler condensate line tie into the crawl space sump pump pit?
The primary condensate line from an air handler or horizontal evaporator coil discharges significant volumes of moisture during cooling cycles—often up to 5 to 20 gallons per day in humid climates. In a crawl space, discharging this fluid directly onto the soil or vapor barrier increases ambient relative humidity, encouraging mold growth and wood rot. Directing the drain line into a sealed sump pit allows the submersible pump to automatically discharge both ground water and HVAC condensate far away from the building foundation.
How does a faulty float switch affect the dehumidifier compressor and blower motor?
When high-water emergency safety float switches are integrated into the 24V AC thermostat control loop (as shown in the crawl space sump pump diagram), a tripped switch opens the power feed to the “R” or “Y” terminal. This breaks the circuit to the outdoor compressor contactor, the crawl space dehumidifier, and the indoor blower motor. If the safety switch fails in the open position, the HVAC system will refuse to energize cooling or heating modes even if the sump basin is completely empty.
What check valve rating is required for a high-head crawl space sump pump?
The check valve must be rated to withstand the maximum static head pressure generated by the vertical run of the discharge pipe, plus fluid temperature limits matching local ambient conditions. Standard residential installations require a 1-1/2 inch full-flow, spring-loaded check valve rated for at least 45 PSI and sustained water temperatures up to 104°F (40°C). Spring-assisted rubber-flapper valves are preferred because they eliminate hydraulic back-shock, preventing physical damage to solvent-welded PVC fittings inside the crawl space.
Can return duct static pressure interfere with sump pit drainage lines?
Yes. If the air handler condensate drain pan is situated on the negative pressure side of the blower motor, high static pressure pulled through the return duct creates a vacuum inside the drain housing. Without a properly sized 2-inch minimum P-trap installed close to the coil outlet, air gets sucked backward through the PVC condensate pipe. This negative air velocity prevents condensate from draining by gravity into the sump basin, holding water inside the primary pan until it overflows into the crawl space or secondary emergency basin.
Where should safety overflow float switches be located in an air handler drain pan?
Safety overflow float switches should be installed in two locations according to HVAC equipment schematics: first, directly into the secondary (auxiliary) threaded drain port of the primary evaporator coil drain pan; second, clamped securely to the lowest lip of the secondary emergency drain pan positioned directly underneath the entire air handler unit. Both switches must be wired in series so that a rise in water level at either point immediately opens the 24V control circuit, interrupting operation before structural water damage occurs.
Step-by-Step Guide to Understanding the Crawl Space Sump Pump Diagram
Identify – Verify pump voltage (115V), discharge diameter (1.5 in.), and total dynamic head requirements.
Locate – Place perforated basin at the lowest point of the crawl space, far from HVAC compressor lines.
Reference – Consult diagram for relief hole placement; drill a 3/16-inch anti-airlock hole below the check valve.
Connect/Route – Install 1.5-inch PVC discharge line with silent check valve, routing clear of blower motor ductwork.
Verify – Connect float switch to GFCI outlet, fill basin with water, and test automatic pump activation.
Troubleshoot – Inspect valve seals and float clearance if pump runs continuously or fails to discharge water.
