14 Pin Connector for Skid Steer Wiring Diagram 2026 Guide
A 14 pin connector for skid steer wiring diagram maps control signals and lighting to attachments or trailer interfaces. Pins 1 and 2 deliver high-amperage auxiliary power and ground, while outer pins route left/right turn signals, running lights, brake controller inputs, and RV blade adapter signals. Refer to terminal layout markings before making connections.
📌 Key Takeaways
- Pins A/B or 1/2 handle 12V auxiliary power up to 30A for attachment drives and trailer power.
- Standard pinouts integrate RV blade signals for running lights, turn signals, and electric brakes.
- Ensure clean, corrosion-free ground connections; ground pin failure causes over 70% of signal loss.
- Mismatching control signals can trigger ECM fault codes on CAN-bus equipped skid steers.
- Use a multimeter to verify pin voltage before final connection; consult a technician for harness splices.
Modern compact track loaders and skid steers manufactured by brands such as Bobcat, Caterpillar, Kubota, John Deere, and Takeuchi rely on heavy-duty 14-pin electrical interconnect systems to pass power, ground, and control signals between the host machine and front attachments or trailing accessories. Utilizing ruggedized multi-pin Deutsch HD30 or Amphenol bayonet-style connectors, these electrical interfaces handle high-current auxiliary power, pulse-width modulated (PWM) hydraulic solenoid controls, signal outputs for turn signals and running lights, and specialized brake controller circuits. Correctly identifying pin locations, wire gauges, and switching logic according to a standardized pinout schematic is critical when retrofitting equipment, troubleshooting attachment fault codes, or fabricating adapter harnesses for trailing equipment.

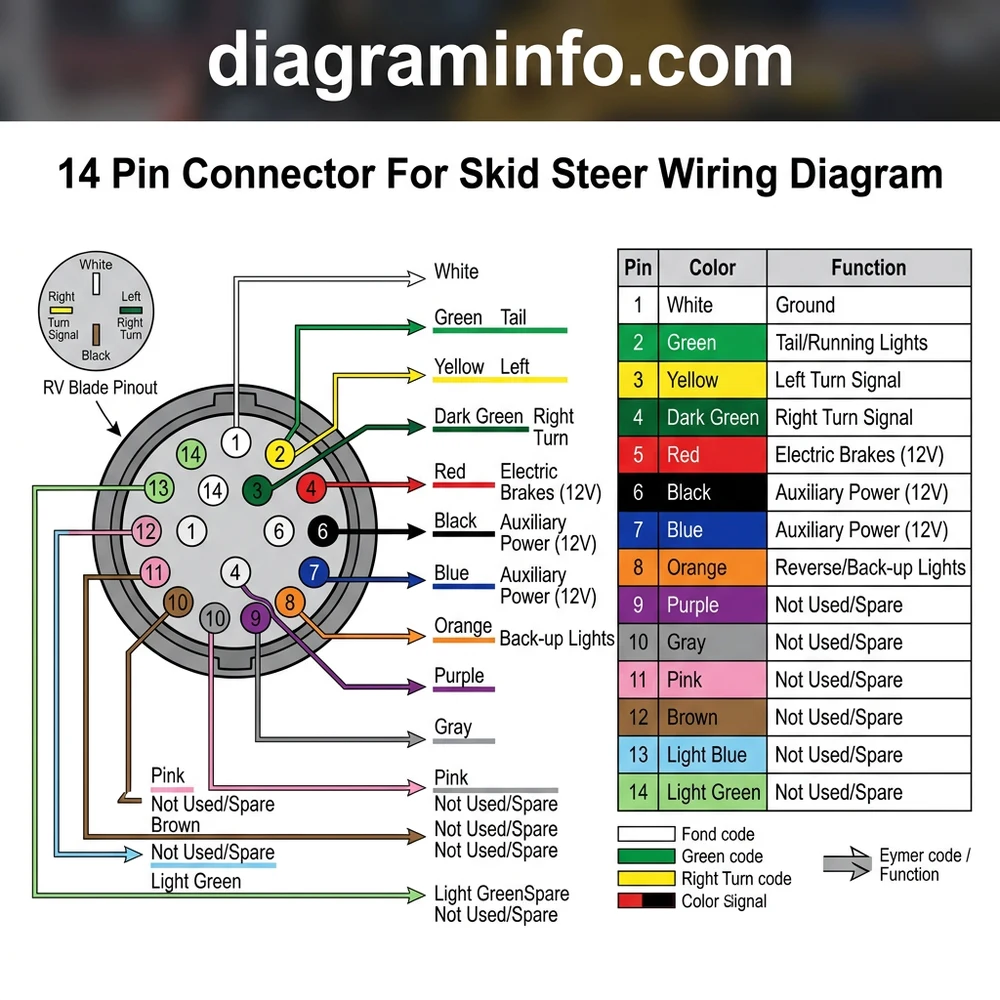

14 Pin Connector For Skid Steer Wiring Diagram Pinout and Color Codes
According to OEM electrical service specifications, 14-pin skid steer interconnects generally follow a standardized terminal layout utilizing Size 12 and Size 16 machined or stamped contacts. The pin assignments below reflect universal multi-brand and Bobcat-style 14-pin electrical auxiliary harnesses, detailing wire color codes, functional roles, and circuit current capacities. Always verify pin continuity with an auto-ranging digital multimeter prior to applying power to prevent ECM driver damage.
| Pin ID | Primary Wire Color | Circuit Function | Technical Notes & Wire Gauge |
|---|---|---|---|
| Pin A | Solid Black | Main Chassis Ground Pin | 10 AWG; Primary return path to machine frame. Resistance must measure < 0.2 Ω to ground. |
| Pin B | Red w/ White Stripe | Switched Auxiliary Power (+12V DC) | 12 AWG; Keyed ignition circuit protected by 20A inline or panel fuse. |
| Pin C | Dark Blue | Hydraulic Solenoid Valve A (Output 1) | 16 AWG; Drives proportional or ON/OFF directional hydraulic control valves. |
| Pin D | Dark Green | Hydraulic Solenoid Valve B (Output 2) | 16 AWG; Drives secondary attachment hydraulic functions or diverter valves. |
| Pin E | Yellow | Left Turn Signal / Hazard Circuit | 14 AWG; Interfaced to machine lighting system for trailing attachment signals. |
| Pin F | Brown | Running Lights / Clearance Tail Lights | 14 AWG; Continuous +12V feed activated when machine light switch is ON. |
| Pin G | Light Blue | Electric Brake Controller Signal | 12 AWG; Modulated output from cab-mounted electric brake controller module. |
| Pin H | Orange | High-Flow Hydraulics / Solenoid 3 | 14 AWG; Controls auxiliary bypass valve for high-flow hydraulic attachments. |
| Pin J | White w/ Black Stripe | Logic Ground / Sensor Return | 18 AWG; Isolated ground loop for low-voltage sensor inputs and smart controllers. |
| Pin K | Solid Red | Unswitched Continuous Battery (+12V DC) | 10 AWG; Direct battery connection protected by 30A main fuse for high-draw loads. |
| Pin L | Purple | Horn / Warning Device Relay Output | 16 AWG; Switched +12V signal trigger for attachment-mounted audible alarms. |
| Pin M | Pink | Auxiliary Output / Strobe Light | 14 AWG; Cab-switch controlled output for beacon lights or work lamps. |
| Pin N | Gray | CAN-Bus High / Digital Data Signal | 18 AWG Twisted Pair; Serial communication channel for smart attachment ICs. |
Deutsch HD30 series shells require a torque rating of 25–30 in-lbs (2.8–3.4 Nm) on the aluminum coupling ring to ensure environmental sealing to IP68 standards. Use GXL or SXL cross-linked polyethylene insulated copper wire to withstand oil, abrasion, and temperature extremes from -40°C to 125°C.
Step-by-Step Harness Assembly for the 14 Pin Connector For Skid Steer Wiring Diagram
Executing a clean installation or repair on a 14-pin skid steer connector requires adherence to correct pin terminal crimping techniques and precise routing. Follow these detailed steps to build or rewire your attachment interface correctly.
Step 1: Battery Isolation and Terminal Wire Gauge Selection
Disconnect the primary negative battery cable from the skid steer chassis to prevent accidental short circuits during wiring installation. Strip the protective outer jacket of your cross-linked polyethylene (GXL/SXL) wiring harness back approximately 3 to 4 inches. Select the appropriate wire gauge based on current draw: 10 AWG for main chassis ground pin (Pin A) and continuous power (Pin K); 12 AWG for switched auxiliary power (Pin B) and electric brake controller (Pin G); 14 AWG for running lights (Pin F) and turn signals (Pin E); and 16 to 18 AWG for solenoid outputs and CAN-Bus lines.
Step 2: Solid Barrel Contact Crimping and Pin Insertion
Strip approximately 1/4 inch (6.3mm) of insulation from each conductor using a precision wire stripper, taking care not to nick or sever individual copper strands. Use a ratchet-action, 4-indent crimp tool (such as a Deutsch HDT-48-00 or equivalent ratchet crimper designed for solid contact sizes 12 and 16). Insert the stripped conductor into the barrel of the solid pin or socket terminal, then cycle the crimper through a full stroke. Inspect each contact to verify that copper strands are visible through the contact inspection hole and that the crimp barrel is uniformly indented without cracking.
Step 3: Circuit Grounding and Auxiliary Power Supply Connections
Establish a low-resistance ground path by terminating the 10 AWG solid black ground wire from Pin A directly to a bare metal chassis earth point using a copper ring terminal. Coat the connection point with dielectric grease or anti-corrosion spray. Wire Pin B to a 20A switched ignition power feed and Pin K to a 30A continuous battery source via in-line waterproof ATC fuse holders located as close to the power source as possible.
Step 4: Signalling Line Routing for Running Lights and Turn Signal Controls
Route the 14 AWG brown running lights wire (Pin F) and yellow/green turn signal wires (Pins E and D) through split-loom convoluted tubing along the loader arms or attachment frame. Secure the harness every 8 to 12 inches using UV-resistant heavy-duty nylon cable ties or rubber-cushioned P-clamps to eliminate wire chafing caused by loader arm movement.
Step 5: Electric Brake Output Interfacing and Controller Calibration
If installing a trailer towing adapter harness on your skid steer, splice the light blue output line from Pin G to an in-cab proportional brake controller. Ensure the brake controller input receives an isolated brake pedal switch signal (+12V triggering line) to modulate high-amp output safely to trailer electric brake solenoids.
Step 6: Dielectric Sealing and Continuity Verification
Prior to snapping contacts into the rear grommet of the Deutsch connector shell, push tiny sealing plugs into any unused cavity ports to maintain IP68 weatherproofing. Insert contacts from the back of the plug until an audible click is heard, indicating the internal plastic locking fingers have engaged. Lightly tug each wire back to confirm lock-in. Apply dielectric grease to the mating face, thread the locking collar, reconnect the battery, and test circuit voltage drops under full electrical load.
Never swap PWM solenoid control outputs (Pins C and D) with continuous auxiliary power inputs (Pins B or K). Feeding continuous 12V supply directly into OEM logic solenoids can burn out internal valve coils or cause uncommanded hydraulic movement of high-flow attachments!
Interfacing 14-Pin Aux Power with 7-Way RV Blade and Flat Connector Systems
When operating trailing equipment, utility trailers, or rear-mounted implements behind a skid steer, technicians often adapt the 14-pin machine socket to standard road-towing connectors, such as a 7-way RV blade plug or a 4-pin flat connector. See our detailed reference guide on 7-way trailer wiring color codes for broader automotive light standards. Converting signals from a skid steer harness to a trailer plug requires systematic pin mapping to maintain full brake controller, running light, and signal functionality.
Adapting Pin Out Circuits to Trailer RV Blade Plugs
A standard 7-way RV blade connector uses distinct pin positions for electric brake power, 12V auxiliary power, left turn/brake, right turn/brake, tail/running lights, reverse lights, and primary ground pin. To map the 14-pin connector for skid steer wiring diagram layout to a 7-way RV blade receptacle, follow this cross-reference circuit mapping:
- Ground Pin: Connect 14-Pin (Pin A, 10 AWG Black) directly to 7-Way RV Blade Pin 1 (White Wire, Ground).
- Electric Brake Solenoids: Connect 14-Pin (Pin G, 12 AWG Light Blue) to 7-Way RV Blade Pin 2 (Blue Wire, Brake Controller Output).
- Running Lights: Connect 14-Pin (Pin F, 14 AWG Brown) to 7-Way RV Blade Pin 3 (Green Wire, Tail/Clearance Lights).
- Auxiliary Power: Connect 14-Pin (Pin B or K, 10/12 AWG Red) to 7-Way RV Blade Pin 4 (Black Wire, 12V Battery Charge).
- Left Turn Signal & Stop: Connect 14-Pin (Pin E, 14 AWG Yellow) to 7-Way RV Blade Pin 5 (Red Wire, Left Turn/Stop).
- Right Turn Signal & Stop: Connect 14-Pin (Pin D, 14 AWG Green) to 7-Way RV Blade Pin 6 (Brown Wire, Right Turn/Stop).
Skid steer lighting systems typically separate turn signals and stop lights, whereas standard 7-way RV blade setups consolidate stop and turn onto the same circuit. When adapting a skid steer harness to tow a 7-way RV blade trailer, an electronic tail light converter (3-wire to 2-wire logic module) must be inline to combine the brake signal with left/right turn channels.
Running Lights and Auxiliary Signal Integration on Flat Connectors
For small towed equipment requiring basic signal circuits via a 4-pin flat connector, the 14-pin system simplifies integration. Refer to our guide on 4-pin flat connector troubleshooting for additional circuit isolation testing. The 4-pin flat layout consists of Ground (Pin A to White Wire), Running Lights (Pin F to Brown Wire), Left Turn/Stop (Pin E to Yellow Wire), and Right Turn/Stop (Pin D to Green Wire). Electric brake lines and high-current auxiliary power feeds are omitted on standard flat connector configurations.
Troubleshooting Ground Pin Faults in 14 Pin Connector For Skid Steer Wiring Diagram Assemblies
Electrical malfunctions on skid steer attachments—such as intermittent solenoid actuation, flickering work lamps, or erratic electric brake feedback—are frequently traced to improper grounding, socket pin tension loss, or voltage drop along high-draw circuits. Systematic diagnostic testing ensures rapid isolation of fault points without unnecessarily replacing costly hydraulic control modules.
| Symptom | Probable Cause | Diagnostic Procedure | Corrective Action |
|---|---|---|---|
| Attachment solenoids chatter or click rapidly | High resistance on main ground pin (Pin A) or logic ground (Pin J) | Perform voltage drop test between Pin A terminal and negative battery post under 15A load. Excessive drop is > 0.5V DC. | Clean chassis ground bolt to bare metal, replace corroded ring terminals, re-torque ground connection. |
| Electric brakes do not apply or show short circuit error | Pin G shorted to ground or pin contact bent/pushed back in shell | Measure resistance from Pin G to chassis ground. Resistance should read 2.0–3.8 Ω for 2-brake axle systems. | Repair shorted conductor wire inside loom or rebuild contact terminal retention clip with Deutsch removal tool. |
| Intermittent lighting or turn signals cut out on bumps | Loose Deutsch contact socket mating force or fretting corrosion | Perform pin drag test using a new male pin tool. Pin must resist light pull force. Check for green copper oxidation. | Replace worn female socket contacts with machined Deutsch contacts; treat mating faces with DeoxIT contact cleaner. |
| 12V auxiliary power drops significantly when high-flow is engaged | Undersized wire gauge or blown secondary inline fuse on Pin B/K | Check wire gauge size. Verify supply voltage at Pin K with digital multimeter while activating high-flow valve. | Upgrade supply circuit from 14 AWG to 10 AWG wire. Replace blown fuse with proper rated MAXI fuse. |
When diagnosing low-voltage conditions, check out our guide on electric brake controller installation diagrams to ensure controller output specs align with equipment current draw. Always test voltage under loaded conditions, as open-circuit voltage readings can falsely indicate a healthy circuit even across high-resistance corroded connections.
Frequently Asked Questions About Skid Steer Auxiliary Hydraulics and Electric Brake Controls
How do I test the auxiliary power supply on a 14-pin skid steer plug?
To test the auxiliary power supply on a 14-pin connector for skid steer wiring diagram setup, set your digital multimeter to DC Volts (20V scale). Connect the black negative probe to the chassis ground pin (Pin A) and touch the red positive probe to Pin B (switched ignition) with the key turned to ON. You should read full system voltage (approximately 12.6V to 14.2V with engine running). Next, check Pin K (continuous supply), which should read system voltage at all times regardless of ignition key position.
Can I wire a standard 7-way RV blade trailer plug directly to my skid steer 14-pin harness?
Yes, but you must account for differences in lighting circuit logic. A standard skid steer uses separate outputs for stop and turn signal channels, while a 7-way RV blade plug combines stop and turn signals onto shared left and right circuits. You must install a 3-wire to 2-wire taillight converter module between the 14-pin harness and the 7-way blade socket to properly mix the brake and turn signal pulses without backfeeding electrical feedback into the machine’s ECM.
Why are my electric brake signals dropping voltage under heavy load?
Voltage drops on electric brake lines (Pin G) are almost always caused by inadequate ground pin gauge size, loose contact terminals, or excessive wire run lengths without proper wire gauge compensation. Electric brake solenoids draw between 3.0 and 4.0 Amps per magnet (6.0–8.0 Amps total for a tandem axle trailer). If the ground wire (Pin A) or brake signal wire (Pin G) is smaller than 12 AWG or suffers from high contact resistance, significant voltage drop occurs, resulting in weak or completely non-responsive trailer braking performance.
What wire gauge is required for the main ground pin on a 14-pin Deutsch connector?
Manufacturer specifications require a minimum of 10 AWG high-strand copper conductor for the main chassis ground pin (Pin A) on a 14-pin Deutsch HD30 socket. Because Pin A serves as the common ground return path for hydraulic solenoids, auxiliary lighting, strobe lamps, and electric brake actuators simultaneously, using an undersized 14 or 16 AWG wire will cause severe electrical noise, voltage drop, and potential wire melting under sustained peak amperage loads.
