4-Pin Motorcycle Ignition Switch Wiring Diagram: 2026 Setup
A typical 4-wire motorcycle ignition switch connects the red hot wire (+12V battery feed) to the black switched power wire in the ON position. A green ground wire attaches to chassis ground, while a black/white wire connects to the CDI or kill switch to grounded ignition circuit during OFF position.
📌 Key Takeaways
- Red wire carries continuous +12V DC power directly from the main 15A fuse to key switch pin 30.
- Green wire establishes essential frame chassis ground (0 ohms resistance required to prevent circuit back-feed).
- Black wire delivers switched +12V power to coils, headlamps, and instrument cluster in key ON position.
- Reversing hot wire and kill wire grounds live battery circuit, immediately blowing main fuse upon key turn.
- Perform multimeter continuity testing across terminals before connecting harness to prevent controller damage.

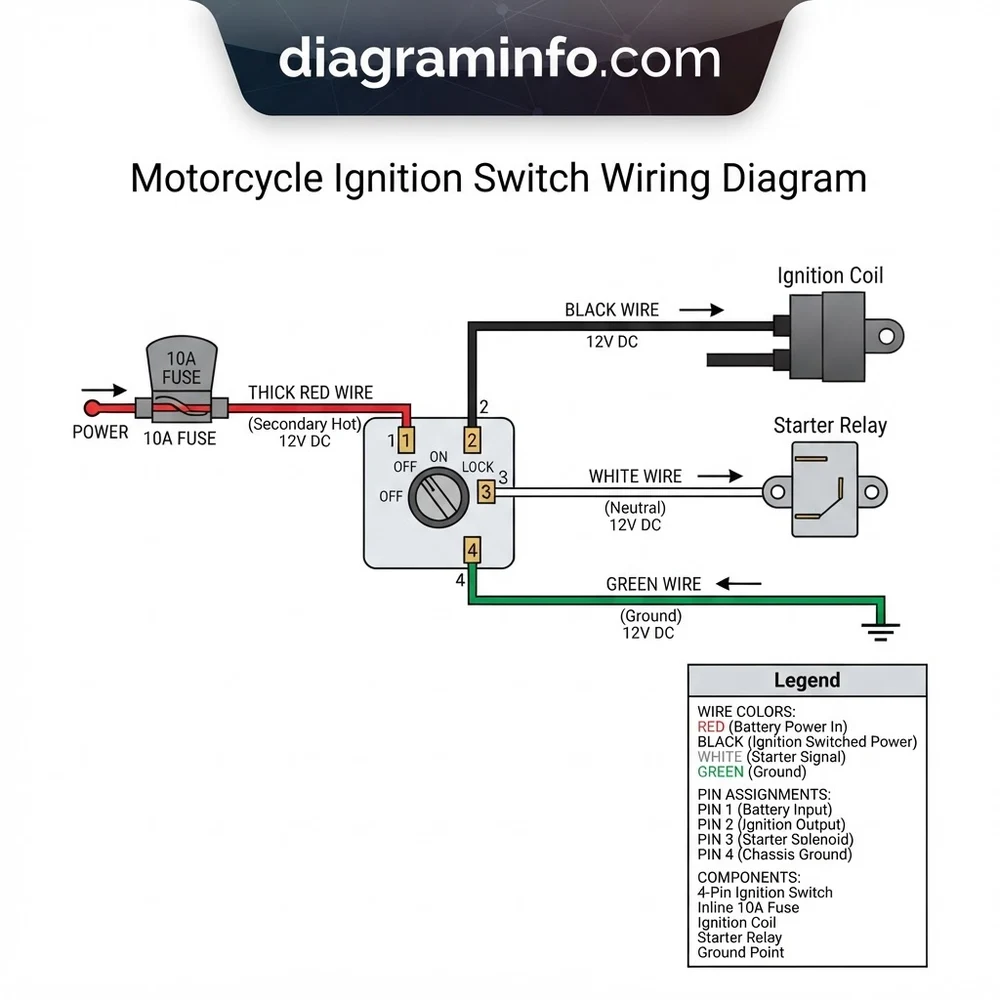

Properly wiring a motorcycle key switch requires a precise understanding of the motorcycle ignition switch wiring diagram to prevent electrical short circuits, excessive voltage drops, and damaged electronic control units (ECUs). Whether executing a complete custom wire harness build or replacing a failed OEM key switch, routing the primary hot wire, accessory feeds, and grounding pathways accurately ensures reliable system powering and smooth engine performance. This technical reference breaks down pin assignment standardizations, wire color codes across major manufacturers, terminal block routing, and proper wire gauge selection for 12-volt DC automotive electrical systems.
Understanding Motorcycle Ignition Switch Wiring Diagram Circuits
Modern motorcycles utilize several ignition switch configurations depending on engine displacement, ignition type (Capacitor Discharge Ignition vs. Inductive Transistorized Ignition), and local OEM lighting compliance standards. Reading a motorcycle ignition switch wiring diagram requires recognizing how internal contacts establish continuity across different key positions: OFF, ACC (Accessory), RUN/ON, and PARK.
Recommended Best Deal Products
According to OEM electrical specifications, key switches generally fall into three architectural categories:
- 2-Wire Switches: Found predominantly on simple off-road or vintage machines. These function as a single-pole, single-throw (SPST) contact point that interrupting the main 12V DC positive hot wire path or shorts the CDI primary circuit directly to the chassis ground wire.
- 4-Wire Switches: Standard on classic and modern street motorcycles. They manage two distinct isolation circuits simultaneously: a positive power distribution line (+12V from battery to ignition coil/accessories) and an independent engine kill circuit (connecting the ignition control module to ground in the OFF position).
- 6-Wire Switches: Applied on modern fuel-injected bikes and touring motorcycles. These feature dedicated terminal block connections for independent parking lights, ECU logic inputs, cooling fan bypasses, and multi-stage accessory power routing.
In 4-wire and 6-wire systems, the ignition switch contains two completely isolated internal contact sets. When the key is turned to RUN, the main positive power circuit closes while the engine kill ground circuit opens. When turned to OFF, the positive circuit opens and the ground circuit closes to sink CDI triggering pulses to the frame ground.
Standardized Wire Color Code and Terminal Block Reference Table
While wire color codes vary by OEM manufacturer, terminal block functions remain electrically consistent across 12V DC motorcycle platforms. When referencing a motorcycle ignition switch wiring diagram, always verify terminal block continuity using a digital multimeter set to Ohms (Ω) before permanently crimping connectors.
| Wire Color Code (OEM Standard) | Circuit Function | Pin/Terminal ID | Technical Specs & Routing Notes |
|---|---|---|---|
| Red (Honda, Yamaha, Kawasaki) Red/Black (Harley-Davidson) |
Main Unswitched Hot Wire (+12V DC) | BAT / Terminal 30 | Direct feed from main battery fuse. Must maintain 12.6V nominal voltage; 14 AWG conductor minimum. |
| Black (Honda) Brown (Yamaha) Orange (Suzuki) |
Switched Ignition Output (+12V DC) | IGN / IG / Terminal 15 | Supplies power to coils, ECU, fuel pump, and main relay when key is in ON/RUN position. |
| Brown (Honda) Blue (Yamaha) Red/Yellow (Kawasaki) |
Switched Accessory Feed (+12V DC) | ACC / AUX / Terminal 58 | Powers headlamps, taillights, dash displays, and auxiliary meters. Active in RUN and PARK. |
| Green (Honda) Black (Yamaha) Black/Yellow (Kawasaki/Suzuki) |
Chassis Ground Wire | GND / Terminal 31 | Negative return path to chassis. Essential for internal switch lighting and ground-interrupt kill circuits. |
| Black/White (Honda, Suzuki) White/Black (Yamaha) |
Ignition Kill / CDI Intercept Circuit | EXT / OFF / DI | Connects to ground wire when switch is OFF to ground out pulse generator output and stall engine. |
| Light Green/Red (Universal) | Neutral Wire Safety Interlock Logic | NEUT / N-SW | Routes through neutral switch to prevent starter relay activation while transmission is in gear. |
Electrical Gauge and Voltage Specifications for Switch Pin Assignment
Electrical safety and system performance depend directly on selecting the proper wire gauge and minimizing voltage drop across all terminal block contacts. Standard motorcycle electrical systems operate on a nominal 12V DC supply (12.6V fully charged resting voltage, 13.8V–14.4V charging voltage). High electrical resistance inside an aged terminal block or improperly sized wire causes resistive heating, reduced spark intensity, and erratic electronic sensor readings.
Recommended Best Deal Products
Maximum Allowable Voltage Drop: Under full system electrical load (headlights, ignition coils, and fuel pump active), the total measured voltage drop from the battery positive terminal to the ignition coil feed wire must not exceed 0.20V DC. A voltage drop exceeding 0.50V indicates pitted switch contacts or insufficient wire gauge size.
When assembling wiring harnesses, strict adherence to American Wire Gauge (AWG) standard load ratings is mandatory:
- 14 AWG (2.08 mm²): Mandatory for the main 12V DC hot wire (Red) connecting the main inline fuse (20A to 30A rating) to the ignition switch battery pin assignment (Terminal 30).
- 16 AWG (1.31 mm²): Required for primary switched ignition lines (Black/Orange) carrying continuous loads up to 15A to the fuse block, engine management ECU, and coil packs.
- 18 AWG (0.82 mm²): Standard for low-current accessory circuits, neutral wire safety interlocks, indicator light paths, and signal-level ground wire leads (maximum 5A-7A continuous draw).
Using undersized wire gauges creates heat bottlenecks. For instance, substituting 18 AWG wire for a 14 AWG main hot wire feed causes a significant voltage drop that degrades coil output and degrades copper strand integrity over time. For additional information on electrical load capacity calculations, refer to our comprehensive guide on motorcycle charging system stator troubleshooting.
How to Wire a Harness Using a Motorcycle Ignition Switch Wiring Diagram
Executing a reliable switch installation requires a systematic sequence using high-grade ratcheting crimpers, heat-shrink tubing, and non-insulated brass spade or bullet connectors. Follow this standardized pin assignment sequence when assembling your harness:
Step 1: Isolate System Power and Perform Pin Identification Tests
Disconnect the negative battery cable from the battery post to eliminate short-circuit risks during harness routing. Take your replacement switch assembly and set a digital multimeter to Continuity mode (audible beep setting). Map the pin assignment matrix by measuring resistance across terminal pairs in every key position:
- OFF Position: Terminal 30 (BAT) must be completely open to all pins. CDI kill pin (EXT) must show continuous 0.0 Ω resistance to the switch frame or dedicated ground wire pin.
- RUN Position: Terminal 30 (BAT) must show less than 0.1 Ω resistance to Terminal 15 (IGN) and Terminal 58 (ACC). The CDI kill pin (EXT) must show infinite resistance (open circuit) to the ground wire pin.
- PARK Position: Terminal 30 (BAT) connects exclusively to Terminal 58 (ACC) to power park lights; ignition output (IGN) must remain open.
Step 2: Connect the Unswitched Primary Hot Wire
Strip 6mm of insulation from the 14 AWG Red battery feed wire. Crimp a female locking terminal onto the conductor and insert it firmly into the terminal block connector housing aligned with Pin 30 (BAT). Ensure the locking tab engages fully. This unswitched hot wire supplies constant positive potential from the main system fuse directly to the internal switch contacts.
Step 3: Wire the Primary Ignition and ECU Power Outputs
Identify the switched ignition output wire (typically Black on Honda, Brown on Yamaha, or Orange on Suzuki). Crimp a 16 AWG or 14 AWG conductor to the matching switch harness socket designated for Pin 15 (IGN). Route this wire directly to the ignition branch of your main fuse block or directly to the engine stop relay and ignition coil positive studs.
Step 4: Attach Accessory and Lighting Circuit Lines
Route the 16 AWG accessory feed (Brown or Blue wire) to Pin 58 (ACC) on the switch terminal block. This circuit feeds the headlamp relay trigger, gauge cluster illumination, and accessory bus bar. This line isolates secondary lighting systems, preventing them from drawing current when the switch key is turned off.
Step 5: Connect Chassis Ground Wire and CDI Kill Logic Circuits
For 4-wire and 6-wire switches, connect the Green or Black chassis ground wire (18 AWG) to Terminal 31 (GND). Ensure the chassis end of this wire attaches to a clean, unpainted frame ground location coated with dielectric grease. Next, attach the Black/White stripe wire coming from the CDI/Ignition control box to the EXT/Kill terminal of the ignition switch. When the switch is rotated to OFF, internal switch contacts bridge this kill line directly to the ground wire, instantly grounding out spark production.
Step 6: Complete the Neutral Wire Safety Interlock Loop
Connect the Light Green/Red neutral wire feed to the safety circuit logic bus. This wire works in series with the neutral switch located on the engine crankcase. When the transmission rests in neutral, the switch closes to ground, lighting the neutral dashboard indicator and permitting starter relay engagement when the starter button is pressed. Review our detailed technical guide on motorcycle starter solenoid wiring diagrams to verify complete starter circuit interlocks.
Never apply +12V DC power to the Black/White CDI kill wire pin. Doing so will immediately destroy the sensitive pulse-clamping diodes inside the ignition control module or ECU, necessitating full ignition module replacement.
Common Motorcycle Ignition Switch Wiring Diagram Mistakes and Fixes
Electrical diagnostics reveal several recurrent wiring faults committed during aftermarket switch retrofits or custom wire harness fabrication. Understanding these mistakes prevents component failure and road breakdowns.
1. Transposing Hot Wire (BAT) and Switched Ignition (IGN) Terminals
Connecting the battery supply wire to the IGN terminal and the ignition load wire to the BAT terminal results in a constant back-feed situation. When turned off, current flows backward through accessory bypass circuits, leaving the ignition coil energized or draining the battery flat within hours. Fix: Use a multimeter to verify that constant 12.6V DC voltage resides only on the main Red hot wire when the key switch is fully removed.
2. Omitting Frame Ground Wire Continuity Cleanliness
Attaching the ground wire terminal to painted, powder-coated, or corroded frame surfaces causes high electrical resistance. This forces return currents to seek alternative ground paths through delicate clutch cables or sensor shields, causing erratic tachometer readings and melted control cables. Fix: Grind frame attachment pads down to bare metal, apply conductive anti-corrosion grease, and torque ground fasteners to OEM specs (typically 8–10 Nm).
3. Swapping Neutral Wire Logic with Secondary Lighting Feeds
Interchanging the neutral wire lead with an accessory lighting hot wire causes the neutral indicator light to stay permanently illuminated or shorts out the safety relay whenever the motorcycle is shifted into gear. Fix: Reference the specific OEM motorcycle ignition switch wiring diagram to confirm that the neutral wire acts exclusively as a ground-side control circuit, never a positive power distribution line.
4. Inadequate Strain Relief at the Ignition Switch Terminal Block
Failing to secure the wire harness bundle within 50mm to 75mm of the ignition switch terminal block allows handle-bar turning torque to flex individual copper strands directly at the terminal crimp joints. Over time, strain causes internal wire fractures inside the insulation jacket, producing intermittent engine cutouts while steering. Fix: Install rubber strain-relief boots and anchor the switch harness securely to the triple-clamp frame gusset using UV-resistant nylon cable ties.
Motorcycle Ignition Switch Wiring Diagram Technical Questions Answered
How Do You Measure Voltage Drop Across the Ignition Switch Pin Assignment?
To perform a dynamic voltage drop test, leave the switch fully connected and turn the key to the RUN position with the engine off but headlights turned on to draw load. Set a digital multimeter to Millivolts DC (mV) or Low Volts DC. Place the positive red meter probe on the Red main hot wire terminal pin (BAT / Terminal 30) and the negative black meter probe on the switched output terminal pin (IGN / Terminal 15). A reading under 200 mV (0.20V) indicates healthy switch contacts. A reading higher than 200 mV points to pitted, oxidized, or loose internal copper contacts, requiring switch contact cleaning or complete unit replacement.
Can a 4-Wire Universal Switch Replace a 6-Wire OEM Motorcycle Ignition Switch Wiring Setup?
Yes, provided you understand the specific logical functions being consolidated. A 6-wire switch typically separates main power distribution from specialized accessory, park light, and ECU safety circuits. To adapt a 4-wire universal switch, combine the primary lighting and accessory positive wires onto the 4-wire switch’s single IGN/ACC output terminal, provided the combined current draw does not exceed the continuous ampacity rating of the replacement switch contact points (typically 15A to 20A). If total system current exceeds this rating, route the switch output to energize a standard 40A automotive 4-pin relay. For additional wiring schematic context, see our technical breakdown of reading motorcycle electrical schematics.
What Wire Gauge Standard Is Recommended for Main Battery Hot Wire Connections?
OEM engineering specifications mandate a minimum of 14 AWG (2.08 mm²) high-strand flexible copper wire for the unswitched main hot wire feeding the ignition switch terminal block. High strand-count wire (e.g., Type 3 marine-grade PVC or cross-linked polyethylene XLPE insulated wire) is critical on motorcycles because it resists mechanical vibration fatigue significantly better than solid-core or low-strand automotive primary wire. Ensure the primary hot wire branch is fused within 300mm of the battery terminal post using a waterproof ATC blade fuse holder.
Why Does the Neutral Wire Circuit Affect Engine Ignition and Starter Relay Operation?
Modern motorcycle starting safety logic requires either the clutch lever to be pulled in (closing the clutch switch) or the transmission to be in neutral (closing the neutral switch to ground) before the starter relay control coil can energize. The neutral wire carries this ground reference signal from the engine case switch to the starter circuit relay and dash neutral lamp. If the ignition switch wiring diagram incorporates an internal diode block or interlock bypass lead, an improperly connected neutral wire prevents the starter motor solenoid from engaging even when the ignition switch is fully turned to the ON/RUN position.
Step-by-Step Guide to Understanding the Motorcycle Ignition Switch Wiring Diagram
Identify – Disconnect battery negative cable and identify pin assignment on new ignition switch.
Locate – Locate main harness plug, identifying battery hot wire, switched wire, ground wire, and neutral wire.
Reference – Reference motorcycle ignition switch wiring diagram wire color code table to match harness traces.
Connect – Connect red battery wire to input terminal, black wire to switched load, and black/white wire to kill circuit.
Verify – Reconnect battery negative cable and test continuity across key positions using a digital multimeter.
Troubleshoot – Check main 15A fuse and chassis ground connection if switch yields zero electrical power.
