The Toro Timecutter idler pulley diagram details the deck belt routing around flat and V-grooved idlers. The drive belt routes from the engine clutch pulley, engages the fixed idler pulley, and wraps around the spring-loaded tensioner idler arm assembly to drive the left and right mower deck spindle pulleys correctly.
📌 Key Takeaways
- Idler pulley mounting bolts typically require torque specifications between 25 and 35 ft-lbs during deck reassembly.
- The system structure utilizes both flat idlers (riding on belt back) and V-groove idlers (riding inside belt grooves).
- Spring-loaded tensioner arms must maintain proper recoil spring force to prevent belt slip under heavy cutting loads.
- Squealing noises and uneven grass cuts are primary indicators of worn idler pulley bearings or improper layout.
- DIY repair is straightforward, but professional assistance is recommended if spindle housings or deck brackets are cracked.
Maintaining the correct belt tension and mechanical alignment on a zero-turn mower requires a precise understanding of the mower deck assembly. The toro timecutter idler pulley diagram serves as an essential technical reference for identifying hardware configurations, belt routing paths, and mechanical tensioning components across 34-inch, 42-inch, 50-inch, and 54-inch deck options. Manufacturer specs indicate that improper belt alignment or incorrect idler pulley installation directly causes premature drive belt degradation, uneven blade tip speed, and costly PTO clutch wear. Understanding how each pulley component interacts within the drive system allows technicians to perform accurate maintenance and mechanical overhauls.

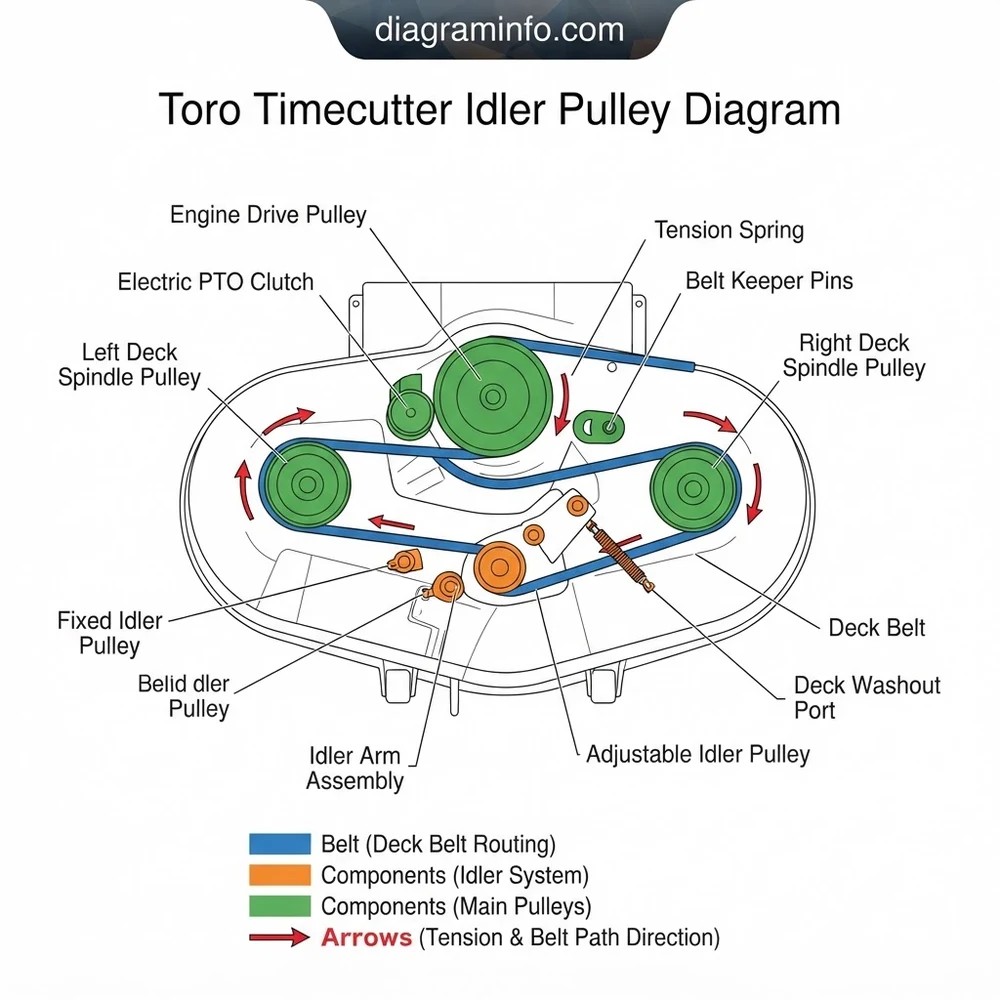

Toro Timecutter Idler Pulley Diagram: Component Breakdown and Deck Layout
The mower deck drive system on a Toro Timecutter utilizes a combination of stationary (fixed) idler pulleys and dynamic (spring-loaded) idler arms to maintain constant tension on the deck belt. As illustrated in the standard toro timecutter idler pulley diagram, the system consists of flat pulleys that contact the backside of the belt and V-pulleys that seat directly into the belt profile.
| Component Reference | Part Description & Function | Standard OEM Part / Spec |
|---|---|---|
| Dynamic Flat Idler Pulley | Mounted to spring arm; smooth face contacts back of belt to maintain dynamic tension. | Toro 114-0463 / 131-4529 (4.25″ OD) |
| Fixed V-Idler Pulley | Secured to deck shell; grooved face guides inner belt geometry through tight radius transitions. | Toro 106-2175 / 120-7082 |
| Tension Extension Spring | Connects idler pivot arm to deck anchor tab; applies dynamic mechanical draw. | Toro 106-2177 (Heavy-duty carbon spring steel) |
| Idler Arm Pivot Bushing | Flanged bronze or nylon sleeve providing smooth rotational axis for tension arm. | Toro 256-257 / 110-9969 |
| Belleville Retaining Washer | Conical spring washer maintaining clamping force on pulley shoulder bolt. | 3/8″ Grade 8 Heavy Duty Washer |
Factory torque specs require the main idler pulley shoulder bolts (3/8-16 thread) to be torqued to 35–40 ft-lbs (47–54 Nm). The idler arm pivot bolt must be torqued to 25–30 ft-lbs (34–40 Nm) to allow free rotational pivot without axial slop. Always verify deck pitch using proper mower deck leveling procedures after changing deck hardware.
The physical structure relies on exact hardware sequencing. A standard assembly mounts via a grade-5 or grade-8 shoulder bolt passing through a heavy-duty Belleville washer, the pulley bearing inner race, dedicated spacer standoffs, deck mounting plates, and a locknut beneath the deck housing. Incorrect bolt orientation or missing spacer washers shifts the pulley plane, causing catastrophic belt twist.
How to Trace the Toro Timecutter Idler Pulley Schematic and Route Drive Belts
Interpreting the technical blueprint requires matching the diagram layout to the physical orientation of the mower deck viewed from the operator seat. Follow these precise procedures when utilizing the schematic to rebuild or inspect the belt drive configuration.
1. Deciphering Belt Path and Pulley Geometry from the Diagram
The belt routing schematic illustrates two distinct contact methods. Flat idler pulleys engage the outer rubber backing of the belt, while V-groove pulleys receive the narrow tapered inner profile. Trace the belt path starting at the rear deck input from the electric PTO clutch wiring schematics and drive pulley. The belt must route around the exterior of spindle pulleys, wrap inward past stationary guide pins, and pass through the dynamic tension pulley loop.
On Toro Timecutter models manufactured between 2011 and 2020 (SS and MX series), flat idler pulleys are designated with a smooth outer ring on blueprints, whereas V-idlers display double parallel internal lines representing pulley shoulder grooves. Always ensure the cupped side of Belleville washers faces the bearing race.
2. Relieving Idler Spring Tension and Removing Fasteners
Before servicing components highlighted in the blueprint:
- Attach a spring removal tool or heavy-duty mechanic puller to the hook end of the tension extension spring at the deck anchor post.
- Unclip the tension spring from the anchor pin to relieve stored kinetic energy from the idler pivot arm.
- Hold the upper bolt head with a 9/16-inch wrench while removing the lower locknut from beneath the deck shell.
- Inspect the internal spacer sleeves for deep grooving or heat discoloration.
3. Installing Replacement Pulleys and Torquing Hardware to OEM Specs
When installing replacement components according to the structural blueprint, position the lower dust shield washer between the bearing face and the deck standoff. Align the idler arm bushing, apply a lithium-based grease to the pivot pin surface, and thread threadlocking compound onto the bolt threads. Thread the belt along the designated blueprint path before reattaching the high-tension spring to the dynamic arm.
Diagnosing Common Failures in the Toro Timecutter Idler Pulley System
A failing idler pulley or misaligned dynamic tension system reveals distinct mechanical symptoms long before total failure occurs. Mechanics should inspect components using diagnostic criteria based on operational symptoms, dynamic belt alignment, and mechanical resistance.
High spring tension poses an ejection hazard during disassembly. Never attempt to remove idler arm shoulder bolts while the extension spring is under load. Disconnect spark plug leads and remove the safety key before working near deck drive systems or hydrostatic drive belt routing guides.
Review the primary failure modes encountered during deck service:
- Seized or Grinding Bearings: Sealed radial ball bearings inside cheap aftermarket or worn OEM idler pulleys lose factory grease over time. If a pulley exhibits rough axial rotation, excess radial play (>0.030 inches), or squealing noises under load, the internal race is shot. Continuous operation will heat the pulley shell, melting the rubber drive belt.
- Worn Idler Arm Bushings: The pivot bolt sleeve allows the dynamic idler arm to swing cleanly. When bronze or nylon bushings wear out, the dynamic arm tilts at an angle. This canted orientation throws the idler pulley out of vertical alignment, causing the belt to walk off the edge of the flat pulley rim.
- Stretched or Fatigue-Stressed Springs: Over multi-season use, the extension spring experiences tension degradation. According to OEM specifications, if the spring free-length exceeds factory specifications by more than 0.25 inches, the dynamic pulley cannot maintain required clamping friction, resulting in deck belt slippage during heavy cutting conditions.
- Structural Deck Mounting Flex: On older Timecutter decks, continuous belt vibration can fatigue the deck metal surrounding the fixed idler mounting hole. Cracking or deformation here alters the blueprint pulley angle relative to the spindle drives.
Toro Timecutter Idler Pulley Diagram Questions Answered
How do I distinguish between flat idler pulleys and V-idler pulleys on the diagram?
On the technical diagram, flat idler pulleys feature a broad rectangular cross-section designed to contact the smooth outer back of the V-belt. V-idler pulleys display a deep tapered channel designed to seat the inner V-shaped sidewalls of the belt. Matching the exact profile specified in the schematic prevents belt twisting and rib shearing.
What is the torque specification for Toro Timecutter idler pulley bolts?
OEM technical specifications require 3/8-inch Grade 8 idler pulley shoulder bolts to be torqued to 35–40 ft-lbs (47–54 Nm). The pivot bolt holding the movable tension arm to the deck deck housing should be torqued to 25–30 ft-lbs (34–40 Nm) to ensure the arm rotates freely without binding.
Why does my Toro Timecutter keep throwing the deck belt off the idler pulley?
Throwing belts typically indicates a worn idler arm pivot bushing, a bent dynamic arm, or a failed pulley bearing that has tilted out of vertical alignment. Additionally, check for broken deck belt guide pins or a stretched tension spring that allows temporary slack when deck blades hit high-resistance turf.
Can I replace just the bearing inside the Toro idler pulley assembly?
Most original equipment Toro Timecutter idler pulleys feature a stamped steel shell with a factory-riveted or pressed non-serviceable ball bearing. Replacing the entire pulley assembly (which includes the integrated internal bearing and outer stamped shell) is required to ensure dynamic stability and safety.
How does deck size (42-inch vs 50-inch) alter the idler pulley layout?
While 42-inch Timecutter decks typically utilize a simplified two-pulley tensioning layout (one dynamic flat idler and one fixed guide), 50-inch and 54-inch triple-blade decks incorporate three or more idlers—including secondary fixed V-idlers—to route the longer belt around three separate blade spindle centers safely.
Step-by-Step Guide to Understanding the Toro Timecutter Idler Pulley Diagram
Identify – Clear the mower deck area and identify the specific Toro Timecutter model and deck size.
Locate – Locate the spring-loaded tensioner arm, fixed idler pulleys, and belt routing path on the deck.
Reference – Reference the Toro Timecutter idler pulley diagram to confirm correct pulley placement and belt contact surfaces.
Connect/Route – Route the deck V-belt around the engine clutch, idler pulleys, and spindle pulleys following the schematic configuration.
Verify – Verify belt alignment, ensure proper tension from the idler spring, and spin pulleys manually to check clearance.
Troubleshoot – Troubleshoot any friction, belt twist, or noise by checking bolt torque and inspecting idler bearings for play.
