PowerSmart Lawn Mower Parts Diagram: 2026 Component Breakdown

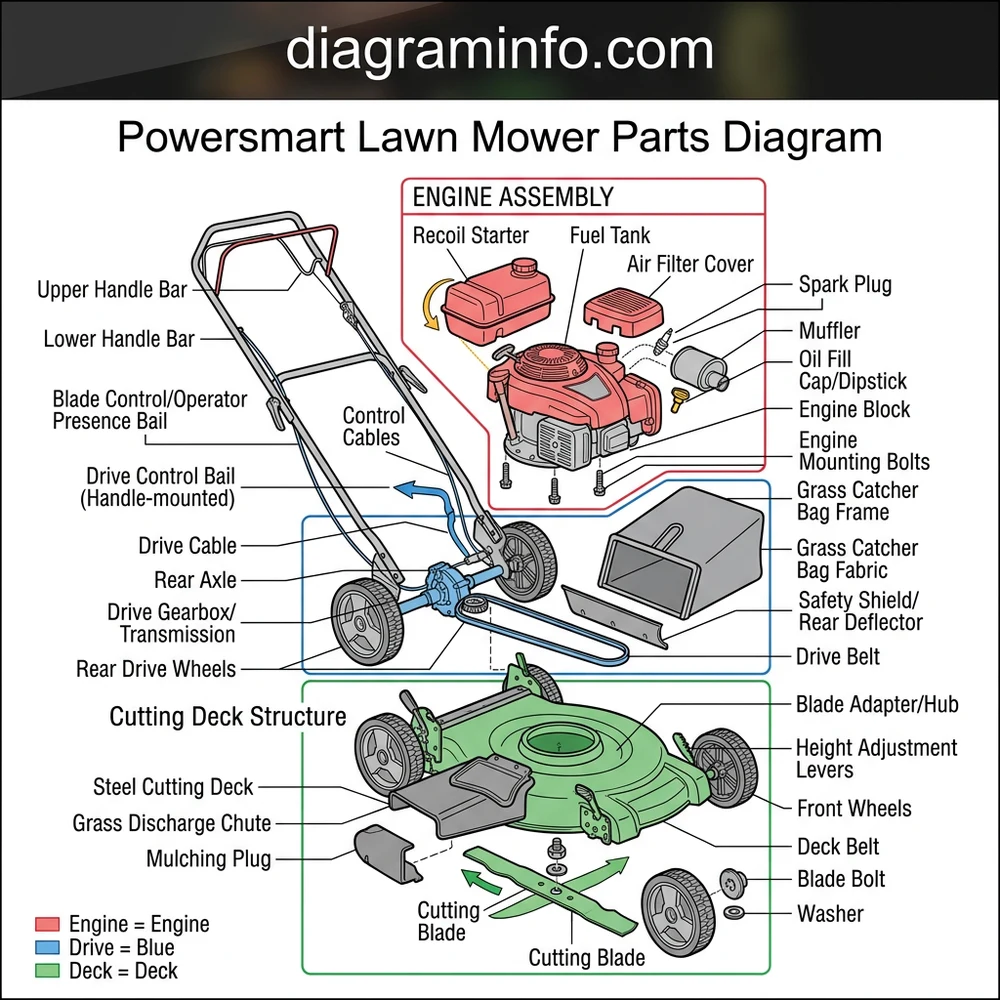

A PowerSmart lawn mower parts diagram illustrates the exploded view of key assemblies, including the 170cc or 209cc OHV engine, drive belt routing, drive pulleys, blade adapter, and recoil starter layout. It maps component positions, OEM part numbers, and hardware configurations necessary for precise identification, maintenance, and ordering exact replacement components.
📌 Key Takeaways
- PowerSmart 170cc/209cc OHV engines utilize standard 5/8-inch blade adapter shafts and 21-inch cutting deck configurations.
- Detailed exploded views identify exact OEM part numbers for drive belts, recoil springs, carburetor gaskets, and control cables.
- Blade bolt torque specification requires 35-40 ft-lbs to ensure safe operation and prevent spindle assembly damage.
- Stretched drive belts and clogged carburetors are the most frequent mechanical failure points in the system layout.
- DIY repair is suitable for cable, belt, and blade replacements, while crankcase internal repairs require certified mechanical service.
PowerSmart walk-behind and self-propelled lawn mowers utilize a standardized modular architecture engineered for efficient torque transmission and straightforward field maintenance. Navigating a technical powersmart lawn mower parts diagram requires a precise understanding of how distinct sub-assemblies—including the engine power plant, drive transmission system, blade control linkages, and height adjustment mechanisms—interact. Whether servicing a 170cc gas push model or a 209cc self-propelled unit, relying on an accurate OEM exploded diagram ensures correct component identification, seamless part number cross-referencing, and accurate torque application during major overhauls or component replacements.
PowerSmart Lawn Mower Parts Diagram Component Breakdown
Understanding the internal structure and spatial layout of a PowerSmart mower requires breaking the machine down into four major system modules: the overhead valve (OHV) engine assembly, the structural cutting deck configuration, the self-propelled drive system, and the operator control interface.
The core power system features a single-cylinder 4-stroke engine (typically ranging from 144cc to 209cc). The engine schematic details critical internal and external parts, including the recoil starter housing, flywheel assembly, ignition module (air gap set to 0.010–0.014 inches), and float-type carburetor system. Referencing the engine blueprint ensures correct order-of-assembly when replacing primary shaft oil seals, crankcase gaskets, or governor linkages.
The deck chassis functions as the structural foundation. Component callouts indicate the 21-inch stamped steel housing, side discharge chute baffle, front and rear height adjuster levers, and blade spindle setup. The cutting assembly consists of a hardened steel blade mounted to an engine crankshaft adapter equipped with integrated shear pins designed to protect the crankshaft from sudden impact loads.
On self-propelled models, the drive configuration incorporates a crankshaft drive pulley, a tensioner spring arm assembly, and a heavy-duty V-belt connected to the rear transmission axle box. The overview below highlights essential service parts and engineering specifications commonly found across PowerSmart diagrams:
| System Component | OEM Part Reference | Engineering Spec / Torque Setting |
|---|---|---|
| 21-Inch Mulching Blade | 303070001 | Grade 8 Bolt / 35–40 ft-lbs (47–54 Nm) |
| Self-Propelled Drive Belt | 303020468 | 3L-Section V-Belt (Tensioner Controlled) |
| Engine Brake / OPC Cable | 303180002 | Bowden Wire / 2–3 mm Free Play |
| Crankshaft Blade Adapter | 302030014 | 7/8″ Shaft Keyway with Shear Pins |
| Ignition Spark Plug | Torch F6RTC / NGK BPR6ES | Gap: 0.028–0.031 in (0.7–0.8 mm) |
For additional mechanical specs on fuel delivery and metering components, consult our detailed carburetors and fuel systems guide.
How to Read the PowerSmart Mower Schematic and Structural Layout
Reading a technical powersmart lawn mower parts diagram requires a systematic approach to trace mechanical energy paths and fastener stacks accurately. Diagrams employ numbered callout bubbles linked directly to a model-specific bill of materials (BOM).
First, identify the primary engine crankshaft axis. In the exploded view, follow the vertical shaft downward from the crankcase base. Note the exact sequence of components mounted on the crankshaft output end: upper drive pulley (for self-propelled transmission), spacer sleeve, blade adapter keyway, cutting blade, Belleville Belleville spring washer, and center retaining bolt. Installing the Belleville washer inverted reduces clamping force and leads to blade slippage during severe loads.
Second, analyze the Operator Presence Control (OPC) system path. Trace the Bowden cable from the upper handle bail lever down to the engine kill-switch brake bracket. The schematic illustrates the return spring anchor hole and the orientation of the microswitch grounding wire (black lead). Verify that spring tension restores the brake pad against the flywheel rim when the handle is released.
Third, locate the drive transmission configuration on self-propelled models. The schematic displays the drive belt path from the engine PTO shaft through the front deck baffle to the variable-speed rear transmission assembly. Pay close attention to plastic belt guides and retainer clips to prevent premature belt friction and wear.
Critical Fastener Torque Values: Blade Retention Bolt = 35–40 ft-lbs (47–54 Nm); Engine Base Deck Bolts = 18–22 ft-lbs (24–30 Nm); Flywheel Retaining Nut = 45–50 ft-lbs (61–68 Nm).
If you are replacing drive components, cross-reference our drive belt installation reference page for step-by-step tension adjustment rules.
Diagnosing Faults Using the PowerSmart Mower Blueprint
When troubleshooting performance failures, the powersmart lawn mower parts diagram acts as a precise diagnostic map to isolate structural, mechanical, or electrical root causes.
If the drive wheels fail to engage on self-propelled units, refer to the lower transmission system overview. Troubleshoot along the force pathway: verify cable tension at the handle lever, inspect the tensioner pulley spring attachment on the deck bracket, and check for belt detachment off the transmission input pulley. Excessive play in the control cable (greater than 5 mm) prevents full engagement of the internal transmission clutch mechanism.
In cases where the engine cranks but fails to start, use the ignition module line schematic. Check the black grounding lead connected to the flywheel brake contact terminal. If the brake mechanism binds due to debris or a damaged return spring, the ignition circuit remains permanently grounded, preventing spark generation across the spark plug gap.
Disconnect the spark plug terminal boot and ground it against the engine block before inspecting the deck underside, blade adapter assembly, or drive belt schematic points to prevent accidental engine ignition.
For engine mechanical overhauls or loss of compression diagnosis, refer to our engine valve clearance specifications guide.
PowerSmart Lawn Mower Parts Diagram Frequently Asked Questions
How do I identify the exact powersmart lawn mower parts diagram for my model year?
Locate the silver data specification plate riveted to the rear deck housing. Note the full model number (such as DB8621S, PSM2521P, or DB86221A) and serial number prefix. PowerSmart updates engine layouts and cable routing configurations across production years, so matching the full model code ensures accurate OEM replacement part numbers.
Why does the blade adapter key shear off, and how is it detailed in the parts drawing?
The blade adapter contains integrated cast shear pins or a separate Woodruff key designed to fail intentionally when the blade strikes solid obstructions. This sacrificial design protects the engine crankshaft from bending. The parts drawing depicts the adapter positioned directly between the deck belt pulley and the blade center hole on the 7/8-inch crankshaft extension.
Which direction must the blade washer face according to the assembly blueprint?
The Belleville cupped spring washer must be installed with its concave side facing directly against the steel lawn mower blade surface, and the convex crown facing outward toward the bolt head. Reversing this washer reduces spring preload tension, causing the blade to slip or loosen during operation.
Where is the drive belt routing diagram located for self-propelled models?
The drive belt path is detailed in the lower deck and transmission assembly section of the blueprint. The belt routes from the upper engine shaft drive pulley, under the protective plastic deck shroud, and around the input pulley located atop the rear axle gearbox module.
How do I adjust cable tension using the control cable schematic details?
Identify the inline threaded barrel adjuster positioned along the lower section of the cable housing. Loosen the locknut, rotate the adjustment sleeve clockwise or counterclockwise until cable slack is reduced to 2–3 mm of free play, and tighten the locknut against the sleeve to fix the setting.
Step-by-Step Guide to Understanding the Powersmart Lawn Mower Parts Diagram
Identify – Locate the mower model number and engine serial tag on the rear deck or engine housing.
Locate – Find the corresponding component section on the diagram, such as the drive system, engine, or cutting deck.
Reference – Match the numbered item in the diagram layout to the master OEM part number list.
Connect/Route – Route control cables, belts, and springs according to the exact structural configuration shown.
Verify – Check torque specs, belt alignment, and cable tension against manufacturer recommendations before starting.
Troubleshoot – Consult the diagnostic layout if the engine fails to turn over, drive slips, or cut quality degrades.
