An Epiphone Les Paul wiring diagram typically details two humbucker pickups, a 3-way toggle switch, and four potentiometers (two volume, two tone). Hot wires from pickups usually connect to volume pot inputs, while grounds connect to the pot casing. The switch routes signal from pickups to the output jack, with neutral wires grounding the system.
📌 Key Takeaways
- Standard Epiphone Les Pauls typically use two humbucking pickups, 500k Ohm potentiometers for volume/tone, and a .022uF capacitor for tone circuits.
- Identify ground wires (usually bare or braided shield) connected to pot casings and the output jack sleeve for noise reduction and proper circuit completion.
- Always desolder connections carefully to avoid damaging components or melting plastic insulation, ensuring the soldering iron is properly tinned and heated.
- The most common wiring mistakes include cold solder joints, incorrect pot/capacitor values, or miswiring the phase of pickups, leading to weak or out-of-phase sound.
- Attempt DIY wiring for component replacement or simple modifications; consult a qualified guitar technician for complex electronic issues or significant modifications requiring specialized tools.
This comprehensive guide details the precise wiring schematic for a standard Epiphone Les Paul guitar, focusing on its dual humbucker, two volume, two tone control configuration, and three-way toggle switch. Mastery of this wiring task is crucial for maintaining optimal signal integrity, achieving desired tonal characteristics, and troubleshooting electrical anomalies. Understanding each connection point, wire color code, and component interaction is paramount for both performance and reliable operation of this classic instrument.

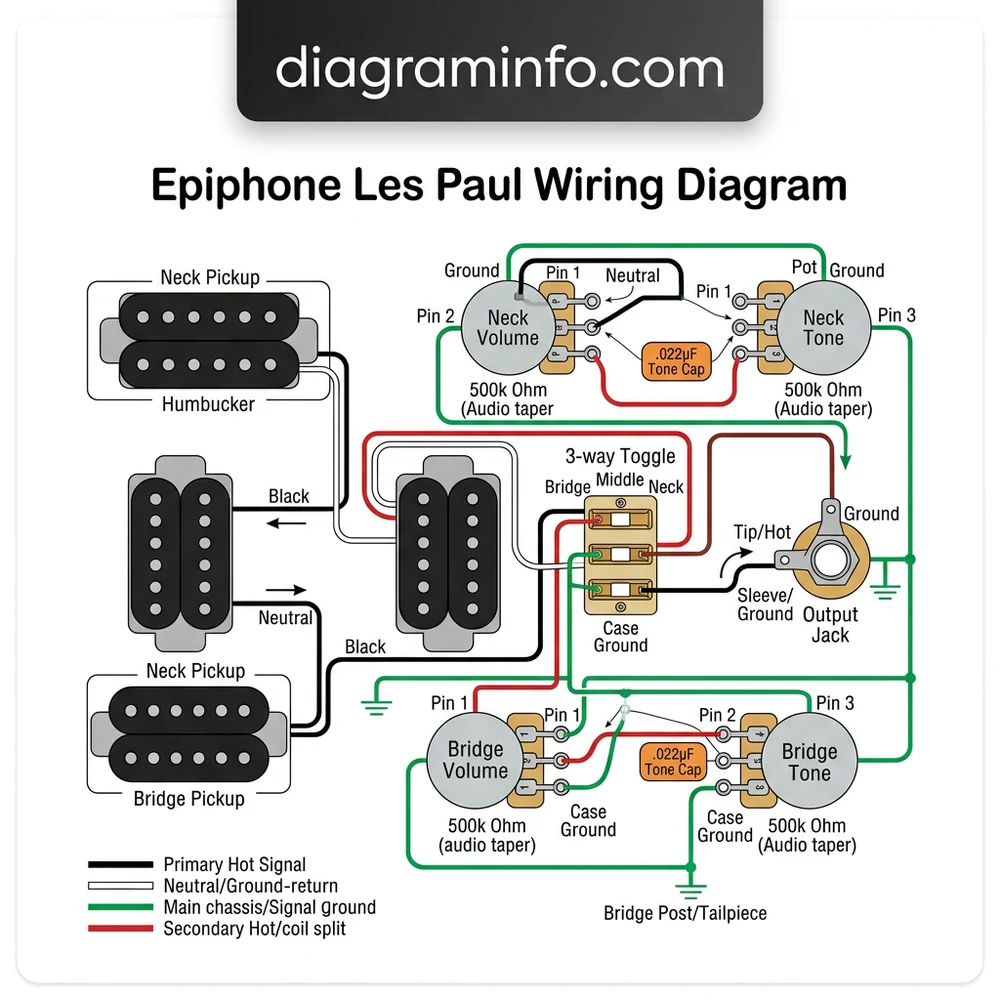

(Please imagine a detailed wiring diagram showing two humbucker pickups, two volume potentiometers, two tone potentiometers, one three-way toggle switch, and one output jack, all interconnected with colored wires. The diagram would clearly label all components, potentiometer lugs (1, 2, 3), switch terminals, and jack connections (tip, sleeve). Wire colors would correspond to the table below.)
WIRE COLOR REFERENCE TABLE
| Wire Color (Humbucker Standard) | Function | Pin/Terminal | Notes |
|---|---|---|---|
| Black | Hot Signal (Coil Start) | Volume Pot Input (typically Lug 1 or 3 depending on pot type) | Output signal from the pickup. |
| White | Coil Finish (Coil 1) | Paired with Red for series link or coil split. | Inner coil connection. |
| Red | Coil Start (Coil 2) | Paired with White for series link or coil split. | Inner coil connection. |
| Green | Ground (Coil Finish) | Volume Pot Casing, Output Jack Sleeve | Connects to ground plane. |
| Bare/Braided Shield | Chassis Ground / Shielding | Volume Pot Casing, Output Jack Sleeve | Ensures noise reduction and common ground. |
| Yellow (Switch) | Output from Neck Volume Pot | 3-Way Toggle Switch (Neck Input Lug) | Signal path to switch. |
| Orange (Switch) | Output from Bridge Volume Pot | 3-Way Toggle Switch (Bridge Input Lug) | Signal path to switch. |
| Purple (Switch) | Master Output from Switch | Output Jack Tip Terminal | Main signal output. |
Pickup wire color codes can vary significantly between manufacturers (e.g., Seymour Duncan, Dimarzio, Gibson, Epiphone stock). Always consult the specific pickup manufacturer’s documentation for accurate wire identification if you are not using standard Epiphone stock pickups. The scheme above is a common representation but not universal.
STEP-BY-STEP CONNECTION GUIDE
Achieving optimal performance from your Epiphone Les Paul necessitates meticulous attention to each wiring connection. The following sequence ensures proper signal flow, grounding, and functionality, mirroring OEM specifications for a two-humbucker, two-volume, two-tone setup. Refer concurrently to the provided diagram for visual confirmation of each step.
- Prepare Potentiometer Grounds: Begin by establishing a robust ground plane. Solder a short length of bare or green wire between the back casings of all four potentiometers (two volume, two tone). This creates a common ground reference. Additionally, solder the green wire and bare/braided shield from both the neck and bridge humbucker pickups to the back casing of their respective volume potentiometers.
- Neck Pickup to Neck Volume Potentiometer: Locate the neck humbucker’s hot wire (typically black). Solder this wire to Lug 1 (input lug) of the Neck Volume Potentiometer. Ensure a clean, solid solder joint to minimize signal loss and impedance issues.
- Bridge Pickup to Bridge Volume Potentiometer: Similarly, route the bridge humbucker’s hot wire (typically black) to Lug 1 (input lug) of the Bridge Volume Potentiometer. As with the neck pickup, verify the integrity of the solder connection.
- Potentiometer Output to Toggle Switch:
- From the Neck Volume Potentiometer, solder a wire (e.g., Yellow, as shown in the diagram) from Lug 2 (output lug) to the appropriate input terminal on the 3-Way Toggle Switch for the neck pickup.
- From the Bridge Volume Potentiometer, solder a wire (e.g., Orange) from Lug 2 (output lug) to the appropriate input terminal on the 3-Way Toggle Switch for the bridge pickup.
- Note that Les Paul style switches often have two input lugs and one common output lug, with grounding tabs.
- Tone Potentiometer Connections:
- For the Neck Tone Potentiometer, solder a capacitor (e.g., 0.022µF or 0.047µF, depending on desired tone profile) from Lug 2 of the Neck Volume Potentiometer to Lug 1 of the Neck Tone Potentiometer. Solder the third lug (Lug 3) of the Neck Tone Potentiometer to the common ground plane (pot casing).
- Repeat this process for the Bridge Tone Potentiometer: connect a capacitor from Lug 2 of the Bridge Volume Potentiometer to Lug 1 of the Bridge Tone Potentiometer, and solder Lug 3 of the Bridge Tone Potentiometer to the common ground. The capacitor’s specific capacitance value critically influences the high-frequency rolloff.
- Toggle Switch Output to Output Jack: Solder a wire (e.g., Purple) from the common output terminal of the 3-Way Toggle Switch to the Tip (hot) terminal of the Output Jack. This carries the combined or selected signal to the amplifier.
- Output Jack Ground: Connect a wire from the common ground plane (any pot casing) to the Sleeve (ground) terminal of the Output Jack. This establishes the final ground connection for the entire circuit.
- Bridge Ground Wire: Ensure a wire is run from the tremolo claw or bridge post (depending on bridge type) to the common ground plane, typically soldered to the back of one of the potentiometers. This grounds the strings and metal hardware, crucial for noise suppression. For further insights on grounding techniques, refer to our article on Electrical Grounding Principles in Audio Circuits.
Standard Epiphone Les Paul wiring typically utilizes 500kΩ audio taper potentiometers for both volume and tone controls with humbucker pickups. Tone capacitors are commonly 0.022µF for bridge and neck tone, or sometimes 0.047µF for a darker tone roll-off. Recommended wire gauge for internal guitar wiring is 22 AWG (American Wire Gauge) or 24 AWG solid or stranded tinned copper, ensuring adequate current handling and ease of manipulation.
COMMON WIRING MISTAKES & TROUBLESHOOTING
Even experienced technicians can encounter issues during wiring, particularly given the compact nature and high-impedance signals involved. Understanding common pitfalls and their resolutions is critical for efficient troubleshooting.
- Cold Solder Joints:
Consequence: Intermittent signal, weak output, or complete signal loss. A cold joint appears dull, granular, or blobby, lacking a smooth, shiny surface. It indicates insufficient heat during soldering, leading to poor electrical conductivity.
Fix: Re-heat the joint, applying a small amount of fresh solder to promote flow and a proper metallurgical bond. Ensure the soldering iron tip is clean and appropriately tinned. A proper joint should be shiny and concave.
- Incorrect Grounding / Ground Loops:
Consequence: Excessive hum, buzz, or unwanted noise. An ungrounded component will act as an antenna, picking up electromagnetic interference. A ground loop occurs when there are multiple paths to ground, creating circulating currents.
Fix: Verify continuity for all ground wires to a single, common ground point (e.g., the output jack sleeve). Use a multimeter to check for resistance between all ground points. Ensure that all potentiometer casings, pickup shields, and bridge grounds are connected to this single ground plane. For detailed diagnostics, consult our article on Noise Reduction in Audio Systems.
- Phase Reversal (Humbuckers):
Consequence: Thin, weak, or “hollow” sound when both humbuckers are selected, often with reduced output and minimal bass response. This occurs when one pickup’s coils are wired out of phase with the other.
Fix: Identify the specific pickup causing the phase issue. This typically involves reversing the “hot” and “ground” wires for one pickup (e.g., if black is hot and green is ground, swap them). It may also involve reversing the start/finish wires of one coil within the humbucker, if applicable for split-coil wiring. Always consult the pickup manufacturer’s diagram for specific phase conventions.
- Stray Wire Strands/Short Circuits:
Consequence: Complete signal loss, intermittent operation, or fuse blowing (in active circuits, though not typical for passive Les Pauls). A tiny strand of wire touching an unintended terminal can create a short circuit.
Fix: Visually inspect all solder joints and wire connections under good lighting. Use a magnifying glass if necessary. Trim any excess wire leads and ensure no stray strands are bridging terminals or touching pot casings where they shouldn’t. Use heat shrink tubing or electrical tape over exposed connections if space allows and contact is possible.
- Incorrect Component Values (Potentiometers/Capacitors):
Consequence: Suboptimal tone and volume control. Using 250kΩ pots with humbuckers, for example, will result in a darker tone with less high-frequency sparkle. Incorrect capacitor values will drastically alter the tone control’s effectiveness.
Fix: Verify the resistance of potentiometers and capacitance of capacitors using a multimeter before installation. For humbuckers, 500kΩ pots are standard to preserve treble. Capacitors typically range from 0.015µF to 0.047µF, with 0.022µF being common for a balanced roll-off. For advanced customization, consult our guide on Custom Guitar Electronics Modifications.
Always disconnect the guitar from any amplifier or power source before performing any wiring or soldering work. Exercise caution when using soldering irons, ensuring proper ventilation and avoiding contact with hot components or molten solder to prevent burns or damage to the instrument. Static discharge can damage sensitive electronic components; take appropriate anti-static precautions if dealing with active circuitry, though passive Les Pauls are less susceptible.
FAQ
What wire gauge is recommended for guitar wiring?
For internal guitar wiring, 22 AWG (American Wire Gauge) or 24 AWG stranded tinned copper wire is generally recommended. This gauge provides an excellent balance between conductivity, flexibility, and ease of soldering. Thicker wire (lower AWG number) is often overkill for the low-current, low-voltage signals in passive guitar circuits and can be more difficult to work with in confined spaces.
How does proper grounding affect signal quality?
Proper grounding is paramount for achieving a clean, low-noise signal. It provides a stable reference point for all electrical signals and effectively shunts unwanted electromagnetic interference (EMI) and radio frequency interference (RFI) to ground, preventing them from being amplified as hum or buzz. A poorly grounded system can introduce significant noise and diminish the overall fidelity of the instrument’s output.
Can I use different value potentiometers or capacitors?
Yes, altering potentiometer and capacitor values is a common modification to sculpt tone. For humbuckers, changing from 500kΩ pots to 250kΩ pots will typically reduce high-frequency response, resulting in a darker sound. Similarly, increasing capacitor values (e.g., from 0.022µF to 0.047µF) will allow more high frequencies to be shunted to ground when the tone control is rolled off, producing a more pronounced, darker tone sweep. Experimentation is key to finding your preferred sound.
What are the common Epiphone Les Paul wiring variations?
While the standard two-humbucker, 2V/2T/3-way switch configuration is most common, variations exist. Some models may feature coil-splitting capabilities (requiring push/pull potentiometers or mini-switches), phase switching, or even active electronics with a battery. Older Epiphone models, particularly those pre-dating modern wiring harnesses, might have slight differences in component brands or wire routing, though the fundamental signal path remains consistent. Always verify the specific model year and series if making exact replica repairs.
How do I identify a “hot” wire versus a “ground” wire on a pickup?
The “hot” wire typically carries the primary signal from the pickup, while the “ground” wire connects to the common ground plane of the circuit. For standard humbuckers with four-conductor wiring plus a bare shield, the bare wire is almost always ground. One of the colored wires (often black for Epiphone stock, or green for other brands like Seymour Duncan) will be the primary hot. The other colored wires are typically for coil linking or splitting. If documentation is unavailable, a multimeter can be used: connect one lead to the bare wire (ground) and test resistance to other colored wires; the one showing the full coil resistance is typically the hot output. However, this doesn’t differentiate between start and finish of a coil without more advanced testing or specific diagrams.
“`
Step-by-Step Guide to Understanding the Epiphone Les Paul Wiring Diagram: Component Breakdown 2026
Identify – Identify all components: pickups, potentiometers, capacitors, switch, and output jack, noting their designated positions on the diagram.
Locate – Locate the designated hot wire and ground wire connections for each component on the Epiphone Les Paul wiring diagram.
Reference – Reference the wire color code table to match the diagram’s color representations with the actual wires you are working with.
Connect/Route – Connect the wires according to the diagram, ensuring solid solder joints for hot connections and secure ground wire paths to the common ground point.
Verify – Verify continuity with a multimeter for all connections, especially checking for proper ground wire integrity and signal flow from pickups to the output jack.
Troubleshoot – Troubleshoot any issues like hum or no signal by re-checking cold solder joints, verifying correct pin assignment, and ensuring all ground wires are properly connected and isolated where needed.
Frequently Asked Questions
What wire color is hot on epiphone les paul wiring diagram?
Typically, the hot wire from a humbucker pickup in an Epiphone Les Paul is the inner conductor, often colored black or white, carrying the signal to the potentiometer. The outer braid or bare wire serves as the ground wire, connecting to the pot casing or common ground point. Always verify with your specific pickup’s color code as variations exist.
What do the pin numbers mean on epiphone les paul wiring diagram?
Epiphone Les Paul wiring diagrams generally don’t use ‘pin numbers’ in the traditional sense for pots or switches. Instead, diagrams indicate lugs or terminals. For potentiometers, these are input, output, and ground. For toggle switches, terminals correspond to neck pickup, bridge pickup, and output to volume pots, ensuring correct signal routing.
How many wires does epiphone les paul wiring diagram have?
A typical Epiphone Les Paul with two humbuckers will have at least two wires per pickup (hot and ground). Combined with four potentiometers, a 3-way switch, and an output jack, the total number of individual wire segments (including internal pot connections) can exceed 20, detailing signal paths, hot wire, and ground wire connections.
What are common wiring mistakes with epiphone les paul wiring diagram?
Common wiring mistakes include cold solder joints, which cause intermittent signal loss, and reversing hot wire and ground wire connections, leading to hum or no signal. Incorrectly phasing pickups, using wrong value potentiometers or capacitors, or not adequately grounding the components can also result in poor tone or excessive noise.
When should I use shielded wire for my Epiphone Les Paul wiring diagram?
Shielded wire, comprising a hot conductor surrounded by a braided ground wire, is crucial for signal paths that are susceptible to electromagnetic interference. Using it for longer runs, such as from the output jack to the main circuit or within control cavities, helps prevent noise and hum, ensuring a clean and clear signal.
What gauge wire does epiphone les paul wiring diagram require?
For Epiphone Les Paul wiring, 22 AWG (American Wire Gauge) stranded wire is generally recommended. This gauge is flexible enough for guitar cavities, offers sufficient current carrying capacity for guitar signals, and is easy to solder to small components. Using proper gauge wire ensures reliable connections and signal integrity throughout the circuit.
