E-Z-GO Golf Cart Wiring Diagram (36V/48V): Troubleshooting 2026
E-Z-GO golf cart wiring uses heavy-gauge red for positive and black for negative battery/motor connections. The solenoid activates via a small red wire from the key switch. Controllers feature large motor/battery cables and smaller wires for throttle/interlocks. Consult your specific E-Z-GO golf cart wiring diagram for precise pinouts and wire colors.
📌 Key Takeaways
- Always verify your E-Z-GO golf cart’s voltage (36V or 48V) before starting, as wiring schemes differ significantly.
- Identify the solenoid’s main terminals (large) and activation terminals (small) for proper testing and bypassing.
- Battery bank series connections are crucial; incorrect wiring results in improper voltage or damage. Ensure clean, tight connections.
- The most common wiring problem is a faulty solenoid or corroded battery terminal connections leading to intermittent power.
- Seek professional diagnostics for complex controller issues; simple battery/solenoid replacements are often DIY-friendly.

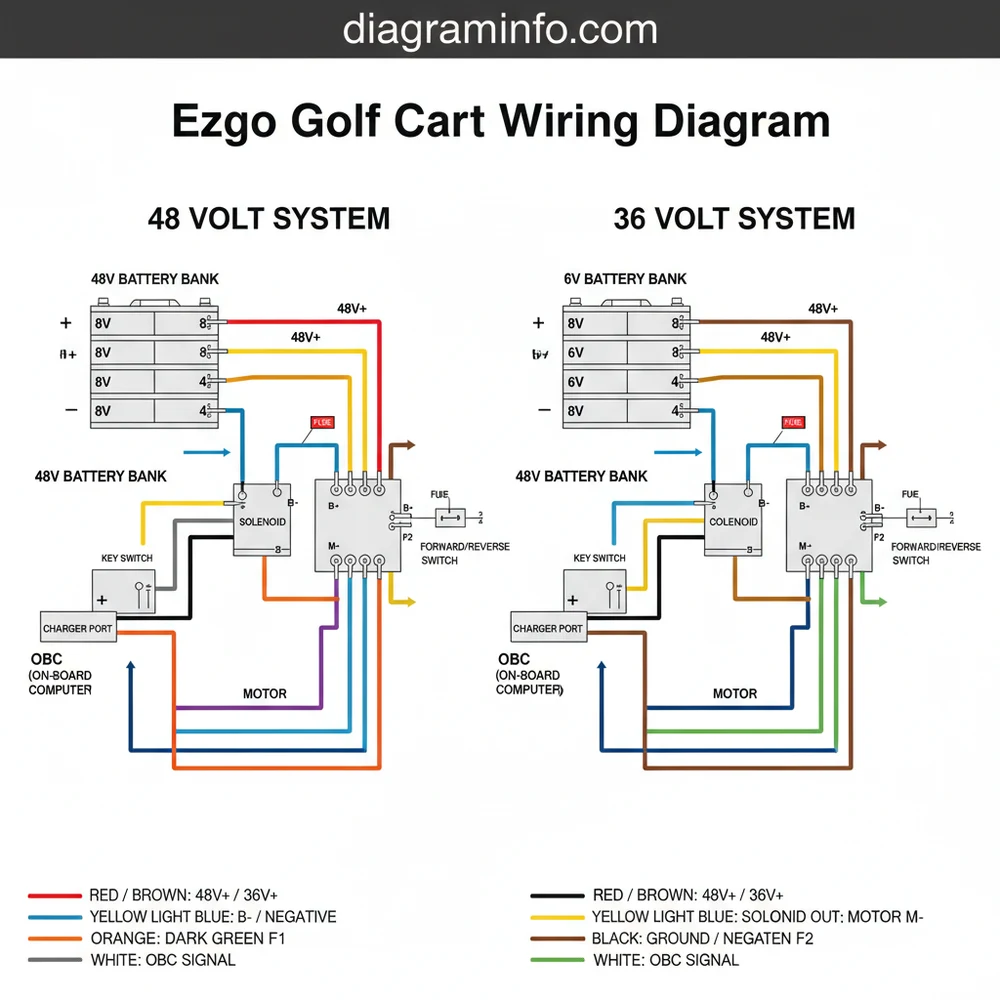

When dealing with an E-Z-GO golf cart’s electrical system, an accurate ezgo golf cart wiring diagram is indispensable for proper diagnosis, repair, or upgrade. Whether you are troubleshooting a 36 volt system or a more modern 48 volt system, understanding the intricate pathways of current from the battery bank through the controller, solenoid, and motor is crucial. This guide provides a detailed breakdown of E-Z-GO wiring configurations, focusing on critical component connections, wire color identification, and best practices for maintaining system integrity.
E-Z-GO models vary significantly by year and drive system (e.g., Series, PDS, RXV). Always consult the specific service manual for your cart’s year and model for the most accurate wiring schematic. While this guide provides general principles and common configurations, deviations exist.
WIRE COLOR REFERENCE TABLE
Understanding the color codes is fundamental when interpreting an ezgo golf cart wiring diagram. While variations occur, the following table lists common wire colors and their typical functions in E-Z-GO 36V and 48V systems. Always verify with your specific model’s diagram.
| Wire Color | Function | Connects To | Notes |
|---|---|---|---|
| Red (Heavy Gauge) | Main Positive (+) | Battery Bank Positive, Solenoid Large Terminal (input) | High current path. Often fuses here. |
| Black (Heavy Gauge) | Main Negative (-) | Battery Bank Negative, Controller B- Terminal | High current path. |
| Blue | Solenoid Activation / Controller Output | Solenoid Small Terminal, Controller Run/Tow Switch | Often switched positive for solenoid coil. |
| Yellow | Throttle Input / Control Signal | Controller (ITS sensor), Solenoid Small Terminal | Common for throttle wiper arm signal. May provide ground for solenoid coil. |
| White | Key Switch / F&R Switch Signal | Key Switch Output, Controller Input | Switched B+ to controller enable. |
| Green | Motor Field / Speed Sensor | Motor Field (S1/S2), Speed Sensor | Can be part of motor’s internal wiring or speed sensor. |
| Brown | Accessory Power / Indicator | Lights, Horn, Battery Meter | Typically fused, lower current. |
| Orange | Controller Output to Motor Armature | Controller M- Terminal to Motor A2 | High current connection for motor drive. |
| Purple | On-Board Charger (OBC) Interlock | Charger Port to OBC, Controller Interlock | Communicates charging status, prevents cart operation during charge. |
Before performing any wiring work, always disconnect the main battery pack negative terminal (typically a heavy gauge black cable) to prevent accidental shorts or electrical shock. Use insulated tools and wear appropriate personal protective equipment.
COMPONENT CONNECTION GUIDE
Accurate component wiring is paramount for the safe and efficient operation of your E-Z-GO golf cart. This section outlines the critical connections for the solenoid, controller, On-Board Computer (OBC), motor, and other ancillary systems, vital when interpreting your ezgo golf cart wiring diagram.
For critical high-current connections (solenoid, controller, motor, battery cables), use appropriately sized high-strand copper wire, typically 4-gauge or 2-gauge, and ensure terminal connections are torqued to manufacturer specifications, often between 90-110 in-lbs (10-12 Nm) for larger studs. Loose connections cause resistance, heat, and power loss.
Solenoid Wiring
The solenoid acts as the main power switch for the drive system. It has two large terminals (high current) and two small terminals (coil activation).
- Large Terminal 1 (Input): Connects directly to the main positive (+) post of the battery bank, often through a main fuse. This is typically a heavy gauge red cable.
- Large Terminal 2 (Output): Connects to the main B+ terminal of the speed controller. This is also a heavy gauge cable, often red or black depending on the path.
- Small Terminal (Activation Signal 1): One small terminal receives B+ from the key switch, run/tow switch, and often the forward/reverse switch in series carts. This is typically a blue or white wire.
- Small Terminal (Activation Signal 2): The other small terminal receives a ground signal, often from the controller (in PDS/DCS systems) or direct battery negative (in older series systems), possibly through the throttle microswitch or a diode. This is commonly a yellow or black wire. Ensure the correct polarity for the coil.
When the small terminals receive both B+ and ground, the coil energizes, closing the internal contacts and allowing high current to flow between the two large terminals.
Controller Wiring
The speed controller is the “brain” of the drive system. Connections vary significantly between series, PDS, and RXV controllers.
- Battery Input (B+): Receives the main positive power from the output side of the solenoid. Heavy gauge cable.
- Battery Negative (B-): Connects directly to the main negative (-) post of the battery bank. Heavy gauge black cable.
- Motor Armature (A1, A2): Connects to the motor armature terminals. In series carts, A1 connects to the controller, and A2 to the F/R switch. In PDS/DCS carts, both A1 and A2 connect directly to the controller.
- Motor Field (F1, F2 or S1, S2): Connects to the motor field windings. In series carts, F1 and F2 (or S1 and S2) connect through the F/R switch. In PDS/DCS carts, these connect directly to the controller for field control.
- Throttle Input: Typically a multi-pin connector (e.g., 3-wire for ITS, 0-5V for potentiometers). For E-Z-GO Inductive Throttle Sensor (ITS), you’ll typically find a yellow, white, and black wire. The yellow wire often carries the signal to the controller.
- Key Switch Input: Provides switched B+ to enable the controller, often a white or red wire.
- Run/Tow Switch: A two-position switch that disconnects main controller power when in “TOW” mode, preventing accidental activation during maintenance and protecting the controller during charging. This is typically in series with the B+ input to the controller.
- Forward/Reverse Switch Input: Provides directional signals to the controller. In PDS/DCS models, this is a low-current signal wire. In series carts, the F/R switch handles high current to the motor.
- OBC Interlock: On 48V carts, a purple wire often connects the OBC to the controller to disable the cart during charging.
Battery Bank & Charger Port Wiring
The battery bank provides the motive power, typically 36V or 48V.
- Series Connection: Individual 6V or 8V batteries are connected in series. The positive terminal of one battery connects to the negative terminal of the next, building up total voltage. Ensure all cables are tight and clean.
- Main Positive/Negative: The first battery in the series has its negative terminal connected to the cart’s main negative (B- on controller). The last battery in the series has its positive terminal connected to the main positive (solenoid input).
- Charger Port: The charger port connects directly to the battery bank, typically with a red wire to the main positive and a black wire to the main negative (or a dedicated charging negative post on the OBC). The charger port also has a sense wire, often purple, that goes to the On-Board Computer (OBC).
- On-Board Computer (OBC): The OBC manages charging and provides a lockout signal. It monitors battery voltage and temperature and controls the charging cycle. The purple wire from the charger port often signals the OBC to disable the controller (via a purple wire to the controller) while charging, a critical safety feature. Consult related E-Z-GO charging system diagnostics for specific troubleshooting.
Motor Wiring
Motor connections differ between series and shunt-wound (PDS/DCS/RXV) motors.
- Series Motor: Has four terminals: A1, A2 (armature), and S1, S2 (field). A1 typically connects to the F/R switch, A2 to controller M-. S1 and S2 connect to the F/R switch for direction reversal.
- Shunt Wound Motor (PDS/DCS/RXV): Also has four terminals, but all four (A1, A2, S1, S2) connect directly to the controller. The controller manipulates the field current relative to the armature current to control speed and direction. For more details on motor performance, refer to E-Z-GO motor specifications.
Forward/Reverse Switch Wiring (Series Carts)
In series carts, the F/R switch is a heavy-duty mechanical switch that directly reverses current flow through the motor field or armature windings. It typically has six terminals for the high-current motor connections and potentially two smaller terminals for a microswitch that signals the controller or solenoid. Precise wiring is critical here to ensure correct motor rotation.
COMMON WIRING PROBLEMS & FIXES
Even with a detailed ezgo golf cart wiring diagram, issues can arise. Here are common problems and their diagnostic approaches for a technical audience.
1. Cart is Dead / No Power to Wheels:
Diagnosis: Verify battery bank voltage under load. Check main fuse(s) for continuity. Test the run/tow switch for proper continuity in “RUN” position. Inspect all heavy gauge cables for corrosion or loose connections, especially at the battery terminals and solenoid. Test the solenoid: with the key on, F/R in gear, and accelerator pressed, you should hear a click. If no click, check activation voltage at the small solenoid terminals (should be pack voltage across them). If it clicks but no power, the solenoid’s main contacts may be fused open or corroded.
Fix: Replace blown fuses, clean and tighten battery terminals (torque to 90-110 in-lbs), replace faulty run/tow switch or solenoid.
2. Cart Moves Slowly / Lacks Torque:
Diagnosis: This often indicates a high-resistance connection or a failing component. Measure voltage drop across each component (batteries, cables, solenoid, controller, motor) during acceleration. A significant voltage drop (e.g., >0.5V) across a single cable or connection points to a problem. Check individual battery voltages; a weak battery in the bank significantly impacts overall performance. Test the throttle sensor (ITS) output voltage for smooth, proportional increase.
Fix: Replace corroded or undersized cables. Replace weak batteries. Troubleshoot or replace faulty throttle sensor or controller.
3. Cart Moves in Wrong Direction (Series Carts):
Diagnosis: This is almost always a miswired forward/reverse switch or motor terminals. Refer strictly to your ezgo golf cart wiring diagram for the F/R switch and motor connections (A1/A2, S1/S2). Reversing A1/A2 or S1/S2 connections will reverse motor rotation. Do NOT reverse both, as this will not change direction.
Fix: Correct the F/R switch high-current cable connections or the motor field/armature connections according to the schematic.
4. Charger Not Activating / Not Shutting Off Automatically:
Diagnosis: For 48V E-Z-GOs with an OBC, check the charger port for proper voltage at the main pins and continuity of the purple sense wire to the OBC. The OBC receives information from the charger port and tells the charger when to activate and terminate charging. If the OBC is faulty, it may not engage the charger or properly communicate battery full status. The run/tow switch also needs to be in “RUN” for some charging systems to initiate.
Fix: Inspect charger port wiring. Troubleshoot or replace the OBC. Ensure the run/tow switch is correctly positioned.
5. Intermittent Power / Stuttering:
Diagnosis: Often points to loose connections or frayed wiring that makes intermittent contact. Systematically check all connections, especially low-voltage control wires, for proper seating and corrosion. Also, examine the main battery cables for internal breaks that might not be visible externally. Wiggle wires while testing to see if the problem manifests.
Fix: Clean, re-crimp, and tighten all suspicious connections. Replace any compromised wiring.
FAQ
What is the primary difference in wiring between a 36 volt system and a 48 volt system in E-Z-GO carts?
The fundamental difference lies in the number of batteries and the associated voltage tolerance of components. A 36 volt system typically uses six 6-volt batteries, while a 48 volt system uses either six 8-volt batteries or four 12-volt batteries. This increased voltage requires controllers, solenoids, and chargers specifically rated for 48V. While the general wiring architecture (battery, solenoid, controller, motor) remains similar, the specific part numbers, wire gauge requirements for certain components, and safety interlocks (like the OBC in 48V models) can differ significantly.
How do I properly test the solenoid to determine if it’s functioning correctly?
To test the solenoid, first ensure the cart is safely jacked up or on level ground with the run/tow switch in the “TOW” position for initial setup, then switch to “RUN” for testing. With the key switch on and the F/R switch in either direction, press the accelerator. You should hear an audible “click” from the solenoid. If you hear the click, use a multimeter to check for pack voltage across the two large terminals after the click; if there is voltage, the solenoid is working. If no click, check for pack voltage across the two small activation terminals when the accelerator is pressed. If pack voltage is present but no click, the solenoid coil or internal contacts are likely faulty, requiring replacement of the solenoid wiring.
What are the common causes of controller failure in E-Z-GO golf carts?
Controller failures are often attributed to excessive current draw (e.g., from an overloaded cart, incorrect motor, or aggressive driving), sustained high temperatures, voltage spikes, or internal component degradation. Incorrect wiring, especially short circuits or reversed polarity, can instantly destroy a controller. Operating with severely underinflated tires or consistently driving on steep inclines can also overstress the controller. Proper voltage (e.g., ensuring a stable 48 volt system) and current management, along with good ventilation, are crucial for controller longevity.
What is the purpose of the run/tow switch, and how does it affect the wiring?
The run/tow switch is a safety and maintenance feature that isolates the controller from the main battery bank. In the “TOW” position, it disconnects the primary positive power supply to the controller, preventing accidental activation of the drive system during storage, transport, or maintenance. This also protects the controller from voltage spikes when the batteries are being charged, particularly on 48V systems using an OBC. The run/tow switch is typically wired in series with the main positive line that feeds the controller from the solenoid output.
How do I correctly wire the battery bank for optimal performance and longevity?
For optimal performance and longevity, ensure your battery bank is wired strictly in series as indicated in your ezgo golf cart wiring diagram. Each battery’s positive terminal connects to the negative terminal of the next, incrementally increasing the total voltage. All battery cables must be of appropriate gauge (typically 4-gauge or 2-gauge for high-current applications), clean, corrosion-free, and torqued to manufacturer specifications. Loose or corroded terminals introduce resistance, leading to heat buildup, voltage drops, and reduced battery life. Regularly inspect and clean terminals, applying a corrosion preventative. Maintaining balanced individual battery voltages is also critical for overall pack health.
Step-by-Step Guide to Understanding the E-Z-Go Golf Cart Wiring Diagram (36V/48V): Troubleshooting 2026
Identify – Identify your E-Z-GO model and voltage (36V or 48V) from the serial number or battery bank configuration.
Locate – Locate the correct wiring diagram for your specific E-Z-GO model year in your service manual or a trusted online resource.
Reference – Reference the Wire Color Reference Table and Component Connection Guide provided within the diagram to understand individual wire functions and component layouts.
Connect/Route – Connect or route components, such as the solenoid, controller, and battery bank, ensuring proper polarity and terminal connections as indicated by the diagram.
Verify – Verify all connections are clean, tight, and correctly polarized using a multimeter to confirm voltage readings before reassembling or applying full power.
Troubleshoot – Troubleshoot any non-operational components by cross-referencing with the Common Wiring Problems & Fixes section and methodically testing voltage at key points like the solenoid and controller input.
Frequently Asked Questions
What voltage is ezgo golf cart wiring diagram?
E-Z-GO golf cart wiring diagrams primarily cover 36-volt and 48-volt systems, which use six or eight 6-volt batteries, respectively, wired in series. It’s critical to determine your specific cart’s voltage before interpreting any diagram, as component ratings and wiring paths, especially for the controller and motor, will differ significantly between these systems.
What do the wire colors mean on ezgo golf cart wiring diagram?
While specific colors can vary by model year, E-Z-GO golf cart wiring generally uses heavy-gauge red for positive battery/motor connections and black for negative/ground. Smaller gauge wires often indicate control signals: red/orange for key switch power, blue for controller output, or yellow for throttle. Always consult the diagram for your exact E-Z-GO model for precise color codes and functions.
How do I troubleshoot ezgo golf cart wiring diagram that won’t run?
First, check the battery bank voltage and all connections. Then, test the solenoid for proper activation (a click when the key is on and pedal pressed). If the solenoid clicks but no power, test for voltage across its main terminals. Inspect all heavy-gauge cables for corrosion or breaks. Lastly, check the controller input/output, but this often requires specialized tools.
What is the solenoid wiring on ezgo golf cart wiring diagram?
The E-Z-GO golf cart solenoid typically has two large terminals for high-current battery/controller connections and two small terminals for activation. One small terminal usually receives 36V or 48V from the key switch and pedal microswitch, while the other connects to ground. This setup energizes the solenoid coil, closing the main power circuit to the controller and motor.
How many batteries does ezgo golf cart wiring diagram have?
A 36-volt E-Z-GO golf cart wiring diagram typically shows six 6-volt batteries wired in series. A 48-volt E-Z-GO system uses either six 8-volt batteries or eight 6-volt batteries, also connected in series to achieve the desired total voltage. The number and arrangement directly impact the overall battery bank performance and charging.
What gauge wire does ezgo golf cart wiring diagram use?
E-Z-GO golf cart wiring diagrams specify heavy-gauge cables, typically 2-gauge or 4-gauge, for high-current paths between batteries, the solenoid, controller, and motor to minimize resistance and heat. Lighter gauge wires (e.g., 16-gauge or 18-gauge) are used for control circuits, like those for the key switch, pedal microswitches, and accessories, where current draw is minimal.
