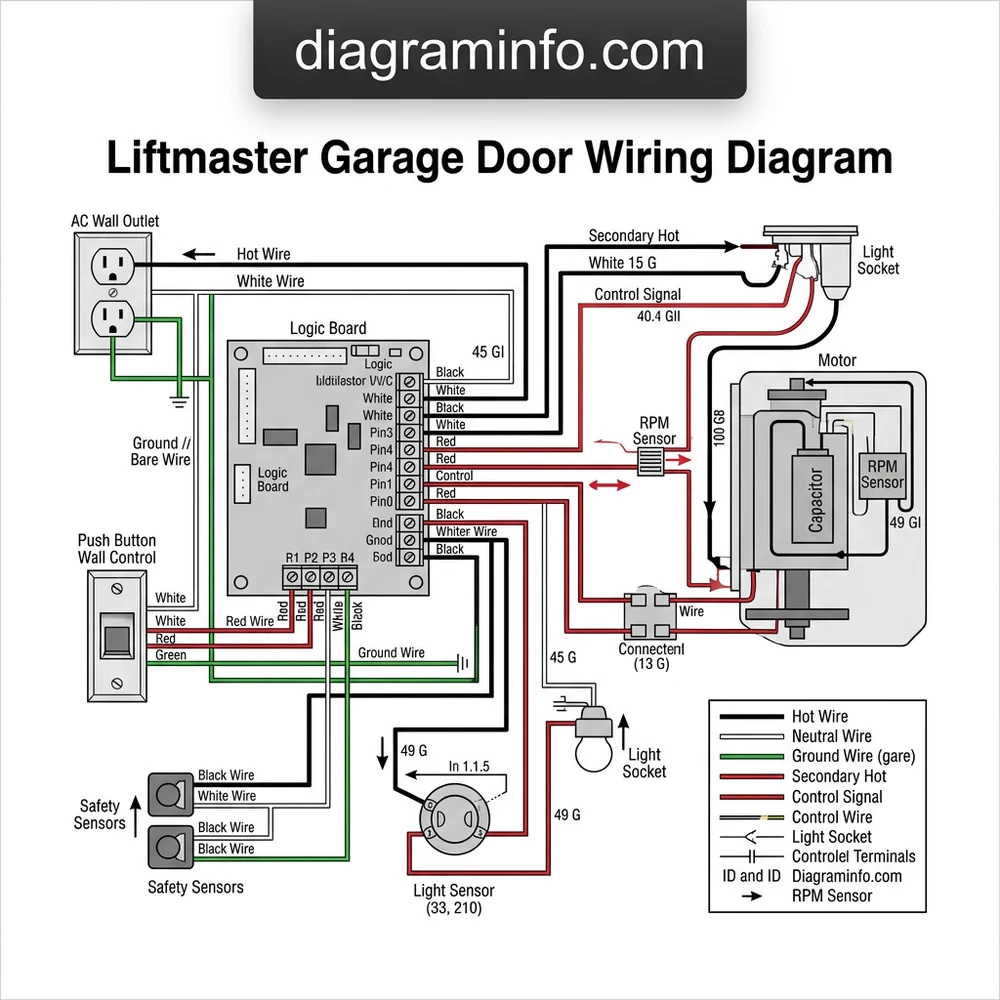

LiftMaster Garage Door Wiring Diagram: Installation Setup 2026
LiftMaster garage door wiring involves 24V DC for safety sensors (white/black stripe for sending, white for receiving) and 24V AC/DC for the wall console (red/white). Main power is 120V AC. Always ensure proper ground wire connection. Consult your specific LiftMaster model’s manual for precise pin assignments and wire color codes.
📌 Key Takeaways
- LiftMaster safety sensors typically use 24V DC, with white/black for the sending eye and plain white for the receiving eye.
- Always confirm wire colors against your specific LiftMaster model’s wiring diagram for accurate pin assignment.
- Ensure the ground wire is securely connected to prevent electrical hazards and maintain system integrity.
- The most common wiring mistake is incorrect polarity or swapping sensor wires, leading to non-functional safety features.
- If troubleshooting doesn’t resolve power or control issues, especially with 120V AC lines, consult a certified electrician.
This article provides a meticulous guide to the intricate wiring of LiftMaster garage door openers, an essential skill for automotive technicians, equipment specialists, and experienced DIYers seeking to ensure optimal performance, longevity, and safety. Accurate wiring is not merely about functionality; it is a critical safety measure, preventing electrical hazards and ensuring compliance with local building codes. This diagram-focused explanation will illuminate the precise connections, emphasizing wire color codes, terminal assignments, and voltage specifications, thereby enabling precise installation, repair, and diagnostic procedures.
Wire Color Reference Table
Understanding the standardized and model-specific wire color codes is paramount for correctly wiring any LiftMaster garage door opener. This table outlines common wire colors, their functions, and typical terminal assignments. Note that specific models and manufacturing years may present minor variations, always consult the OEM documentation for your specific unit.
| Wire Color | Function | Pin/Terminal | Notes |
|---|---|---|---|
| Black (Main Power) | Hot Wire (Line) | L (Line) / Black terminal screw | 120V AC supply. Connects to circuit breaker hot leg. |
| White (Main Power) | Neutral Wire | N (Neutral) / White terminal screw | 120V AC supply. Completes the circuit back to the service panel. |
| Green / Bare Copper | Ground Wire (Earth) | G (Ground) / Green ground screw | Crucial safety earth; diverts fault currents. |
| White (Safety Sensor) | Safety Sensor (Receive) | Terminal 1 (White) | Low-voltage circuit (typically 24V DC). Connects to white terminal/tab on motor unit. |
| Brown / Black Stripe (Safety Sensor) | Safety Sensor (Transmit) | Terminal 2 (Gray/Stripe) | Low-voltage circuit (typically 24V DC). Connects to gray or striped terminal/tab on motor unit. |
| Red (Wall Control) | Wall Control (24V DC) | Terminal 3 (Red) | Low-voltage 24V DC supply for wall control. Can also be for accessories. |
| White (Wall Control) | Wall Control (Common/Ground) | Terminal 4 (White) | Low-voltage common/ground for wall control and compatible accessories. |
| Yellow (Pre-2011 MyQ) | MyQ Compatibility/Accessory | Yellow Terminal (some models) | Used for early MyQ or specific wired accessories. Newer systems use Serial Bus (Terminals 3 & 4). |
| Blue / Purple (Travel Modules) | Limit Switch Wiring (Older Models) | Specific limit switch terminals | Found on older models with mechanical travel limits. Modern units are electronic. |
Step-by-Step Connection Guide
This section outlines the methodical process for wiring a typical LiftMaster garage door opener, focusing on precise connections to ensure operational integrity and safety. Adherence to these steps, combined with consulting the specific wiring diagram provided with your unit, is critical.
Before commencing any wiring procedures, always ensure the main power supply to the garage opener’s circuit is disconnected at the circuit breaker. Failure to do so can result in severe electrical shock, injury, or fatality. Verify power disconnection with a non-contact voltage tester.
1. Initial Power Disconnection and Unit Mounting:
Prior to any wiring, ensure the LiftMaster unit is securely mounted according to manufacturer specifications. This typically involves attaching the head unit to the ceiling joists and the rail assembly to the unit and the header bracket. With the unit physically secured, locate the dedicated electrical circuit for the garage door opener and switch off the corresponding breaker. Confirm zero voltage at the outlet using a multimeter.
2. Main Power Supply Wiring (120V AC):
For units requiring hardwiring, this step is crucial.
Hot Wire (Black): Connect the Black wire from your main power conduit to the terminal designated ‘L’ (Line) or the Black terminal screw on the LiftMaster’s power input block.
Neutral Wire (White): Connect the White wire from the main power conduit to the terminal designated ‘N’ (Neutral) or the White terminal screw.
Ground Wire (Green/Bare Copper): Connect the Green or bare copper ground wire securely to the Green ground screw on the motor unit’s chassis. This connection is paramount for safety. Manufacturer specifications consistently recommend a minimum of 14 AWG copper wire for 15-amp circuits, ensuring adequate current capacity and preventing voltage drop.
Ensure all connections are robust and secure within the terminal block, with no stray wire strands that could cause short circuits.
3. Safety Reversing Sensor Wiring (24V DC Low Voltage):
The photoelectric safety sensors are a critical safety feature. Each sensor unit (one sending, one receiving) will have two wires.
Locate Terminal 1 (typically white) and Terminal 2 (typically gray or marked with a stripe) on the LiftMaster motor unit’s low-voltage terminal strip.
From the sending safety sensor (often identified by an amber LED), connect one wire (typically solid white) to Terminal 1 and the other wire (often brown with a white stripe or black with a white stripe) to Terminal 2.
Repeat this exact wiring sequence for the receiving safety sensor (often identified by a green LED), ensuring its solid white wire also connects to Terminal 1 and its striped wire to Terminal 2.
For optimal performance and to prevent signal degradation, use 22 AWG solid copper wire for distances up to 50 feet and 18 AWG for runs exceeding 50 feet, as per OEM guidelines. Ensure wires are run cleanly and secured to prevent accidental disconnection or damage.
4. Wall Control Panel Wiring (24V DC Low Voltage):
The wall control panel provides command input to the opener.
Connect the Red wire from the wall control to Terminal 3.
Connect the White wire from the wall control to Terminal 4.
For detailed insights into general garage door opener diagnostics, consult our comprehensive guide on [Garage Door Opener Troubleshooting Common Issues].
5. Accessory Wiring (Optional):
If installing additional accessories such as an external keypad, battery backup, or specific smart home modules, refer explicitly to their respective instruction manuals and the LiftMaster owner’s manual. These typically connect to the same low-voltage terminals (Terminals 3 & 4) or dedicated accessory terminals (e.g., MyQ terminals). Always verify voltage and current requirements for accessories to prevent overloading the opener’s low-voltage transformer.
6. Final Inspection and Power Restoration:
After all connections are made, meticulously inspect every terminal to confirm secure, tight connections and proper wire routing. Replace all covers and junction box lids. Restore power at the circuit breaker. Proceed with the unit’s programming and safety test procedures as outlined in the LiftMaster manual.
Common Wiring Mistakes & Troubleshooting
Incorrect wiring is a leading cause of garage door opener malfunction, ranging from intermittent operation to complete failure of safety systems. This section details common errors and provides specific diagnostic and corrective actions for the technical audience.
Many LiftMaster models from 2011 onwards utilize a “Serial Bus” communication protocol for wall controls and certain accessories, often connecting to Terminals 3 and 4. This system is sensitive to polarity and wiring integrity. Older models may use simpler contact closures.
1. Reversed Safety Sensor Wires:
Symptoms: The opener’s indicator light (often the photo-eye LED on the motor unit) flashes, the door will not close, or reverses immediately upon attempting to close. The safety sensor LEDs themselves might be off or blinking erratically.
Consequence: Failure of the primary safety reversing mechanism, rendering the door inoperable for closing.
Fix: Disconnect power. Carefully re-examine the wiring at the motor unit’s low-voltage terminal block (Terminals 1 & 2). Ensure all white wires from both sensors are connected to Terminal 1 (White) and all striped wires (brown/black stripe) from both sensors are connected to Terminal 2 (Gray/Stripe). Verify the sensor LEDs illuminate steadily (amber on sender, green on receiver) when properly aligned and wired.
2. Improper Main Power Grounding:
Symptoms: Intermittent operation, susceptibility to electrical surges, potential for static interference affecting remote controls, or, most critically, a significant electrical safety hazard in the event of an internal fault.
Consequence: Risk of electrical shock, damage to internal electronics, or failure to clear fault currents effectively. Understanding the intricacies of electrical safety protocols is paramount; refer to our guide on [Residential Electrical Safety Best Practices] for comprehensive information.
Fix: Disconnect power. Ensure the green or bare copper wire from the main electrical supply is securely fastened to the green ground screw on the LiftMaster motor unit chassis. Confirm continuity to the building’s ground system using a multimeter.
3. Loose Low-Voltage Terminal Connections:
Symptoms: Intermittent operation of wall control, non-functional safety sensors (door doesn’t close), or inconsistent accessory performance. Erratic flashing of the opener’s indicator light.
Consequence: Unreliable system operation, requiring repeated troubleshooting.
Fix: Disconnect power. Carefully remove each low-voltage wire from its terminal. Re-strip approximately 1/2 inch of insulation, ensuring a clean, untwisted wire end. Reinsert the wire fully into the terminal hole and tighten the screw firmly. Perform a gentle tug test on each wire to confirm it is seated securely.
4. Incorrect Low-Voltage Wire Gauge:
Symptoms: Voltage drop, causing sensors to become unreliable, wall controls to be unresponsive, or accessories to malfunction. Overheating of undersized wires in extreme cases, though less common with low-voltage signals.
Consequence: Functional impairment, requiring wire replacement.
* Fix: Consult the LiftMaster manual for recommended wire gauges based on distance. Generally, 22 AWG is sufficient for runs up to 50 feet, while 18 AWG is recommended for longer distances (e.g., 50-100 feet). Replace undersized wiring with the appropriate gauge solid copper wire.
FAQ
What wire gauge is recommended for LiftMaster low-voltage accessories and sensors?
For standard LiftMaster safety sensors and wall controls, 22 AWG (American Wire Gauge) solid copper wire is typically sufficient for runs up to 50 feet. For longer distances, generally between 50 and 100 feet, an 18 AWG solid copper wire is recommended to mitigate voltage drop and ensure reliable signal transmission. Always refer to the specific accessory or opener’s manual, as certain high-draw accessories might require a larger gauge irrespective of distance.
Can I use existing doorbell wiring for my LiftMaster wall control?
In many instances, existing doorbell wiring, which is often 18 AWG or 20 AWG, can be repurposed for a LiftMaster wall control. However, compatibility depends on the type of wall control (standard push-button vs. smart control panel) and the condition of the existing wiring. Modern LiftMaster smart wall controls (e.g., those with motion sensors or display screens) require a clean, uninterrupted low-voltage serial bus connection, and older doorbell wiring might introduce interference or not meet the conductor count requirements (some smart controls use more than two wires). Always verify the gauge and integrity of the existing wiring before relying on it, and ensure it’s not shared with other electrical loads.
How do I identify the hot, neutral, and ground wires in a standard residential power outlet for my LiftMaster?
In North American residential wiring, the standard color coding for a 120V AC circuit is:
- Black: This is the hot wire, carrying the live electrical current from the circuit breaker.
- White: This is the neutral wire, which completes the circuit back to the electrical panel.
- Green or Bare Copper: This is the ground wire, a critical safety conductor designed to safely dissipate fault currents.
These colors are consistently applied at the outlet, switch, and fixture. Always use a voltage tester to confirm these designations before making any connections.
My safety sensors have two wires, but one is solid white and the other is white with a brown stripe. Which goes to Terminal 1 and which to Terminal 2?
For LiftMaster safety sensors, the solid white wire typically connects to Terminal 1 (often labeled ‘White’ or ‘1’ on the motor unit’s low-voltage terminal block). The striped wire (e.g., white with a brown or black stripe) typically connects to Terminal 2 (often labeled ‘Gray’ or ‘2’). It is crucial that both the sending and receiving safety sensors are wired identically to these terminals. Ensure that all white wires from both sensors terminate at Terminal 1, and all striped wires from both sensors terminate at Terminal 2. This ensures proper alignment and operation of the photoelectric beam. For advanced integration with smart home systems, explore our article on [Smart Garage Door Opener Connectivity Protocols].
What voltage do LiftMaster safety sensors operate at?
LiftMaster safety reversing sensors typically operate on a low-voltage DC (Direct Current) circuit. The nominal voltage supplied to these sensors from the motor unit’s control board is commonly 24V DC. This low voltage is sufficient for their operation and minimizes electrical hazards. This 24V DC supply is usually provided via terminals on the motor unit’s low-voltage terminal strip, often shared with the wall control circuit.
Frequently Asked Questions
What wire color is for the safety sensors on a LiftMaster garage door wiring diagram?
On most LiftMaster garage door openers, safety sensor wires are white/black stripe for the sending eye and plain white for the receiving eye. These connect to low-voltage terminals for the safety interlock. Always verify the wire color code with your specific LiftMaster model’s manual for precise pin assignment to ensure proper functionality.
What do the pin numbers mean on a LiftMaster garage door wiring diagram?
Pin numbers on a LiftMaster wiring diagram correspond to specific terminals on the control board or components. They indicate connections for power (hot wire, neutral wire), safety sensors, and wall control. Understanding these pin assignments is crucial for correct installation and troubleshooting. Each wire color code must match its designated pin, as per the diagram.
How many wires does a LiftMaster garage door wiring diagram typically involve?
A LiftMaster garage door opener system typically involves several sets of wires. This includes two for main power (hot, neutral, plus a ground wire), two for the safety sensors, and two for the wall control. Additional wires may connect accessories like external keypads. The exact number and specific wire color code will vary by LiftMaster model and included features.
What are common wiring mistakes with a LiftMaster garage door wiring diagram?
Common wiring mistakes include incorrect polarity for safety sensors, misconnecting low-voltage control wires, and an inadequate ground wire connection. Swapping the sending and receiving safety sensor wires, often distinguished by wire color code, is frequent, preventing door closure. Always double-check pin assignment against the LiftMaster garage door wiring diagram to avoid troubleshooting issues.
When should I seek professional help for LiftMaster garage door wiring issues?
If you encounter persistent issues after troubleshooting common wiring mistakes, or are uncomfortable with 120V AC power, seek professional help. Complex control board failures, burnt hot wires, or intermittent power problems often require specialized diagnosis. A professional can safely address these, ensuring correct wire color code interpretation and proper ground wire connection for safety.
What gauge wire does a LiftMaster garage door wiring diagram require?
For low-voltage components like safety sensors and wall controls, LiftMaster typically recommends 22-gauge or 20-gauge insulated bell wire for longer runs. The main 120V AC power input (hot wire, neutral wire) requires standard 14-gauge or 12-gauge household electrical wiring, depending on the circuit breaker and local codes. Always consult your specific model’s manual for precise gauge requirements.
