EZGO Golf Cart 36V/48V Solenoid Wiring & Troubleshooting 2026
The EZGO golf cart solenoid typically has four terminals: two large (for battery and controller/motor) and two small (for activation coil). The small terminals receive 36V or 48V from the controller or key switch (often via a microswitch) to energize and close the circuit, allowing high current flow to the motor. Ensure correct polarity on small terminals.
📌 Key Takeaways
- Solenoid activation is crucial: Small terminals receive system voltage (36V or 48V) from the controller wiring to energize the coil.
- Large terminals carry high current (up to 400A+) from the battery bank, connecting the battery to the controller/motor.
- Always disconnect all batteries before working on solenoid wiring to prevent electrical shocks or short circuits.
- A common failure is a clicking solenoid that doesn’t engage, often due to low activation voltage, corroded terminals, or worn internal contacts.
- Consult a certified golf cart technician for complex controller diagnostics or if multiple electrical components fail simultaneously.
Understanding the intricate wiring of an EZGO golf cart solenoid is paramount for maintaining optimal performance and diagnosing electrical system failures. Whether you are working on a 36-volt system or a 48-volt system, the solenoid acts as a critical intermediary, safely managing high-amperage current flow from the battery bank to the motor controller. This comprehensive guide details the specific wire colors, terminal identification, and proper connection sequences for various EZGO models, ensuring accurate and reliable repairs or upgrades.
This article focuses on the solenoid wiring context for popular EZGO TXT and RXV platforms, providing technicians and experienced DIYers with the precise information required to troubleshoot and re-wire these essential components. Adhering to manufacturer specifications for solenoid wiring is not merely a best practice; it is a safety imperative.
While general principles apply across EZGO models, specific wire colors and terminal configurations can vary by production year and system voltage (e.g., pre-2000 series drive 36V vs. 2000+ PDS 36V/48V, or RXV systems). Always consult the specific wiring diagram for your golf cart’s year and model for definitive accuracy. This guide provides common configurations.
Wire Color Reference Table
The following table provides common wire color conventions found in EZGO golf cart electrical systems, particularly those related to the solenoid circuit. While these are widely observed, always cross-reference with your specific model’s wiring diagram.
| Wire Color | Function | Connect To | Notes |
|---|---|---|---|
| Heavy Gauge Red | Main Battery Positive (B+) | Large Solenoid Terminal (input) | Connects to the positive post of the main battery bank. |
| Heavy Gauge Red (or sometimes Blue) | Main Output to Controller (B+) | Large Solenoid Terminal (output) | Connects to the B+ terminal of the motor controller. |
| Small Gauge Red (or sometimes White/Yellow) | Solenoid Coil Positive (Activation) | Small Solenoid Terminal (positive coil) | Receives positive voltage when key switch, pedal microswitch, and F&R switch are engaged. |
| Small Gauge Yellow (or sometimes Blue/Green) | Solenoid Coil Negative (Ground/Return) | Small Solenoid Terminal (negative coil) | Completes the solenoid activation circuit, often via controller or OBC. |
| Heavy Gauge Black | Main Battery Negative (B-) | Controller B- Terminal, Motor S1/S2 | Connects to the negative post of the main battery bank. |
| Orange | Run/Tow Switch Output (48V systems) | Controller B+ Input (often via Solenoid) | Provides main B+ to controller when in RUN mode. |

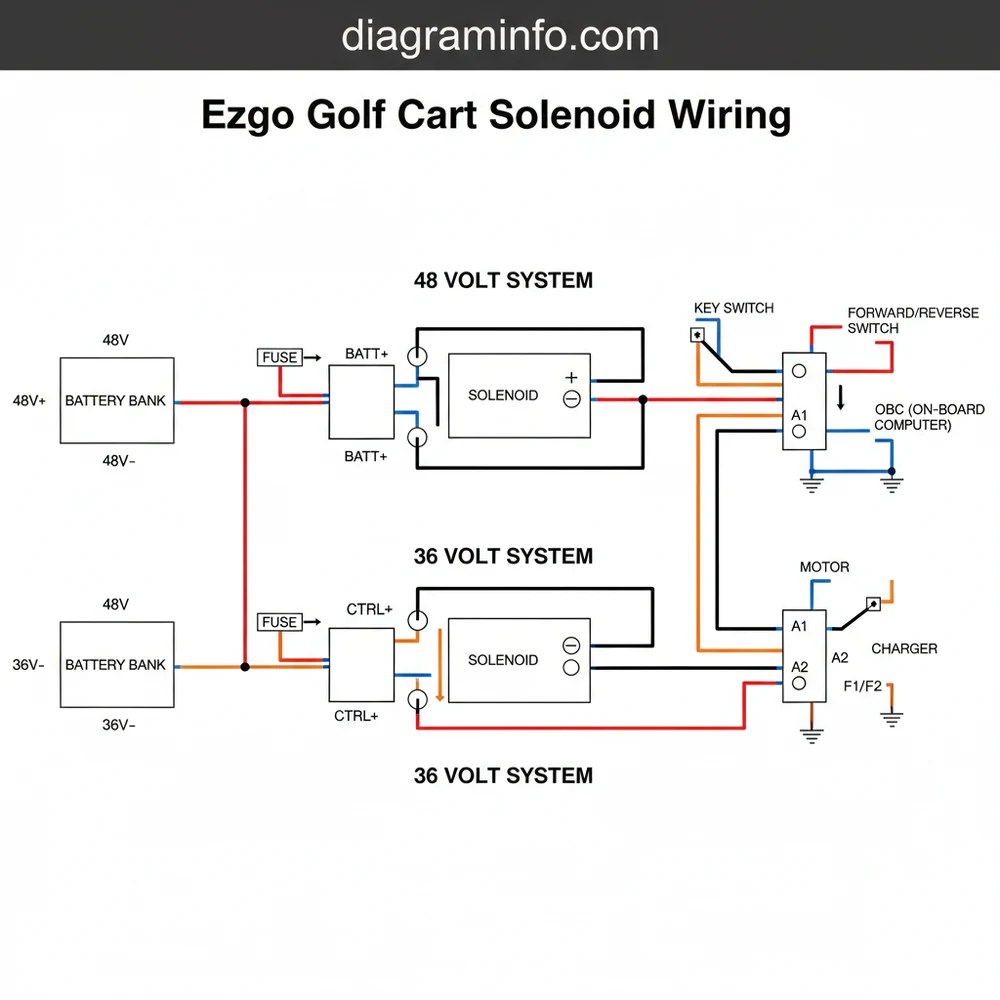

Component Connection Guide
Correctly wiring your EZGO golf cart solenoid involves understanding its interaction with the battery bank, controller, On-Board Computer (OBC), and motor. This section details the sequence and specific connections required for a functional system. As shown in a typical golf cart wiring diagram, the solenoid is the central power gate.
Solenoid Wiring Steps
The solenoid typically features two large terminals and two small terminals. The large terminals handle the high-amperage current for the motor, while the small terminals activate the coil that closes the internal switch.
- Large Terminal 1 (Input): Connect the heavy gauge positive cable directly from the main battery pack’s positive terminal to one of the large solenoid terminals. This is the constant 36V or 48V supply. Ensure this connection is clean and tight. According to OEM specs, ensure torque specifications for battery terminal connections are met to prevent arcing and resistance.
- Large Terminal 2 (Output): Connect the other heavy gauge cable from the second large solenoid terminal to the B+ (Battery Positive) terminal on your golf cart’s controller. This cable only carries current when the solenoid is activated. For specific models like the EZGO RXV, this output often goes through a pre-charge resistor connected in parallel with the solenoid before reaching the controller.
- Small Terminal 1 (Coil Positive): This small terminal receives positive voltage to energize the solenoid coil. This voltage typically originates from the key switch, passes through the forward/reverse switch (or a microswitch on it), then through the pedal microswitch (or throttle position sensor in some cases), and finally to this small terminal. Common wire colors for this circuit include small gauge red, white, or yellow wires. This forms part of the low-current activation circuit.
- Small Terminal 2 (Coil Negative/Ground): This small terminal completes the solenoid activation circuit, providing a ground or negative path. In many EZGO 36-volt systems, this wire connects directly to the main battery negative or to the controller’s B- terminal. In 48-volt systems, especially those with an OBC, this line often runs to the OBC or directly to the controller, which then provides a switched ground path. This allows the controller or OBC to prevent solenoid activation under specific conditions (e.g., during charging).
Controller Wiring
The controller is the brain of your golf cart’s electrical system, regulating power to the motor and often managing the solenoid activation. Its B+ terminal receives power from the solenoid’s output, while its B- terminal connects to the battery bank’s negative terminal. The controller also typically provides the switched ground path for the solenoid’s small terminal 2, especially in PDS and RXV systems. If you’re experiencing issues, refer to a detailed controller troubleshooting guide.
OBC (On-Board Computer) Wiring
Predominantly found in 48-volt EZGO systems (like some TXT PDS and RXV models), the OBC plays a crucial role in battery charging and often in the solenoid’s activation circuit. It can interrupt the solenoid’s ground path to prevent the cart from driving while charging or if a fault is detected. Ensure all OBC connections, including the charger port wiring, are secure to prevent system malfunctions and improper charging. Malfunctions here can directly impact solenoid wiring behavior.
Motor Wiring
The motor receives its power directly from the controller, which in turn is supplied by the solenoid. While the solenoid doesn’t connect directly to the motor (except in very old series drive systems where it might feed the F&R switch first), its proper operation is fundamental for motor function. The controller, after receiving power via the solenoid, modulates the voltage and current to the motor’s A1, A2, F1, and F2 terminals (depending on motor type) to control speed and direction. For more details on motor connections, consult a specialized motor replacement guide.
For EZGO 48-volt systems, the heavy gauge cables connecting the solenoid should be a minimum of 4-gauge, with 2-gauge recommended for carts with upgraded motors or controllers. Small gauge wires for the solenoid coil are typically 16-18 gauge.
Common Wiring Problems & Fixes
Troubleshooting ezgo golf cart solenoid wiring requires a systematic approach. Many operational issues can be traced back to incorrect connections, corrosion, or component failure within the solenoid circuit. Below are common problems and their diagnostic steps.
- Solenoid Clicks, But Cart Does Not Move:
Diagnosis: A clicking solenoid indicates that the low-current activation circuit (small terminals) is functional. The failure lies in the high-current circuit (large terminals). This could be due to corroded or loose connections on the large terminals, a faulty solenoid (internal contacts not closing), or issues downstream with the controller or motor.
Fix: First, visually inspect the heavy gauge cables connected to the large solenoid terminals for corrosion, damage, or looseness. Clean and tighten as necessary. Use a multimeter to check for continuity across the large terminals when the solenoid is activated; if there’s no continuity, the solenoid is likely faulty and requires replacement. Also, check the main battery bank voltage and individual battery charge levels. Low voltage can prevent the controller from drawing enough current even if the solenoid engages.
- No Click From Solenoid, Cart Does Not Move:
Diagnosis: The absence of a click suggests a problem with the low-current activation circuit that energizes the solenoid coil. This circuit involves the key switch, the run/tow switch (for 48-volt systems), the F&R switch microswitches, the pedal microswitch, and possibly the controller or OBC (for the ground path).
Fix:
- Verify the main battery pack voltage. A severely discharged battery bank can prevent the control circuit from receiving sufficient voltage.
- Test the key switch for continuity when in the ON position.
- Check the run/tow switch (if applicable) is in the RUN position.
- Inspect the microswitches on the F&R switch and the accelerator pedal for proper operation (continuity when engaged).
- Using a multimeter, test for voltage at both small solenoid terminals when the pedal is pressed (and other switches are engaged). If you have voltage at one small terminal but not the other, the ground path is interrupted (potentially by the controller or OBC), or the solenoid coil is open. If you have no voltage at either small terminal, the positive activation path is open.
- Intermittent Operation or Solenoid Getting Hot:
Diagnosis: Intermittent operation or excessive heat at the solenoid often points to high resistance in the circuit. This can be caused by loose connections, corroded terminals, or internal damage within the solenoid.
Fix: Thoroughly inspect all connections on both large and small solenoid terminals, as well as the battery terminals and controller connections. Clean any corrosion with a wire brush and baking soda solution. Ensure all nuts are torqued to manufacturer specifications. If connections are clean and tight and the problem persists, the solenoid itself may have internal resistance issues and should be replaced. Checking cable integrity, including the heavy gauge main battery cables, is also critical.
- Melted or Burned Wires/Terminals Near Solenoid:
Diagnosis: This is a clear indicator of excessive current draw or severe resistance leading to overheating. It commonly occurs at the large terminals due to loose connections allowing arcing, undersized wiring for the current demands, or a short circuit downstream.
Fix: Immediately disconnect the main battery bank. Replace any melted or severely damaged cables and terminals. Ensure that replacement cables are of appropriate gauge (e.g., 4-gauge minimum for a 48-volt system, 2-gauge for high-performance setups). Clean all contact surfaces thoroughly and ensure connections are extremely tight. Investigate downstream components (controller, motor) for potential shorts or failures that could cause high current draw. A pre-charge resistor, if present and failing, can also contribute to this issue.
Always disconnect the main battery bank by placing the run tow switch in the “TOW” position or by physically disconnecting the main negative battery cable before performing any wiring or inspection on the high-voltage components. Failure to do so can result in serious electrical shock, burns, or damage to your golf cart.
FAQ
How do I test an EZGO golf cart solenoid?
To test an EZGO solenoid, first ensure the main battery bank is fully charged. Disconnect the two heavy gauge cables from the large terminals. Connect a multimeter to the two small terminals and engage the pedal. You should see pack voltage (36V or 48V) if the control circuit is working. If voltage is present, now connect a jumper wire from the main battery positive to one small terminal, and the main battery negative to the other small terminal (bypassing the cart’s control circuit). The solenoid should audibly click. With the jumper wires still connected, use an ohmmeter to check for continuity across the two large terminals; it should show near 0 ohms (closed circuit). If it doesn’t click, or clicks but shows no continuity across the large terminals, the solenoid is faulty.
Can I bypass the solenoid on an EZGO golf cart?
While it is technically possible to temporarily bypass a faulty solenoid for diagnostic purposes by directly connecting the heavy gauge positive cable from the battery bank to the controller’s B+ terminal, this is extremely dangerous and not recommended for operation. The solenoid is a critical safety device that isolates the battery bank from the motor controller when the cart is not in use, preventing accidental movement and protecting against shorts. Bypassing it eliminates this safety feature and can lead to uncontrolled acceleration or component damage. Always replace a faulty solenoid promptly.
What causes an EZGO solenoid to fail prematurely?
Premature solenoid failure in EZGO golf carts is typically caused by several factors. Continuous arcing due to loose connections on the large terminals is a common culprit, generating excessive heat and pitting the internal contacts. Operating the cart with low battery voltage can also force the solenoid to work harder, leading to overheating of the coil. Additionally, exposure to moisture, dirt, or vibrations can degrade the internal components. Faults in the control circuit (e.g., sticky microswitches causing the solenoid to remain energized) or a shorted motor/controller drawing excessive current can also overstress and damage the solenoid.
Is there a difference in solenoid wiring for 36-volt vs. 48-volt EZGO systems?
Yes, while the fundamental operation remains the same, there are differences. A 36-volt system solenoid coil is designed to activate at 36 volts, whereas a 48-volt system solenoid coil activates at 48 volts. The amperage rating of the solenoid may also differ, with 48-volt systems sometimes requiring higher-rated solenoids due to different power delivery characteristics. Crucially, the ground path for the small terminal 2 on 48-volt systems (especially PDS and RXV models) often routes through the OBC or controller, which can interrupt the circuit, unlike older 36-volt systems where it might be a direct ground. Always ensure you purchase a solenoid specifically rated for your cart’s voltage system.
Where is the run/tow switch relevant in solenoid wiring?
The run tow switch is integral to the safety and functionality of many EZGO golf cart systems, particularly 48-volt models. When the switch is in the “TOW” position, it typically disconnects a main power wire to the controller and often interrupts the solenoid activation circuit, preventing the cart from operating. This is a crucial safety feature for maintenance or transport. When in the “RUN” position, it completes this circuit, allowing the solenoid to be energized and power to flow to the controller. Incorrect positioning of this switch or a faulty switch can directly prevent the solenoid from clicking or engaging.
Step-by-Step Guide to Understanding the Ezgo Golf Cart 36V/48V Solenoid Wiring & Troubleshooting 2026
Identify – Locate the solenoid, battery bank, and main controller within your EZGO golf cart.
Locate – Find the main positive and negative battery connections and trace the large cables to and from the solenoid.
Reference – Consult your specific EZGO model’s wiring diagram for accurate wire color codes, terminal functions, and component layout.
Connect/Route – Wire the large solenoid terminals to the battery positive and controller/motor input, and the small terminals to the activation circuit (key switch, microswitches, controller).
Verify – Test for proper solenoid activation by listening for a distinct “click” when the pedal is pressed and by checking for voltage continuity across the large terminals when engaged.
Troubleshoot – If the solenoid fails to activate, check the activation circuit’s voltage at the small terminals, inspect all connections for corrosion or looseness, and test the microswitches and battery bank voltage.
Frequently Asked Questions
What voltage is ezgo golf cart solenoid wiring?
EZGO golf carts typically use either 36-volt or 48-volt systems. The solenoid coil itself will operate on the system’s full voltage (e.g., 36V or 48V) when activated, drawing power from the main battery bank through the key switch and various safety interlocks. Ensure the correct voltage solenoid for your system.
What do the wire colors mean on ezgo golf cart solenoid wiring?
Wire colors vary by EZGO model and year, but typically, red wires indicate positive battery voltage, black/white for negative/ground, and blue/yellow for control signals to the small solenoid terminals. Always consult your specific EZGO model’s wiring diagram for precise color coding as deviations exist for component connections.
How do I troubleshoot ezgo golf cart solenoid wiring that won’t run?
First, check for a click when pressing the pedal. No click suggests issues with the key switch, F/R switch, or microswitches. If it clicks but no power, check the large terminals for voltage drop across the solenoid. A large drop indicates internal failure; no voltage suggests an upstream battery bank or controller wiring problem.
What is the solenoid wiring on ezgo golf cart solenoid wiring?
The EZGO solenoid wiring consists of two large terminals for high-current battery and controller connections, and two small terminals for activation. One small terminal usually receives positive voltage from the key switch/controller (often via pedal/F&R microswitches), while the other goes to ground. This energizes the coil, closing the main circuit.
How many batteries does ezgo golf cart solenoid wiring have?
EZGO golf carts typically use either six 6-volt batteries (for a 36-volt system) or six 8-volt batteries (for a 48-volt system) wired in series to form a single battery bank. The solenoid connects directly to this main battery bank via the large terminals and is activated by a portion of this voltage from the controller wiring.
What gauge wire does ezgo golf cart solenoid wiring use?
For the high-current large terminals of an EZGO solenoid, 2-gauge or 4-gauge battery cables are typically used to handle significant amperage (up to 400+ amps) without excessive voltage drop or heat. The small control wires for activation can be 16-gauge or 18-gauge, as they carry much lower current.
