4-Wire LED Light Wiring Diagram: Installation Setup 2026
A 4-wire LED light typically includes a positive ‘hot wire’, a negative ‘ground wire’, and two additional wires for specific functions like dimming, color control, or signal input. Refer to the specific product’s wire color code to correctly identify power, ground, and control signals for proper pin assignment.
📌 Key Takeaways
- Always confirm the manufacturer’s specific wire color code and pin assignment before connecting any 4-wire LED light.
- Incorrectly connecting the ‘hot wire’ (positive) or ‘ground wire’ (negative) can cause irreversible damage to the LED unit.
- Ensure power supply voltage (e.g., 12V DC, 24V DC) matches the LED light’s specifications to prevent over-voltage damage.
- The most common failure point is reversed polarity or exceeding the rated voltage/current, leading to immediate LED burnout.
- Seek professional assistance if you are uncertain about power supply compatibility, dimming circuit integration, or complex control wiring.
This comprehensive guide details the precise wiring procedures for a standard 4-wire LED light, a common component across a myriad of automotive, marine, and industrial equipment applications. Proper implementation of this 4-wire LED light wiring diagram is critical not only for ensuring optimal illumination and functionality but also for safeguarding your electrical system against faults. Adhering to these specifications guarantees reliable operation, longevity of the LED unit, and compliance with industry standards, minimizing downtime and maintenance overhead. Precision in wire color code identification and pin assignment is paramount for successful installation.
Wire Color Reference Table
While industry standards offer common wire color code conventions, always consult the manufacturer’s specific documentation for your LED light assembly. The table below outlines a typical configuration for a dual-function, 4-wire LED light commonly found in automotive or heavy equipment applications (e.g., a combination tail/brake/turn signal lamp).
| Wire Color | Function | Pin/Terminal (Typical) | Notes |
|---|---|---|---|
| Black | Ground / Negative | PIN 1 (GND) | Connects to vehicle chassis or dedicated ground wire. Essential for circuit completion. |
| Red | Positive (Primary Function) | PIN 2 (PWR1) | Hot wire for high-intensity function (e.g., Brake light, High Beam, Bright DRL). |
| White | Positive (Secondary Function) | PIN 3 (PWR2) | Hot wire for low-intensity function (e.g., Tail light, Low Beam, Dim DRL). |
| Yellow | Positive (Auxiliary/Signal) | PIN 4 (AUX) | Hot wire for auxiliary function (e.g., Turn Signal, Reverse Light, Strobe Control). |
It is imperative to verify the specific wire color code and pin assignment directly from the LED light’s manufacturer documentation or the vehicle/equipment’s service manual. Variations exist, particularly between different manufacturers or specific year models. Relying solely on general conventions can lead to incorrect operation or component damage. Some manufacturers may use a brown wire for ground or designate different color schemes entirely. For deeper insights into vehicle-specific electrical systems, consult our guide on Automotive Electrical Systems Diagnostics.
Step-by-Step Connection Guide
Properly wiring a 4-wire LED light demands precision and adherence to manufacturer specifications to ensure both functionality and system integrity. This guide details the process for integrating the LED unit into your existing electrical system.
Before beginning, confirm the LED light’s operational voltage (typically 12V or 24V DC for automotive/heavy equipment) and current draw (amps). Select appropriate gauge wire based on current, wire length, and permissible voltage drop, adhering to SAE standards. As a general guideline, a 16-gauge wire is suitable for circuits up to 10 amps over short runs (under 10 feet) in 12V systems. Always consult a wire gauge chart for precise selection.
- Preparation and Safety:
Prior to any electrical work, disconnect the vehicle’s or equipment’s battery. Isolate both the positive and negative terminals to prevent accidental energization. Gather necessary tools including wire strippers, crimpers, a multimeter, heat shrink tubing, and appropriate connectors (e.g., butt connectors, spade terminals, or Deutsch connectors as per OEM specs). Ensure all connections will be made to a dedicated, fused circuit. For optimal circuit protection, refer to our comprehensive article on Automotive Circuit Protection and Fuses.
- Identify Wires on the LED Unit:

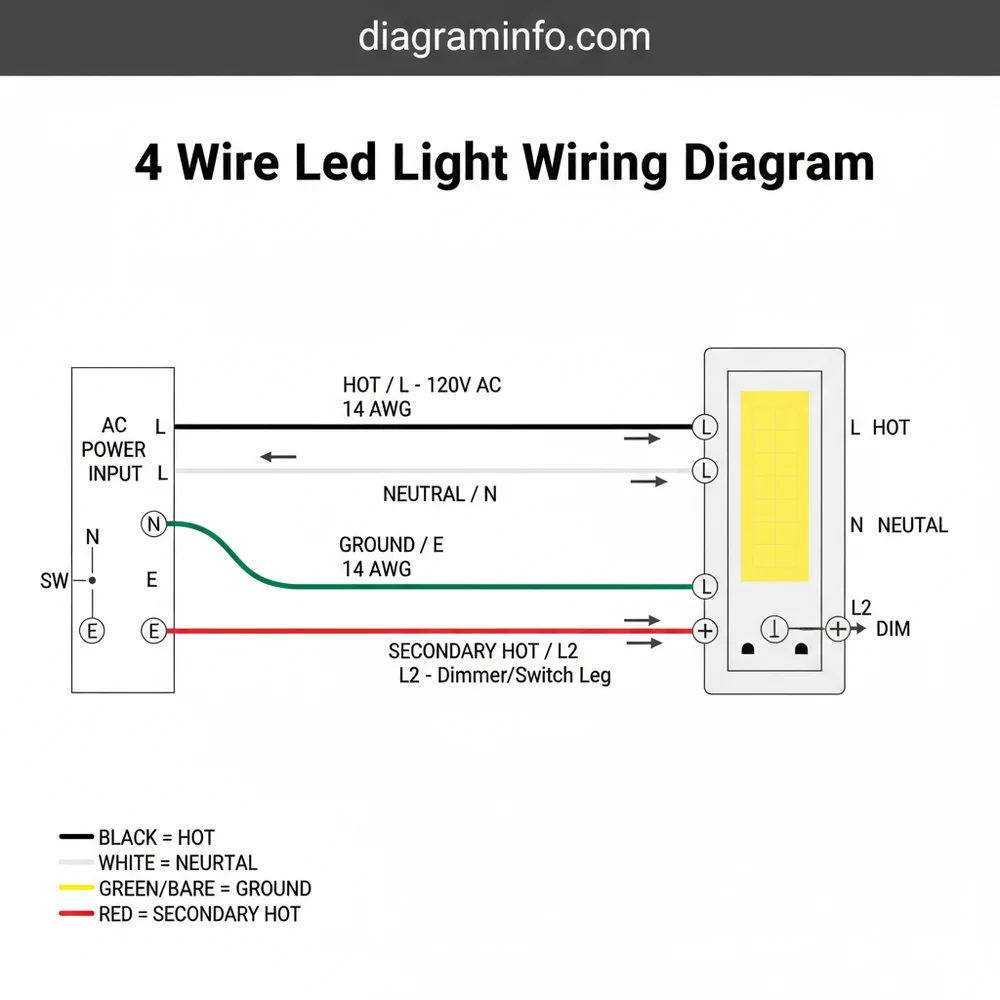

Refer to your LED light’s manufacturer documentation or the diagram provided above. Identify each of the four wires by its wire color code and corresponding function (Ground, Primary Positive, Secondary Positive, Auxiliary Positive). Label them if necessary to avoid confusion during connection, especially if working with non-standard colors or multiple lights.
- Connect the Ground Wire (Black):
Locate a clean, unpainted metallic surface on the vehicle chassis or connect to an existing, properly sized ground wire in your wiring harness. Strip approximately ½ inch of insulation from the black wire. Crimp a ring terminal onto the black wire if connecting to the chassis, or use a high-quality butt connector or heat-shrinkable crimp connector to join it to the existing ground. Ensure this connection provides a robust, low-resistance path to the negative terminal of your battery. A poor ground connection is a common cause of dim or intermittent LED operation.
⚠️ WarningNever connect the LED’s ground wire to a ‘floating’ ground or an inadequate chassis point. An improperly grounded circuit can lead to erratic behavior, premature LED failure, or even damage to other electronic components due to voltage spikes or insufficient current return paths.
- Connect the Primary Function Wire (Red):
Identify the circuit providing power for the primary function (e.g., brake light circuit, high beam circuit). This is typically a hot wire that becomes active when the associated function is engaged. Strip the red wire and the corresponding vehicle wire. Use a high-quality, weather-sealed butt connector to join them. If multiple lights are being wired, consider using a terminal block or distribution post, ensuring each connection point is robust and protected.
- Connect the Secondary Function Wire (White):
Locate the power circuit for the secondary function (e.g., tail light circuit, low beam circuit). This hot wire provides power when the secondary function is activated. Strip the white wire and the vehicle’s corresponding wire. Securely join them using a suitable connector, ensuring mechanical strength and electrical integrity. Proper wire routing and strain relief are crucial to prevent wire fatigue and potential failures over time.
- Connect the Auxiliary/Signal Wire (Yellow):
Connect the yellow wire to the designated auxiliary circuit (e.g., turn signal circuit, reverse light circuit, or a dedicated switched power source for a special function). This hot wire completes the circuit for the LED’s third mode. Verify the circuit’s functionality with a multimeter to ensure it provides power only when intended.
- Insulate and Secure Connections:
Once all connections are made, inspect each joint for integrity. Apply heat shrink tubing over all exposed conductors and crimp connectors to protect against moisture, corrosion, and abrasion. For critical automotive and heavy equipment applications, use adhesive-lined heat shrink for superior environmental sealing. Secure all wiring runs with cable ties, ensuring they are away from moving parts, sharp edges, and excessive heat sources. Pay attention to specific year-model variations for optimal wire routing and harness integration.
- Test the Installation:
Reconnect the battery. Systematically test each function of the 4-wire LED light (e.g., tail, brake, turn signal). Verify that each function illuminates correctly, without flickering or dimming, and that no other electrical systems are affected. Check for proper voltage at the LED’s input wires using a multimeter to confirm adequate power delivery under load.
Common Wiring Mistakes & Troubleshooting
Even experienced technicians can encounter issues during wiring. Understanding common pitfalls can significantly reduce troubleshooting time and prevent damage.
- Reverse Polarity:
Mistake: Connecting the positive supply to the LED’s ground wire or vice versa for a given function. LEDs are diodes and are polarized, meaning they only allow current flow in one direction.
Consequences: The LED light will not illuminate, or in some cases, internal protection circuits may be damaged. While most modern automotive LEDs have reverse polarity protection, persistent incorrect connections can still lead to component failure.
Fix: Disconnect power immediately. Use a multimeter to verify the polarity of your vehicle’s harness wires and the LED’s input wires. Reconnect according to the 4-wire LED light wiring diagram, ensuring the positive (hot wire) connects to the correct function wire on the LED and the negative (ground wire) connects to the LED’s ground. A simple continuity test on the LED’s wires can help confirm internal connections against the manufacturer’s data. - Insufficient Wire Gauge:
Mistake: Using a wire with a gauge that is too small for the current draw or length of the run.
Consequences: Excessive voltage drop along the wire, leading to dim LED performance, heat generation in the wire, and potential fire hazards. The LED may not receive sufficient operating voltage to reach full brightness or efficiency.
Fix: Calculate the total current draw of the LED light (Amps = Watts / Volts). Consult a wire gauge chart to determine the minimum required gauge based on the current and the total wire length (supply and ground). Replace undersized wires with the appropriate gauge. Always factor in a safety margin for heavy equipment and harsh environments. - Poor or Corroded Connections:
Mistake: Loose crimps, inadequate soldering, or exposed wires leading to corrosion at connection points (e.g., spade terminals, terminal block points).
Consequences: Intermittent operation, flickering, increased resistance, voltage drops, and heat generation. Corrosion can create high-resistance pathways, hindering current flow and causing unpredictable behavior from the LED.
Fix: Inspect all connections for cleanliness, tightness, and proper insulation. Recrimp loose connections with a quality crimping tool. If corrosion is present, clean or replace the affected connectors. Use dielectric grease for additional protection, especially in marine or outdoor equipment applications. Ensure all butt connectors are sealed, preferably with heat-shrinkable, adhesive-lined types. - Incorrect Function Assignment:
Mistake: Connecting the LED’s primary function wire to the secondary circuit, or the auxiliary wire to a constant power source instead of a switched one.
Consequences: The LED performs the wrong function (e.g., tail light illuminates when the brake is pressed, turn signal is constantly on, or the primary function is dim). This can be a safety hazard, particularly with brake lights or turn signals.
Fix: Re-verify the wire color code and pin assignment against the manufacturer’s instructions and your vehicle’s wiring diagram. Use a multimeter to confirm which vehicle circuit is active for each desired function (e.g., brake pedal pressed = 12V on brake wire). Correctly re-route and reconnect the wires according to their intended functions. - Absence of Load Resistors (for specific applications):
Mistake: Replacing incandescent turn signal bulbs with LEDs in older vehicles without adding load resistors.
Consequences: Rapid flashing (“hyper-flashing”) of turn signals because the vehicle’s flasher relay detects too little current draw, assuming a bulb is out.
Fix: Install appropriate load resistors in parallel with the LED turn signal circuits. The resistance and wattage of the resistor must match the current draw of the original incandescent bulb to trick the flasher relay into operating at the correct rate. Modern vehicles with CAN bus systems might require specialized LED-compatible flasher modules or coding, rather than simple resistors. For more information on dealing with vehicle electronics, see our article on CAN Bus System Integration.
FAQ
What if my 4-wire LED light has different wire colors than shown?
While the diagram above uses common automotive wire color codes, LED light manufacturers are not always standardized. It is critical to consult the specific product’s installation manual or data sheet. This document will provide the exact pin assignment and function for each wire color. If no documentation is available, a multimeter can be used to test continuity and check for integrated components like resistors, but this should only be attempted by experienced technicians to avoid damage.
Do I need a resistor when wiring a 4-wire LED light?
Generally, for basic illumination (e.g., a constant-on work light or DRL), a resistor is not needed, as modern LEDs usually have integrated current-limiting circuitry. However, if you are replacing incandescent signal lights (like turn signals or brake lights) in older vehicles, you might need a load resistor. This is because the lower current draw of LEDs can cause “hyper-flashing” or trigger bulb-out warnings in systems designed for higher incandescent loads. Always check the OEM specs for your vehicle year to determine if load resistors are required for signal applications.
Can this 4-wire LED wiring diagram be used for both 12V and 24V systems?
The connection methodology (matching positive to positive, negative to negative for each function) remains consistent for both 12V and 24V DC systems. However, the LED light itself MUST be rated for the specific system voltage. Connecting a 12V LED to a 24V system will typically result in immediate failure due to overvoltage. Always verify the LED’s voltage rating before installation. Ensure the selected gauge wire and fuse are also appropriate for the higher voltage and potential current draw if applicable.
What wire gauge should I use for my 4-wire LED light?
The appropriate wire gauge depends on the LED’s total current draw (amperage) and the length of the wire run from the power source to the LED. Undersized wires lead to voltage drop and heat. For most automotive LED lights, 18 AWG to 16 AWG is sufficient for short runs (under 10 feet) drawing a few amps. For higher current draw LEDs or longer runs, 14 AWG or even 12 AWG may be necessary. Always use a reliable wire gauge chart based on the voltage and current, and err on the side of caution with slightly larger gauge to minimize voltage drop and ensure optimal performance, adhering to OEM electrical standards.
Frequently Asked Questions
What wire color is for power on a 4-wire led light wiring diagram?
On a 4-wire LED light, the power wire (hot wire) is commonly red for positive (+) in DC applications, or black/brown for live in AC. The ground wire is typically black or white for negative (-). Always consult the manufacturer’s specific wire color code as conventions can vary significantly between brands and LED types.
What do the wire functions mean on a 4-wire led light wiring diagram?
For a 4-wire LED, functions usually include a common power (positive or negative), a common ground, and then two control wires. These control wires might be for dimming, color channels (like Red/Green/Blue components if it’s an RGB light), or other specialized functions such as strobe or mode selection. Proper pin assignment is crucial for functionality.
How many wires does a 4-wire led light wiring diagram have?
As the name suggests, a 4-wire LED light wiring diagram explicitly details connections for four individual wires. These typically include a dedicated positive wire, a ground wire, and two additional wires for various control signals or specific LED segment power, depending on the light’s features and design.
What are common wiring mistakes with a 4-wire led light wiring diagram?
Common mistakes include reversing polarity (connecting positive to ground and vice-versa), using an incorrect voltage power supply, loose connections causing intermittent operation, and improper wire gauge leading to overheating or voltage drop. Failing to consult the specific wire color code often leads to these errors, impacting the light’s performance or lifespan.
What type of power supply is required for a 4-wire LED light?
Most 4-wire LED lights operate on a low-voltage DC power supply, typically 12V DC or 24V DC, like those found in automotive or specialized lighting systems. Ensure the power supply provides the correct voltage and sufficient current (amperage) to meet the LED light’s specifications. Using an incompatible supply can damage the unit.
What gauge wire does a 4-wire led light wiring diagram require?
The required wire gauge for a 4-wire LED light depends on the total current draw (amperage) and the length of the wire run. For most low-power LED applications, 18 AWG to 22 AWG wire is sufficient. Longer runs or higher-wattage lights may necessitate thicker 14 AWG or 16 AWG wire to prevent voltage drop and overheating.
