MSD 6AL Wiring Diagram: Mapping Guide 2026
The MSD 6AL wiring diagram features two heavy power leads: Heavy Red connects to 12V battery hot wire positive, and Heavy Black connects directly to battery ground wire. Small Red connects to switched 12V power or neutral wire safety interlocks. Orange connects to coil positive, Black to coil negative, while pin assignment leads handle ignition trigger inputs.
📌 Key Takeaways
- Heavy Red (12 AWG) hot wire and Heavy Black (12 AWG) ground wire must connect directly to battery terminals for peak performance.
- Orange lead connects strictly to ignition coil positive, while Black connects to coil negative; never hook direct 12V battery power to coil.
- Magnetic pickup connections use the 2-pin harness (Green positive, Violet negative), which automatically disables the White points wire.
- An improperly routed ground wire or high resistance in the neutral wire interlock circuit causes intermittent high-RPM misfires.
- Seek professional assistance if engine run-on occurs after ignition turn-off, which typically requires a diode in the alternator light circuit.
Installing an MSD 6AL capacitive discharge ignition control module (such as Part Number 6425 or 6420) significantly increases spark energy, high-RPM output, and combustion efficiency across performance automotive engines. However, misidentifying terminal block locations, reversing primary ignition coil leads, or failing to establish a clean direct ground wire connection can cause engine misfires, tachometer signal loss, or permanent module failure. This guide details the complete MSD 6AL wiring diagram, specifying wire color code standards, voltage parameters, gauge requirements, and trigger harness options for both street and racing applications.

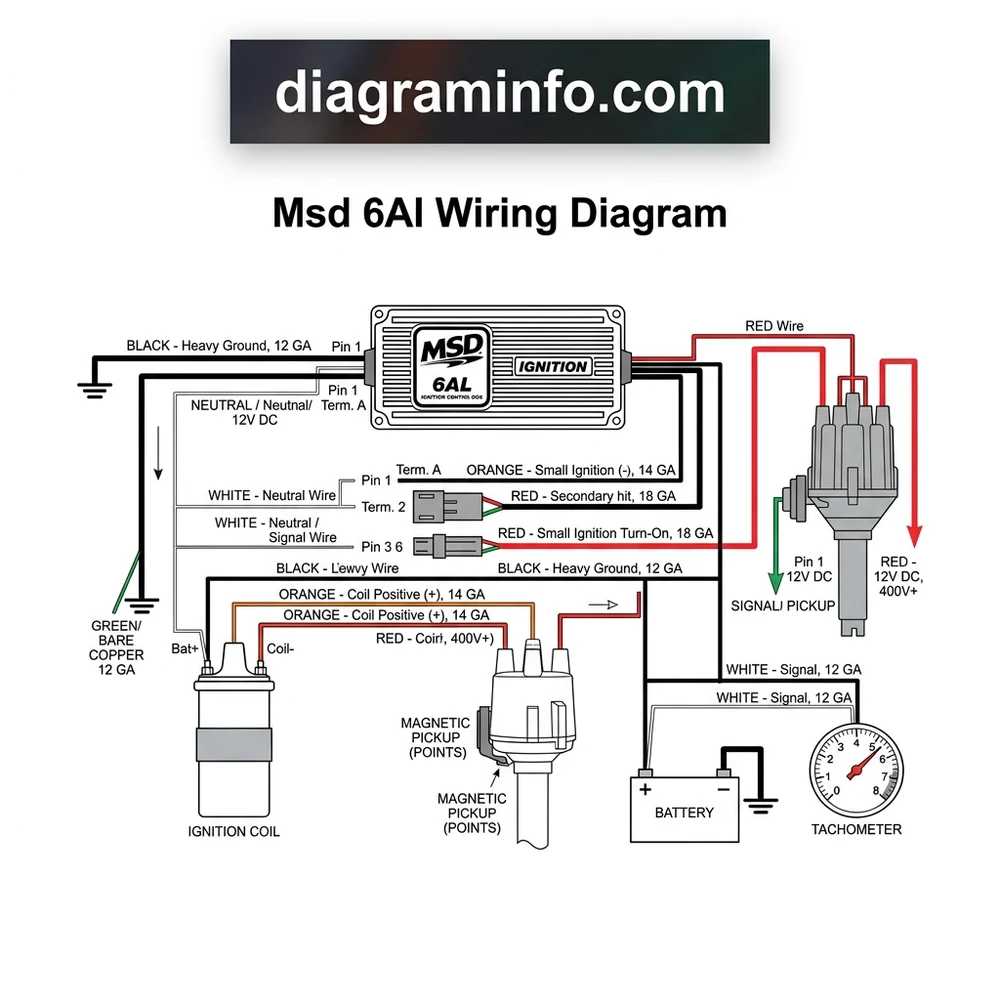

[DIAGRAM_PLACEHOLDER: Complete MSD 6AL Wiring Diagram Schematic showing Battery, Ignition Coil, Ignition Switch, and Distributor Connections]
MSD 6AL Wiring Diagram Wire Color Code and Terminal Block Pin Assignment
According to manufacturer specifications, the MSD 6AL harness separates power input, coil output, and trigger signals into specific wire gauges and color codes. Utilizing proper wire gauge is critical to prevent excessive voltage drop during high-demand operation.
| Wire Color | Function & Pin Assignment | Gauge | Voltage / Signal Spec |
|---|---|---|---|
| Heavy Red | Main Battery Positive Hot Wire | 12 AWG | +12V DC Unswitched (Direct Battery) |
| Heavy Black | Main Battery Negative Ground Wire | 12 AWG | 0V Ground (Direct Battery / Block) |
| Small Red | Switched Hot Wire Input | 18 AWG | +12V DC Switched (Key Run/Crank) |
| Orange | Ignition Coil Positive (+) Output | 18 AWG | 470V–480V Capacitive Discharge Pulse |
| Small Black | Ignition Coil Negative (-) Output | 18 AWG | High-Voltage Primary Return Line |
| White | Points / Electronic Trigger Input | 18 AWG | Switched Ground / Square Wave Input |
| Violet / Green | Magnetic Pickup Connector (2-Pin) | 18 AWG Twisted | Low-Voltage Variable AC Pulse |
| Gray | Tachometer Signal Output Lead | 18 AWG | 12V Square Wave (20% Duty Cycle) |
The MSD 6AL primary output voltage to the coil terminals reaches up to 480 Volts with spark energy rated at 105 to 115 millijoules per spark up to 15,000 RPM. Never connect factory 12V supply leads directly to the ignition coil when using an MSD CD unit.
Step-by-Step Installation Instructions for the MSD 6AL Wiring Diagram
Follow this standardized connection sequence to ensure proper pin assignment, clean terminal connections, and prevent electrical short circuits during initial power-up.
1. Connect Main Battery Power and Chassis Ground Lines
Route the heavy 12 AWG Red hot wire directly to the positive (+) terminal of the 12-volt battery or the main power distribution post. Route the heavy 12 AWG Black ground wire directly to the negative (-) battery terminal or a thoroughly cleaned engine block ground lug. Do not rely on thin gauge sheet metal screws or painted firewall surfaces for the primary ground wire connection, as high amp draws will cause ignition dropouts under load.
2. Hook Up the Switched 12V Ignition Key Input
Connect the small 18 AWG Red wire to a switched hot wire source controlled by the ignition key switch. OEM setups using an older ignition system may require removing or bypassing the original ignition coil ballast resistor setup to ensure full operating voltage (minimum 10V DC during cranking) reaches this terminal wire during both key-on and crank cycles.
3. Wiring the Primary Ignition Coil Terminals
Isolate the ignition coil from all original engine wiring harness leads. Connect the MSD 6AL Orange wire exclusively to the positive (+) coil terminal block. Connect the MSD 6AL small Black wire exclusively to the negative (-) coil terminal block. As shown in the diagram above, no other wires should ever touch the primary coil terminals when the capacitive discharge module is connected.
4. Wiring the Trigger Source (White Wire vs. Magnetic Pickup Harness)
Select ONLY ONE ignition trigger method based on your distributor configuration:
- Points or Electronic Module Trigger: Connect the small 18 AWG White wire to the breaker points terminal, factory ignition igniter trigger wire, or the engine management ECU tachometer/ignition output pin. If utilizing this method, insulate and cap off the 2-pin Violet/Green magnetic pickup connector.
- Magnetic Pickup Distributor Trigger: Plug the 2-pin connector containing the Violet (positive) and Green (negative) twisted wires directly into the MSD distributor or aftermarket magnetic pickup harness. When using the magnetic pickup connector, insulate and disconnect the small White wire completely.
5. Tachometer Connection and Auxiliary Tach Adapters
Attach your tachometer signal trigger wire or aftermarket shift light wire directly to the Gray tachometer output terminal block located on the side of the MSD 6AL housing. If your vehicle uses an older current-triggered tachometer, an inline tach adapter (such as MSD PN 8920 or PN 8910) must be wired between the Gray wire and the instrument cluster.
Never connect the White trigger wire and the Violet/Green magnetic pickup harness simultaneously. Connecting both trigger inputs at the same time will distort primary ignition timing and can damage internal amplifier circuitry.
Magnetic Pickup vs Points Trigger Options in the MSD 6AL Wiring Diagram
Understanding how the MSD 6AL handles trigger signals is vital when setting up distributor trigger mechanisms or retrofitting older engine platforms.
Points and Factory Amplifier Wire Routing
When wired to a points-style distributor, the MSD 6AL uses the White wire to sense when the mechanical points open. Because the White wire carries a low-current signal (less than 1 amp), contact point wear and pitting are virtually eliminated. Similar connections apply to aftermarket electronic distributors or factory igniters outputting a ground-frequency pulse.
Magnetic Pickup Wire Routing
The Violet and Green 18 AWG twisted pair harness processes low-voltage AC pulses generated by magnetic reluctor wheels. The pair is deliberately twisted along its length to reject electromagnetic interference (EMI) generated by high-voltage spark plug wires and alternator voltage regulator wiring. When converting factory systems (such as Ford Duraspark or GM HEI 4-pin modules), the module must be bypassed so the magnetic pickup plugs straight into the MSD harness.
If engine firing order or distributor timing curve adjustment appears retarding or advancing erratically under timing light inspection, swap the polarity of the Violet and Green magnetic pickup wires. Reversing magnetic polarity shifts ignition timing by several degrees across the engine’s operating band.
Voltage Requirements, Wire Gauge Selection, and Ground Wire Practices
Capacitive discharge ignitions require continuous, uninhibited current draw during multi-spark operation (which fires up to 20 degrees of crankshaft rotation below 3,000 RPM). Adhering to strict electrical parameters prevents system voltage drop issues.
- Supply Voltage Range: 12 to 18 Volts DC operational. Minimum cranking voltage is 10 Volts DC.
- Current Draw: Approximately 0.7 Amps per 1,000 RPM (e.g., 4.9–5.5 Amps at 7,000 RPM). Peak current draws can spike significantly higher during high-boost or high-compression combustion sequences.
- Grounding Requirements: Grounding the 12 AWG heavy Black ground wire to a weak neutral wire return or painted metal panel creates ground loop resistance. Resistance leads to internal thermal build-up and voltage fluctuation inside the ignition box.
- Wire Gauge Maintenance: Never downsize the primary 12 AWG power leads. If extending power connections over 6 feet, upgrade the heavy Red and heavy Black wires to 10 AWG to maintain stable voltage delivery.
Common MSD 6AL Wiring Diagram Mistakes and Troubleshooting
Diagnosing ignition issues standardly traces back to incorrect pin assignments or wiring misconfigurations. Below are five documented wiring errors along with their symptoms and corrective fixes.
1. Retaining Factory +12V Wires on Coil Terminals
- Consequence: Secondary primary feeds feedback high voltage into the vehicle harness, blowing fuses or burning out ignition switches.
- Correction: Strip all existing OEM wires from the positive (+) and negative (-) coil terminals. Connect only the MSD Orange wire to (+) and small Black wire to (-).
2. Poor Engine Block or Battery Ground Wire Contact
- Consequence: Intermittent engine misfires, erratic tachometer movement, or total loss of spark when electrical loads (like cooling fans or fuel pumps) kick on.
- Correction: Clean the mounting surface down to bare metal and apply dielectric grease over the ring terminal. Verify a dedicated ground wire strap links the cylinder head/engine block directly to the chassis frame.
3. Wiring Switched 12V Line to a “Run-Only” Terminal
- Consequence: The engine cranks over normally but refuses to fire until the key is released back to the “ON” position.
- Correction: Ensure the small Red 18 AWG hot wire connects to a terminal block or ignition switch wire that maintains full voltage in both the “START” (crank) and “RUN” switch positions.
4. Parallel Routing of Trigger Wires with Spark Plug Wires
- Consequence: Electromagnetic cross-talk causes false triggering, severe spark scatter, and pre-ignition engine damage.
- Correction: Cross trigger wires (White wire or Violet/Green harness) perpendicular (at 90 degrees) to high-voltage plug wires and coil leads. Maintain a minimum gap of 2 to 3 inches between signal lines and spark plug cables.
5. Utilizing Solid Core Spark Plug Wires
- Consequence: Excessive Radio Frequency Interference (RFI) floods the MSD 6AL circuit board, causing random rev-limiter engagement or internal box shutdown.
- Correction: Use high-quality helically wound suppression core spark plug wires (such as MSD 8.5mm Super Conductor wires) along with resistor-type spark plugs.
MSD 6AL Wiring Diagram Frequently Asked Questions
What should I do with the unused trigger wire on my MSD 6AL module?
If you trigger the MSD 6AL using the 2-pin magnetic pickup connector (Violet and Green wires), cap and insulate the end of the small White wire using heat-shrink tubing. Conversely, if you trigger the system using the White wire, disconnect, cap, and isolate the Violet and Green harness connector. Never leave uninsulated trigger leads exposed inside the engine bay.
Why does my tachometer stop working after following the MSD 6AL wiring diagram?
Standard tachometers traditionally read voltage spikes off the coil negative (-) terminal. Because the MSD 6AL outputs up to 480 Volts of capacitive discharge voltage to the coil, connecting a tachometer directly to the coil negative terminal will damage the gauge. Connect the tachometer input wire directly to the dedicated Gray wire tach output pin on the MSD module. If the gauge remains unresponsive, install an MSD PN 8920 tachometer adapter module to correct the signal voltage waveform.
Can I test for spark using the MSD 6AL wiring leads without cranking the engine?
Yes. Turn the ignition switch to the “RUN” position. Remove the high-voltage coil wire from the distributor cap and position its terminal 1/2-inch away from a solid engine ground. If using the White wire trigger setup, repeatedly tap the White wire to chassis ground; each time the wire breaks ground contact, a spark should jump from the coil wire. If using the magnetic pickup connector, short the Violet and Green pins together briefly with a jumper wire to manually fire the ignition control module.
Is an external ballast resistor required when installing an MSD 6AL unit?
No. The MSD 6AL control module regulates primary voltage output electronically. Any existing inline ballast resistor or factory resistor wire should be bypassed or eliminated from the switched 12V hot wire feed powering the small Red wire. Bypassing the resistor ensures full battery voltage reaches the control unit during cold engine starts.
Can I mount the MSD 6AL box inside the engine compartment?
Yes, the MSD 6AL enclosure is sealed against moisture and vibration. However, for maximum longevity, mount the unit away from direct heat sources such as exhaust headers or turbochargers. Ensure the rubber vibration isolators included in the hardware kit are installed under the mounting feet, and position the wire harness exiting the unit facing downward to prevent moisture pooling inside the rubber grommet.
