Block & Tackle 5 to 1 Pulley System Diagram: Setup 2026
A 5 to 1 pulley system diagram illustrates a mechanical advantage configuration using five supporting rope segments between double and triple sheave blocks. The line anchors to the moving block, reeves through fixed and traveling sheaves, reducing effort input to 20% of load weight, excluding 10-15% sheave friction loss.
📌 Key Takeaways
- Delivers a theoretical 5:1 mechanical advantage, reducing required pull force to 20% of load weight plus ~10% friction per sheave.
- Requires a minimum layout configuration of 5 rope fall lines spanning between a triple-sheave top block and double-sheave bottom load block.
- Anchor point placement must be structurally rated for at least 120% of the combined suspended load weight.
- Line twisting or block tilting is the most common system failure, caused by asymmetrical rope reeving across the sheaves.
- Inspect rope wear, sheave bearings, and anchor strength before DIY rigging; seek certified riggers for overhead loads over 500 lbs.
A 5 to 1 pulley system, or 5:1 block and tackle configuration, amplifies input effort by five times, allowing heavy load hoisting and vehicle recovery with minimal line pull force. Utilizing a combination of fixed and moving sheaves, this setup distributes total payload mass across five supporting line segments. Understanding a 5 to 1 pulley system diagram is essential for rigging technicians, field mechanics, and equipment operators working with overhead gantries, cranes, or winching apparatus. This technical overview breaks down the structural mechanics, component specifications, reeving layouts, and friction efficiency losses associated with standard 5:1 mechanical advantage configurations.
5 to 1 Pulley System Diagram: Component Identification and Layout
Deconstructing a 5 to 1 pulley system diagram requires recognizing the mechanical relationship between fixed anchor points, traveling blocks, and load-bearing lines. In a standard 5:1 mechanical advantage setup, five individual rope or cable fall segments directly support the moving load. This requires a minimum of five individual sheaves, typically divided between a double-sheave block and a triple-sheave block, or arranged in a tandem block structure.
According to OEM rigging standards, component selection must strictly match the calculated Working Load Limit (WLL). Failure to account for line tension and sheave friction will lead to premature cable fatigue or hardware binding.
| Component | Specification Standard | System Function |
|---|---|---|
| Stationary Anchor Block | Triple-sheave (or double with dead-end anchor) | Secures to the structural load anchor; diverts line toward operator or winch. |
| Traveling / Moving Block | Double-sheave (or triple with dead-end anchor) | Attaches directly to payload; moves at 1/5th the velocity of the haul line. |
| Tension Line (Cable/Rope) | 7×19 Galvanized Steel Aircraft Cable / UHMWPE Synthetic | Transmits tension across all five supporting falls to distribute load mass. |
| Sheave Bearings | Sealed Needle Roller / Sintered Bronze Bushings | Reduces rotational friction; roller bearings offer 95%+ efficiency per sheave. |
| Dead-End Anchor | Grade 80/100 Forged Steel Shackle & Wedge Socket | Terminates the primary cable loop onto either the moving or stationary block. |
For overhead hoisting applications, OSHA and ASME B30.26 regulations mandate a minimum safety design factor of 5:1 relative to ultimate component breaking strength. Always ensure load shackles, wire rope, and sheave pins feature matching rated capacities.
How to Reeve and Read a 5 to 1 Pulley System Schematic
To construct or interpret a 5 to 1 pulley system schematic correctly, you must trace the path of the haul line from its dead-end termination through every sheave pass down to the input pull point. Proper reeving prevents rope friction, line twisting, and uneven block tilting during operation.
Determining Anchor Point and Dead-End Placement
In a simple 5:1 mechanical advantage system where the haul line pulls away from the load, the dead-end termination of the cable must attach directly to the moving block. This configuration yields five supporting line segments running between the two blocks. If you change the pull direction so the haul line pulls parallel toward the stationary anchor, the dead-end attaches to the fixed block, adjusting the effective force vector. When integrating this layout into overhead gantry setups, verify that the anchor beam can support the combined load weight plus the full input tension applied to the haul line.
Executing Right-Angle or Inline Reeving Sequences
Reeving must follow a precise sequence to prevent cable crossover:
Accounting for Line Distance and Friction Loss
Mechanical advantage trades force for distance. To move a payload a distance of 10 feet with a 5:1 ratio, you must haul exactly 50 feet of line through the pulley assembly. Refer to standard winch tension calculations to account for line accumulation on winch drums during extended pulls.
Theoretical mechanical advantage assumes zero friction. In real-world applications, each sheave introduces roughly 2% to 5% friction resistance (depending on sleeve bushings vs. ball bearings). The actual required input force ($F_{actual}$) is calculated as: $F_{actual} = \frac{Payload}{5 \times E^n}$, where $E$ is sheave efficiency and $n$ is the total number of sheaves traversed.
Diagnosing Failures in the 5 to 1 Pulley System Structure
When operating under heavy tension, mechanical imbalances in the 5 to 1 pulley system structure manifest as excessive resistance, uneven block behavior, or severe cable wear. Regular visual inspection of the blueprint alignment ensures safe operation.
Block Rotation and Line Twisting (Pig-Tailing)
If the moving block rotates or “capsizes” during tensioning, the line fall spacing is unequal or the reeving pattern is incorrectly crossed. Inline center-reeving or reeving with right-angle patterns eliminates rotational torque. Using swivel hook attachments on multi-sheave block and tackle systems helps neutralize line twist under load.
Fleet Angle Misalignment and Sheave Flange Wear
The fleet angle is the angle between the cable leading off the winch drum and the centerline of the entry sheave on the fixed block. If this angle exceeds 1.5 degrees for smooth drums (or 2.0 degrees for grooved drums), the wire rope will scrub against the sheave flange, leading to accelerated cable fraying and premature metal fatigue in the sheave housing.
Never allow the moving block to make contact with the stationary block (“two-blocking”). Dynamic shock loading occurs instantly when blocks bind together, which can snap tension lines or shatter cast sheave housings under load.
5 to 1 Pulley System Blueprint Frequently Asked Questions
What is the theoretical versus actual mechanical advantage of a 5 to 1 pulley system blueprint?
The theoretical mechanical advantage of a 5:1 layout is 5, meaning a 1,000 lbs load requires 200 lbs of haul line effort. However, due to friction across five individual sheaves, actual mechanical advantage typically ranges between 4.1:1 and 4.5:1. Systems using plain bronze bushings experience higher frictional loss compared to setups equipped with precision sealed ball bearings.
Does pulling direction alter the mechanical advantage in a 5:1 configuration?
Yes. Mechanical advantage is determined strictly by the number of cable falls directly supporting the moving load block. If the haul line exits the fixed anchor block, it provides a 5:1 advantage pulling away from the load. If the haul line exits the moving load block and is pulled parallel in the direction of load movement, it adds an additional supporting segment, effectively creating a 6:1 system configuration.
What cable type is recommended for industrial 5 to 1 pulley systems?
For steel wire rope applications, 7×19 extra-flexible galvanized steel aircraft cable or 6×36 class IWRC (Independent Wire Rope Core) is standard due to its high fatigue resistance around small-diameter sheaves. For synthetic winch lines, Ultra-High Molecular Weight Polyethylene (UHMWPE) synthetic rope offers high tensile strength with minimal weight and line recoil danger upon failure.
How do you calculate the required drum line capacity for a 5 to 1 pulley system layout?
To determine total cable spool requirements, multiply the total load travel distance by 5, then add the dead-end routing length plus a minimum of 5 safety wraps remaining on the winch drum at full load extension. For instance, a 30-foot lift height requires at least 150 feet of active cable travel, plus structural lead lengths.
Step-by-Step Guide to Understanding the 5 To 1 Pulley System Diagram
Identify – Identify the required mechanical components, including a triple-sheave head block, double-sheave load block, and static load line.
Locate – Locate secure overhead structural anchors and determine the dead-end attachment beckett on the lower traveling block.

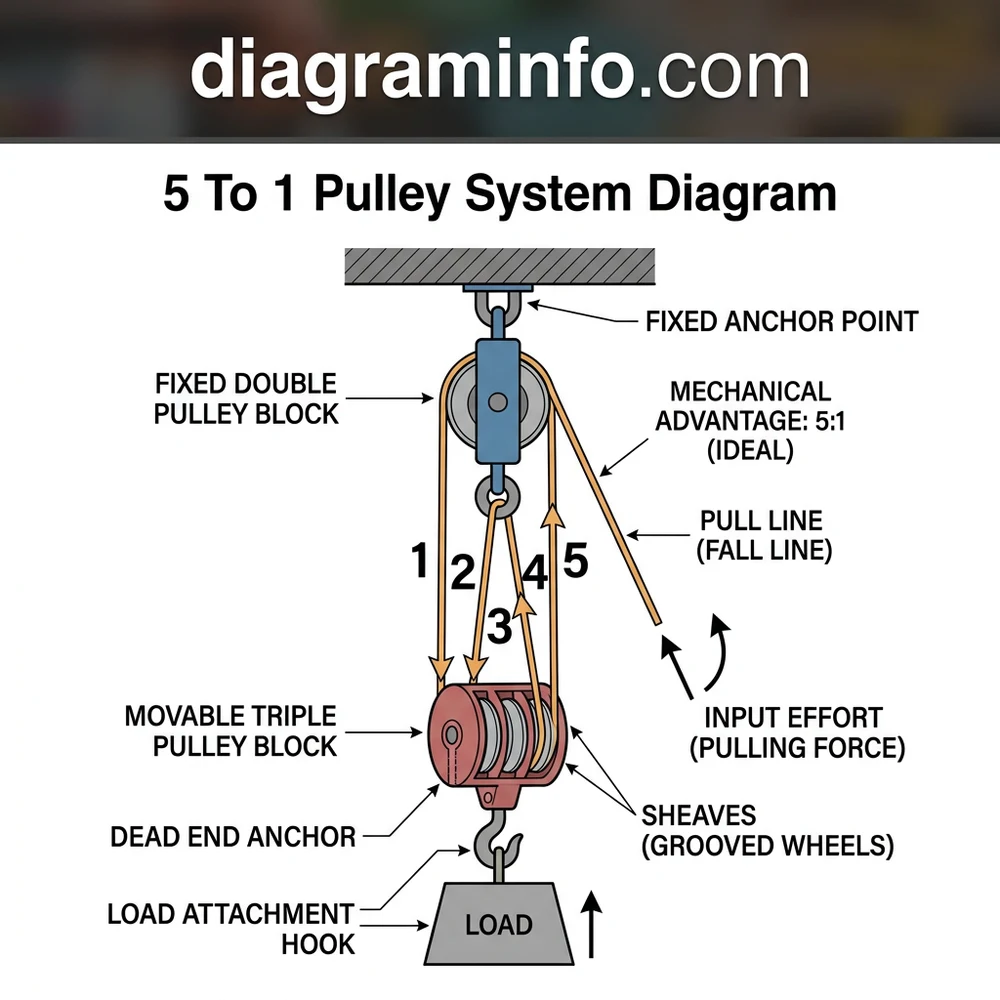

Reference – Reference the 5 to 1 pulley system diagram to trace the specific sheave reeving sequence and fall line count.
Connect/Route – Connect the dead end line to the load block beckett and route the line back and forth between upper and lower sheaves.
Verify – Verify that 5 parallel rope lines support the lower block and perform a low-height test pull to confirm smooth sheave rotation.
Troubleshoot – Troubleshoot line twists, sheave friction, or block binding by re-aligning the reeving pattern according to the layout diagram.
