Orbit Sprinkler Valve Parts Diagram: 2026 Component Guide
An Orbit sprinkler valve parts diagram illustrates the internal water-control assembly, featuring a 24VAC solenoid with dual lead wires, bleed screw, captive bonnet screws, actuation spring, molded rubber diaphragm, and low-profile body structure. It details how the solenoid releases bonnet pressure to lift the diaphragm off the internal valve seat.
📌 Key Takeaways
- Standard Orbit automatic valves operate using a 24VAC solenoid drawing approximately 0.20 to 0.35 amps.
- The molded rubber diaphragm is the primary failure point, susceptible to tear damage or mineral sediment fouling.
- Manual override is achieved via the external bleed screw or manual solenoid quarter-turn knob.
- Torque bonnet screws evenly in a crisscross pattern to prevent body warping and perimeter water leaks.
- Replace internal rebuild components DIY; replace the entire valve body if female threaded PVC ports are cracked.
Understanding the internal configuration of an automatic irrigation valve is essential for precise hydraulic system maintenance, pressure regulation, and actuator diagnostics. The Orbit sprinkler valve operates using balanced hydrostatic pressure across a flexible diaphragm, actuated by a 24-volt alternating current (24VAC) solenoid. By examining a detailed schematic blueprint, technicians can quickly isolate structural, electrical, and hydraulic failure points without removing the main valve body from the manifold. This technical breakdown covers component identification, directional fluid dynamics, and systematic diagnostic procedures for both jar-top and bolted-bonnet valve configurations.

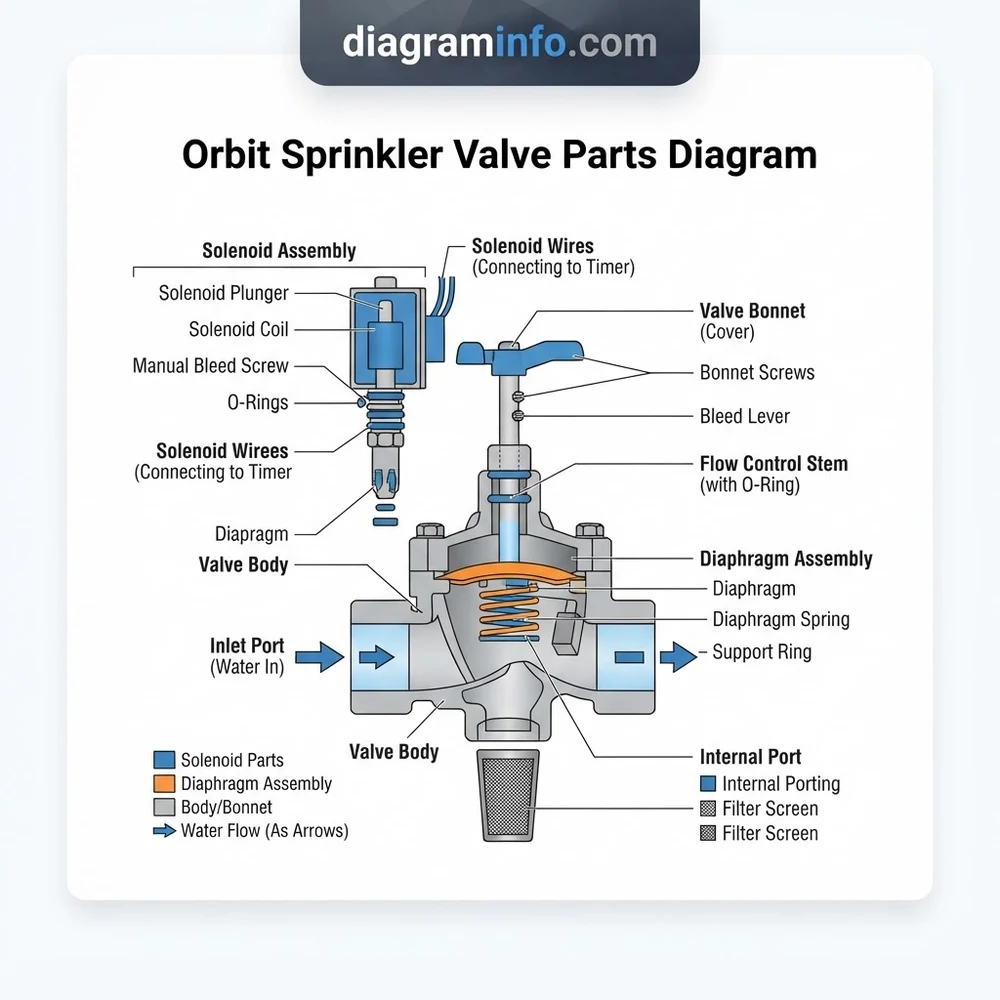

Orbit Sprinkler Valve Parts Diagram: Key Internal Components
According to OEM manufacturer specifications, Orbit inline and anti-siphon valves consist of seven core structural elements. Each component maintains a specific pressure differential required to seal water upstream at line pressures ranging from 15 to 120 PSI (1.0 to 8.3 bar).
| Diagram ID | Component Name | Material / Electrical Spec | Functional Role |
|---|---|---|---|
| 1 | Solenoid Actuator | 24VAC, 50/60 Hz, 0.35A inrush, 0.23A holding | Electromagnetic coil that shifts the internal plunger to vent the upper pressure chamber. |
| 2 | Solenoid Plunger & Spring | Stainless steel core with EPDM seal tip | Seals the internal bleed port when de-energized; retracts via magnetic flux when powered. |
| 3 | Valve Bonnet / Cap | Glass-filled polypropylene (threaded or 6-bolt) | Encloses the pressure chamber and holds the flow control stem assembly. |
| 4 | Flow Control Handle | ABS polymer stem with internal brass threads | Manually adjusts maximum diaphragm travel to regulate downstream water volume and pressure. |
| 5 | Diaphragm Assembly | Buna-N / EPDM rubber with molded support ring | Flexible barrier separating lower line pressure from upper control chamber pressure. |
| 6 | Metering Pin / Bypass Port | Stainless steel needle pin, 0.025″ orifice | Allows controlled water bleed from inlet into the bonnet chamber to close the valve. |
| 7 | Valve Body Housing | Heavy-duty PVC / Schedule 80 1″ FNPT or Slip | Main hydraulic structure containing internal valve seat and directional flow chamber. |
Orbit 24VAC solenoids exhibit a nominal coil resistance between 20 and 60 Ohms at 70°F (21°C). Resistance readings below 20 Ohms indicate an internal short circuit, whereas infinite resistance (OL) indicates an open winding requiring solenoid replacement. For integration with modern automated systems, cross-reference these values with technical residential irrigation controller wiring guides.
Solenoid and Actuator Sub-Assembly
The upper actuator consists of a encapsulated 24VAC solenoid housing, a spring-loaded stainless steel plunger, and a synthetic rubber seat tip. When 24 volts AC pass through the copper coil, an electromagnetic field lifts the plunger off the internal discharge port, lowering bonnet chamber pressure.
Diaphragm and Upper Control Chamber Layout
The diaphragm functions as a dynamic fluid seal sitting directly over the center valve seat. Water enters the upper control chamber through a fixed metering port. Because the surface area on top of the diaphragm is roughly 20% larger than the seat area underneath, higher net downward force keeps the valve sealed closed under static line pressure.
Analyzing the Valve Blueprint and Internal System Layout
Understanding the fluid circuit mechanics illustrated in an Orbit sprinkler valve parts diagram requires tracing the path of water during hydrostatic balance, manual actuation, and electrical activation cycles.
Orbit manufactures reverse-flow and forward-flow valve variations. Reverse-flow designs direct water pressure beneath the diaphragm center seat during shutdown, which prevents catastrophic flooding if the diaphragm tears or loses structural integrity.
Hydraulic Balance and Actuation Cycle
In the deactivated dynamic state, line pressure flows through the small metering orifice located in the diaphragm assembly, filling the upper bonnet chamber. Equal hydrostatic pressure per square inch acts on both sides of the diaphragm. However, because the upper surface area of the diaphragm is greater than the exposed inlet area below, the downward force holds the valve seat tightly shut.
When the controller energizes the solenoid coil, the plunger lifts off the exhaust port seat. Water exits the bonnet chamber through the internal exhaust channel at a faster volumetric rate than the metering pin allows entering from the inlet. This rapid pressure drop in the bonnet chamber allows raw upstream line pressure to lift the diaphragm stem off the valve seat, establishing full fluid flow to the downstream zone line.
Manual Bleed and Flow Adjustment Features
Technicians can bypass electrical control using two distinct mechanisms integrated into the valve structure:
- Internal Manual Bleed: Rotating the solenoid counterclockwise 1/4 to 1/2 turn breaks the seal at the plunger O-ring, venting bonnet chamber water directly into the downstream port without spraying water externally.
- External Bleed Screw: Threaded directly into the top bonnet cap, opening this screw discharges chamber water into the atmosphere. This is primarily used to clear trapped air or flush fine particulate debris during system startup, in compliance with standard backflow preventer installation specifications.
- Flow Control Assembly: Threaded through the center bonnet, turning the flow control shaft downward physically limits the upward travel of the diaphragm disc, reducing downstream flow velocity and water hammer risk in high-pressure installations.
Troubleshooting Common Failures via the Orbit Sprinkler Valve Parts Diagram
Diagnostic isolation requires evaluating hydraulic symptoms against the structural points identified in the valve schematic. Below are technical failure modes, root causes, and corrective action protocols.
Always depressurize the main mainline manifold and shut off electrical power at the controller prior to removing jar-top rings or bonnet bolts. Disassembling a valve under 80+ PSI line pressure can cause severe personal injury or structural damage to manifold fittings.
Symptom 1: Valve Fails to Close (Continuous Zone Discharge)
If water continues passing downstream after de-energizing the zone, the failure resides in the pressure differential mechanism. Check the following component areas:
- Clogged Metering Pin/Port: Silt or calcium deposits blocking the small bypass orifice prevent water from filling the bonnet chamber, causing the valve to remain locked open. Clean the metering pin using a fine wire brush or replacement needle pin.
- Debris Beneath Valve Seat: Sand, gravel, or pipe shavings trapped between the EPDM diaphragm seal disc and the body valve seat prevent a watertight mechanical closure. Flush the main body housing.
- Damaged Diaphragm Surface: Inspect the rubber membrane under magnification for micro-tears, stretching, or chemical degradation caused by localized water chlorination or freeze damage.
Symptom 2: Valve Fails to Open Electrically
When the irrigation controller registers active 24VAC output but the valve does not discharge, follow standard electrical isolation testing alongside solenoid valve electrical troubleshooting protocols:
- Solenoid Coil Failure: Measure coil resistance across field wires. Resistance exceeding 60 Ohms or indicating open circuit requires swapping the solenoid assembly (Orbit Part #57041 or equivalent).
- Stuck Actuator Plunger: Mineral accumulation or iron corrosion inside the stainless steel plunger sleeve can bind the internal return spring. Remove the solenoid, extract the plunger, and submerge in a descaling solution.
- Over-Tightened Flow Control Stem: Verify that the flow control knob is not fully screwed down clockwise against the top diaphragm stop ring, which physically locks the valve shut regardless of solenoid activity.
Orbit Sprinkler Valve Assembly and Maintenance FAQ
How do I test the solenoid coil using a digital multimeter?
Set your digital multimeter to measure Resistance (Ohms Ω). Disconnect the two solenoid lead wires from the field splices. Place one meter probe on each lead wire. A functional Orbit 24VAC solenoid will register between 20 and 60 Ohms. A reading near zero indicates a shorted coil, while a reading showing “OL” or infinite resistance indicates a broken internal winding.
Can I replace an Orbit valve diaphragm without removing the valve body from the pipe manifold?
Yes. Top-tier serviceability is a key feature of Orbit jar-top and 6-bolt inline valves. Shut off the main water supply, vent line pressure using the external bleed screw, and unscrew either the threaded jar-top ring or the six Phillips-head bonnet screws. Remove the bonnet assembly to directly access and replace the internal diaphragm and spring sub-assembly without disturbing the glued or threaded pipe connections.
What causes water to leak continuously from the valve bonnet external bleed screw?
Continuous leakage around the bleed screw stem typically indicates a worn, torn, or flattened internal nitrile O-ring beneath the screw head. Unscrew the bleed stem fully, inspect the seal for flat-spotting or chemical degradation, replace the O-ring with an identical UV-resistant synthetic rubber ring, and hand-tighten until snug. Avoid over-torquing, which strips the plastic bonnet threads.
Are Orbit jar-top valve replacement parts interchangeable with standard screw-top bonnets?
Orbit jar-top valve components (such as the 57200 series) are interchangeable across identical valve body casing sizes within the same product line generation. However, internal components from jar-top models are not compatible with 6-bolt square-bonnet models (57100 series) due to differences in diaphragm diameter, metering pin alignment positions, and upper chamber fluid volume specifications.
Step-by-Step Guide to Understanding the Orbit Sprinkler Valve Parts Diagram
Identify – Turn off the main irrigation water supply and shut down controller power to the specific valve zone.
Locate – Find the solenoid, bleed screw, and bonnet screws on your valve by matching them to the diagram layout.
Reference – Consult the diagram stack order before removing the bonnet screws, spring, and diaphragm from the valve body.
Connect/Route – Install the replacement diaphragm and spring into the body structure, ensuring proper seating along the sealing lip.
Verify – Reattach the bonnet, hand-tighten screws in a crisscross pattern, reconnect the 24V solenoid leads, and restore water pressure to test seal integrity.
Troubleshoot – If water continuously leaks past the valve, inspect the diaphragm metering port for grit or replace the rubber membrane assembly.
