The Navistar DT466 fuel system diagram shows fuel flow from the tank, via the lift pump and filters, to the high-pressure fuel pump (HPFP). The HPFP, controlled by the injection pressure regulator (IPR), delivers fuel to injectors. Excess fuel returns through the fuel return line and fuel bowl.
📌 Key Takeaways
- DT466 fuel injection pressure can exceed 25,000 PSI in common rail systems, requiring specialized tools for diagnosis.
- The high-pressure oil pump (HPOP) on earlier DT466 E-series engines powers HEUI injectors; later models use common rail fuel systems.
- Always relieve fuel system pressure before servicing, especially near high-pressure lines, to prevent serious injury.
- A clogged fuel filter or air in the fuel system (often due to faulty fuel return line check valves or fuel bowl leaks) is a common cause of DT466 performance issues.
- DIY replacement of fuel filters or the lift pump is feasible, but high-pressure system diagnosis and HPFP replacement typically require professional expertise and specialized tools.
The Navistar DT466 engine, a cornerstone of medium-duty commercial vehicles, relies on a robust and meticulously engineered fuel system to deliver consistent power and efficiency. Understanding the intricacies of the Navistar DT466 fuel system diagram is paramount for accurate diagnostics, effective maintenance, and successful repairs. This detailed analysis will guide you through its primary components, their functions, common failure points, and specific repair procedures, ensuring you maintain optimal engine performance. This diagram represents the common HEUI (Hydraulically Actuated Electronically Controlled Unit Injector) fuel system found in many DT466 variations from the late 1990s through the early 2000s, though year-specific configurations may vary.
FUEL SYSTEM COMPONENTS BREAKDOWN

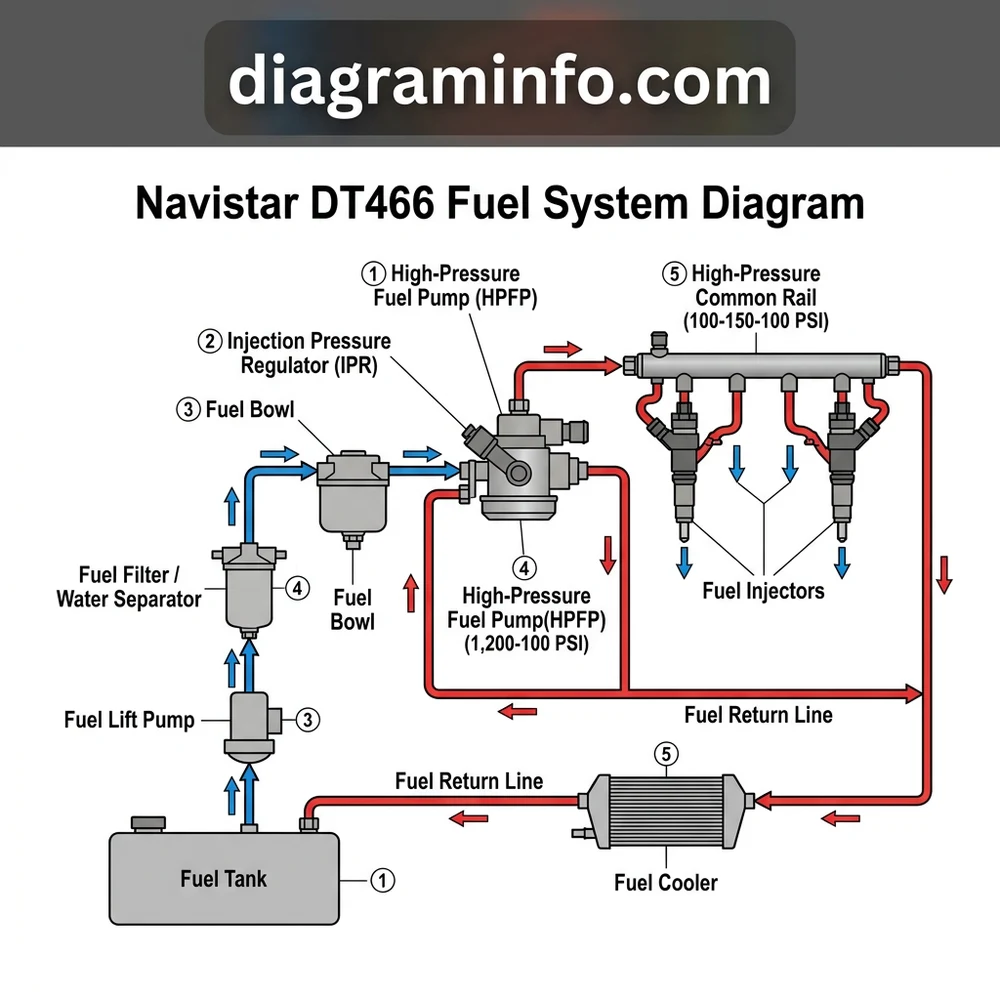

The Navistar DT466 fuel system, as illustrated in the Navistar DT466 fuel system diagram above, is a sophisticated assembly designed for precise fuel delivery under varying engine loads. Each component plays a critical role in this process:
| Component | Function | Notes/DT466 Specifics |
|---|---|---|
| Fuel Tank | Stores diesel fuel. | Often includes a pickup tube and sending unit. |
| Fuel Heater | Prevents fuel gelling in cold weather. | Typically integrated into the fuel filter housing or pre-filter assembly. |
| Fuel Cooler | Cools excess fuel returning from the engine. | Crucial for maintaining fuel density and preventing vapor lock, especially with high-pressure systems. |
| Primary Fuel Filter/Water Separator | Removes large contaminants and separates water from the fuel. | Essential first line of defense for fuel system longevity. |
| Lift Pump (Fuel Transfer Pump) | Draws fuel from the tank and supplies it to the fuel bowl. | Mechanical (cam-driven) or electric, depending on model year. |
| Fuel Bowl (Secondary Filter Housing) | Houses the secondary fuel filter, often includes a primer pump and pressure regulator. | Central hub for low-pressure fuel management on the engine. |
| Primer Pump | Manually primes the fuel system after filter changes or air intrusion. | Integral part of the fuel bowl assembly on most DT466 models. |
| Secondary Fuel Filter | Provides fine filtration before fuel enters the High Pressure Fuel Pump (HPFP). | Typically 2-5 micron filtration. Critical for protecting the HPFP and injectors. |
| Fuel Pressure Regulator | Maintains consistent fuel pressure within the fuel bowl (approx. 45-75 PSI). | Often located on the fuel bowl, ensuring adequate supply to the HPFP. |
| High Pressure Fuel Pump (HPFP) | Elevates fuel pressure to the injection gallery. | On HEUI systems, this is a gear-driven pump that then routes fuel to the injectors. Not to be confused with the high-pressure oil pump (HPOP). |
| Fuel Injection Gallery/Rail | Distributes high-pressure fuel to each injector. | Integrated within the cylinder head on most DT466 HEUI engines. |
| Fuel Injectors | Atomize and inject fuel directly into the combustion chamber. | Electronically controlled (HEUI) on most later models. |
| Fuel Return Line | Carries unused fuel and excess heated fuel back to the tank. | Helps cool the system and prevent vapor lock. Often routed through the fuel cooler. |
| Injection Pressure Regulator (IPR) Valve | Controls the high-pressure oil circuit that actuates the fuel injectors. | Crucial for HEUI systems. Regulates pressure output from the HPOP. |
While the Navistar DT466 fuel system diagram primarily depicts the fuel flow, it’s critical to remember that HEUI systems intricately link the high-pressure oil system to fuel injection. The Injection Pressure Regulator (IPR) valve, often located on the High Pressure Oil Pump (HPOP), is a common source of fuel-related symptoms due to its direct control over injector actuation.
COMMON FAILURE POINTS & SYMPTOMS
Diagnosing issues within the Navistar DT466 fuel system requires a systematic approach. Understanding typical failure points and their associated symptoms is key to efficient troubleshooting.
1. Lift Pump Failure (Mechanical or Electric):
Symptoms: Hard starting (especially after sitting), low power, engine dying under load, no fuel pressure at the fuel bowl.
Diagnosis: Monitor fuel pressure at the fuel bowl (specification: 45-75 PSI at idle). A failed lift pump will show significantly lower or no pressure. Check for fuel flow directly from the pump. For mechanical pumps, inspect for cam lobe wear; for electric pumps, check voltage supply and ground at the pump.
Internal Link: For detailed diagnostic procedures on DT466 electrical sensors, consult our dedicated guide on DT466 Sensor Diagnostics.
2. Clogged Fuel Filters (Primary or Secondary):
Symptoms: Reduced engine power, stumbling or hesitation under acceleration, hard starting, frequent regeneration (if equipped with DPF), potential diagnostic trouble codes (DTCs) for low fuel pressure.
Diagnosis: Visually inspect filters for debris. Check fuel pressure before and after the secondary filter – a significant pressure drop across the filter indicates clogging.
Manufacturer specs indicate fuel filters should be replaced at intervals specified in your owner’s manual or maintenance schedule, typically every 15,000 to 30,000 miles, or annually, whichever comes first.
3. Air Intrusion (Leaking Fuel Lines, Loose Fittings, Faulty Primer Pump):
Symptoms: Hard starting, excessive cranking, rough idle, white smoke (unburnt fuel), fuel draining back to the tank overnight.
Diagnosis: Inspect all fuel lines, fittings, and the fuel bowl for visible leaks. Use a clear hose in the supply line to observe air bubbles. The primer pump on the fuel bowl is a common culprit for drawing air if its seals are compromised. Perform a fuel system pressure test or vacuum test.
4. Injection Pressure Regulator (IPR) Valve Failure:
Symptoms: No start/hard start, rough idle, reduced power, stalling, “check engine” light with DTCs related to injection pressure (e.g., P1211, P1212).
Diagnosis: Monitor IPR duty cycle and Injection Control Pressure (ICP) with a diagnostic scanner. A faulty IPR may show fluctuating or incorrect ICP readings. The IPR solenoid can fail electrically, or the valve itself can stick due to debris or wear.
OEM specifications for IPR duty cycle typically range from 8-15% at idle (no load) and can increase significantly under load, while ICP should be above 500 PSI for starting.
5. Faulty Fuel Pressure Regulator (on Fuel Bowl):
Symptoms: Low fuel pressure leading to hard starting and low power (if stuck open), or excessively high fuel pressure causing fuel system strain (if stuck closed, less common).
Diagnosis: Measure fuel pressure at the fuel bowl. If pressure is consistently outside the 45-75 PSI range, the regulator is suspect.
6. High Pressure Fuel Pump (HPFP) Issues:
Symptoms: Similar to a clogged filter or lift pump – low power, hard start, engine dying, but typically fuel bowl pressure will be adequate.
Diagnosis: This pump rarely fails, but if it does, it often manifests as a lack of fuel flow to the injectors, despite good supply pressure to the HPFP. This requires specialized diagnosis or replacement as a last resort.
Always depressurize the fuel system and disconnect the battery before performing any service. Diesel fuel is highly flammable, and fuel under pressure can cause serious injury. Wear appropriate PPE, including eye protection and fuel-resistant gloves.
REPAIR & REPLACEMENT STEPS: Injection Pressure Regulator (IPR) Valve
The Injection Pressure Regulator (IPR) valve is a critical component in the DT466 HEUI fuel system. Its failure can lead to severe operational issues. This procedure outlines the replacement of a typical IPR valve on a DT466 engine.
Tools & Materials Required:
New Navistar IPR Valve (P/N: 1841217C91 or equivalent, verify for your specific model year)
30mm (or 1-3/16 inch) IPR socket (specialized tool)
Ratchet and extensions
Torque wrench (capable of 30-35 lb-ft)
Clean shop rags
Brake cleaner or equivalent degreaser
Fluid drain pan
Diagnostic scanner (for post-repair validation)
Procedure:
1. Preparation and Safety:
Park the vehicle on a level surface and engage the parking brake.
Disconnect both negative battery terminals to prevent accidental engine cranking or electrical shorts.
Allow the engine to cool sufficiently, as the IPR valve can be hot and surrounded by hot engine oil.
2. Locate and Access the IPR Valve:
The IPR valve is typically located on the rear of the High Pressure Oil Pump (HPOP), often on the top passenger side of the engine. On some models, it might be partially obscured by other components or wiring harnesses. You may need to remove air intake piping or other minor obstructions for clear access.
Identify the two-wire electrical connector leading to the IPR valve. The wire colors are typically light blue with a white stripe (power) and a black wire (ground), though this can vary slightly by model year.
3. Disconnect Electrical Connector:
Carefully depress the locking tab on the IPR electrical connector and pull it straight off the valve. Inspect the connector and wiring for any signs of corrosion or damage.
4. Remove the IPR Valve:
Place a drain pan beneath the IPR valve area to catch any oil that may drip out when the valve is removed.
Using the specialized 30mm IPR socket and ratchet/extension, carefully loosen and unscrew the IPR valve. It will be threaded into the HPOP housing.
Once loose, extract the valve by hand. Expect some engine oil to drain out as the valve is removed.
5. Inspect Old and New IPR Valve:
Compare the old IPR valve with the new replacement to ensure they are identical.
Inspect the O-rings on the new valve for any damage or imperfections. Ensure the screen at the tip of the new valve is clean and intact. If the old valve’s screen is clogged with debris, it may indicate larger issues within the high-pressure oil system.
6. Install the New IPR Valve:
Lightly lubricate the O-rings on the new IPR valve with clean engine oil.
Thread the new IPR valve into the HPOP housing by hand, ensuring it starts smoothly and is not cross-threaded.
Once hand-tight, use the IPR socket and torque wrench to tighten the valve to 30-35 lb-ft (41-47 Nm). Over-tightening can damage the valve or the HPOP housing.
7. Reconnect Electrical Connector:
Plug the electrical connector firmly back onto the new IPR valve until you hear a positive click, indicating it is properly seated and locked.
8. Final Checks and System Priming:
Clean up any spilled oil from the engine area using degreaser.
Reconnect the negative battery terminals.
Cycle the key to the ON position (without starting) several times, waiting a few seconds between cycles. This allows the low-pressure fuel pump and, more importantly, the HPOP to re-prime the system.
Attempt to start the engine. It may take a few extra cranks to build sufficient oil pressure for the HEUI system to actuate the injectors. Do not crank continuously for more than 15-20 seconds; allow the starter to cool between attempts.
9. Post-Repair Validation:
Once the engine starts, let it idle. Use your diagnostic scanner to monitor the ICP (Injection Control Pressure) and IPR duty cycle.
Verify that the ICP builds correctly and holds steady at idle (typically around 580-650 PSI).
Check for any new or cleared DTCs. A successful repair should result in the absence of IPR-related codes.
Perform a test drive to confirm proper engine performance under various loads.
* Internal Link: Understanding the nuances of oil systems in Navistar engines is crucial; explore our article on DT466 Lube System Explained.
IPR Valve Torque: 30-35 lb-ft (41-47 Nm). Always refer to the specific Navistar service manual for your engine’s model year for exact torque values and part numbers, as specifications can vary.
FAQ
What is the typical fuel pressure for a Navistar DT466 fuel system?
According to OEM specifications for most DT466 HEUI systems, the low-pressure fuel system (measured at the fuel bowl outlet or pre-HPFP) should maintain approximately 45-75 PSI (310-517 kPa) at idle and under load. This ensures adequate fuel supply to the High Pressure Fuel Pump (HPFP) and prevents cavitation. If your readings are consistently outside this range, investigate the lift pump or fuel pressure regulator.
How often should I replace the fuel filters on my DT466?
Navistar generally recommends replacing the primary and secondary fuel filters every 15,000 to 30,000 miles, or at least annually, whichever comes first. However, operating conditions such as fuel quality and usage (e.g., severe duty cycles) can necessitate more frequent changes. Always refer to your vehicle’s specific maintenance schedule. Skipping filter changes is a common cause of premature fuel system component failure.
Internal Link: Component wear rates often dictate maintenance schedules; find specifics on typical DT466 Maintenance Intervals for your model year.
What role does the fuel cooler play in the DT466 fuel system?
The fuel cooler, clearly shown in the Navistar DT466 fuel system diagram, is crucial for reducing the temperature of the excess fuel returning from the engine to the fuel tank. During the injection process, fuel absorbs heat from the engine. If this hot fuel is not cooled, it can lead to reduced fuel density, vapor lock issues, and potential damage to fuel system components over time. It helps maintain optimal fuel viscosity and prevents premature wear.
My DT466 has a hard start condition; where should I begin troubleshooting the fuel system?
For a hard start on a DT466, begin by checking for adequate low-pressure fuel supply. First, ensure the fuel tank is not near empty and that the primer pump on the fuel bowl can build pressure. Then, measure fuel pressure at the fuel bowl; if it’s below 45 PSI, suspect the lift pump or a clogged primary filter. Next, utilize a diagnostic scanner to monitor Injection Control Pressure (ICP) and IPR duty cycle. Insufficient ICP (below ~500 PSI during cranking) will prevent starting, pointing towards issues with the High Pressure Oil Pump (HPOP), IPR valve, or oil leaks within the high-pressure oil system. Air intrusion in the fuel lines is another very common cause.
Internal Link: If you’re delving into advanced diagnostics, our resource on Navistar Diagnostic Trouble Codes offers comprehensive insights.
Step-by-Step Guide to Understanding the Dt466 Navistar Fuel System Diagram: Component & Repair Guide 2026
Identify – Locate the specific component on the diagram, such as the high-pressure fuel pump (HPFP) or fuel return line.
Locate – Find the corresponding physical component on the actual engine, referencing the diagram’s layout for accurate placement.
Reference – Consult the diagram for fuel flow paths, connection points, pressure sensor locations, and specific routing relevant to your repair or diagnosis.
Connect/Route – If replacing parts, ensure new components are connected correctly, and fuel lines follow the diagram’s specified routing to prevent kinks or leaks.
Verify – After any work, check for leaks, confirm proper fuel pressure (using a gauge), and ensure the engine starts and runs smoothly without air in the fuel system.
Troubleshoot – If issues persist, re-examine the diagram for potential overlooked connections or flow restrictions, then reference diagnostic procedures for specific DTCs or symptoms.
Frequently Asked Questions
What are the main components of the navistar dt466 fuel system diagram?
The main components of the DT466 fuel system include the lift pump, primary/secondary fuel filters, high-pressure fuel pump (HPFP), injection pressure regulator (IPR), fuel rail, and injectors. The fuel return line and fuel bowl are essential for recirculation and air separation.
What are symptoms of a failing navistar dt466 fuel system diagram pump?
Symptoms of a failing DT466 HPFP include hard starts, no-start conditions, reduced engine power, rough idling, and black smoke. You might also see low fuel rail pressure DTCs. A faulty injection pressure regulator (IPR) can often present similar symptoms.
How do I diagnose a fuel leak in navistar dt466 fuel system diagram?
To diagnose a DT466 fuel leak, visually inspect all fuel lines, including the fuel return line, connections, and the fuel filter housing for signs of wetness. A fuel system pressure test can identify pressure drops, or a UV dye can help locate elusive leaks. Check fuel bowl integrity.
What is the fuel pressure spec for navistar dt466 fuel system diagram?
For the DT466, low-pressure fuel (lift pump) typically ranges from 40-60 PSI. High-pressure common rail systems operate much higher, from 3,000-25,000 PSI, managed by the injection pressure regulator. HEUI systems use high oil pressure to actuates injectors, not fuel pressure directly.
How long does navistar dt466 fuel system diagram fuel pump last?
A Navistar DT466 high-pressure fuel pump (HPFP) can last 150,000 to 300,000 miles or more. Its longevity depends heavily on fuel quality, consistent fuel filter changes, and avoiding contamination. Poor fuel quality or neglected maintenance will significantly reduce its lifespan.
Can I replace the navistar dt466 fuel system diagram fuel filter myself?
Yes, replacing the DT466 fuel filter is generally a DIY task. Ensure you have the correct filter, an oil filter wrench, and a drain pan. Remember to properly prime the fuel system afterward to remove air, particularly from the fuel bowl, preventing hard starting or damage.
