Cummins Fuel Shut Off Solenoid Diagram: Troubleshooting Guide 2026

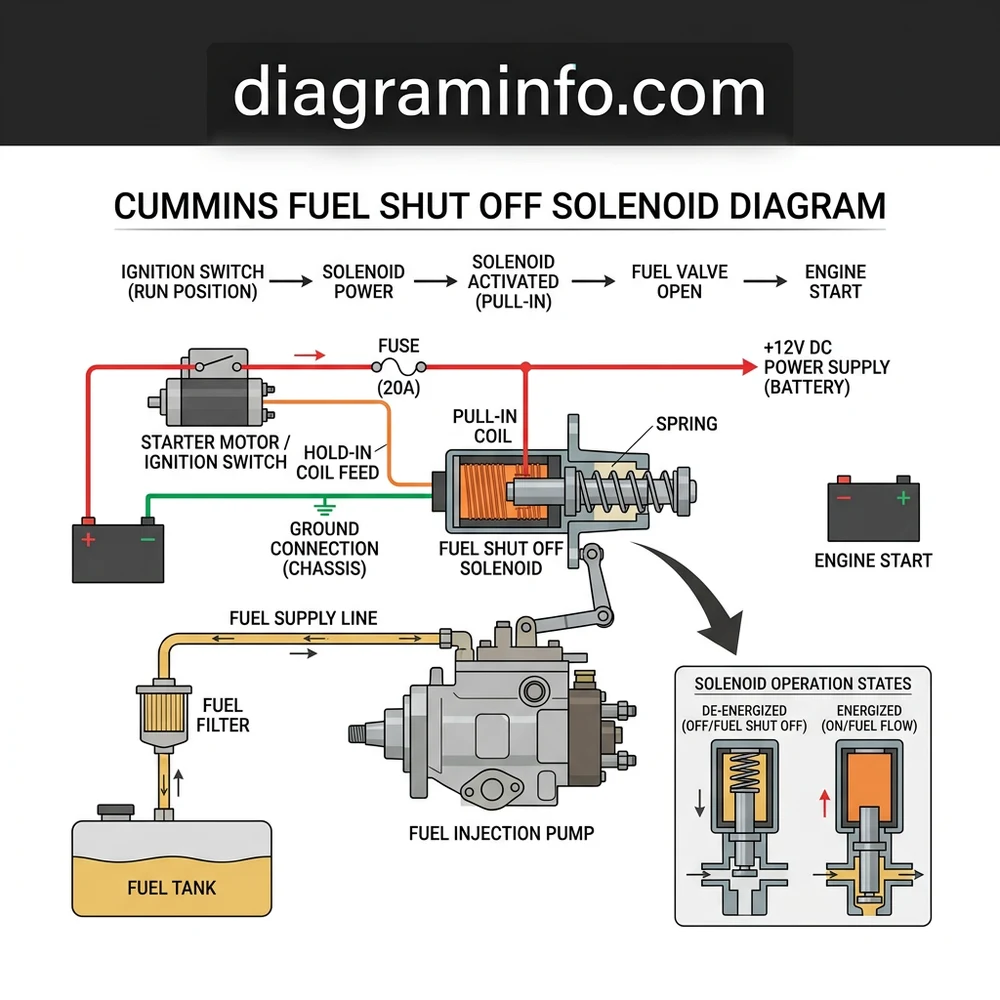

Understanding the Cummins fuel shut off solenoid diagram is fundamental for any technician or equipment owner involved in the maintenance and repair of Cummins diesel engines. This critical component, often overlooked until failure, dictates the flow of fuel to the injection pump, directly controlling engine start-up and shutdown. A detailed diagram provides an indispensable overview of its electrical layout and operational configuration, enabling precise diagnostics and effective servicing. This article will dissect the solenoid’s function, guide you through interpreting its schematic, and offer practical troubleshooting steps to ensure reliable engine performance.

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

Component Breakdown

A comprehensive blueprint of the Cummins fuel shut off solenoid system reveals several interconnected components, each playing a vital role in its operation. At the core is the Fuel Shut Off Solenoid (FSOS) itself, typically mounted directly to the fuel injection pump (FIP), such as the Bosch VE, P7100, or VP44 pumps commonly found on Cummins B Series (4BT, 6BT) and C Series engines. The FSOS consists of an electromagnetic coil assembly, a movable plunger, and a return spring. The coil assembly is usually a dual-coil structure: a high-current “pull” coil and a lower-current “hold” coil. When energized, the “pull” coil rapidly retracts the plunger, allowing fuel to flow to the FIP. Once retracted, the “hold” coil maintains the plunger in position with significantly less current, preventing overheating.

The electrical layout involves several supporting components. Power originates from the vehicle’s battery (12V or 24V, depending on the application), routed through an ignition switch and often a dedicated fuse (e.g., 20A-30A). A relay is almost universally employed to control the high current required by the pull coil, isolating it from the ignition switch. This relay is typically a 4- or 5-pin SPDT (Single Pole Double Throw) type, receiving a trigger signal from the ignition switch. The wiring harness connects these components, usually featuring distinct wire colors for power, ground, and the pull/hold coil connections. For instance, in many Cummins applications, a red wire might indicate the main power input to the solenoid, while a black wire serves as the ground, and specific colored wires (e.g., yellow for pull, green for hold) connect to the respective coils. Understanding this electrical configuration is paramount for diagnosing circuit integrity and component functionality. The diagram illustrates how these discrete parts form a cohesive system, ensuring precise control over fuel delivery to the FIP, which is a key aspect for engine start and stop.

Step-by-Step Guide

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

Interpreting the Cummins fuel shut off solenoid diagram begins with understanding standard electrical schematic symbols. Coils are represented by a series of loops, switches by breaks in a line, and relays by a combination of a coil and switch contacts. Fuses are typically shown as a wavy line or a box with a line through it. Your diagram will show the battery as the power source, leading to the ignition switch, then usually through a fuse, and subsequently to a relay before reaching the solenoid.

To read the diagram effectively, trace the power flow:

1. Battery to Ignition Switch: Follow the heavy gauge wire from the battery’s positive terminal to the ignition switch.
2. Ignition Switch to Relay Trigger: When the key is turned to the “RUN” or “ON” position, 12V or 24V (depending on the system) is supplied to the trigger terminal of the solenoid relay (often terminal 86 on a Bosch-style relay).
3. Relay Activation: This energizes the relay’s internal coil, closing its contacts. Simultaneously, the main power feed to the relay (often terminal 30, directly from the battery via a fuse) is now connected to the output terminal (often terminal 87).
4. Relay to Solenoid Pull Coil: The output from terminal 87 of the relay is routed to the “pull” terminal of the FSOS. According to OEM specs for many 6BT applications, the pull coil wire might be yellow. This delivers a high momentary current (typically 20-30 amps for a 12V system) to rapidly retract the solenoid plunger, allowing fuel flow to the FIP.
5. Solenoid Hold Coil: As the plunger reaches its fully retracted position, an internal switch (or a timed circuit within the relay/ECM) typically transitions power to the “hold” coil. This coil requires significantly less current (usually 1-2 amps) to maintain the plunger in the open position, preventing the pull coil from overheating and burning out. The hold coil wire could be green in some configurations.
6. Ground Path: Both the pull and hold coils must have a solid ground connection, typically a black wire or via the solenoid’s mounting to the engine block. Verify continuity to a known good ground point using a multimeter.

When installing a new solenoid, ensure correct wire identification using the diagram. Manufacturer specs indicate that the mounting bolts for the solenoid should be torqued to approximately 18-22 ft-lbs (24-30 Nm) to ensure a secure, vibration-resistant connection without damaging the solenoid housing or the FIP. For detailed information on diagnosing fuel delivery issues, refer to our comprehensive guide on Cummins fuel system diagnostics.

Troubleshooting

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

Troubleshooting a faulty Cummins fuel shut off solenoid often boils down to diagnosing electrical pathway integrity and the mechanical function of the solenoid plunger. The diagram is your primary tool for pinpointing potential failure points.

Common Symptoms and Diagnostic Steps:

1. Engine Cranks, No Start:
   • Symptom: Engine spins but does not fire, indicating no fuel.
   • Diagnosis:
     1. Turn the key to the “RUN” position (without cranking). Listen for an audible “click” from the solenoid. If no click, check for voltage at the solenoid’s pull coil terminal using a multimeter. You should see battery voltage (12V or 24V) momentarily, then drop to hold voltage.
     2. If no voltage, trace back through the diagram: check the fuse for continuity, test the relay for proper switching (apply 12V/24V to its trigger terminals and listen for a click, then test continuity across its switched terminals), and inspect the ignition switch output.
     3. If voltage is present but no click, the solenoid itself is likely faulty (open coil, seized plunger).
2. Engine Starts, Then Dies Immediately:
   • Symptom: Engine fires momentarily, then stalls.
   • Diagnosis: This often points to the “hold” coil failing. The pull coil extends the plunger, but the hold coil cannot maintain it.
   • Test the hold coil circuit. With the engine running, measure voltage at the hold coil terminal; it should be continuous battery voltage or slightly lower. If voltage is present, but the solenoid retracts, the hold coil is likely open or shorted internally.
3. Engine Won’t Shut Off:
   • Symptom: Engine continues to run after the key is turned to the “OFF” position.
   • Diagnosis:
     1. This suggests the solenoid plunger is stuck in the “open” (fuel flow) position, or the solenoid is continuously receiving power.
     2. Check for continuous voltage at both the pull and hold coil terminals with the key OFF. If voltage is present, trace back through the relay and ignition switch using the diagram. A stuck relay or a short in the ignition wiring could be the culprit.
     3. If no voltage is present, the solenoid plunger is mechanically stuck due to internal corrosion or debris.
4. Solenoid Buzzing/Humming:
   • Symptom: A continuous buzzing noise from the solenoid.
   • Diagnosis: Usually indicates insufficient voltage reaching the hold coil, causing it to rapidly cycle on and off, or mechanical resistance preventing the plunger from fully seating. Check for voltage drops across the wiring or faulty connections, as well as binding of the plunger.

Year-specific notes are crucial here. Older mechanical Cummins engines (e.g., pre-1998 12-valve 6BT) typically use a straightforward, relay-driven solenoid as depicted. Newer 24-valve engines (e.g., Cummins ISB, ISC) often integrate the solenoid control into the ECM, making diagnostics more reliant on scan tools and ECM-specific wiring diagrams. Understanding the nuances of your specific Cummins engine’s wiring diagram is crucial; explore our resource on Cummins wiring harness identification.

FAQ

What is the primary function of the two coils (pull and hold) in a Cummins fuel shut off solenoid?

The two coils serve distinct but complementary purposes. The “pull” coil is a high-current winding designed to

How can I test a Cummins fuel shut off solenoid without removing it from the engine?

To test the solenoid in situ, first ensure the battery is fully charged. Turn the ignition key to the “RUN” position. You should hear a distinct “click” from the solenoid as its plunger retracts. If you don’t hear a click, use a multimeter to check for voltage at the solenoid’s electrical connector (typically the main power input and then the hold terminal). You should see battery voltage (12V or 24V) present. If voltage is present but there’s no click, the solenoid is likely faulty. If no voltage, trace the circuit back through the fuse and relay using the schematic diagram. You can also carefully observe the plunger movement on some solenoid designs if the access allows.

What are the typical electrical specifications for a Cummins fuel shut off solenoid?

The electrical specifications vary depending on the engine model and voltage system (12V or 24V). Generally, for a 12V system: the pull coil typically draws between 20-30 amps momentarily during actuation, and its resistance might be very low (e.g., 0.5-1.5 ohms). The hold coil draws a continuous current of 1-2 amps, with a higher resistance (e.g., 5-15 ohms). For 24V systems, currents will be approximately half, and resistances double. Always refer to the manufacturer’s specific documentation or the component’s part number for precise values.

Can a faulty fuel shut off solenoid directly cause a no-start condition?

Yes, absolutely. A faulty fuel shut off solenoid is one of the most common causes of a no-start condition in Cummins diesel engines. If the solenoid fails to retract its plunger when the ignition is turned on, it prevents the flow of fuel from the lift pump to the fuel injection pump. Without fuel reaching the injectors, the engine will crank but will not fire. Diagnosing this involves confirming electrical power to the solenoid and verifying its mechanical movement, as outlined in the troubleshooting section. For deeper insights into the intricacies of Cummins engine components, our article on Cummins P7100 pump adjustments provides valuable context.

Are there different types of Cummins fuel shut off solenoids?

Yes, several variations exist. The most common distinction is between external solenoids, which are bolted onto the side of the fuel injection pump (e.g., many Bosch VE and P7100 pumps), and internal solenoids, which are sometimes integrated within the pump housing (more common on some later electronic pumps). Additionally, they can vary by voltage (12V or 24V), connector type, mounting configuration, and plunger stroke length, all of which are engine-specific. Always use the correct replacement part number for your specific Cummins engine application to ensure compatibility and proper function. The structure and layout may differ significantly between these types.
