4.6 Ford Fuel System Diagram: Component Breakdown 2026
The 4.6 Ford fuel system typically includes a tank-mounted low-pressure pump, a fuel filter, and a high-pressure fuel pump (HPFP) for direct injection systems, or a single high-pressure pump for port injection. Fuel is delivered via supply lines, with a fuel return line managing excess pressure, often regulated by an injection pressure regulator or fuel bowl.
📌 Key Takeaways
- Typical 4.6 Ford fuel pressure ranges from 30-45 PSI, depending on the year and injection type.
- Identify fuel return lines and supply lines correctly before servicing to prevent serious damage.
- Always disconnect the battery and relieve fuel pressure before working on the fuel system for safety.
- The most common failure points are often the in-tank fuel pump or clogged fuel filter, impacting overall performance.
- Seek professional help for persistent misfires or complex fuel system diagnostics requiring specialized tools like an advanced scanner.
The Ford 4.6L Modular V8 engine, found in a vast array of Ford and Lincoln vehicles from the mid-1990s through the late 2000s, utilizes a robust and generally reliable multi-port fuel injection system. This technical article, augmented by the accompanying 4.6 Ford fuel system diagram, provides an in-depth exploration of its architecture, component functions, common failure modes, and essential service procedures. Understanding this system is crucial for accurate diagnostics and efficient repairs, ensuring optimal engine performance and fuel efficiency.

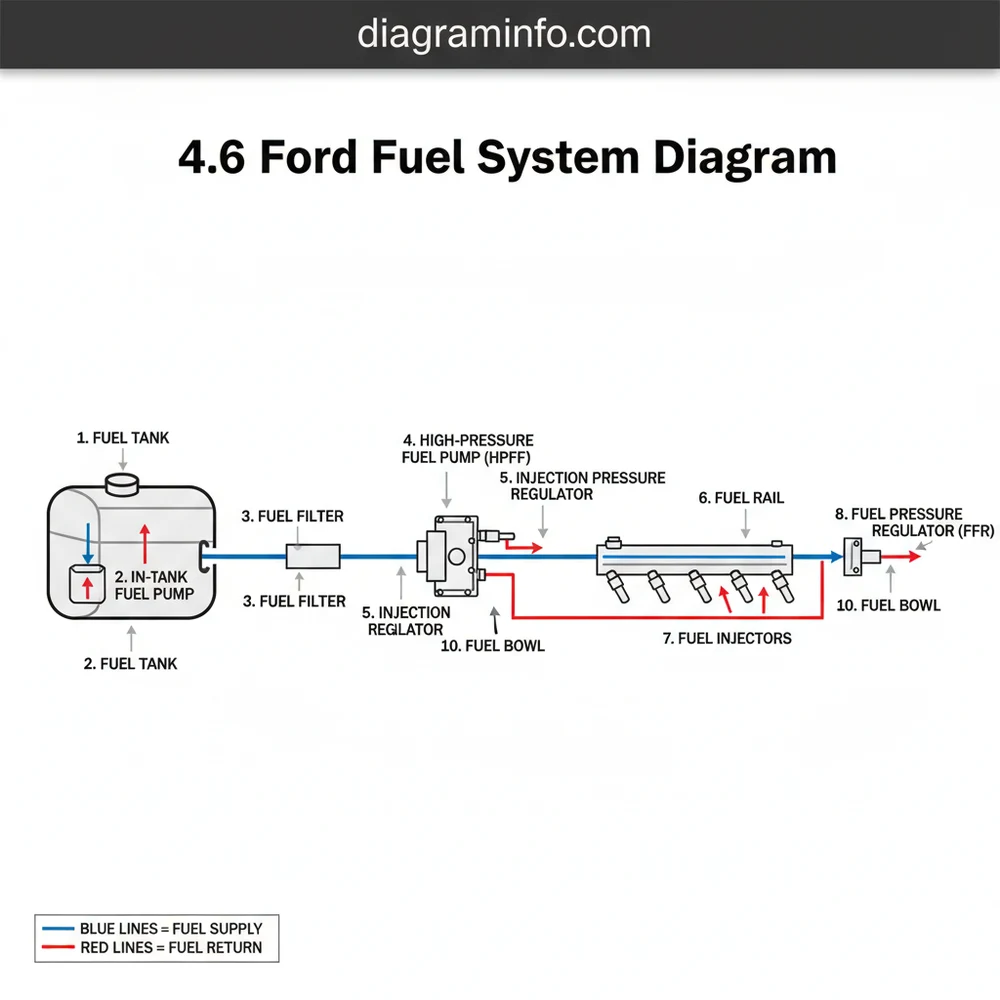

(Imagine a detailed technical diagram here, illustrating the 4.6 Ford fuel system from tank to injectors, including lines, filter, pump, regulator/FPDM, and EVAP connections.)
Key areas highlighted: Fuel Tank, In-Tank Fuel Pump Module, Fuel Filter, Fuel Supply Line, Fuel Rail, Fuel Injectors, Fuel Pressure Regulator (FPR) or Fuel Pump Driver Module (FPDM), Fuel Return Line (if applicable), EVAP Canister, Purge Valve.
Fuel System Components Breakdown
The 4.6L Ford fuel system is a precisely engineered network designed to deliver fuel at the correct pressure and volume to the engine’s injectors. While early versions (pre-1999) typically employed a return-style system, later models predominantly feature a returnless design utilizing a Fuel Pump Driver Module (FPDM) for pressure regulation.
- Fuel Tank: The primary storage reservoir for gasoline. It includes internal baffling to prevent fuel slosh and often integrates the fuel pump module. The tank also incorporates a filler neck, fuel level sending unit, and connections for the evaporative emission (EVAP) system.
- In-Tank Fuel Pump Module: This assembly typically houses the electric low-pressure fuel pump, a fuel strainer (sock filter), and the fuel level sending unit. Its function is to draw fuel from the tank and push it through the supply line towards the engine. Unlike diesel systems that might incorporate a primer pump or a fuel bowl for fuel conditioning, the 4.6L system relies solely on this electric pump for initial pressurization.
- Fuel Filter: A critical inline component positioned between the fuel tank and the engine. Its purpose is to trap contaminants such as rust, dirt, and debris before they can reach the delicate fuel injectors or the fuel pressure regulator. Regular replacement is essential for system longevity.
- Fuel Supply Line: This high-pressure line transports filtered fuel from the tank to the engine’s fuel rail. Constructed from durable materials, it’s designed to withstand sustained pressure and exposure to gasoline.
- Fuel Rail: A manifold that distributes pressurized fuel equally to each fuel injector. It’s designed to maintain consistent pressure across all cylinders, ensuring uniform fuel delivery.
- Fuel Injectors: Electrically actuated solenoids that spray a precisely atomized mist of fuel directly into the intake manifold runners (port injection) or directly into the combustion chamber (direct injection, which the 4.6L does not use, thus eliminating the need for a high pressure fuel pump (HPFP) found in those systems). Each injector is commanded by the Powertrain Control Module (PCM) to open for a specific duration (pulse width).
- Fuel Pressure Regulator (FPR) / Fuel Pump Driver Module (FPDM):
- FPR (Return-Style Systems): Mounted on the fuel rail, this vacuum-referenced device maintains a constant pressure differential across the injectors. Excess fuel is routed back to the tank via the fuel return line, as seen in earlier 4.6L diagrams. The FPR acts as an injection pressure regulator for the system.
- FPDM (Returnless Systems): Found on later 4.6L models, often mounted near the spare tire or under the vehicle. The FPDM receives a fuel pressure request signal from the PCM and modulates the voltage to the in-tank fuel pump to achieve the desired pressure. This eliminates the need for a physical return line from the engine compartment, improving efficiency and reducing evaporative emissions.
- Fuel Return Line: Present only in return-style systems. It channels excess fuel from the fuel pressure regulator back to the fuel tank. This line is typically smaller in diameter than the supply line. As shown in the diagram, its presence dictates the type of pressure regulation employed.
- Evaporative Emission (EVAP) System: While not directly part of the fuel delivery path, the EVAP system works in conjunction with the fuel tank to capture and store fuel vapors, preventing their release into the atmosphere. Key components include the charcoal canister, purge valve (controlled by the PCM), and vent valve. The 4.6L fuel system diagram often integrates EVAP system connections for completeness.
The 4.6L Ford engine employs multi-port fuel injection (MPFI) rather than direct injection (DI). This distinction means it utilizes a single low-pressure electric fuel pump in the tank and does not require a dedicated High Pressure Fuel Pump (HPFP) or ancillary components like a fuel cooler or fuel heater often found in DI gasoline or diesel applications.
Common Failure Points & Symptoms
Understanding potential failure points in the 4.6L Ford fuel system is critical for accurate diagnosis. Here are some common issues:
- Fuel Pump Failure:
- Symptom: Engine cranks but won’t start, extended cranking time, engine stalling after starting, loss of power under acceleration (especially uphill), whining noise from the fuel tank area.
- Diagnosis: Verify proper voltage at the fuel pump connector (e.g., using a multimeter, checking for ~12V during prime and crank). Perform a fuel pressure test at the Schrader valve on the fuel rail. OEM specifications typically indicate a pressure range of 30-40 psi for return-style systems and 35-45 psi for returnless systems with the engine running. Consult your specific vehicle’s service manual for precise values.
- Clogged Fuel Filter:
- Symptom: Engine hesitation or stuttering under load, reduced power, poor acceleration, rough idle, engine stalling at higher RPMs.
- Diagnosis: A visual inspection may show a dirty filter housing, but a fuel pressure drop across the filter is the definitive test. If the pressure at the rail is low but the pump is receiving adequate voltage, a restricted filter is highly probable.
- Faulty Fuel Pressure Regulator (FPR – Return-Style) or FPDM (Returnless-Style):
- Symptom (FPR): Rough idle, black smoke from exhaust (too rich), poor fuel economy, hard starting (due to loss of residual pressure), fuel smell. If the vacuum line to the FPR is disconnected, observe if fuel leaks, indicating a ruptured diaphragm.
- Symptom (FPDM): Intermittent engine stalling, extended cranking, lack of power, engine running lean or rich. Diagnostics often show a “check engine” light with codes like P0191 (fuel rail pressure sensor range/performance) or U0109 (Lost Communication with Fuel Pump Control Module). The FPDM is particularly prone to corrosion, especially in areas where road salt is used, leading to internal circuit failure.
- Diagnosis: For FPR, monitor fuel pressure with and without vacuum applied. For FPDM, use a scan tool to monitor desired vs. actual fuel pressure and check for diagnostic trouble codes. A visual inspection for corrosion is also recommended for the FPDM.
- Leaking or Clogged Fuel Injectors:
- Symptom: Engine misfires (P030X codes), rough idle, poor fuel economy, raw fuel smell, black smoke (leaking injector), lean condition (clogged injector), engine hesitation.
- Diagnosis: Use a scan tool to monitor fuel trim values (long and short term). Perform an injector balance test or remove and visually inspect injectors for spray pattern and leaks. A fuel pressure gauge can help identify a leaking injector if pressure drops rapidly after the pump primes.
- Fuel Line/Hose Damage:
- Symptom: Fuel leaks, fuel odor, visible cracks or deterioration of lines, engine struggling for fuel due to pressure loss.
- Diagnosis: Thorough visual inspection of all fuel lines from the tank to the fuel rail. Pay close attention to connections and areas where lines may rub against chassis components. A dye test can pinpoint elusive leaks. For further information on diagnosing fuel leaks, refer to our Automotive Fluid Leak Detection Guide.
Always depressurize the fuel system before disconnecting any fuel lines or components to prevent injury and fire hazards. Refer to your vehicle’s specific service manual for the correct depressurization procedure.
Repair & Replacement Steps: Fuel Filter Service
Replacing the external fuel filter on a 4.6L Ford is a common maintenance task, crucial for maintaining optimal fuel system health. This procedure is applicable to most 4.6L models where the filter is mounted on the frame rail.
Ford recommends fuel filter replacement typically every 15,000 to 30,000 miles, or more frequently in harsh conditions or if fuel quality is questionable. Always consult your vehicle’s owner’s manual or service schedule.
Tools Required:
- Safety glasses
- Drain pan
- Shop rags
- Fuel line quick-disconnect tools (various sizes, typically 3/8″ and 5/16″ for Ford)
- Wrench or socket set (for mounting bracket, if applicable)
- New OEM-spec fuel filter (e.g., Motorcraft FG-876 or equivalent)
Procedure:
- Depressurize the Fuel System:
- Locate the fuel pump fuse or relay in the underhood fuse box (refer to your vehicle’s diagram).
- With the engine running, pull the fuel pump fuse/relay. The engine will stall as fuel pressure drops.
- Once the engine has stalled, crank it for another 5-10 seconds to ensure complete depressurization.
- Disconnect the negative battery cable to prevent accidental pump activation.
- Locate and Access the Fuel Filter:
- On most 4.6L Ford vehicles, the fuel filter is located on the frame rail, typically on the driver’s side, near the fuel tank or midway under the vehicle.
- Position a drain pan beneath the filter to catch any residual fuel.
- Disconnect Fuel Lines:
- Using the appropriate quick-disconnect tools, carefully slide them onto the fuel line fittings where they connect to the filter. Apply even pressure to release the internal locking tabs.
- Gently pull the fuel lines off the filter. Expect a small amount of fuel to drain out. Catch this in the drain pan.
- Remove Old Fuel Filter:
- Release the filter from its mounting bracket. This may involve unclipping it or loosening a retaining clamp with a wrench/socket.
- Note the direction of the arrow on the old filter, which indicates the direction of fuel flow (towards the engine).
- Install New Fuel Filter:
- Ensure the new fuel filter has an arrow pointing in the correct direction (towards the engine).
- Snap the new filter into the mounting bracket.
- Connect the fuel lines to the new filter. Listen for an audible “click” as the quick-disconnect fittings seat correctly. Gently tug on the lines to confirm they are securely fastened.
- Repressurize and Check for Leaks:
- Reconnect the negative battery cable.
- Reinstall the fuel pump fuse/relay.
- Turn the ignition key to the "ON" position (without starting the engine) for a few seconds, then turn it off. Repeat this 2-3 times. This primes the fuel system.
- Visually inspect the fuel filter connections for any signs of leaks.
- Start the engine and re-check for leaks around the filter connections. Allow the engine to run for a few minutes while carefully observing.
For more advanced repairs or details on fuel pump replacement, consider consulting a dedicated Ford Fuel Pump Replacement Guide or the OEM service manual.
| Component | Typical Electrical Connector Wire Colors | OEM P/N Example (F-150 4.6L) |
|---|---|---|
| Fuel Pump (Power) | Pink/Black (Power), Black (Ground) | Motorcraft PFS-452 (assembly) |
| Fuel Pump Driver Module (FPDM) | Red (Power), Black (Ground), Light Green/Yellow (PCM Signal), Brown/White (Fuel Pump Return) | Motorcraft 3L3Z-9D370-A (varies by year/model) |
| Fuel Injector | Red (Common Power), Specific PCM control wire (e.g., Light Blue/Yellow for Cyl 1) | Motorcraft CM-5026 (varies by year/model) |
Frequently Asked Questions (FAQ)
What is the difference between a return-style and returnless 4.6 Ford fuel system?
A return-style system, common in earlier 4.6L engines, uses a constant-running fuel pump that sends fuel to the engine’s fuel rail, where a vacuum-referenced Fuel Pressure Regulator (FPR) bleeds excess fuel back to the tank via a dedicated fuel return line. This maintains a stable fuel pressure at the injectors. A returnless system, prevalent in later 4.6L models, eliminates the return line. Instead, the Powertrain Control Module (PCM) uses a fuel rail pressure sensor to instruct the Fuel Pump Driver Module (FPDM) to vary the voltage to the in-tank fuel pump, directly controlling fuel pressure and only supplying the fuel volume needed. This improves fuel efficiency and reduces evaporative emissions.
How do I test fuel pressure on a 4.6 Ford?
Locate the Schrader valve on the fuel rail (it resembles a tire valve stem). Connect a specialized fuel pressure gauge to this valve. With the ignition key in the "ON" position (engine off), the fuel pump will prime for a few seconds, showing an initial pressure reading. Then, start the engine and note the running pressure. For return-style systems, disconnect the vacuum line from the FPR to see if pressure increases. For returnless systems, observe steady pressure. Refer to your vehicle’s service manual for the exact pressure specifications, typically in the range of 30-45 PSI.
What are the common symptoms of a failing Fuel Pump Driver Module (FPDM) on a 4.6L?
A failing FPDM typically manifests as intermittent or complete loss of engine power, extended cranking times, engine stalling under load, or a general feeling of fuel starvation. It can also trigger diagnostic trouble codes (DTCs) related to fuel pressure regulation or FPDM communication failures. Visually inspect the FPDM, often located on the frame rail near the spare tire, for corrosion or physical damage, which is a common failure mode, especially in regions that use road salt. For in-depth diagnostics on the FPDM, consider specialized diagnostic tools capable of monitoring fuel pump duty cycle and commanded pressure signals, or consult our guide on Advanced Automotive Diagnostic Techniques.
Can I use E85 fuel in my 4.6 Ford engine?
Unless your specific 4.6L Ford vehicle is explicitly designated as “Flex Fuel” (FFV) by the manufacturer, it is not designed to run on E85 fuel. Non-FFV vehicles have fuel system components (e.g., fuel lines, injectors, pump, and seals) that are not compatible with the higher ethanol content, which can lead to premature component degradation, fuel system leaks, and severe engine damage. Always verify your vehicle’s fuel compatibility in the owner’s manual or on the fuel filler door.
What are the typical operating voltage and current draw for the 4.6L in-tank fuel pump?
The in-tank electric fuel pump typically operates on a nominal 12V DC system. In return-style systems, it receives a constant 12V when activated. In returnless systems, the FPDM modulates the voltage to the pump, which can range from approximately 6V to 14V, depending on engine load and commanded fuel pressure. Current draw can vary significantly with pump age, fuel pressure, and system voltage, but a healthy pump typically draws between 5-10 amps. Excessive current draw or very low current draw can indicate a failing pump or an electrical circuit issue. Further electrical diagnostics may be necessary, and you can find more information in our Automotive Electrical Diagnosis Handbook.
Step-by-Step Guide to Understanding the 4.6 Ford Fuel System Diagram: Component Breakdown 2026
Identify – Locate your 4.6 Ford’s specific fuel system diagram in a service manual or trusted online resource.
Locate – Pinpoint the component you intend to service, such as the fuel filter, fuel pump, or fuel return line, on the diagram.
Reference – Use the diagram to trace fuel supply and return line routing, connections, and the location of the injection pressure regulator if present.
Connect/Route – Ensure all replacement components are installed and fuel lines are routed exactly as shown to maintain proper fuel flow and pressure.
Verify – After installation, cycle the key several times to prime the fuel system and thoroughly check for any leaks at connections or fittings.
Troubleshoot – If issues persist, re-check all connections against the diagram, ensure components like the fuel bowl are correctly seated, and consider testing fuel pressure.
Frequently Asked Questions
What are the main components of the 4.6 ford fuel system diagram?
The main components include the fuel tank, in-tank fuel pump, fuel filter, fuel supply and return lines, fuel rails, fuel injectors, and a fuel pressure regulator or fuel bowl. Some advanced 4.6L systems might incorporate a high-pressure fuel pump (HPFP) for direct injection.
What are symptoms of a failing 4.6 ford fuel system diagram pump?
Symptoms of a failing fuel pump include hard starting, engine stalling, loss of power under acceleration, engine misfires, or a whining noise from the fuel tank area. These indicate the pump isn’t delivering sufficient fuel pressure or volume to the engine.
How do I diagnose a fuel leak in 4.6 ford fuel system diagram?
To diagnose a fuel leak, visually inspect all fuel lines, connections, the fuel rails, injectors, and the fuel tank for any wet spots or strong fuel odor. A fuel pressure gauge can also help by showing a rapid drop in pressure after the engine is shut off, indicating a system leak.
What is the fuel pressure spec for 4.6 ford fuel system diagram?
For most 4.6 Ford engines, the fuel pressure typically ranges from 30-45 PSI (pounds per square inch) at idle. This can vary slightly between return-style and returnless fuel systems and specific model years. Always consult your vehicle’s service manual for the precise specification.
How long does 4.6 ford fuel system diagram fuel pump last?
A 4.6 Ford fuel pump can last anywhere from 100,000 to 150,000 miles, but its lifespan varies based on fuel quality, regular fuel filter maintenance, and driving habits. Running the fuel tank frequently on low can stress the pump and shorten its operational life.
Can I replace the 4.6 ford fuel system diagram fuel filter myself?
Yes, replacing the fuel filter on a 4.6 Ford is a common DIY task. Ensure safety by relieving fuel system pressure and disconnecting the battery. The filter is typically located on the frame rail. Use appropriate fuel line disconnect tools and wear eye protection during the process.
