2007 Chevy Tahoe Fuel System Diagram: Proper Routing 2026
The 2007 Chevy Tahoe fuel system typically uses a supply line from the tank to the fuel rail, and often a return line back to the tank, especially in non-returnless systems, though many ’07 models are returnless. High-pressure lines connect the pump to the engine, regulated by pressure sensors.
📌 Key Takeaways
- 2007 Chevy Tahoe models often utilize a returnless fuel system, meaning no dedicated fuel return line from the engine to the tank.
- Fuel pressure is critical; typically regulated around 50-60 PSI by the fuel pump control module, not an injection pressure regulator on this generation.
- Inspect for fuel leaks at connections and where fuel lines pass through chassis points, especially near the fuel bowl/filter housing if equipped.
- Failure to relieve fuel system pressure before disconnecting lines can result in hazardous fuel spray; always use a fuel pressure relief tool.
- DIY fuel line repairs require correct line material, proper crimping tools, and adherence to OEM routing to prevent chafing and leaks.
The fuel system of your 2007 Chevy Tahoe is a critical network responsible for delivering precisely metered gasoline from the tank to the engine’s combustion chambers. This comprehensive guide and diagram specifically detail the architecture for the 2007 Tahoe, typically equipped with the Vortec 5.3L (LC9, LMG, or LY5), 6.0L (L76), or 6.2L (L92) gasoline engines. Understanding this intricate system is paramount for accurate diagnostics, maintenance, and repair, ensuring optimal engine performance and fuel efficiency. The diagram illustrates the primary fuel flow, component locations, and interconnections from the fuel tank through to the injectors, including supply and pressure regulation mechanisms.
The 2007 Chevy Tahoe (GMT900 platform) generally utilizes a returnless fuel system. This design means the fuel pressure regulator is integrated directly into the in-tank fuel pump module, eliminating the need for a separate fuel return line from the engine compartment back to the tank. Pressure is regulated at the source, which improves vapor management and reduces fuel heating.

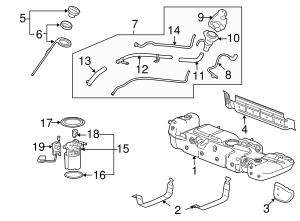

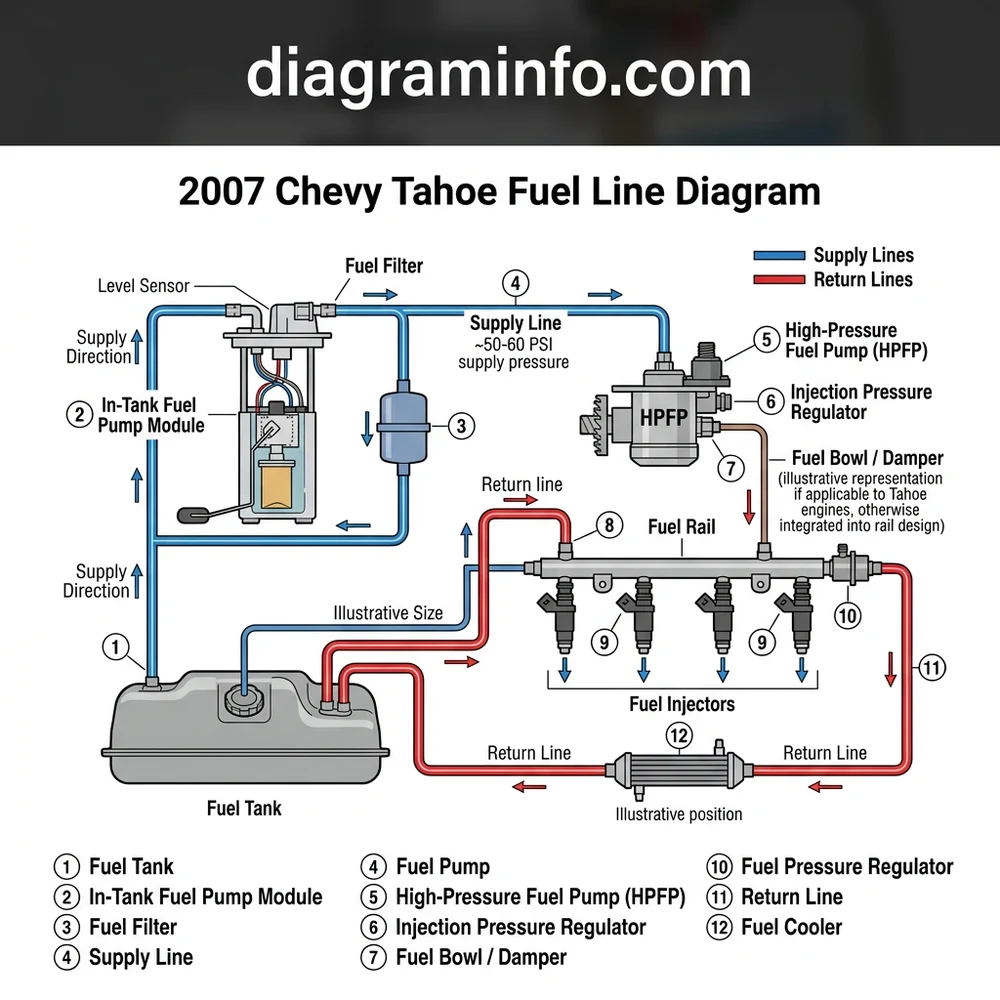

[Insert 2007 Chevy Tahoe Fuel Line Diagram here, clearly labeled with components mentioned in the article.]
Fuel System Components Breakdown
The 2007 Chevy Tahoe’s gasoline fuel delivery system is a sophisticated network designed for efficiency and precise fuel metering. Familiarity with each component’s function is essential for effective troubleshooting. As depicted in the diagram, the system begins at the rear of the vehicle and extends to the engine block.
- 1. Fuel Tank: This polyethylene reservoir stores gasoline. It incorporates baffles to prevent fuel sloshing, a vent for air displacement, and mounts for the fuel pump module.
- 2. Fuel Pump Module (In-Tank): Located inside the fuel tank, this integral unit houses several critical components:
- Electric Fuel Pump: A DC motor-driven pump that draws fuel from the tank and pressurizes the fuel supply line. For the 2007 Tahoe, this is typically a roller-cell or turbine-style pump.
- Fuel Pressure Regulator (FPR): Integrated into the pump module, this component maintains a constant fuel pressure (typically 50-60 PSI) in the supply line to the engine. It bypasses excess fuel back into the tank, preventing over-pressurization. Unlike older systems, the 2007 Tahoe’s returnless design means this is the primary pressure regulation point.
- Fuel Level Sensor (Sender): A variable resistor (rheostat) attached to a float, which sends an electrical signal to the Powertrain Control Module (PCM) to indicate fuel level.
- Fuel Filter: Often a non-serviceable component integrated within the pump module or its housing, it filters contaminants from the fuel before it reaches the fuel line and injectors.
- Fuel Pump Strainer: A coarse filter at the pump’s inlet, preventing larger debris from entering the pump.
- 3. Fuel Supply Line: This high-pressure line, typically constructed from nylon or stainless steel, carries pressurized fuel from the fuel pump module to the fuel rail on the engine. As shown in the fuel pump replacement guide, this connection often utilizes quick-disconnect fittings.
- 4. Fuel Rail: A hollow metal tube mounted on the engine, distributing pressurized fuel to each fuel injector. It includes provisions for a fuel pressure sensor and sometimes a Schrader valve for pressure testing.
- 5. Fuel Pressure Sensor (FPS): Located on the fuel rail, this sensor monitors actual fuel pressure and sends a corresponding voltage signal to the PCM. The PCM uses this data for precise fuel delivery and to detect system faults.
- 6. Fuel Injectors: Electronically controlled solenoids that spray a fine mist of fuel directly into the intake manifold port of each cylinder. The PCM precisely controls injector pulse width (duration) and timing based on engine load, RPM, and other sensor inputs. For more information on diagnostics, refer to our fuel injector cleaning and testing article.
- 7. EVAP System Connections: The fuel tank also connects to the Evaporative Emission Control (EVAP) system, which captures fuel vapors to prevent their release into the atmosphere. This includes the vapor line to the charcoal canister and purge valve, crucial for emission compliance. Understanding its functions is key for many EVAP system diagnostics.
While some heavy-duty diesel applications feature components like a high pressure fuel pump (HPFP) for common rail injection, a separate fuel bowl, or a primer pump, the 2007 gasoline Tahoe’s Port Fuel Injection (PFI) system does not utilize these. Similarly, dedicated fuel coolers or fuel heaters are typically found in diesel systems or specific high-performance applications, not standard on this vehicle.
Common Failure Points & Symptoms
Understanding the failure modes of the 2007 Chevy Tahoe’s fuel system is crucial for efficient diagnosis. These issues can manifest in various ways, often leading to performance degradation or no-start conditions. Referencing your fuel line diagram is the first step in localizing the issue.
- Fuel Pump Module Failure
- Symptoms: Extended cranking, no-start condition, engine stalling at higher temperatures, loss of power under acceleration, whining noise from the fuel tank area. You may also experience P0 codes such as P0171 (System Too Lean Bank 1) or P0174 (System Too Lean Bank 2) due to insufficient fuel pressure.
- Diagnosis: Connect a fuel pressure gauge to the Schrader valve on the fuel rail. Key ON, Engine OFF (KOEO) pressure should be around 58-62 PSI. During cranking, pressure should remain stable. A pressure drop or zero pressure indicates a failing pump or circuit issue.
- Clogged Fuel Filter (within pump module)
- Symptoms: Engine hesitation or sputtering under load, reduced power, poor acceleration, engine dying at high RPMs, or a general feeling of being “starved” for fuel.
- Diagnosis: A clogged filter will restrict fuel flow, leading to a pressure drop at the fuel rail, especially under load. While the filter is typically integrated and not separately replaceable on this model, a significant pressure drop across the pump module (difficult to measure without specialized tools) or low fuel pressure at the rail points to a restricted module.
- Leaking Fuel Lines or Fittings
- Symptoms: Strong gasoline odor around the vehicle, visible fuel leaks beneath the vehicle (especially after operation or refueling), engine running lean, potential fire hazard.
- Diagnosis: Visual inspection of all fuel lines from the tank to the engine for cracks, chafing, or wet spots. Pay close attention to quick-disconnect fittings near the tank and fuel rail. Fuel pressure can drop if the leak is significant.
- Faulty Fuel Pressure Sensor (FPS)
- Symptoms: Erratic idle, rough running, misfires, poor fuel economy, hard starting, or diagnostic trouble codes (DTCs) like P0191, P0192, P0193 related to fuel rail pressure sensor performance.
- Diagnosis: Monitor fuel rail pressure with a scan tool. Compare the sensor’s reading to a mechanical fuel pressure gauge. Significant discrepancy indicates a faulty sensor. Verify sensor wiring for continuity and correct voltage reference.
- Clogged or Leaking Fuel Injectors
- Symptoms: Engine misfires (P030x codes), rough idle, poor fuel economy, strong fuel odor (if leaking), black exhaust smoke (if stuck open), or a lean condition (if clogged).
- Diagnosis: Perform an injector balance test using a scan tool to identify cylinders with significant fuel delivery issues. Listen for injector “clicks” with a stethoscope. Visual inspection can reveal external leaks. For detailed analysis, interpreting OBD-II trouble codes is essential.
Repair & Replacement Steps: Fuel Pump Module
Replacing the in-tank fuel pump module is one of the most common fuel system repairs on a 2007 Chevy Tahoe. This procedure requires careful attention to safety and adherence to specific steps. This guide focuses on the typical method involving tank removal, as most Tahoes do not have a dedicated access panel.
Always work in a well-ventilated area, away from open flames or sparks. Disconnect the negative battery terminal before starting any fuel system work. Wear appropriate personal protective equipment (PPE) including safety glasses and fuel-resistant gloves. Have a fire extinguisher readily accessible.
- Preparation and Depressurization:
- Park the vehicle on a level surface and engage the parking brake.
- Raise the vehicle safely using a hoist or jack stands.
- Disconnect the negative battery cable.
- Depressurize the fuel system: Locate the fuel pump relay in the underhood fuse block (refer to your owner’s manual for exact location). With the engine running, pull the relay. The engine will stall as fuel pressure drops. Alternatively, briefly depress the Schrader valve on the fuel rail with a rag to catch any fuel.
- Fuel Tank Removal (Typical Method):
- Drain as much fuel as possible from the tank using a transfer pump. A lighter tank is safer and easier to handle.
- Support the fuel tank using a transmission jack or two floor jacks with wood blocks.
- Disconnect electrical connectors (fuel pump, fuel level sender, EVAP vent valve) and fuel lines (supply and EVAP vapor lines) from the top of the fuel tank. Use a specific fuel line disconnect tool for quick-disconnect fittings.
- Remove the two fuel tank strap bolts. For the 2007 Tahoe, these are typically M12 bolts, often torqued to 30-37 lb-ft (40-50 Nm) according to GM service manuals.
- Carefully lower the fuel tank, ensuring all hoses and wires are clear.
- Fuel Pump Module Extraction:
- With the tank lowered or removed, clean the area around the fuel pump module’s lock ring to prevent debris from entering the tank.
- Use a specialized fuel tank lock ring tool (GM tool J-45722 or equivalent) to loosen and remove the large plastic retaining ring that secures the fuel pump module.
- Carefully lift the fuel pump module out of the tank. Be cautious of the fuel level sender float arm and the fuel pump strainer, ensuring they don’t catch on the tank opening.
- New Fuel Pump Module Installation:
- Always replace the fuel pump module O-ring gasket. This is critical for preventing leaks and maintaining proper system pressure. A common replacement part number for the O-ring is AC Delco 19168925 or equivalent.
- Insert the new fuel pump module into the tank, aligning it correctly with the indexing marks. Ensure the float arm moves freely.
- Install the new O-ring and then the retaining ring. Use the special tool to tighten the retaining ring firmly.
- Reassembly and Testing:
- Carefully raise the fuel tank back into position, ensuring all lines and electrical connectors are properly routed and reconnected.
- Install the fuel tank straps and torque the bolts to the manufacturer’s specified value (e.g., 30-37 lb-ft / 40-50 Nm).
- Reconnect the negative battery cable.
- Before starting, cycle the ignition key to the ON position (without starting) several times for a few seconds each time. This primes the fuel system, building pressure.
- Start the engine and check for any fuel leaks around the tank connections and fuel rail.
- Monitor fuel pressure with a gauge to confirm it’s within specifications. The static fuel pressure for a 2007 Tahoe should be approximately 58-62 PSI (400-427 kPa).
| Component | Typical Torque Spec | Associated Part Number (Example) |
|---|---|---|
| Fuel Tank Strap Bolts | 30-37 lb-ft (40-50 Nm) | N/A (often re-use) |
| Fuel Pump Module O-ring | N/A (seal, not torqued) | AC Delco 19168925 |
| Fuel Line Quick Disconnects | Snap-lock (no torque) | N/A |
FAQ
What are the common fuel pressure specifications for a 2007 Chevy Tahoe?
For most 2007 Chevy Tahoe models equipped with the 5.3L, 6.0L, or 6.2L Vortec gasoline engines, the fuel system operates as a returnless design. The nominal fuel pressure at the fuel rail should be approximately 58-62 PSI (400-427 kPa) with the key ON, engine OFF, and while the engine is running. There is typically no “residual pressure” specification in the same way as older return systems; instead, the system is designed to hold pressure adequately after shutdown.
How do I safely depressurize the fuel system on a 2007 Tahoe?
The safest method involves relieving pressure through the fuel pump relay. Locate the fuel pump relay in the underhood fuse block (consult your owner’s manual for its exact position). With the engine running, pull the fuel pump relay. Allow the engine to run until it stalls, indicating that the fuel pressure has bled down. Alternatively, you can use a shop towel and carefully depress the Schrader valve on the fuel rail, but this should be done with extreme caution due to the risk of fuel spray.
Does the 2007 Tahoe utilize a traditional fuel return line?
No, the 2007 Chevy Tahoe (GMT900 platform) typically features a returnless fuel system. This means that the fuel pressure regulator is integrated directly into the in-tank fuel pump module. Excess fuel is bypassed back into the fuel tank from within the module itself, eliminating the need for a separate fuel return line running from the engine compartment back to the tank, which is common in older vehicles.
What are the common symptoms of a failing fuel pressure sensor on my 2007 Tahoe?
A failing fuel pressure sensor (FPS) can lead to a range of performance issues because the Powertrain Control Module (PCM) relies heavily on its input for fuel delivery calculations. Common symptoms include a rough or erratic idle, engine misfires, a noticeable decrease in fuel economy, and difficulty starting the vehicle. You might also experience diagnostic trouble codes (DTCs) such as P0191, P0192, or P0193, which specifically relate to the fuel rail pressure sensor’s circuit or performance.
Is the fuel filter separately replaceable on a 2007 Chevy Tahoe, or is it integrated?
For most 2007 Chevy Tahoe models, the primary fuel filter is integrated into the fuel pump module located inside the fuel tank. This means it is generally not a separately serviceable component. If the fuel filter becomes clogged, it typically necessitates the replacement of the entire fuel pump module. Some aftermarket solutions might offer an in-line filter kit, but this deviates from the OEM design. Always consult your service manual for the exact configuration relevant to your specific trim and engine variant.
Step-by-Step Guide to Understanding the 2007 Chevy Tahoe Fuel System Diagram: Proper Routing 2026
Identify – Identify the specific fuel line (supply, return if present, vapor) you need to trace on the diagram.
Locate – Locate the fuel tank, pump assembly, filter, and fuel rail on the diagram to understand the flow path.
Reference – Reference the diagram to identify connection points, quick-disconnects, and routing clips along the chassis.
Connect/Route – Follow the diagram to correctly route new fuel lines, ensuring no kinks or contact with hot/moving parts.
Verify – Verify all connections are secure, pressure relieved, and check for leaks after re-pressurizing the system.
Troubleshoot – Troubleshoot issues by comparing actual fuel pressure readings against diagram specifications, isolating component failures.
Frequently Asked Questions
What are the main components of the 2007 chevy tahoe fuel line diagram?
The 2007 Chevy Tahoe fuel system includes the fuel tank, in-tank electric fuel pump, fuel filter, supply line, and fuel rail with injectors. Many 2007 models are returnless, eliminating the traditional fuel return line. The fuel pump control module regulates pressure, typically around 55-60 PSI. HPFP or injection pressure regulator aren’t standard on gasoline models.
What are symptoms of a failing 2007 chevy tahoe fuel line diagram pump?
Symptoms of a failing fuel pump include difficulty starting, engine hesitation or stalling, reduced engine power under load, poor fuel economy, and a whining noise from the fuel tank area. A diagnostic scan tool can confirm low fuel pressure readings or codes related to the fuel pump control module.
How do I diagnose a fuel leak in 2007 chevy tahoe fuel line diagram?
To diagnose a fuel leak, visually inspect the entire fuel line routing from the tank to the engine, paying close attention to connections, the fuel filter housing, and areas where lines pass over chassis components. Use a fuel pressure gauge to check for rapid pressure drops. A UV dye test can also pinpoint elusive leaks.
What is the fuel pressure spec for 2007 chevy tahoe fuel line diagram?
For the 2007 Chevy Tahoe (gasoline V8 engines), the nominal fuel pressure specification at the fuel rail should be approximately 50-60 PSI (pounds per square inch). This pressure is maintained by the in-tank fuel pump and regulated by the fuel pump control module. Low or fluctuating pressure indicates a potential fuel system issue.
How long does 2007 chevy tahoe fuel line diagram fuel pump last?
A 2007 Chevy Tahoe fuel pump typically lasts between 100,000 to 150,000 miles, but longevity can vary based on fuel quality, driving conditions, and maintaining adequate fuel levels. Running the tank consistently low can prematurely wear out the pump due to lack of cooling. Regular fuel filter replacement can also extend its life.
Can I replace the 2007 chevy tahoe fuel line diagram fuel filter myself?
Yes, replacing the 2007 Chevy Tahoe fuel filter is generally a DIY-friendly task. The filter is typically located on the frame rail near the fuel tank. You’ll need to relieve fuel system pressure, use appropriate fuel line disconnect tools, and replace sealing O-rings. Ensure proper line orientation and check for leaks upon completion.
