6-Pin Electric Recliner Switch Wiring Diagram: Complete Connection Guide 2026
A standard electric recliner switch wiring typically connects a 12-29V DC power supply to the motor. Identify the positive power (often red/brown), negative ground (black/blue), motor ‘up’ (yellow/green), and motor ‘down’ (white/blue) wires. Ensure correct polarity to prevent motor damage.
📌 Key Takeaways
- Most electric recliner motors operate on 12-29V DC, requiring careful voltage verification with a multimeter before connecting.
- Always consult the specific recliner switch and motor manual for the manufacturer’s exact wire color code and pin assignments, as they can vary.
- Disconnect all power from the recliner’s power supply before attempting any wiring work to prevent electrical shock or component damage.
- Incorrect wire polarity or loose terminal connections are the most frequent causes of recliner switch malfunction or motor failure.
- If the motor hums but doesn’t move, or if the wiring involves complex control modules beyond a simple switch, consult a certified technician.
Accurate electrical system maintenance and installation are paramount in automotive and equipment settings. This comprehensive guide provides a detailed wiring diagram for an electric recliner switch, essential for technicians and experienced DIYers working with custom seating, RVs, marine applications, or home theater recliners. Understanding the precise wire color code, pin assignment, and connection sequence is critical not only for correct functionality but also for preventing electrical shorts, component damage, and ensuring user safety. This article will demystify the connections, ensuring you can confidently install, replace, or troubleshoot your electric recliner switch.
WIRE COLOR REFERENCE TABLE
| Wire Color | Function | Pin/Terminal (Switch Side) | Notes |
|---|---|---|---|
| Red (or Black with stripe) | +12V DC Input (Hot Wire) | PWR IN / Terminal 1 | Main power supply from fused source (e.g., battery). Always check voltage. |
| Black (or Brown) | Ground Wire | GND / Terminal 2 | Connects to chassis ground or battery negative. Crucial for circuit completion. |
| Blue | Motor Output 1 (e.g., Extend) | MOTOR 1 / Terminal 3 | Connects to one motor lead. Polarity determines direction. |
| Green (or Yellow) | Motor Output 2 (e.g., Retract) | MOTOR 2 / Terminal 4 | Connects to the other motor lead. Switch reverses polarity for motion. |
| White (or Orange, specific models) | Illumination (Optional) | LED+ / Terminal 5 | If switch has LED backlight. Connects to +12V (often shared with main PWR IN). |
| Gray (or Purple, specific models) | Illumination Ground (Optional) | LED- / Terminal 6 | If switch has LED backlight. Connects to ground (often shared with main GND). |
STEP-BY-STEP CONNECTION GUIDE

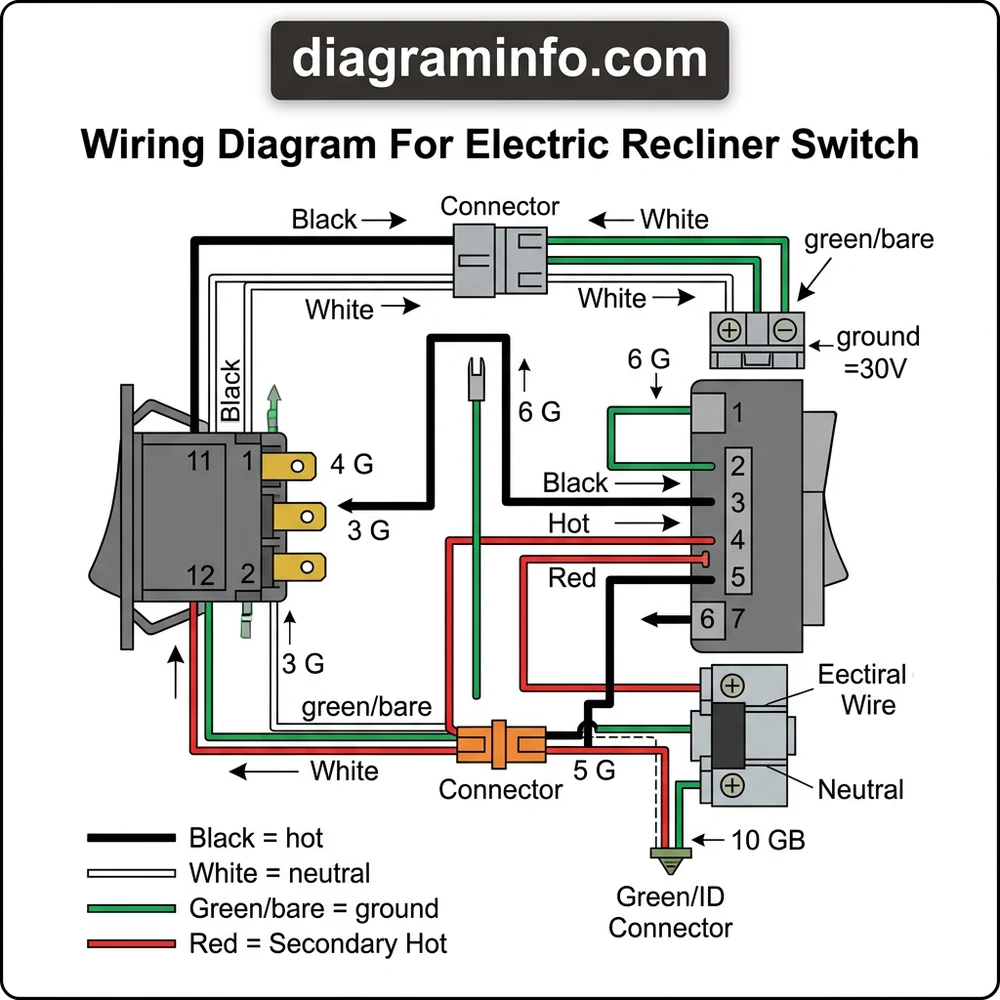

Refer to the provided wiring diagram for electric recliner switch and the wire color reference table for accurate pin assignments. This sequence assumes a standard 4-wire motor and a 5 or 6-pin rocker switch, common in 12V DC systems. Always disconnect power to the source before beginning any wiring work.
Failure to disconnect the power source can result in electrical shock, short circuits, and damage to electrical components or injury. Always verify the absence of voltage with a multimeter before handling connections.
- Prepare the Power Source: Identify your +12V DC power source. This is typically a vehicle battery, a dedicated power supply, or a fused distribution block. Ensure the circuit is protected by an appropriately sized fuse. For guidance on determining the correct fuse and wire gauge, refer to our Automotive Fusing and Wire Gauge Guide.
- Connect the Main Power Input (Hot Wire): Locate the Red wire (or the designated hot wire, often Black with a stripe) from your recliner switch harness. This is your hot wire. Connect this wire to your fused +12V DC power source. On many switches, this corresponds to the “PWR IN” or Terminal 1. Secure the connection using a crimp connector, soldered joint, or via a terminal block, ensuring robust mechanical and electrical integrity.
- Connect the Ground Wire: Identify the Black wire (or designated ground wire, often Brown) from your switch harness. This is your ground wire. Connect this wire securely to a reliable chassis ground point, the negative terminal of your battery, or the common ground bus bar. For optimal performance and safety, ensure the ground connection is clean, tight, and free of corrosion. This typically corresponds to “GND” or Terminal 2 on the switch.
- Wire Motor Output 1 (e.g., Extend): Locate the Blue wire from your switch, designated for Motor Output 1. Connect this wire to one of the two leads extending from your electric recliner motor. The specific motor lead will determine which direction (extend or retract) corresponds to this switch output. This is typically “MOTOR 1” or Terminal 3.
- Wire Motor Output 2 (e.g., Retract): Identify the Green wire (or Yellow) from your switch, designated for Motor Output 2. Connect this wire to the remaining lead of your electric recliner motor. Once connected, these two motor leads receive reverse polarity from the switch, allowing the motor to run in both directions. This is typically “MOTOR 2” or Terminal 4.
- Connect Optional Illumination Wires (If Applicable): If your switch features an LED backlight, you will have additional wires (e.g., White for LED+, Gray for LED-). Connect the White (LED+) wire to a +12V DC source (often the same fused source as the main power input) and the Gray (LED-) wire to a ground point. Ensure these connections are also secure.
- Test Functionality: With all connections secured and inspected, reconnect the main power supply. Carefully test the switch’s functionality. Pressing one direction should actuate the recliner motor in one direction, and pressing the other should reverse it. If the motor runs in the opposite direction to the switch label, simply swap the Motor Output 1 (Blue) and Motor Output 2 (Green/Yellow) wires at the motor leads.
- Secure and Insulate: Once confirmed operational, ensure all connections are properly insulated using heat-shrink tubing, electrical tape, or protective loom. Secure the wiring to prevent chafing, pinching, or accidental disconnections during operation.
For most 12V DC electric recliner motors drawing up to 10-15 amps, a minimum 16 AWG (American Wire Gauge) wire is recommended for power and motor leads. For longer runs or higher amperage motors (common in heavy-duty applications), consider 14 AWG or larger. Always consult the motor’s current draw specification and refer to OEM documentation for year-specific wire sizing requirements, particularly for integrated vehicle systems.
COMMON WIRING MISTAKES & TROUBLESHOOTING
Even experienced technicians can encounter issues when wiring. Understanding common pitfalls and their resolutions is key to efficient troubleshooting, especially when working with a wiring diagram for an electric recliner switch.
- Incorrect Polarity on Motor Leads:
- Consequence: The recliner moves in the opposite direction to the switch’s label (e.g., pressing “Extend” causes it to retract).
- Fix: This is a simple issue. Safely disconnect power, then swap the two motor output wires (e.g., Blue and Green/Yellow) at the motor connection points. Do not swap the input power or ground wires.
- No Power to Switch / Motor Inoperable:
- Consequence: The switch does nothing; the motor does not activate. This could indicate a lack of incoming voltage.
- Fix: First, check the main fuse in your +12V DC circuit. A blown fuse means an overload or short occurred. Next, use a multimeter to verify voltage at the “PWR IN” terminal of the switch (Terminal 1) relative to ground (Terminal 2). If no voltage, trace back to the power source. Also, verify your ground wire connection is solid and free of corrosion. A poor ground is a frequent culprit for no-power scenarios.
- Intermittent Operation / Motor Runs Slowly:
- Consequence: The recliner motor starts and stops, or operates weakly. This is often indicative of high resistance in the circuit.
- Fix: Inspect all connections. Look for loose crimps, corroded terminals, or poorly soldered joints. Ensure the wire gauge (LSI: gauge) is sufficient for the motor’s current draw and the length of the wire run. Undersized wires can lead to voltage drop and overheating. Re-crimp or re-solder any suspect connections. Confirm the integrity of the terminal block if one is used.
- Switch Backlight Not Illuminating (if applicable):
- Consequence: The switch functions correctly, but the LED light within it does not turn on.
- Fix: Check the connections for the optional illumination wires (e.g., White for LED+, Gray for LED-). Ensure they are properly connected to a valid +12V DC source and ground, respectively. Use a multimeter to verify voltage across the LED power and ground terminals. If the connections are correct and there’s voltage, the LED itself may be faulty, or the ground wire for the illumination is compromised.
Many modern electric recliner switches incorporate internal diodes to protect against transient voltage spikes. While these offer some protection, always ensure your primary power circuit includes appropriate fusing. For advanced diagnostic procedures, such as testing motor windings or internal switch contacts, consult the specific manufacturer’s service manual or our Advanced Electrical Diagnostics Guide.
FAQ
What is a common wire color code for electric recliner switches?
While a universal standard doesn’t exist, a common wire color code for electric recliner switches operating on 12V DC often involves Red for +12V (hot wire), Black for ground (ground wire), and Blue/Green or Blue/Yellow for the two motor control outputs. Always refer to the specific switch’s accompanying documentation or the markings on the switch itself for accurate pin assignment and function.
Can I use a generic switch if my original electric recliner switch fails?
Yes, often you can use a generic 12V DC DPDT (Double Pole Double Throw) momentary rocker switch, provided it has sufficient current rating for your motor and matches the pin configuration or can be adapted via a new wiring harness. Ensure the new switch can handle the motor’s peak amperage draw. Carefully compare the wiring diagram for electric recliner switch of the original with the generic option, paying close attention to power, ground, and motor output terminals.
What wire gauge should I use for an electric recliner switch and motor?
For most 12V DC electric recliner motors, 16 AWG wire is typically sufficient for runs up to 10-15 feet if the motor draws 10-15 amps. For higher current motors, longer wire runs, or to minimize voltage drop, stepping up to 14 AWG or even 12 AWG may be necessary. Always check the motor’s specifications for maximum current draw to determine the appropriate gauge and ensure your wiring doesn’t overheat. Consult our comprehensive guide on Calculating Wire Gauge for DC Circuits for precise recommendations.
How do I troubleshoot if my electric recliner switch is receiving power but the motor isn’t moving?
First, verify that your power and ground connections to the switch are solid using a multimeter to confirm voltage across the input terminals. Then, with power applied, use the multimeter to check for voltage at the motor output terminals (e.g., Terminal 3 and Terminal 4) when the switch is actuated. You should see +12V DC on one terminal and 0V on the other, then -12V DC (reversed polarity) when actuated in the opposite direction. If the switch outputs voltage correctly but the motor doesn’t move, the issue likely lies with the motor itself or the motor’s wiring connections.
Step-by-Step Guide to Understanding the 6-Pin Electric Recliner Switch Wiring Diagram: Complete Connection Guide 2026
Identify – Locate the existing recliner switch, its power source, and motor connections.
Locate – Disconnect all power to the recliner and identify the specific terminals on your new or existing switch.
Reference – Carefully consult the provided wiring diagram, matching wire colors or pin numbers to their respective functions (power, ground, motor up/down).
Connect/Route – Securely attach each wire according to the diagram, ensuring proper polarity and tight, insulated connections at all terminals.
Verify – Restore power and test the switch’s functionality in both ‘up’ and ‘down’ directions, ensuring smooth and consistent motor operation.
Troubleshoot – If the recliner doesn’t operate correctly, re-check all connections, confirm wire gauge suitability, and test for continuity or voltage presence at key points.
Frequently Asked Questions
What wire color is power and ground on a wiring diagram for electric recliner switch?
Typically, the positive power wire is red or brown, and the negative ground wire is black or blue. Motor control wires for ‘up’ and ‘down’ can vary, but commonly use yellow, green, or white. Always verify with the specific recliner’s manual or by testing with a multimeter for accurate identification.
What do the pin numbers mean on a wiring diagram for electric recliner switch?
Pin numbers on an electric recliner switch diagram denote specific electrical connections. Typically, pins are assigned for input power (positive and ground), and outputs to control the recliner motor’s ‘up’ and ‘down’ directions. Refer to the manufacturer’s diagram for the exact function of each numbered pin on your specific switch.
How many wires does a typical wiring diagram for electric recliner switch have?
Most standard electric recliner switches use between 4 to 6 wires. A common setup includes two wires for power input (positive and negative) and two wires for motor output (one for ‘up’ and one for ‘down’). Some switches may include additional wires for LED backlighting or advanced features.
What are common wiring mistakes with a wiring diagram for electric recliner switch?
Common mistakes include reversing polarity, which can damage the motor or switch, and making loose connections that lead to intermittent operation or complete failure. Using an incorrect wire gauge for the current draw can also cause overheating. Always double-check connections and confirm continuity.
When should I replace my electric recliner switch based on its wiring diagram?
Replace your electric recliner switch if it exhibits intermittent functionality, becomes physically damaged, or if its internal wiring shows signs of corrosion or shorting when inspected. If troubleshooting the wiring diagram doesn’t resolve issues like no movement despite power, a faulty switch is often the culprit.
What gauge wire does a wiring diagram for electric recliner switch require?
For most electric recliner switches and their low-voltage DC motors (typically 12-29V), 18 AWG to 22 AWG (American Wire Gauge) wire is commonly sufficient. Using too thin a gauge can cause voltage drop and heat, while overly thick wire is difficult to route. Always check the recliner’s manual.
