Rinnai Tankless Water Heater Parts Diagram: Repair Guide 2026

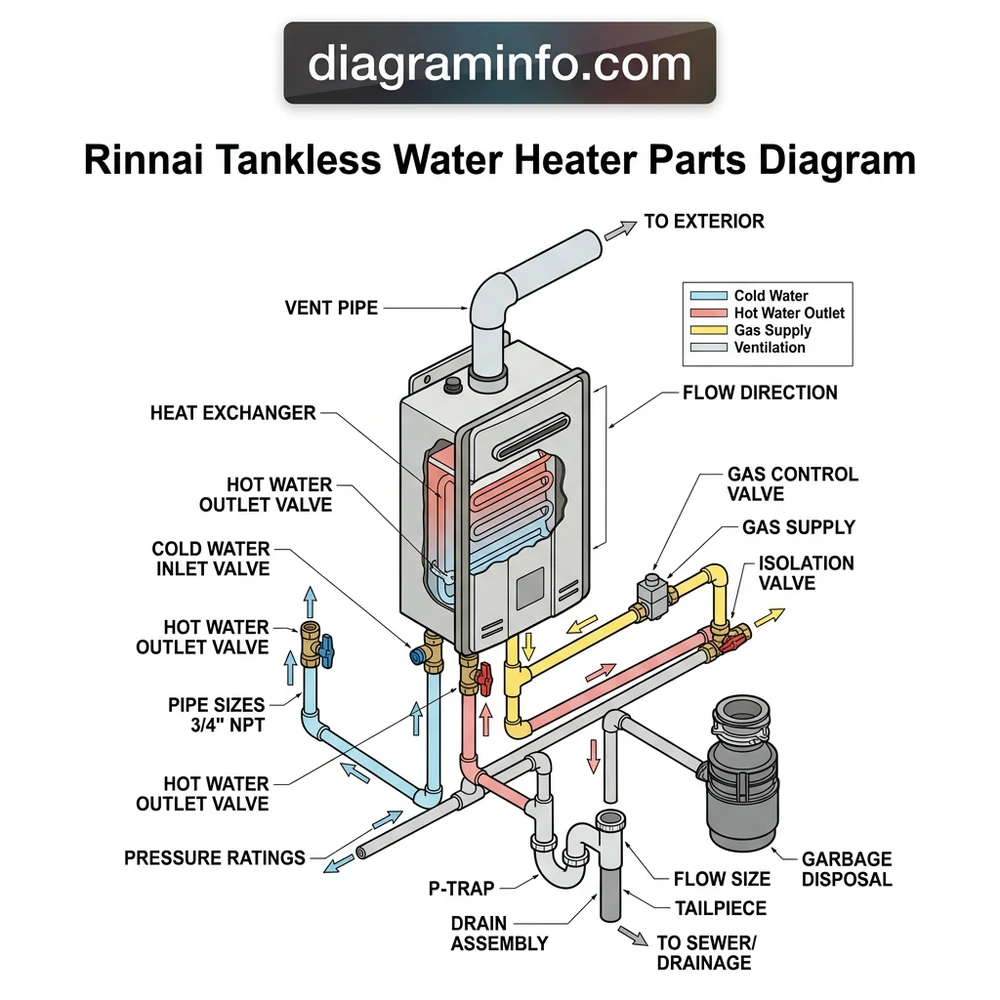

A Rinnai tankless water heater parts diagram illustrates key internal and external components, including the primary copper heat exchanger, gas control valve assembly, water flow sensor, igniter electrode, and PC board. It details cold water inlet and hot water outlet connections, condensation drain lines leading to a P-trap, and concentric vent pipe exhaust pathways.
📌 Key Takeaways
- Primary heat exchanger operates at standard thermal efficiencies above 82% to 96% depending on condensing vs non-condensing units.
- Gas valve assemblies require precise gas pressure regulation between 3.5 to 10.5 inches water column.
- Condensate lines must route through an acid neutralizer or P-trap to prevent corrosion of home drain lines.
- Error code 11 indicates ignition failure, commonly caused by dirty flame rods or blocked vent pipes.
- Filter cleaning and flushing are safe DIY tasks; gas manifold adjustments require a licensed technician.
Navigating a Rinnai tankless water heater parts diagram requires a solid understanding of high-efficiency gas flow assemblies, hydronic heat exchangers, and integrated electronic controls. Modern condensing units like the Rinnai Sensei (RU Series) and non-condensing models (RL Series) utilize precision-engineered combustion circuits, modulating gas valve manifolds, and dedicated condensate management systems. For licensed plumbers and HVAC field technicians, referencing an accurate exploded view diagram is essential for isolating component failures, executing descaling procedures, and sourcing OEM replacement parts. This technical guide breaks down Rinnai schematics to streamline your field service and system diagnostics.
Rinnai Tankless Water Heater Parts Diagram: Core Hydraulic and Combustion Assembly
Understanding the spatial orientation and mechanical connections inside the cabinet is the first step in servicing any unit. A standard Rinnai tankless water heater parts diagram categorizes components into three distinct subsystems: the hydronic loop, the gas/combustion chamber, and the electronic control circuit.
Recommended Best Deal Products
Manufacturer specifications indicate a maximum operating water pressure of 150 PSI, an incoming gas pressure range of 3.5″ to 10.5″ W.C. for Natural Gas, and a required supply voltage of 120V AC (60 Hz) drawing 2 to 4 Amps during active firing.
| Component Name | Technical Function | OEM Part Number (Ref) |
|---|---|---|
| Primary Heat Exchanger | Transfers thermal energy from burner to domestic water supply | 104000180 |
| Modulating Gas Valve | Controls BTU output via 24V DC stepper motor and solenoid valves | 106000088 |
| Water Flow Servo Motor | Adjusts water flow rate dynamically based on target temperature setpoint | 109000179 |
| Integrated Condensate Trap | Collects acidic condensate for disposal via external drain assembly | 109000211 |
| Flame Rod / Igniter Unit | Provides spark ignition and detects flame rectification signal (microamps) | 108000042 |
The cold water inlet connects at the bottom right, routing water past the inline filter screen and the turbine flow sensor. The primary heat exchanger utilizes high-grade copper or primary-grade stainless steel coils surrounding the burner array. On condensing models, an upper secondary stainless steel heat exchanger extracts latent heat from exhaust gas before it exits through the polypropylene or PVC vent pipe connection. Condensate produced in this process drops into an internal trap, which routes directly into an external 1/2-inch Schedule 40 PVC drain line.
When completing an under-sink or utility-room installation, the condensate drain line must maintain a continuous downward slope. If discharging into a residential waste branch alongside a fixture such as a standard tailpiece, sink drain assembly, or nearby garbage disposal line, local plumbing codes often dictate adding a dedicate air gap or an AAV valve (Air Admittance Valve) to prevent back-siphoning.
Tracing Fluid Pathways Using the Rinnai Tankless Water Heater Diagram
To perform precise field diagnostics, technicians must be capable of tracing fluid, electrical, and gas pathways directly across the schematic diagram.
Recommended Best Deal Products
On standard Rinnai PC board schematics, yellow wires indicate the 24V DC water flow sensor signal, blue leads power the main gas solenoids (POV valve), and red leads connect the high-limit thermal fuses (190°F cut-off).
Follow this sequence when tracing operational flow on a diagram:
1. Cold Water Feed Loop: Water enters the 3/4-inch NPT connection, passes the cold water thermistor, and activates the flow sensor turbine at a activation threshold of 0.26 GPM. Refer to our tankless water heater descaling procedure to clear mineral build-up inside this flow passage.
2. Combustion Sequence Trigger: The main Printed Circuit Board (PCB) receives the pulse signal from the flow sensor. The PCB energizes the combustion fan motor to verify pre-purge air proving via the air pressure switch.
3. Gas Train Engagement: The main gas solenoid valves (SV1, SV2, SV3) energize. Gas flows through the proportional control valve (POV) into the burner manifold.
4. Ignition and Flame Verification: The spark igniter module supplies a high-voltage spark to the igniter electrode. The flame rod senses a microamp current (typically 2 to 10 µA DC) conducted through the flame matrix back to ground, confirming stable combustion.
5. Condensate Management Loop: On condensing units, acidic byproduct exits the secondary exchanger through the internal siphon trap. The trap outflow connects via a slip joint or threaded barb fitting to an external neutralizer kit or PVC drain assembly, ensuring flue gases do not escape into the drainage system.
When tying condensate lines into residential plumbing, ensure the line incorporates a trap or discharges indirectly into a hub drain. Avoid rigid connections directly to a plumbing vent pipe or unvented waste branch without a proper P-trap assembly to prevent sewer gas entry.
System Diagnostics via Rinnai Tankless Component Schematics
When troubleshooting system fault codes, referencing the Rinnai tankless water heater parts diagram allows you to cross-reference error codes with specific electrical test points on the main circuit board.
Always shut off the 120V AC power supply and main gas isolation valve before performing continuity checks, removing access panels, or replacing internal gas manifold components.
Diagnostics for Diagnostic Code 11 (No Ignition)
Refer to the gas train section of your parts diagram. Locate the three gas solenoid valves and the proportional gas control valve. Disconnect wire harness connector C3 from the main PCB. Measure resistance across the valve solenoids using a multimeter set to ohms:
Solenoid Valves (SV1-SV3): Nominal resistance should measure between 35 and 45 ohms across terminal pins.
Proportional Valve (POV): Nominal coil resistance should read between 65 and 80 ohms.
If resistance values are out of spec or read open circuit, replace the specific valve assembly. If the gas train tests normal, check out our comprehensive gas water heater troubleshooting guide for gas supply pressure verification.
Diagnostics for Diagnostic Code 10 or C1 (Venting Blockage)
Refer to the intake and exhaust vent pipe connection diagrams. Error 10 indicates air supply or exhaust blockage. Inspect the intake air filter screen located behind the vent pipe collar. Verify that the combustion fan blower wheel turns freely without mechanical resistance and that the vent pipe lengths do not exceed the maximum allowable equivalent feet specified in the installation manual. Consult our guide on concentric venting installation standards for maximum length and elbow allowance charts.
Rinnai Tankless Water Heater Parts Diagram Frequently Asked Questions
Where is the inline water filter located on the Rinnai plumbing diagram?
The cold water inlet filter screen is located directly inside the cold water inlet assembly at the bottom right corner of the water heater cabinet. It features a hex-head cap or knurled plastic plug that unthreads counterclockwise. Always close the cold water isolation valve and depressurize the unit before removing this assembly for cleaning.
What pipe material and drain fittings are required for the condensate drain assembly?
Rinnai condensing units require corrosion-resistant piping such as Schedule 40 PVC, CPVC, or polypropylene for condensate disposal. Connections from the internal siphon trap typically utilize a 1/2-inch MPT fitting. If adapting to a fixture drain line under a sink, standard PVC slip joint connections or a dedicated tailpiece connector with a built-in trap must be used to withstand the mildly acidic condensate (pH 3 to 5).
How do I test the flame rod using the electrical wiring schematic?
Locate the single yellow or orange wire leading from the flame rod electrode on the combustion chamber burner plate. Set your digital multimeter to measure DC microamps (µA). Connect the meter in series with the flame rod lead wire while the burner is firing. A healthy flame rectification signal reads between 2.0 µA and 10.0 µA DC. A reading below 1.0 µA DC triggers Error Code 12 and indicates a carbon-fouled flame rod or poor chassis ground.
Can I vent a Rinnai condensing unit using standard cellular-core PVC?
No. Rinnai factory specifications strictly forbid the use of cellular-core PVC (ASTM F891) for exhaust venting. You must use solid-core Schedule 40 PVC (ASTM D1785), CPVC (ASTM F441), or manufacturer-approved polypropylene venting products (such as Ubbink or Innoflue) to ensure pressure integrity and heat resistance along the exhaust vent pipe run.
What is the function of the bypass servo shown on the hydraulic diagram?
The bypass servo mechanism balances cold water entering the outlet stream to maintain precise temperature stability during sudden changes in flow demand. By modulating the internal bypass valve in tandem with the primary water flow servo, the PCB prevents “cold water sandwich” effects when hot water outlets are repeatedly cycled on and off.
Step-by-Step Guide to Understanding the Rinnai Tankless Water Heater Parts Diagram
Identify – Shut off incoming power and gas isolation valves before unscrewing the front panel access screws.
Locate – Find the specific component on the diagram, such as the water flow sensor, vent pipe connection, or flame rod.
Reference – Match wiring harness color codes and physical placement against the diagram key to ensure accurate placement.
Connect/Route – Replace damaged parts or route new condensate tailpiece fittings down to the drain assembly and P-trap.
Verify – Reattach the cabinet cover, restore fuel and power supplies, and open isolation valves to check for water or gas leaks.
Troubleshoot – Check the PCB display screen for diagnostic error codes if the unit fails to ignite or maintain water flow.
