5 Wire Ignition Switch Diagram: Pinout Guide (2026)

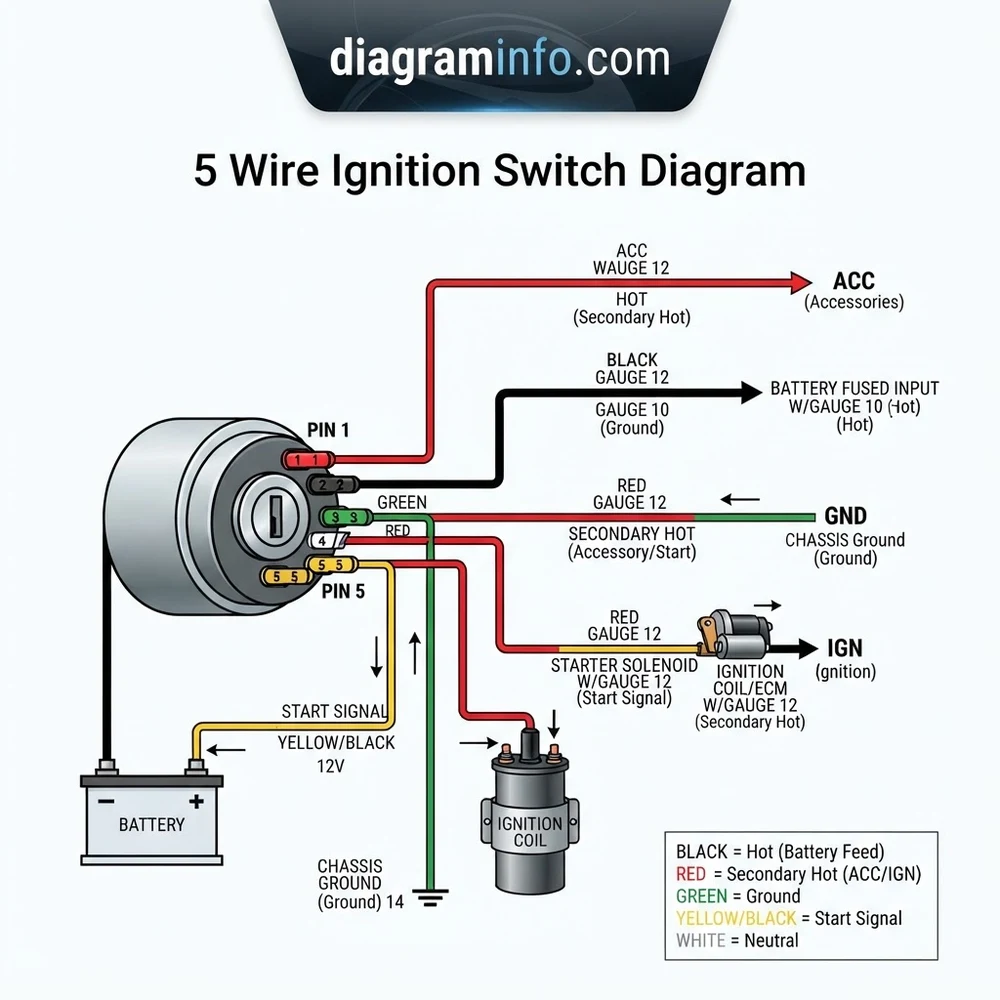

A 5 wire ignition switch diagram maps the B (Battery/hot wire), IGN (Ignition), ST (Starter solenoid), ACC (Accessories), and GND (ground wire) terminals. Terminal B connects to 12V battery power, ST energizes the starter relay during cranking, IGN powers ignition coils, ACC feeds accessories, and GND provides circuit grounding or safety kill functionality.
📌 Key Takeaways
- Terminal B requires a direct 12V hot wire protected by a 20A–30A inline main fuse.
- Always identify terminals using stamped switch labels (B, IGN, ST, ACC, GND) rather than relying solely on harness wire color codes.
- Torque terminal screw connections to 15–20 in-lbs to prevent loose high-resistance contacts and thermal damage.
- Reversing the ST (starter) and IGN (ignition) wire pins will cause the engine to crank continuously or fail to start.
- Verify terminal continuity across key detents with a multimeter prior to final harness mounting.
Replacing or re-wiring a universal or OEM 5-pin ignition switch requires a precise understanding of circuit paths, terminal block layouts, and internal switch logic. Universal 5-wire ignition switches are standard components across riding lawn mowers, outdoor power equipment, tractors, marine vessels, and small industrial generators. Incorrectly terminating a heavy-gauge hot wire or misidentifying a magneto ground wire can instantly destroy an electronic ignition module, blow main line fuses, or create hazardous high-current electrical shorts. Utilizing a verified 5 wire ignition switch diagram ensures that battery constant voltage, ignition coil outputs, accessory loads, and starter solenoid triggers are wired in proper sequence while preserving crucial safety interlocks.
Understanding the 5 Wire Ignition Switch Diagram Wire Color Code
Manufacturer specifications across brands like Briggs & Stratton, Kohler, MTD, Craftsman, and universal marine setups generally adhere to standardized color coding schemes, though variations exist based on equipment build years. The 5-wire system operates on a combination of high-current power distribution and low-current ground/signal switching. Analyzing the 5 wire ignition switch diagram before cutting or crimping prevents miswiring between battery-fed hot wire circuits and sensitive engine grounding paths.
| Terminal Code | Standard Wire Color | Circuit Function | Recommended Wire Gauge & Specs |
|---|---|---|---|
| B / BAT | Red | 12V DC Constant Hot Wire (Battery Feed) | 10–12 AWG (Fused 20A–30A) |
| S / START | White or Violet | Starter Solenoid Trigger Output | 12–14 AWG (Momentary 12V) |
| I / IGN / ON | Yellow or Dark Blue | Switched +12V Ignition Coil / Fuel Solenoid | 14–16 AWG (Active in RUN/START) |
| A / ACC | Orange or Brown | Accessory Power (Lighting, Hours Meter, Gauges) | 14–16 AWG (Active in ACC/RUN) |
| G / M / MAG | Black or Green | Chassis Ground Wire / Magneto Shorting Line | 16–18 AWG (Grounds coil in OFF position) |
It is critical to distinguish whether your engine uses a battery-powered ignition coil or a self-exciting magneto system before making connections. On magneto systems (common in lawn equipment), the ‘M’ or ‘G’ terminal grounds the primary coil winding to kill the engine when the key is turned OFF. Applying +12V DC power from a hot wire to a magneto terminal will instantly burn out the internal armature windings.
Terminal Block Pin Assignment and Switch Contact Logic
The switch body houses a mechanical rotary wiper contact plate mounted behind an insulated terminal block. Turning the key changes the internal connectivity between individual blade terminals. Understanding how these internal contacts connect across key positions allows technicians to perform accurate static continuity tests using a digital multimeter (DMM).
When analyzing a typical 5 wire ignition switch diagram, the contact logic matrix operates as follows:
- OFF Position: The internal bridge connects the G/M (Ground/Magneto) terminal to the chassis ground or engine block. This shunts any high-voltage spark induction directly to earth, preventing engine ignition. The B (Battery), IGN, ACC, and S terminals remain completely isolated (open circuit).
- ACCESSORY (ACC) Position: Turning the key counter-clockwise or one notch clockwise connects B (Battery) to ACC. This supplies continuous nominal +12V DC to lighting circuits, radio heads, or auxiliary hydraulic pumps without energizing the engine ignition module or starter solenoid.
- RUN / ON Position: The internal bridge connects terminal B simultaneously to IGN and ACC. The ground link to G/M is broken (open circuit), allowing the engine ignition coil to fire or the electronic fuel injection (EFI) fuel pump to build line pressure.
- START Position: A heavy spring-loaded momentary contact bridges terminal B directly to terminal S (Start Solenoid) while maintaining current flow to IGN. To maximize starter motor torque and protect sensitive electronics, the switch disconnects terminal ACC in this position on most equipment configurations. Releasing the key springs the tumbler automatically back to the RUN position.
According to standard automotive OEM specifications, maximum allowable voltage drop across any closed ignition switch pin assignment under normal load is 0.2V DC. Terminal blocks are rated for 30A continuous on the BAT pin, 15A continuous on IGN/ACC pins, and up to 40A surge on the S terminal.
Step-by-Step Wiring Sequence for a 5 Wire Ignition Switch
Follow this systematic procedure to strip, terminate, and wire a standard 5-pin ignition switch terminal block. Ensure all wiring uses high-temperature cross-linked polyethylene (XLPE) automotive primary wire (Type SXL or GXL) to withstand thermal stress and vibration.
1. Isolate System Power and Verify Terminal Identification
Disconnect the negative (-) battery terminal cable to prevent accidental shorts during installation. Inspect the rear face of the ignition switch terminal block. Locate the stamped terminal identifiers (B, S, I, A, G, or equivalent OEM lettering). If installing an unlabelled replacement switch, perform a DMM continuity test to identify terminal pairs across all key positions prior to wiring.
2. Connect the Primary Fused Hot Wire (Terminal B)
Crimp a female heat-shrink spade terminal onto the 10 or 12 AWG red wire coming from the starter solenoid’s primary battery post. Ensure an inline ATC/MAXI fuse holder (20A or 30A rated) is installed within 12 inches of the main power source. Push the insulated female connector firmly onto the B / BAT male terminal blade until it locks past the retention detent.
3. Wire the Ignition Run Circuit (Terminal IGN)
Attach the 14 AWG yellow or blue wire to the I / IGN terminal. This conductor routes directly to the primary (+) post of the ignition coil, the electronic control unit (ECU) main relay, or the carburetor anti-afterfire fuel solenoid. Ensure proper wire routing clear of exhaust manifolds and moving linkages.
4. Connect the Starter Solenoid Trigger Wire (Terminal S) through Safety Interlocks
Run a 12 or 14 AWG white/violet conductor from terminal S to the low-current pull-in coil terminal on the starter solenoid. OEM equipment requires routing this wire in series through all safety interlock switches, including the brake pedal switch, PTO (Power Take-Off) engagement switch, and neutral safety switch on the transmission linkage.
5. Terminate the Accessory Circuit Wire (Terminal ACC)
Crimp a 14 AWG orange wire onto terminal A / ACC. Direct this wire to the primary terminal block or bus bar powering secondary loads such as headlights, hour meters, and accessory gauges. Utilizing an auxiliary relay panel is recommended if total accessory current demand exceeds 15 Amps continuous.
6. Secure the Chassis Ground Wire or Magneto Safety Wire (Terminal G/M)
Connect a 16 AWG black wire to terminal G / M. On battery-ignition platforms, route this directly to a clean chassis ground point cleaned to bare metal. On magneto-ignition engines, route this wire directly to the engine’s grounding kill terminal on the flywheel armature winding. Tighten all mechanical fasteners to manufacturer torque specs (typically 15–20 in-lbs for screw-type terminal blocks).
7. Post-Assembly Voltage and Continuity Validation
Reinstall the negative battery cable. With the key in the OFF position, verify 0V DC at IGN, ACC, and S terminals using a digital voltmeter. Turn the key to RUN; confirm full battery voltage (+12.6V DC) at both IGN and ACC terminals. Turn the key to START; confirm momentary +12V DC on terminal S while the engine cranks.
Troubleshooting Common 5 Wire Ignition Switch Diagram Mistakes
Wiring errors during switch replacement can manifest as blown main fuses, melted insulation, non-cranking starters, or an engine that refuses to shut down when the key is turned OFF. Below are the most frequent wiring errors, their electrical causes, and direct corrective procedures.
Applying +12V DC battery voltage directly to a magneto ground terminal (M/G) will destroy the transistorized module inside the ignition coil within milliseconds. Always double-check ground wire assignments with a DMM prior to turning the key ON.
Symptom 1: Main Fuse Blows Instantly When Key is Turned to START
Cause: The starter trigger wire on terminal S has been accidentally cross-connected to terminal G/M, creating a direct dead-short to ground when the momentary internal bridge closes.
Fix: Refer to the pin assignment section of your 5 wire ignition switch diagram. Swap the white solenoid wire to the S terminal and verify that the G/M wire connects only to the chassis or engine kill circuit.
Symptom 2: Engine Cranks over Strongly But Refuses to Fire
Cause: The ignition feed line is wired to terminal ACC instead of terminal IGN. Because many ignition switch designs cut power to ACC during cranking to direct maximum amperage to the starter motor, the ignition system loses power while the key is held in the START position.
Fix: Verify with a voltmeter that the wire powering your ignition coil/ECU shows +12V DC in BOTH the RUN and START key positions. Re-terminate the wire to the correct I / IGN terminal.
Symptom 3: Engine Will Not Shut Off When Key is Turned to OFF
Cause: The ground wire attached to terminal G/M has lost its connection to chassis earth, or the magneto kill wire is broken or disconnected at the engine terminal block.
Fix: Perform a continuity test from terminal G/M to clean chassis ground with the key OFF. Resistance should measure less than 0.5 Ohms. Clean paint or oxidation from the ground lug attachment point and re-test.
Symptom 4: Starter Solenoid Clicks Rapidly or Drops Out Under Load
Cause: Severe voltage drop caused by using an undersized wire gauge (e.g., 18 AWG instead of 12 AWG) on the primary hot wire (BAT) or starter trigger line (S), or excessive contact resistance inside an unsealed terminal block connector.
Fix: Upgrade the supply hot wire from the battery/solenoid to 10 AWG or 12 AWG XLPE marine-grade wire. Inspect female blade terminals for looseness or green copper corrosion, and replace terminals using heat-shrink adhesive-lined connectors.
Frequently Asked Questions About 5 Wire Ignition Switch Wiring
How do I test a 5 pin ignition switch using a digital multimeter?
Set your digital multimeter to the Resistance ($\Omega$) or Continuity setting with the switch unpowered on your bench. Place one probe on the B (Battery) pin. In the OFF position, there should be infinite resistance (open circuit) between B and all other pins. Switch to RUN; you should read under 0.5 Ohms between B and IGN, and between B and ACC. Turn and hold the key to START; you should read continuity between B and S, as well as B and IGN, while ACC opens up. Finally, check that the G/M pin shows zero resistance to terminal IGN or frame ground ONLY in the OFF position on magneto setups.
What is the function of the neutral safety switch in a 5 wire ignition diagram?
The neutral safety switch or transmission range selector acts as an inline safety break placed directly on the 12V DC trigger wire running from terminal S to the starter solenoid. When the equipment is in gear or the brake is unengaged, the neutral switch contacts open, breaking the circuit path. Even if the key is turned to the START position and terminal S outputs 12 volts, current cannot reach the solenoid pull-in coil, preventing accidental movement during engine startup.
Can I replace a 5-wire ignition switch with a 6-wire switch?
Yes, a 6-wire ignition switch can be substituted for a 5-wire switch in most application setups. The extra 6th wire or pin on universal switch blocks is typically a secondary ground wire or a dedicated choke/primer output wire activated by pushing the key inward (push-to-choke feature). To make it work, connect the primary 5 circuits (BAT, IGN, ACC, START, GND) according to standard pin assignments, and leave the extra terminal unhooked or capped with heat-shrink tubing if an electric choke solenoid is not utilized.
Why does my ignition switch terminal block melt over time?
Terminal block melting is caused by thermal buildup stemming from electrical resistance or pulling current beyond the terminal’s rated ampacity. High-draw accessory loads (such as halogen work lights, electric winches, or cab heaters) wired directly through the ACC or IGN pins bypass the safe continuous rating of the switch contacts. To prevent terminal block overheating, install an automotive 4-pin or 5-pin 40A switching relay triggered by the ignition switch output to handle heavy auxiliary power loads directly from the battery.
What wire gauge is recommended for wiring a 12V 5 wire ignition switch?
The primary battery supply wire running to terminal B should be 10 AWG or 12 AWG primary wire protected by a 20A–30A fuse. The starter solenoid trigger line on terminal S requires a 12 AWG or 14 AWG wire to handle initial coil surge current. Ignition (IGN) and accessory (ACC) power supply lines should be run with 14 AWG conductor, while the chassis ground wire or magneto kill line (G/M) safely operates using 16 AWG wire due to minimal current flow during shutoff operations.
