Residential Septic Tank Diagram: Component Breakdown (2026)

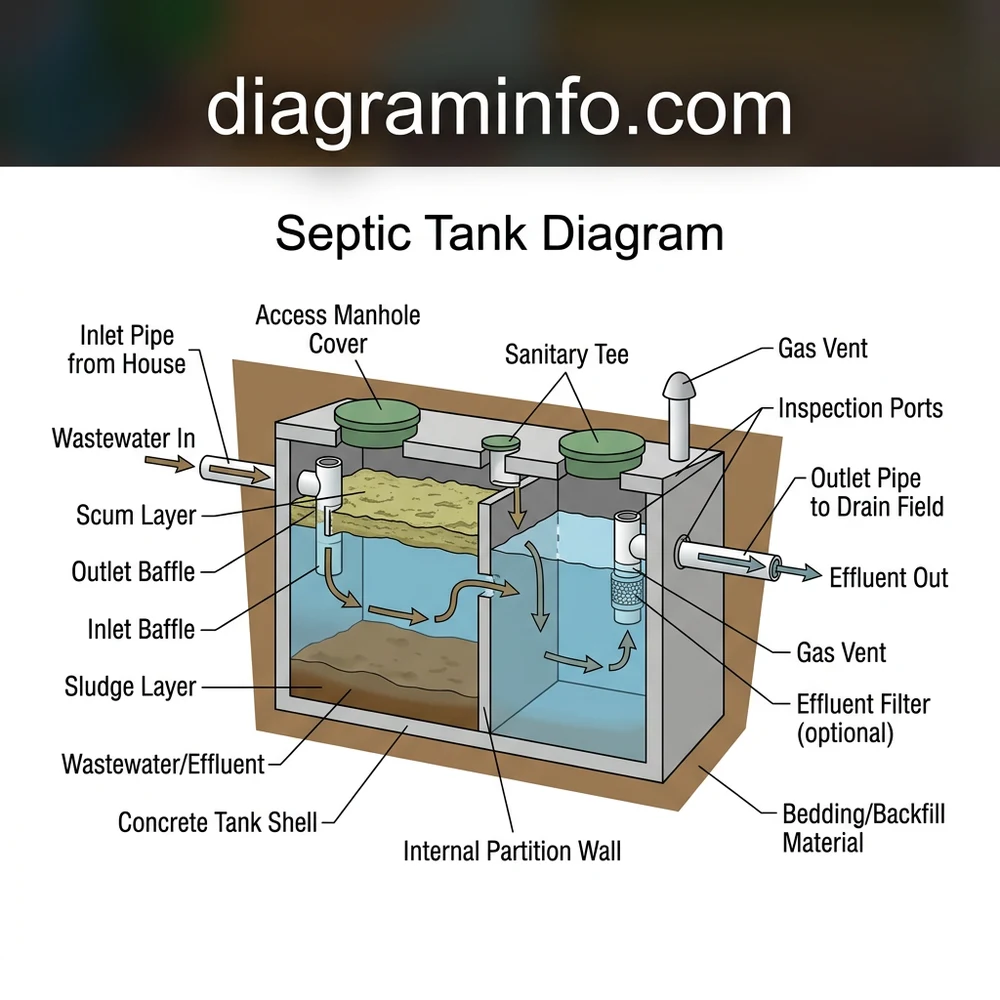

A standard residential septic tank diagram details a two-compartment concrete or plastic vessel. Wastewater enters through a 4-inch PVC inlet pipe into the primary chamber, where scum floats and sludge settles. Liquid passes through a baffled divider to the secondary chamber before exiting via an outlet baffle equipped with an effluent filter into the drainfield.
📌 Key Takeaways
- Inlet baffles sit 2 to 3 inches higher than outlet baffles to maintain proper gravity-fed wastewater flow direction.
- Dual-compartment tank configurations retain 60% to 70% of solids in the primary chamber before liquid transfers.
- Never enter a septic tank without atmospheric testing due to toxic hydrogen sulfide and methane gas accumulation.
- Clogged effluent filters and damaged sanitary tees represent the most frequent causes of household plumbing backups.
- Homeowners can inspect access risers and clean filters, but pumping and structural repairs require licensed professionals.
A comprehensive septic tank diagram serves as the primary technical reference for site engineers, wastewater technicians, and system installers evaluating decentralized onsite wastewater treatment systems (OWTS). Conforming to ASTM C1227 structural standards and NSF/ANSI 40 biological performance criteria, an accurate schematic details the exact hydraulic retention zones, baffle orientations, and fluid flow mechanics essential for primary wastewater treatment. Understanding this structural layout prevents hydraulic short-circuiting, structural fatigue, and soil absorption field failure. This technical blueprint breakdown provides the engineering specifications, elevation thresholds, and diagnostic protocols necessary to interpret, install, and troubleshoot standard two-compartment gravity and pump tank configurations.
Septic Tank Diagram Component Breakdown and System Structure
Every precast concrete or high-density polyethylene (HDPE) septic vessel relies on internal structural components to separate liquid, solid, and floatable fractions. According to OEM specifications and local health codes, a standard two-compartment septic tank splits volume between a primary settling chamber (typically 2/3 total capacity) and a secondary clarification chamber (1/3 total capacity).
| Component | Engineering Specification | Operational Function |
|---|---|---|
| Inlet Sanitary Tee / Baffle | 4-inch Sch 40 PVC; extends 12″ below liquid line | Directs raw influent below scum layer, preventing surface turbulence. |
| Partition Wall Baffle | Reinforced concrete/HDPE; pass-through at 40-70% depth | Prevents primary sludge surge into clarification chamber; divides volume 60/40 or 66/33. |
| Effluent Filter & Tee | NSF Standard 46 rated; 1/16-inch (1.6mm) filtration mesh | Blocks suspended solids (>1/16″) from entering absorption trench or pump tank. |
| Access Risers & Covers | 20 to 24-inch diameter; ASTM C1613 gas-tight seal | Provides ground-level entry points for pump-outs, visual inspection, and filter service. |
ASTM C1227 compliance requires standard precast concrete septic tanks to achieve a minimum 28-day concrete compressive strength of 4,000 PSI. Structural integrity must support a minimum 300 lb/sq.ft top load along with soil hydrostatic pressures at maximum bury depth.
The primary chamber allows heavy suspended solids to settle into anaerobic sludge at the bottom while grease, oils, and fats rise to form a top scum layer. Fluid transfers to the secondary chamber through the partition wall transfer port, located strictly in the clear zone between the sludge and scum layers. The effluent filter mounted on the outlet baffle blocks fine particulate carryover before liquid discharges to the leach field or pump tank.
How to Read a Septic Tank Blueprint and System Layout
Interpreting a technical septic tank schematic requires reading elevation drops, flow paths, and hydraulic retention zones. Blueprints present both plan views (top-down) and section profiles (side cross-section) to communicate dimensions and pipe invert elevations.
Tracing Invert Elevations and Gravity Flow Paths
When reviewing a cross-sectional blueprint, locate the inlet invert elevation ($EI_{in}$) and outlet invert elevation ($EI_{out}$). Standard engineering design dictates a 2-inch to 3-inch drop from inlet to outlet invert across the length of the tank. This elevation differential drives gravity flow through the tank without requiring mechanical assistance. The pipe slope connecting the structure from the house building sewer must maintain a uniform slope of 1/4-inch per foot (2% grade) for 4-inch Schedule 40 DWV pipe.
Calculating Retention Volumes and Hydraulic Loading Rates
The liquid operating depth—measured from the interior floor to the invert of the outlet pipe—determines actual working liquid volume ($V_{working}$). The distance between the liquid line and the underside of the top slab is the air space or freeboard, which must measure a minimum of 9 inches (or 15% of total volume) to accommodate surge flows and anaerobic gas expansion.
Hydraulic Retention Time (HRT) calculations require a minimum of 24 to 48 hours under peak daily flow conditions. For systems utilizing effluent pumps, consult pump chamber lift schematics to establish control float differential settings.
Locating Control Floats in Pressurized System Configurations
In high-water-table or sloped site installations, gravity flow directly to a leach field is not viable. In these configurations, the septic tank schematic details an adjacent pump chamber or integrated secondary pump vault. Engineers must verify the vertical placement of control floats on the blueprint: High Water Alarm float, Pump-ON float, Pump-OFF float, and Redundant OFF/Low Level Cutoff float. These settings maintain precise dose volumes sent to mound system engineering designs or pressure-dosed distribution manifolds.
Diagnosing System Failures Using the Septic Tank Diagram
Technicians use the structural schematic to systematically isolate hydraulic, mechanical, and biological failure points during field diagnostics. By comparing design measurements against actual field conditions, operators identify operational defects quickly.
Hazardous Gas Hazard: Septic tanks contain lethal concentrations of Hydrogen Sulfide (H2S), Methane (CH4), and Carbon Monoxide (CO). Never enter a septic tank without OSHA-compliant confined space equipment, calibrated gas detectors, and forced air ventilation.
Hydrodynamic Short-Circuiting and Baffle Failure
If the inlet or partition baffle deteriorates or detaches (frequently observed in non-coated concrete tanks exposed to H2S gas corrosion), incoming raw wastewater surges straight across the tank surface. This bypasses the primary retention zone, disturbing the scum layer and forcing raw solids straight out through the discharge line. Visual inspection through the inlet riser will confirm whether the top sanitary tee is intact down to its specified 12-inch depth below the liquid line.
Effluent Filter Clogging and Liquid Surcharge
A surcharged tank—where liquid levels rise above the outlet invert up to the bottom of the access risers—indicates head loss across the effluent filter or a downstream drainfield restriction. Using the schematic as a baseline, measure fluid depth with a Sludge Judge core sampler. If liquid levels are high in the secondary chamber but normal in the outlet pipe, remove and service the effluent filter mesh cartridge with a high-pressure water spray. If levels remain elevated downstream, consult aerobic treatment unit schematics or soil absorption diagnostics to clear mainline obstructions.
Structural Cracks and Groundwater Ingress
Unexplained rapid liquid rise during heavy precipitation points to structural seal failure at pipe penetrations, riser seams, or mid-seam cold joints in multi-piece precast tanks. Inspect key joint details specified in the blueprint—such as butyl rubber rope seals (conforming to ASTM C990) or flexible pipe boot clamps—to locate external inflow points.
Septic Tank Configuration and Schematic FAQ
Why is the inlet invert positioned higher than the outlet invert on a septic tank diagram?
The 2 to 3-inch vertical drop between the inlet and outlet invert creates positive gravity head pressure through the tank. This height difference prevents effluent from backing up into the building sewer pipe during peak inflow surges and ensures a continuous unidirectional hydraulic gradient across both compartments.
What role does the partition wall play in dual-chamber tank configurations?
The partition wall divides the tank into primary settling and secondary clarification zones. It restricts 60–70% of heavy sludge accumulation to the primary chamber, preventing turbulence caused by raw incoming sewage from disturbing micro-solids settling in the secondary chamber. This dramatically reduces total suspended solids (TSS) discharged to the leach field.
How do you determine total liquid capacity from a structural schematic?
Calculate capacity using internal chamber dimensions up to the invert of the outlet pipe: multiply Internal Length (ft) × Internal Width (ft) × Liquid Operating Depth (ft) × 7.48 gallons per cubic foot. Freeboard volume above the liquid line is excluded from nominal liquid capacity ratings.
What pipe schedule and diameter specifications are required on technical diagrams?
Residential and light commercial engineering blueprints specify minimum 4-inch nominal diameter Schedule 40 PVC DWV pipe conforming to ASTM D2665 standards. Unslotted, solid wall piping must extend from the structure to the tank inlet, and from the tank outlet to the distribution box or pump vault header.
Step-by-Step Guide to Understanding the Septic Tank Diagram
Identify – Locate primary access risers and inlet pipe connections on the septic tank exterior lid structure.
Locate – Reference the diagram to locate the primary chamber, concrete divider wall, and secondary chamber positions.
Reference – Trace the gravity flow path from household sewer line through inlet baffle down to the outlet tee.
Connect/Route – Verify proper pipe pitch along inlet lines, maintaining minimum slope of 1/4 inch per foot.
Verify – Inspect the effluent filter assembly inside outlet tee to confirm unrestricted water flow into drainfield lines.
Troubleshoot – Examine distribution box alignment and inlet baffle clearance if wastewater levels rise above outlet invert.
