The Cummins 5.9 fuel system diagram illustrates the path from the fuel tank through the lift pump to the high pressure fuel pump (HPFP), injection pressure regulator, and injectors. Fuel is then returned via the fuel return line to the tank, ensuring consistent pressure and efficient combustion. Key to engine performance.

📌 Key Takeaways

  • Proper fuel pressure, typically 10-25 psi from the lift pump to the HPFP, is critical for optimal injection.
  • Identifying the fuel return line is key for diagnosing flow issues or injector bypass problems.
  • Always relieve fuel pressure before servicing to prevent injury and spillage; consult service manual for specific torque specs on fittings.
  • The high pressure fuel pump (HPFP) is a common failure point, often leading to hard starting or complete no-starts.
  • Significant pressure drops or persistent fuel leaks (especially around the injection pressure regulator) often require professional diagnosis due to system complexity.

The Cummins 5.9L B Series engine, a workhorse in various automotive and equipment applications, relies on a robust and precisely engineered fuel system for optimal performance and longevity. Understanding the intricacies of the Cummins 5.9 fuel system diagram is critical for diagnostics, maintenance, and effective troubleshooting. This guide delves into the architecture of both the 1998.5-2002 VP44-equipped and 2003-2007 Common Rail (CR) iterations, highlighting key components, operational flow, and common failure points. Whether you are performing routine service or diagnosing a complex drivability issue, a thorough comprehension of this system is paramount.

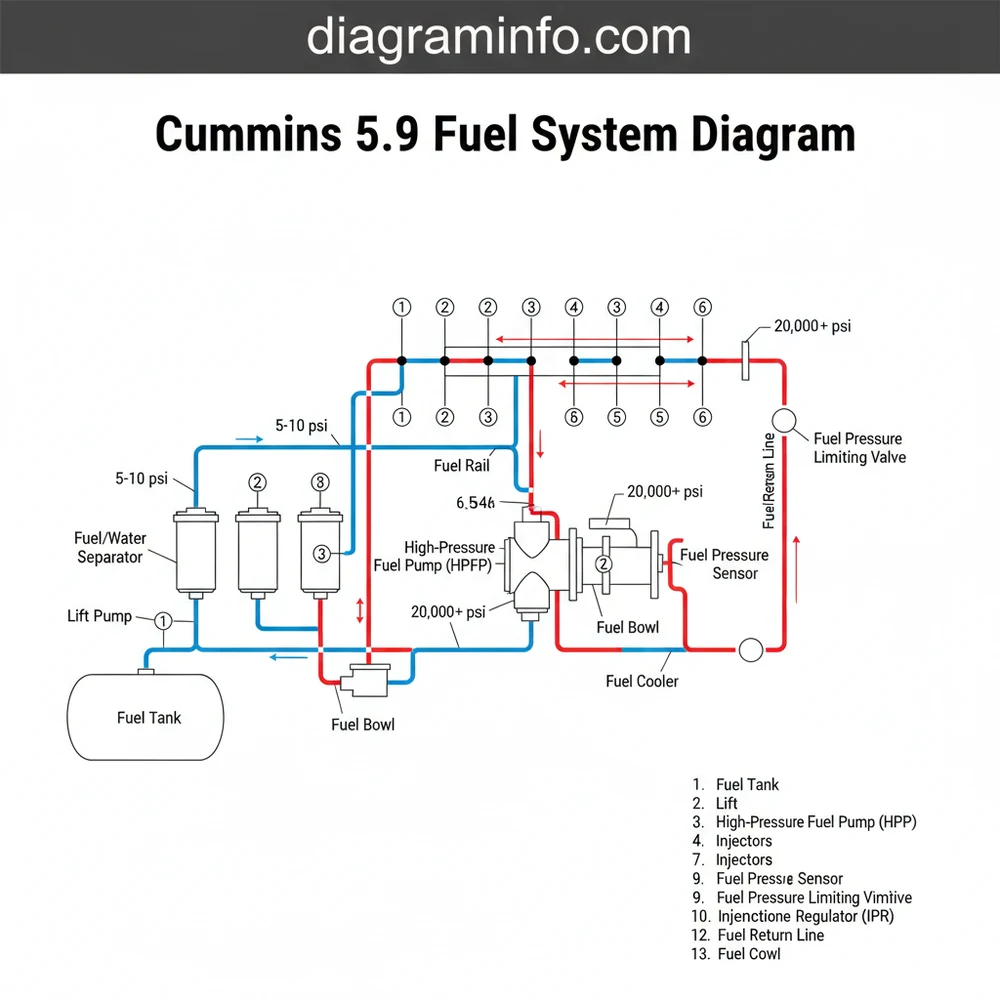

Figure 1: Simplified Cummins 5.9L Common Rail Fuel System Diagram (2003-2007)

Cummins 5.9 Fuel System Diagram: Routing & Repair 2026
Cummins 5.9 Fuel System Diagram: Routing & Repair 2026

Fuel System Components Breakdown

As illustrated in the diagram above, the Cummins 5.9L fuel system, particularly the Common Rail version (2003-2007), is a sophisticated network designed for precise fuel delivery and pressure regulation. Its primary function is to draw fuel from the tank, pressurize it, filter it, and deliver it to the injectors at the exact moment and pressure required for combustion. Earlier 1998.5-2002 24-valve engines employed the VP44 injection pump, which integrated both low and high-pressure stages; however, the common rail system separates these functions more distinctly.

  1. Fuel Tank & Pickup Tube: The starting point for diesel fuel. The pickup tube is designed to draw fuel while leaving sediment at the bottom. Some tanks include an in-tank lift pump.
  2. Lift Pump (Low-Pressure Fuel Pump): On 2003-2004 models, this external electric pump delivers fuel from the tank to the fuel filter housing at approximately 8-15 PSI. Later 2005-2007 models typically integrate the lift pump into the fuel filter housing or are mounted on the engine block. Pre-2003 VP44 systems relied heavily on this pump to feed the injection pump.
  3. Fuel Heater & Water Separator: Often integrated into the fuel bowl (filter housing). The fuel heater prevents waxing of diesel fuel in cold temperatures, ensuring proper flow, while the water separator removes harmful water contaminants from the fuel before it reaches the sensitive injection components.
  4. Fuel Filter: A critical component, typically a 7-micron or finer filter, that removes particulate matter from the fuel. Clean fuel is paramount for the longevity of the high pressure fuel pump (HPFP) and injectors.
  5. High Pressure Fuel Pump (HPFP) (CP3): For 2003-2007 Common Rail systems, this mechanically driven pump (e.g., Bosch CP3) is the heart of the high-pressure side. It draws low-pressure fuel from the filter and pressurizes it to extreme levels (up to 23,000-26,000 PSI) for the common rail. This contrasts with the earlier VP44, which was a combined low and high-pressure pump.
  6. Fuel Rail (Common Rail): A steel tube that stores fuel at extremely high pressure, distributing it to each injector. It acts as an accumulator to dampen pressure fluctuations and ensure consistent pressure delivery.
  7. Fuel Rail Pressure (FRP) Sensor: Mounted on the fuel rail, this sensor monitors the actual fuel pressure in the rail and sends this data to the Engine Control Module (ECM).
  8. Injection Pressure Regulator (FCA – Fuel Control Actuator or MPROP): Located on the HPFP, this electronically controlled valve regulates the amount of fuel entering the high-pressure pumping chambers, thereby controlling the output pressure of the HPFP and the pressure in the common rail.
  9. Fuel Injectors: Electronically actuated, these precise devices spray atomized fuel directly into the combustion chamber under immense pressure and specific timing, controlled by the ECM.
  10. Fuel Return Line: Excess fuel from the HPFP and injectors (used for cooling and pressure regulation) is routed back to the fuel tank via this line, often passing through a fuel cooler to dissipate heat before returning to the tank.
  11. Primer Pump (Hand Pump): Typically integrated into the fuel filter housing, this manual pump allows technicians to bleed air from the fuel system after maintenance (e.g., fuel filter replacement).
  12. Fuel Cooler: Found on some models, particularly those with higher HPFP output or demanding applications, this component reduces the temperature of the returning fuel, preventing heat buildup in the tank and maintaining fuel stability.

Common Failure Points & Symptoms

cummins 5.9 fuel system diagram - related image
Related: cummins 5.9 fuel system diagram

The Cummins 5.9L fuel system, while robust, is susceptible to specific failures that can significantly impact engine performance. Identifying these issues early is crucial to prevent more extensive damage. According to OEM diagnostic procedures, symptoms often pinpoint the failing component.

  1. Lift Pump Failure:

    • Symptom: Extended cranking, stalling, lack of power, engine surging, P0148 (Fuel Transfer Pump Pressure Too Low) or P0170 (Fuel Supply Pressure).
    • Diagnosis: Verify fuel pressure at the inlet of the fuel filter housing. OEM specifications for the 2003-2007 CR engines typically require 8-15 PSI at idle. Pressures below 5 PSI indicate a failing lift pump, restricted fuel lines, or a clogged in-tank module. For a detailed guide on lift pump diagnostics, refer to our comprehensive article.
  2. VP44 Injection Pump (1998.5-2002 models):

    • Symptom: Sudden loss of power, engine dying while driving, hard starting when warm, surging, “dead pedal” feeling, P0216 (Injection Pump Timing Failure).
    • Diagnosis: The VP44 is highly sensitive to low fuel pressure from the lift pump. A failed lift pump often leads to VP44 failure. Check for diagnostic trouble codes. A P0216 is a definitive indicator of an internal VP44 fault.
  3. High Pressure Fuel Pump (HPFP – CP3 – 2003-2007 models):

    • Symptom: Hard starting (especially when warm), no start, severe power loss, black smoke under acceleration, P0087 (Fuel Rail Pressure Too Low), P1221 (Fuel Pump Delivery System Malfunction).
    • Diagnosis: Monitor actual vs. desired fuel rail pressure using a diagnostic scanner. If actual pressure cannot meet desired pressure, particularly under load, the CP3 or the Fuel Control Actuator (FCA) is suspect. A high volume fuel pressure test can confirm CP3 output.
  4. Fuel Injector Issues (Common Rail):

    • Symptom: Rough idle, excessive smoke (white, blue, or black), increased fuel consumption, misfires, knocking sound, fuel dilution in oil, P0201-P0206 (Injector Circuit Malfunction) or P0261-P0284 (Cylinder Contribution/Balance issues).
    • Diagnosis: Perform injector return flow tests, cylinder contribution tests with a scan tool, or visually inspect for external leaks. Our injector troubleshooting guide provides in-depth methods for identifying faulty injectors.
  5. Fuel Rail Pressure (FRP) Sensor/Fuel Control Actuator (FCA):

    • Symptom: Stalling, surging, hard starting, no start, P0193 (Fuel Rail Pressure Sensor High Input), P0192 (Fuel Rail Pressure Sensor Low Input), P0087.
    • Diagnosis: Monitor FRP sensor readings on a scanner. Compare actual to desired fuel rail pressure. If readings are erratic or inconsistent with engine state, either the sensor or the FCA (which directly controls rail pressure) is at fault.
  6. Clogged Fuel Filter/Water Separator:

    • Symptom: Loss of power, engine surging, hard starting, excessive smoke.
    • Diagnosis: This is often a precursor to other failures. Check fuel pressure at the lift pump outlet; if low, replace the filter. Regular maintenance is key.

Repair & Replacement Steps: Fuel Filter and Water Separator

Replacing the fuel filter and draining the water separator is one of the most critical and frequently performed maintenance tasks on a Cummins 5.9L engine. This procedure ensures clean fuel delivery and prevents costly damage to the high-pressure components. Manufacturer specifications indicate this should be performed every 15,000 miles or annually, whichever comes first.

⚠️ Warning

Diesel fuel is flammable. Always work in a well-ventilated area away from open flames or ignition sources. Wear appropriate personal protective equipment, including eye protection and fuel-resistant gloves. Diesel fuel can be corrosive to skin and some materials. Ensure the engine is off and cooled before proceeding.

Tools and Materials Required:

  • New Fuel Filter Element (e.g., Mopar 5015581AA or equivalent aftermarket)
  • Oil Drain Pan or suitable container for fuel
  • Fuel Filter Wrench (strap wrench or specialized cap wrench for your housing)
  • Clean Shop Rags
  • Torque Wrench

Procedure for 2003-2007 Cummins 5.9L Fuel Filter Housing:

  1. Prepare the Vehicle: Park the vehicle on a level surface. Ensure the engine is off and cool. Place a drain pan under the fuel filter housing located on the driver’s side of the engine.
  2. Drain Water Separator: Locate the water drain valve at the bottom of the fuel filter housing. Open the valve and allow any accumulated water and some fuel to drain into the pan. Close the valve once fuel starts to flow cleanly or the flow stops.
  3. Remove Old Filter:
    1. Unplug any electrical connectors attached to the filter housing (e.g., water-in-fuel sensor, fuel heater element).
    2. Using the appropriate fuel filter wrench, carefully loosen the fuel filter canister or the housing cap, depending on your filter type. Some models have a spin-on filter, others a cartridge inside a reusable housing.
    3. Once loose, slowly unscrew the filter or housing cap by hand. Be prepared for some fuel spillage.
    4. Remove the old filter element and associated O-rings. Dispose of them properly.
  4. Inspect and Clean: Thoroughly clean the inside of the fuel filter housing, ensuring no debris or old O-ring material remains. Inspect the housing for any cracks or damage.
  5. Install New Filter:
    1. Lubricate new O-rings (if applicable) with clean diesel fuel. Install them correctly onto the new filter element or housing cap.
    2. Install the new fuel filter element into the housing. If it’s a spin-on type, apply a thin film of clean diesel fuel to the new filter’s gasket.
    3. Carefully thread the filter or housing cap back on by hand until it seats.
    4. Using the filter wrench, tighten the filter to the manufacturer’s specified torque.
  6. 🔧 Specification

    Typical torque specification for the fuel filter housing cap on a 2003-2007 Cummins 5.9L is 25 ft-lbs (34 Nm). Refer to your specific service manual for exact values.

  7. Reconnect Electricals: Reattach any electrical connectors removed earlier (water-in-fuel sensor, fuel heater).
  8. Prime the Fuel System:
    1. Locate the primer pump on top of the fuel filter housing.
    2. Press the plunger repeatedly until it becomes firm. This indicates that the fuel system is pressurized and air has been purged from the filter housing. This may take 30-60 pumps.
    3. On 2005-2007 models without a manual primer, cycle the ignition key to the "ON" position (without starting) for 15-30 seconds, then turn "OFF." Repeat this 3-4 times. This activates the in-tank or electric lift pump to prime the system.
  9. Start and Inspect: Start the engine and let it idle for a few minutes. Carefully inspect the fuel filter housing and surrounding lines for any leaks. Ensure there are no air bubbles visible in clear fuel lines (if equipped). Take the vehicle for a short drive to confirm proper operation and check for any diagnostic trouble codes.
💡 Technical Note

For vehicles equipped with aftermarket filtration systems (e.g., FASS, AirDog), the replacement procedure for those filters will vary. Always consult the manufacturer’s instructions for the specific aftermarket system. Proper priming after any filter change is critical to prevent air from entering the high-pressure side of the fuel system, which can cause severe damage to the HPFP and injectors, particularly on Common Rail engines.

Frequently Asked Questions

What is the typical fuel pressure for a Cummins 5.9L Common Rail engine?

For 2003-2007 Cummins 5.9L Common Rail engines, there are two primary pressure ranges: low pressure and high pressure. The low-pressure side, supplied by the lift pump to the HPFP, should ideally maintain 8-15 PSI at idle and under load. Pressures below 5 PSI indicate a problem. The high-pressure side, regulated by the HPFP and FCA, operates in a much higher range, typically from around 5,000 PSI at idle to over 23,000-26,000 PSI under full load. The Engine Control Module (ECM) constantly monitors and adjusts this high pressure via the Fuel Rail Pressure (FRP) sensor and the Fuel Control Actuator (FCA) to optimize combustion.

Can I use gasoline additives in my Cummins 5.9L diesel fuel system?

Absolutely NOT. Using gasoline additives or gasoline itself in a diesel fuel system can cause catastrophic damage. Diesel fuel provides essential lubrication for the fuel pump and injectors. Gasoline, being a solvent, will strip this lubrication, leading to premature wear and failure of critical components, especially the high-pressure fuel pump (HPFP) and injectors. Always use diesel-specific fuel additives designed to improve lubricity, cetane, or provide anti-gelling properties, particularly in colder climates. Consult your vehicle owner’s manual or a reputable diesel specialist for recommended additives.

What are the common causes of air in the Cummins 5.9L fuel system?

Air in the fuel system can cause hard starting, stalling, and power loss. Common causes include: improperly sealed fuel filters after replacement, loose fuel lines or connections, cracked fuel lines (especially the fuel return line), a failing lift pump unable to maintain adequate positive pressure, or a faulty fuel cap allowing vacuum leaks. Diagnosing air in the system often involves inspecting clear fuel lines for bubbles or performing a fuel pressure test to ensure consistent supply. For more information on diagnosing P-codes related to fuel delivery, review our guide on common Cummins P-code diagnostics.

How often should I replace the fuel filter on my 5.9L Cummins?

According to manufacturer guidelines for most Cummins 5.9L engines, the fuel filter should be replaced every 15,000 miles or once a year, whichever comes first. However, operating in dusty environments, using lower quality fuel, or experiencing symptoms like reduced power or surging may warrant more frequent replacement. Regularly draining the water separator, often integrated into the fuel bowl, is also crucial to prevent water contamination from reaching sensitive components. Timely fuel filter replacement is a cost-effective measure to protect expensive injection system components like the high pressure fuel pump (HPFP) and injectors.

Step-by-Step Guide to Understanding the Cummins 5.9 Fuel System Diagram: Routing & Repair 2026

1

Identify – Locate the fuel tank, lift pump, and fuel filter housing on the vehicle.

2

Locate – Trace the main fuel feed line from the lift pump to the high pressure fuel pump (HPFP) and then to the injectors.

3

Reference – Use the diagram to identify the fuel return line routing from the injectors/injection pressure regulator back to the tank or filter housing.

4

Connect/Route – When replacing components like the HPFP or fuel lines, ensure all connections are tight and follow the original routing to prevent chafing or interference.

5

Verify – After any component replacement, check for fuel leaks and proper fuel pressure at various points using a suitable gauge, particularly after replacing the injection pressure regulator.

6

Troubleshoot – If issues persist, re-reference the diagram to systematically check for blockages, electrical issues affecting the lift pump, or injector problems.

Frequently Asked Questions

What are the main components of the cummins 5.9 fuel system diagram?

The Cummins 5.9 fuel system includes the fuel tank, lift pump, fuel filter housing (often including a fuel bowl), high pressure fuel pump (HPFP), fuel lines (feed and return), injection pressure regulator, and fuel injectors. It’s designed to deliver clean, pressurized fuel for combustion.

What are symptoms of a failing cummins 5.9 fuel system diagram pump?

Symptoms of a failing lift pump or high pressure fuel pump (HPFP) on a Cummins 5.9 include hard starts, no-starts, loss of power under load, surging, or erratic engine operation. You might also notice excessive smoke, particularly black smoke, due to insufficient fuel delivery.

How do I diagnose a fuel leak in cummins 5.9 fuel system diagram?

To diagnose a fuel leak, visually inspect all fuel lines, especially the fuel return line, fittings, the fuel filter housing (fuel bowl), and injector connection points for wet spots or drips. Use a flashlight in dark areas. A small hand-pump or compressed air (cautiously) can sometimes help pinpoint a hidden leak.

What is the fuel pressure spec for cummins 5.9 fuel system diagram?

For the Cummins 5.9, primary fuel pressure from the lift pump to the high pressure fuel pump (HPFP) should typically be maintained between 10-25 PSI at idle and under load. The HPFP then generates much higher injection pressure, regulated by the injection pressure regulator, reaching thousands of PSI.

How long does cummins 5.9 fuel system diagram fuel pump last?

The lifespan of a Cummins 5.9 fuel pump (both lift pump and HPFP) varies significantly based on maintenance, fuel quality, and operating conditions. With proper fuel filtration and avoiding running the tank low, many can last 100,000-200,000 miles or more, but premature failures are not uncommon.

Can I replace the cummins 5.9 fuel system diagram fuel filter myself?

Yes, replacing the Cummins 5.9 fuel filter, often located in a spin-on canister or within the fuel bowl, is a common DIY maintenance task. It typically involves draining the fuel bowl, unscrewing the old filter, applying new fuel to the seal of the new filter, and hand-tightening. Proper bleeding is crucial afterward.
