A standard 4 wire ignition switch features four main terminals: Battery (BATT/B) connected to a 12V hot wire, Ignition (IGN/I) powering ignition coils, Starter (ST/S) triggering the starter solenoid, and Accessory (ACC/A) running auxiliary devices. Ensure proper ground wire chassis contact and match pin assignments correctly to avoid electrical shorts.
📌 Key Takeaways
- Main supply leads require 10-12 AWG wire rated for 12V DC systems up to 30A continuous load.
- Terminal pin assignments are labeled BATT (Battery), IGN (Ignition), ST (Starter), and ACC (Accessory).
- Always disconnect the battery negative ground terminal before working on switch wiring.
- Incorrectly connecting the ST wire directly without a neutral wire safety switch allows engine cranking in gear.
- Seek professional mechanic assistance if you detect thermal harness damage or melted insulation.
Correctly installing or diagnosing a 4-wire ignition switch requires a thorough understanding of contact continuity, terminal pinout configurations, and circuit current capacity. Whether you are re-wiring a utility tractor, lawn equipment, off-road vehicle, or classic automotive harness, referencing an accurate 4 wire ignition switch wiring diagram ensures electrical system integrity and prevents short circuits, failed starters, or harness fires. This technical article provides exact terminal assignments, wire color codes, gauge specifications, internal switching logic, and multimeter testing procedures required for professional electrical installations.
Recommended Best Deal Products

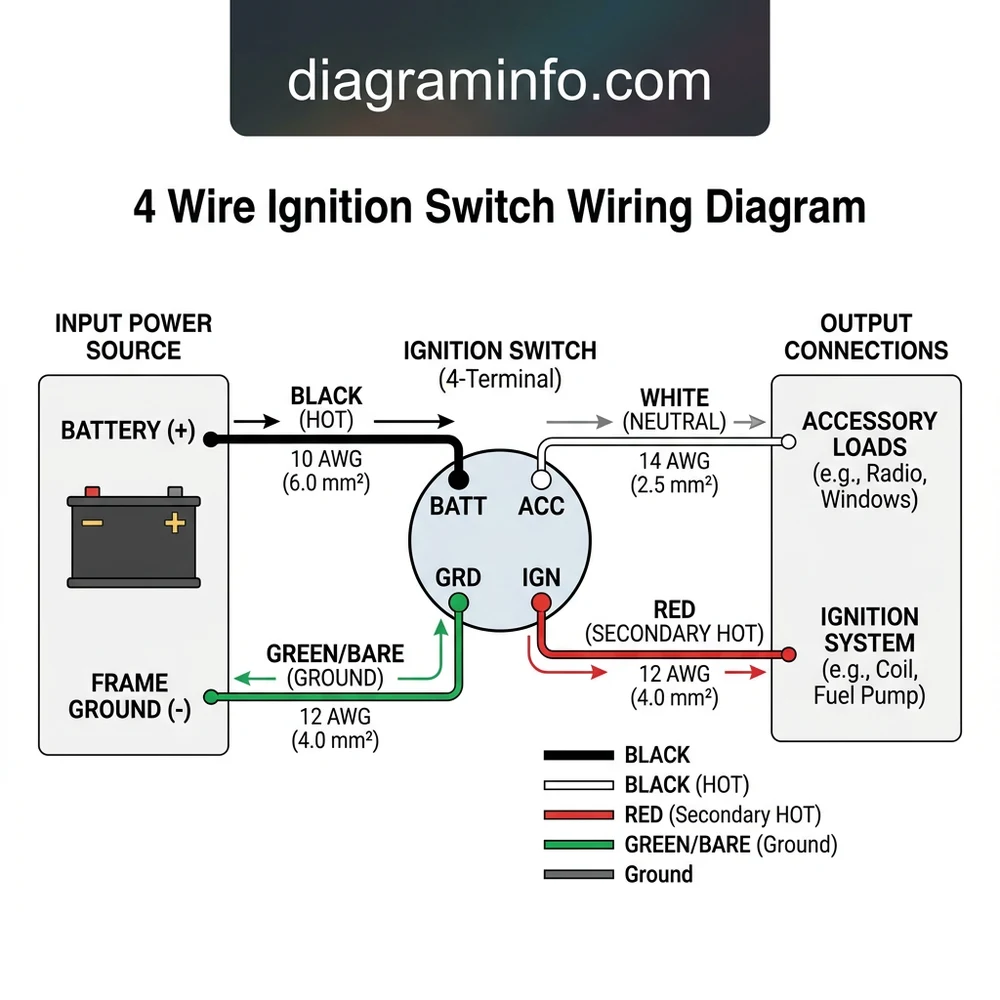

Schematic visualizer: Constant Power Feed (BAT), Ignition Circuit (IGN), Starter Solenoid Control (ST), and Accessory Feed (ACC) connected across a 4-pin key switch block.
4 Wire Ignition Switch Wiring Diagram Terminal Assignments and Internal Logic
To correctly terminate a 4-wire ignition switch, you must understand how the internal rotary wiper bridges internal contacts across distinct key switch positions. Standard 4-pin ignition key switches utilize internal copper contacts engineered to distribute high-amp direct current (+12V DC) from a primary power feeder to specific branch circuits depending on key position.
A standard automotive or equipment 4 wire ignition switch wiring diagram revolves around four main key positions:
- OFF Position: The internal contacts remain fully isolated (open circuit). Absolute zero voltage is delivered to output pins. On specialized magneto systems, the OFF position mechanically grounds the ignition module via a designated ground wire or frame contact to suppress coil firing.
- ACCESSORY (ACC) Position: Turning the key counter-clockwise or one notch clockwise connects the constant hot wire input (BAT) exclusively to the accessory output (ACC). This allows operation of auxiliary electronics, radios, or lighting without energizing the ignition coil or fuel system.
- ON / RUN Position: The internal contact wiper simultaneously bridges the main power terminal (BAT) to both the ignition output terminal (IGN) and the accessory output terminal (ACC). This energizes the engine management ECU, ignition system, fuel pump, instrument cluster, and general utility accessories while maintaining system voltage across all active rails.
- START Position: Turning the key to the momentary spring-return position bridges the main power terminal (BAT) directly to the starter solenoid control terminal (ST) while maintaining current flow to the ignition circuit (IGN). Crucially, the internal contact mechanics automatically disconnect the accessory terminal (ACC) during cranking. Shedding accessory load guarantees maximum voltage stability and maximum cold-cranking battery amperage to the starter motor.
Understanding this contact switching logic prevents common installation errors such as connecting the ignition feed to an accessory terminal that drops power during cranking, which causes an engine to turn over endlessly without starting. When integrating these circuits with auxiliary power control systems, consulting a dedicated relay wiring diagram ensures that high-current draws do not pass directly through sensitive key switch contact plates.
Standard Wire Color Code and Pin Assignment Reference Table
Manufacturers utilize specific pin labeling conventions on the back of key switch housings, typically stamped directly into the phenolic switch substrate alongside brass spade or screw terminals. The following reference table outlines standard pin assignments, internal functions, industry color coding, and circuit specs found in universal 4-wire ignition switch installations.
| Terminal Designation | Standard Wire Color Code | Circuit Function | Specification & Destination |
|---|---|---|---|
| BAT / B | Solid Red | Constant Battery Power Input | Direct connection to hot wire from primary battery junction or starter solenoid battery lug. Fused at 30A. |
| IGN / IG | Pink / White or Blue | Switched Ignition Output | Powers ignition coil, ECU, engine sensors, and warning lights in RUN and START positions. |
| ST / S | Yellow / Red or Violet | Starter Solenoid Trigger | Provides +12V signal to starter relay or solenoid S-terminal only when key is held in momentary START. |
| ACC / A | Brown or Orange | Switched Accessory Output | Supplies power to secondary equipment, lights, and cab comfort items in ACC and RUN positions. |
Note: While the wire color code table above reflects standard SAE automotive conventions, Japanese industrial OEM equipment (Yanmar, Kubota) or outdoor power equipment (Briggs & Stratton, Kohler) may employ alternate color schemes. Always verify pin assignments visually on the switch body or confirm continuity with a digital multimeter before attaching wired leads to the terminal block.
Wire Gauge, Inline Fuse Sizing, and Operating Voltage Specifications
• Operating System Voltage: 12.0V DC nominal (13.8V – 14.4V DC dynamic charging voltage)
• Battery Feed Wire Gauge: 10 AWG to 12 AWG stranded copper wire
• Ignition Circuit Wire Gauge: 12 AWG to 14 AWG stranded copper wire
• Starter Signal Wire Gauge: 12 AWG to 14 AWG stranded copper wire
• Accessory Circuit Wire Gauge: 14 AWG to 16 AWG stranded copper wire
• Maximum Continuous Current Rating: 30 Amps continuous across switch contact bus
• Maximum Voltage Drop: ≤ 0.20V DC across terminal block under load
Correct conductor sizing is vital when assembling a harness based on a 4 wire ignition switch wiring diagram. Selecting an undersized wire gauge causes excessive electrical resistance, generating heat along the wire run that leads to voltage drops and premature switch contact degradation.
The main hot wire feed terminating at the BAT pin must be constructed using high-strand 10 AWG or 12 AWG cross-linked polyethylene (XLPE) automotive wire (Type TXL or GXL). This main feeder must be protected by a heavy-duty inline fuse or thermal circuit breaker rated at 30 amps, located within 12 inches of the primary power source to protect against chassis short circuits.
Branch leads extending from the IGN and ST terminals should utilize 12 AWG or 14 AWG conductors. The ST wire carries high initial surge amperage to charge the inductive coil inside the starter solenoid. If the voltage at the ST pin drops below 9.6 volts DC during cranking due to inadequate gauge size or loose terminal block connections, the starter solenoid plunger will chatter or fail to pull in the starter drive gear.
Executing the 4 Wire Ignition Switch Wiring Diagram Assembly Step by Step
Disconnect the main negative battery cable prior to making or altering any wiring connections at the ignition switch terminal block. Unintended contact between a hot wire tool and grounded metal dash frames will cause immediate high-amperage shorting, severe arc flashes, or destroyed wiring insulation.
Follow these precise steps to connect a universal 4-pin ignition key switch to your vehicle or equipment harness:
Step 1: Prep Terminals and Verify Wire Insulation
Strip 1/4-inch of insulation from each conductor using a calibrated wire stripper. Crimp marine-grade heat-shrink spade connectors or ring terminals onto each wire using a ratchet crimping tool. Inspect the wire strand bundles to confirm zero broken copper strands, as compromised strands reduce effective gauge capacity and trigger localized resistive heating.
Step 2: Connect Main Battery Hot Wire (BAT Terminal)
Identify the constant +12V DC power feed wire coming from your master distribution block or starter solenoid positive battery post (typically solid red). Crimp a properly sized spade terminal onto the lead and push it firmly onto the switch pin labeled BAT or B. Ensure the female connector latches fully over the terminal block pin detent to prevent vibration-induced dislodgement.
Step 3: Wire Switched Ignition Circuit (IGN Terminal)
Locate the primary ignition feed wire (typically pink, white, or blue) that routes directly to your ignition coil, electronic ignition module, or fuel system control circuit. Connect this conductor to the switch pin labeled IGN or IG. This line must maintain direct continuity to the battery terminal whenever the switch key is held in both the RUN and START detents.
Step 4: Wire Starter Control Circuit and Neutral Interlocks (ST Terminal)
Identify the starter trigger lead (typically yellow/red or purple) running to the starter solenoid S-terminal. If your machine utilizes safety interlocks, route this conductor through the neutral safety switch or clutch safety interlock switch before terminating it at the ignition switch. Secure the final output lead to the terminal pin marked ST or S.
Step 5: Attach Accessory Branch Circuits (ACC Terminal)
Connect the auxiliary power feed wire (typically brown or orange) servicing secondary equipment, instrument lighting, radios, or work lights to the terminal labeled ACC or A. Ensure the total current load across all attached accessory branches does not exceed 15 amps continuous. If your accessory load exceeds this threshold, wire the ACC output terminal to trigger an external 4-pin 40-amp automotive relay instead of driving heavy current accessories directly through the switch contact block.
Step 6: Reconnect Battery Terminal and Perform Voltage Testing
Reconnect the negative battery terminal clamp. Torque the post nut to OEM specification (typically 60-80 in-lbs). Insert the ignition key and perform systematic static and dynamic voltage verification across all terminal points using a calibrated multimeter.
Troubleshooting Common 4 Wire Ignition Switch Wiring Diagram Faults
When diagnosing non-start conditions, measure voltage drop directly across the switch terminals while attempting to crank the engine. Place your red multimeter probe on the BAT terminal and the black probe on the ST terminal. A reading greater than 0.30V DC during cranking indicates excessive internal contact resistance, requiring switch replacement.
When an ignition system malfunctions after wiring installation, targeted electrical troubleshooting quickly isolates harness, component, or switch failure modes. Review the following primary failure scenarios:
Scenario A: Engine Cranks When Key is Turned to START, But Immediately Dies When Key Drops Back to RUN
This classic diagnostic symptom indicates that the ignition circuit lead (IGN) was accidentally attached to the accessory terminal (ACC) instead of the dedicated ignition pin. Because the internal contacts drop power to the ACC pin during key cranking to maximize starter current, no voltage reaches the ignition coil during the start sequence. Once released to RUN, the coil energizes, but engine momentum has already stopped. Re-check the 4 wire ignition switch wiring diagram pin assignments and move the primary coil feed to the genuine IGN terminal.
Scenario B: Starter Solenoid Rapidly Clicks Without Engine Turnover
Repeated solenoid chatter points to significant voltage drop entering the switch via the constant hot wire or exiting through the ST terminal line. Inspect the master fuse block and all spade connections on the terminal block for corrosion, loose crimps, or pitting. Check that the system ground wire network and battery negative strap demonstrate less than 0.05 ohms resistance back to the engine block chassis ground.
Scenario C: Blown Main Fuse Immediately Upon Turning Key to RUN
A blown main fuse indicates a direct short circuit to ground along the IGN or ACC output branch. Unplug the output wires from the switch terminal block and measure resistance to ground on each isolated circuit lead using a multimeter set to Ohms (Ω). A reading near 0.0 ohms indicates a pinched hot wire touching bare chassis metal, or a shorted ignition coil/fuel pump relay winding.
Scenario D: Magneto-Ignition Small Engine Overheats or Fails to Shut Off
Universal 4-wire switches intended for battery-powered ignition systems (+12V DC feed) are strictly incompatible with small engine magneto kill-circuit systems (found on many lawn mowers and power tools). Connecting +12V DC battery power to a magneto ground wire line will instantly destroy the internal solid-state diode inside the engine’s ignition armature. Magneto switches use ground wire switching logic, whereas standard automotive switches use battery power distribution. Always confirm whether your engine requires a battery-style ignition switch or a magneto-grounding switch prior to final terminal termination.
If you experience persistent charging irregularities or dimming instrument panels after resolving ignition key harness issues, consult our detailed charging system troubleshooting guide to evaluate alternator stator output and voltage regulator health.
4 Wire Ignition Switch Wiring Diagram Technical FAQ
How Do You Differentiate Between Battery-Ignition and Magneto 4-Wire Switches?
Battery-ignition switches use a primary power pin (BAT) that receives constant +12V DC power and routes it outward to the IGN and ST pins. Magneto-style 4-wire switches utilize pins labeled M (Magneto) and G (Ground). In the OFF position, a magneto switch internally connects M to G to short out the ignition coil spark. On a multimeter continuity test, a battery switch shows zero continuity between any pins in OFF, while a magneto switch shows direct continuity between the kill-line pin and ground wire in OFF.
What Gauge Wire Should Be Used When Extending an Ignition Switch Harness?
Always match or exceed the original equipment manufacturer (OEM) wire gauge specifications. For the main battery constant feed (BAT), use 10 AWG or 12 AWG stranded copper wire. For ignition output (IGN) and starter trigger lines (ST), use 12 AWG or 14 AWG conductors. Accessories drawing minimal current can utilize 16 AWG wire. Never use solid-core building wire; only use multi-strand SAE J1128 automotive wire designed to withstand vehicle vibration and thermal cycling.
Why Does the Accessory Terminal Lose Power During Engine Cranking?
The accessory terminal drops power during key cranking by design. Internal contact wiper plates are specifically arranged to isolate the ACC pin when the key enters the spring-loaded START position. Shedding non-essential electrical loads (such as cab lighting, blowers, and radios) preserves full battery capacity, minimizing line drop so the starter motor receives maximum voltage and cold-cranking amps.
How Do You Test a 4-Wire Ignition Switch with a Digital Multimeter?
Set your multimeter to the Resistance / Continuity setting (Ω or audible beep). With all harness wires disconnected from the terminal block, check continuity across the pins for each key position:
- OFF: Open circuit across all pin combinations (or continuity strictly between Ground and Magneto on kill-style switches).
- ACC: Continuity present strictly between BAT and ACC terminals.
- RUN: Continuity present between BAT and IGN, and simultaneously between BAT and ACC.
- START: Continuity present between BAT and IGN, and simultaneously between BAT and ST. No continuity should exist between BAT and ACC.
Can a 4-Wire Ignition Switch Drive High-Draw Electric Fuel Pumps Directly?
No. Standard 4-wire ignition switch internal contacts are rated for a maximum continuous current load of 15 to 20 amps across the entire contact bus. High-draw electric fuel pumps, electric cooling fans, or auxiliary halogen lighting assemblies pull high starting surge currents that will quickly pit, burn, or weld the internal switch contacts together. High-draw loads must always be controlled via an external 4-pin or 5-pin 40-amp automotive relay, using the switch IGN terminal pin solely to energize the low-amperage relay control coil (Pin 86).
Step-by-Step Guide to Understanding the 4 Wire Ignition Switch Wiring Diagram
Identify – Identify the four terminals (BATT, IGN, ST, ACC) marked on the rear switch housing.
Locate – Locate the primary 12V constant hot wire from the main harness using a multimeter.
Reference – Reference the 4 wire ignition switch wiring diagram to confirm terminal function matching.
Route/Connect – Connect the hot wire to BATT, ignition lead to IGN, starter relay through a neutral wire safety switch to ST, and auxiliary loads to ACC.
Verify – Verify terminal screw tightness, slip on protective rubber boots, and check ground wire continuity across the panel.
Troubleshoot – Troubleshoot voltage drop issues or blown fuses using a circuit test light before final mounting assembly.
