County Line 25 Gallon Sprayer Parts Diagram: Assembly Breakdown
The system is divided into three primary functional sub-assemblies: the fluid containment chassis, the electrical power/drive motor assembly, and the fluid distribution manifold. Evaluating each section according to manufacturer specifications ensures correct part identification during service procedures.
Fluid Storage and Tank Chassis Component Anatomy
The core structural foundation consists of a blow-molded, UV-stabilized high-density polyethylene (HDPE) 25-gallon tank. The tank architecture features molded gallon and liter volume markers along the outer wall and molded insert nuts on the underside for mounting to a trailer chassis or utility vehicle bed. Key structural components shown in the blueprint include:
- Threaded Tank Cap and Breather Valve: A 5-inch wide-mouth fill cap featuring an integrated anti-splash check valve and tether string to prevent atmospheric pressure lock during high-flow discharge.
- Polyethylene Sump Drain Port: Located at the lowest point of the tank, equipped with a 3/4-inch NPT threaded male fitting, a rubber sealing washer, and a tethered cap to facilitate complete fluid drainage.
- Tank Mounting Fasteners: Four 5/16-inch x 18 UNC grade 5 hex cap screws with flat washers inserted into molded brass inserts, torqued to an OEM specification of 12 ft-lbs (16.2 Nm).
12V DC Pump and Electrical Schematic Configuration
The pumping system operates via a self-priming 12-volt DC demand diaphragm pump. Manufacturer specs indicate an operating delivery rate of 2.2 Gallons Per Minute (GPM) or 4.5 GPM depending on the specific model series, delivering up to 100 PSI maximum pressure. Internal pump components in the schematic consist of Viton valves, a Santoprene diaphragm, and a zinc-plated motor housing.
The electrical system operates on a direct 12V DC loop drawing a maximum of 7.5 to 10 Amperes under full load. Power distribution is managed through a removable wiring harness constructed from 16 AWG stranded copper wire. The circuit includes an inline 15-Amp ATC blade fuse housed in a waterproof rubber casing, a heavy-duty weather-sealed rocker switch, and a 2-pin SAE quick-disconnect plug that mates directly with lawn tractor or ATV battery lead clips.
Plumbing Manifold and Spray Wand System Blueprint
Fluid routing from the pump outlet flows into a glass-filled polypropylene manifold block. This central system layout branches into three distinct pathways: the pressure adjustment bypass loop, the hand wand outlet, and the broadcast boom shutoff valve. The hand wand assembly includes a 15-foot, 3/8-inch Inner Diameter (ID) reinforced PVC spray hose rated for 250 PSI burst pressure. The wand features a brass or poly lever valve and an adjustable nozzle tip capable of shifting from a fine 45-degree cone mist to a concentrated 30-foot solid stream.

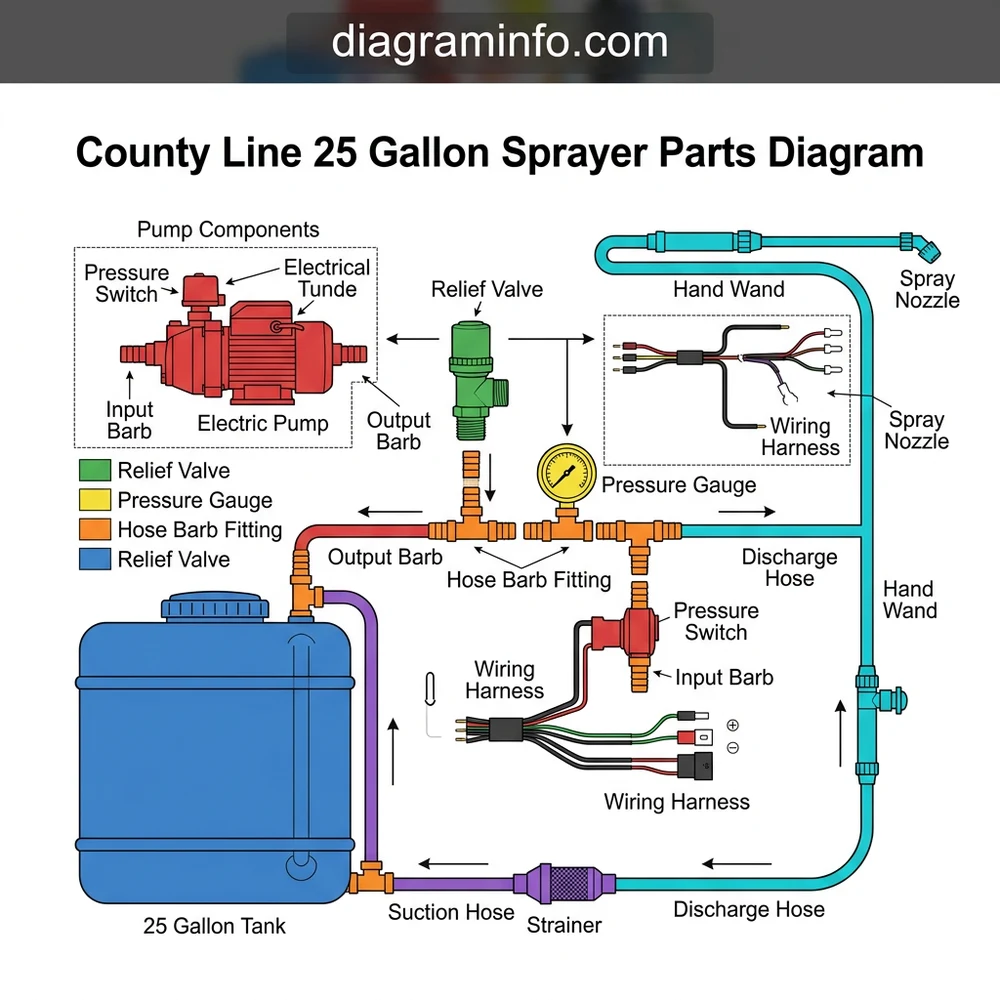

| Diagram Callout Component | OEM Part / Material Standard | Technical Spec / Operating Limits |
|---|---|---|
| 12V DC Diaphragm Pump | Everflo / Remco 2.2 GPM (5150083) | 12V DC, 7.5A Max, 100 PSI Max Pressure |
| In-Line Suction Strainer | 40-Mesh Stainless Steel Screen (5116123) | 1/2″ Female NPT x 3/8″ Hose Barb |
| Pressure Regulator Valve | Polypropylene Bypass Manifold (5143419) | 0-100 PSI Range, 1/4″ NPT Gauge Port |
| Pressure Gauge | Dry/Glycerin-Filled Dial Gauge (5117251) | 0-100 PSI, 1/4″ NPT Bottom Connection |
| Hand Spray Gun Assembly | 18-inch Poly Gun w/ Adjustable Tip (5163100) | 3/8″ Hose Barb Inlet, Max 100 PSI |
Navigating the County Line 25 Gallon Sprayer System Layout
Correctly reading and translating a county line 25 gallon sprayer parts diagram into physical repair steps requires understanding the relationship between mechanical, fluid, and electrical lines. Follow these organized technical steps to safely inspect or rebuild the sprayer assembly.
Tracing Fluid Lines and Hose Barb Hose Routing
When reassembling fluid lines, trace the circuit sequentially from the reservoir to the output nozzles. The fluid pathway must remain completely airtight on the intake side to prevent pump cavitation:
- Inspect the suction line exiting the bottom poly tank fitting. Ensure the 3/8-inch EPDM suction hose is clamped tightly onto the 40-mesh inline strainer barb using a worm-gear hose clamp torqued to 18-22 in-lbs (2.0-2.5 Nm).
- Follow the hose from the strainer outlet into the pump intake quick-connect port. Verify that the slide-lock retaining clip on the pump housing is fully engaged.
- Route the high-pressure outlet line from the pump head straight to the inlet port of the valve manifold block.
- Identify the two discharge branches: one returning via an internal tank bypass tube (used for pressure regulation and fluid agitation) and the second running to the inline spray wand shutoff valve or broadcast boom assembly. Refer to detailed diaphragm pump maintenance procedures if fluid fail to move past the suction side.
System Plumbing Specs: All threaded fittings on the manifold use standard 1/2-inch NPT or 1/4-inch NPT pipe threads. Apply 2 to 3 wraps of PTFE thread sealant tape on male threads. Do not exceed 45 in-lbs of torque on plastic NPT fittings to avoid cracking the manifold body.
Electrical Wiring Harness and Switch Installation
Refer to the electrical schematic when replacing damaged wiring or installing a permanent vehicle harness. The circuit follows a basic series loop powered by a 12V DC negative-ground source:
- Connect the positive (+) red wire lead directly from the battery post through the inline 15-Amp ATC blade fuse holder.
- Run the positive conductor to the center terminal of the inline weather-sealed rocker switch.
- Connect the switched positive wire from the switch output directly to the red wire lead extending from the integrated pump pressure switch cap.
- Connect the negative (-) black wire lead from the pump motor directly back to the battery ground (-) terminal or a solid chassis ground lug.
- Perform a voltage drop test across the harness using a digital multimeter; total voltage drop must not exceed 0.5V DC across the circuit under load. If custom wiring is required, consult complete 12V agricultural sprayer wiring schematics.
Pressure Regulator and Bypass Valve Alignment
The bypass valve on the manifold controls system pressure output and agitates chemical mixtures inside the tank. Turning the blue or black adjustment knob clockwise restricts fluid returning to the tank through the bypass line, forcing higher volume and pressure into the spray wand or broadcast boom nozzles. Turning the knob counter-clockwise opens the bypass port, diverting fluid back into the tank and dropping working pressure down toward 0 PSI.
County Line 25 Gallon Sprayer Parts Diagram Troubleshooting
System failures usually manifest as a loss of system pressure, electrical power loss, or fluid leaks around quick-connect fittings. Use the layout components below to pinpoint system faults systematically.
Diagnosing Low Pressure and Pump Priming Failures
When the 12V DC motor runs continuously but fails to build fluid pressure or draw liquid from the tank, consult the suction-side components in the parts blueprint:
- Air Leaks on Suction Side: Inspect the suction hose between the tank sump barb and the pump inlet. A pinhole leak or loose hose clamp will allow the pump to pull air instead of liquid, preventing self-priming.
- Clogged Inline Strainer Screen: Unscrew the clear bowl of the 40-mesh suction strainer. Accumulation of chemical residue or debris blocks flow, causing extreme pump cavitation. Clean the stainless screen with fresh water and a soft nylon brush.
- Debris in Diaphragm Valves: If foreign debris bypasses the filter screen, it can seat underneath the internal rubber check valves inside the pump head. Disassemble the upper pump housing screws using a #2 Phillips screwdriver, lift the valve plate, and clean the Viton diaphragm surfaces.
Depressurize the system before servicing any hose or manifold component. Turn off the 12V power supply and lock open the spray wand trigger lever until system pressure drops to 0 PSI on the gauge. Always wear chemical-resistant nitrile gloves and eye protection.
Resolving Electrical Voltage Drops and Fuse Tripping
If the 15-Amp inline blade fuse blows instantly upon switching the unit on, or if the motor cycles erratically, inspect the electrical sub-assembly:
- Failed Micro-Switch Assembly: The automatic demand pressure switch mounted on the front pump head can fail due to electrical arc corrosion or internal diaphragm leaks. If chemical enters the switch chamber, it causes an immediate dead short. Replace the pressure switch cap assembly (OEM part #5157202).
- Low Operating Voltage: Voltage supplying the pump must remain between 11.5V DC and 13.8V DC. Undersized wire gauges (e.g., 18 AWG or thinner) over long wire runs cause excessive resistance, raising amperage draw and tripping fuses. Always use 16 AWG or 14 AWG stranded copper wire.
- Internal Motor Armature Drag: Over time, fluid migration past the shaft seal corrodes the internal motor bearings, creating mechanical resistance. Check current draw with an clamp meter; continuous draw above 10 Amps indicates motor failure requiring pump head/motor replacement.
When calibrating broad-acre boom coverage after replacing manifold fittings, consult official broadcast boom nozzle calibration guides to calculate exact Gallons Per Acre (GPA) application rates based on ground speed and nozzle size (e.g., standard flat-fan tip 8002 vs 8004).
Locating and Sealing Fluid Leaks Across the Schematic
Fluid leaks lead to inaccurate chemical application rates and potential environmental contamination. Inspect the key leak points mapped in the blueprint:
- Manifold O-Rings and Quick-Connect Ports: The manifold relies on Viton or EPDM rubber O-rings (AS568-113 standard size) at each quick-attach slide-port. Dry, cracked, or misaligned O-rings will leak under pressure. Apply a thin coat of silicone grease during installation.
- Cracked Polypropylene Fittings: Over-tightening metal hose clamps onto plastic hose barbs can crush or stress-crack the inner wall of the plastic barb. Replace damaged barbs and use worm-gear clamps tightened strictly to manufacturer spec.
- Pump Head Housing Bolts: Heat cycling and pump vibration can loosen the outer diaphragm retaining screws. Re-torque the outer pump head housing screws to 25 in-lbs in a cross-pattern sequence.
County Line 25 Gallon Sprayer Parts Diagram Questions Answered
What pump specifications match the OEM 25-gallon configuration?
The standard OEM pump configuration for a CountyLine 25-gallon sprayer is a 12-Volt DC continuous-duty, positive-displacement diaphragm pump rated at 2.2 GPM (8.3 L/min) open flow, with a maximum pressure setting of 100 PSI (6.9 bar). It features 1/2-inch NPT male threaded ports or quick-attach slide ports, draws a maximum of 7.5 Amps, and uses Santoprene diaphragms combined with Viton valves for chemical compatibility with standard herbicides, insecticides, and agricultural fertilizers.
How do you service the inline mesh filter identified in the diagram?
To service the inline suction filter, ensure the sprayer power is disconnected and the tank fluid level is below the strainer port (or the line is clamped). Unscrew the clear poly bowl counter-clockwise by hand from the strainer cap. Remove the 40-mesh stainless steel cylindrical filter element, submerge it in clean water, and clear all debris using a soft nylon brush. Inspect the rubber bowl O-ring for dry rot or tears, apply a light coat of petroleum jelly or silicone lubricant to the seal, reinsert the mesh element, and hand-tighten the clear bowl back onto the body.
Where is the pressure bypass adjustment located on the manifold?
The pressure bypass adjustment valve is situated directly on top of the glass-filled polypropylene control manifold attached to the pump outlet. It consists of a large, knurled adjustment knob sitting above a spring-loaded plunger assembly. Turning this knob clockwise increases fluid pressure sent to the handgun or spray boom by compressing the internal spring and closing the return line. Turning it counter-clockwise relaxes the spring, opening the bypass port to allow fluid to loop back into the poly tank, decreasing discharge pressure.
What hose dimensions and thread types are used in the layout?
The standard plumbing system uses two primary hose sizes and thread standards. The intake suction line and main distribution lines utilize 3/8-inch Inner Diameter (ID) reinforced braided PVC or EPDM chemical hose secured over standard 3/8-inch plastic hose barbs with stainless hose clamps. Threaded connections on the pump head, manifold block, and pressure gauge port use National Pipe Tapered (NPT) standard threads: 1/2-inch NPT for main pump ports, 1/4-inch NPT for the pressure gauge dial connection, and 3/4-inch NPT for the tank bottom drain plug assembly.
How do you winterize the sprayer using the parts blueprint?
Winterizing requires complete evacuation of water from every section of the blueprint to prevent frost damage to the pump housing and manifold plastic. First, open the tank drain cap to purge all liquid from the HDPE tank. Re-seal the cap, then pour 1 gallon of non-toxic RV anti-freeze (propylene glycol) into the tank sump. Turn on the 12V DC pump, open the manifold bypass valve until anti-freeze circulates back into the tank, then trigger the hand spray gun until anti-freeze discharges from the nozzle. If equipped with a broadcast boom, open the boom valve until pink anti-freeze flows through all spray tips, ensuring complete protection down to -50°F (-45°C).
Step-by-Step Guide to Understanding the County Line 25 Gallon Sprayer Parts Diagram
Identify – Examine the overall sprayer structure and locate the specific component section on the diagram.
Locate – Find the 12V pump, intake strainer, and manifold connections relative to the polyethylene tank.
Reference – Match part callout numbers on the diagram to your replacement hose fittings or pump kit.
Connect/Route – Route suction and discharge lines according to fluid pathway configuration, securing with clamps.
Verify – Inspect all NPT threads and hose barb connections for tight seal integrity under pressure test.
Troubleshoot – Consult the layout to locate bypass valves or micro-switches if prime or pressure drops.
