A Chamberlain garage door opener parts diagram illustrates the internal motor assembly, drive gear system, logic control board, capacitor, safety sensors, and rail structure. Located under the main housing, the logic board connects to 120V AC power, terminal bus strips for wall controls, and safety sensor wiring to control motor travel limits and safety routines.
📌 Key Takeaways
- Main drive gear and sprocket kit (typically Part #41A5021) is the most common mechanical wear point.
- Safety reversal sensors use 2-conductor bell wire connected to terminals 2 (white) and 3 (grey/black).
- Logic control boards operate under 120V AC input, stepping down to 24V DC for low-voltage sensor circuits.
- Always disengage the emergency release cord and pull the 120V power plug before servicing internal components.
- Replace individual gears, capacitors, or logic boards yourself; seek professional help for high-tension spring repairs.
Modern residential and commercial overhead door automation systems rely on engineered electromechanical assemblies to deliver precise torque, force detection, and safety monitoring. Interpreting a chamberlain garage door opener parts diagram is essential for mechanics, service technicians, and advanced DIYers performing component-level overhauls, logic board swaps, or gear train rebuilds. Chamberlain platforms share structural architecture across LiftMaster and Craftsman product lines, utilizing standardized AC or DC motor assemblies, worm-and-helical reduction gears, optical speed sensors, and micro-controller circuit boards. By analyzing the structural configuration, electrical schematic layout, and mechanical linkages detailed in an exploded blueprint, you can rapidly isolate mechanical binding, trace logic board power drops, and restore factory-specified performance.

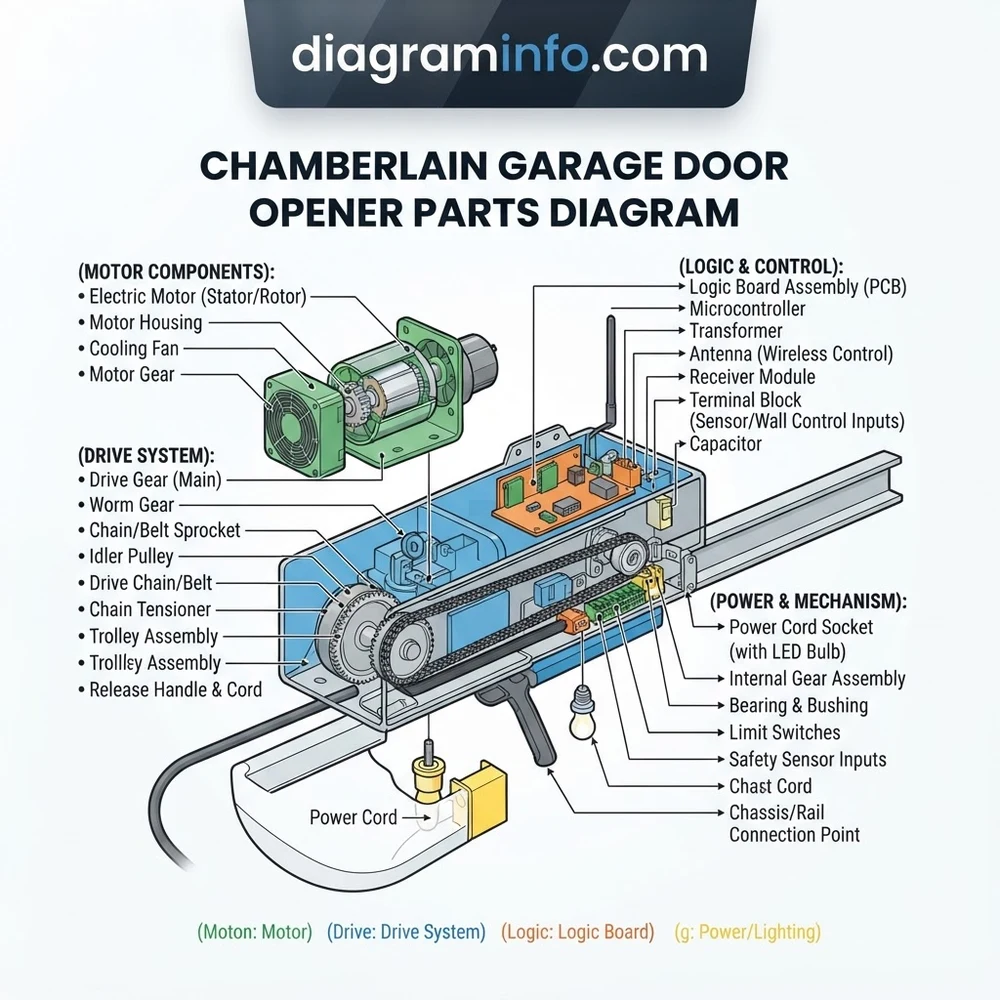

Chamberlain Garage Door Opener Parts Diagram: Structural Component Breakdown
Deconstructing the main powerhead and rail layout requires an understanding of how mechanical motion and solid-state electronics integrate. The structural architecture of a typical Chamberlain drive unit is categorized into four primary sub-systems: the motor and drive train, the control logic module, the rail and trolley linkage, and the safety monitoring circuit. Reference the comprehensive component matrix below for technical specs, part numbers, and functional parameters.
Recommended Best Deal Products
| Component Assembly | OEM Part / Reference # | Electrical / Mechanical Specs | Functional Description |
|---|---|---|---|
| Main Drive Motor Assembly | 41D7672 (DC) / 41A3825 (AC) | 120VAC 1/2-3/4 HP or 24VDC Brushless | Provides primary rotational force to the reduction drive train. |
| Gear & Sprocket Kit | 41A2817 / 41C4220A | Acetal Nylon Helical Gear & Steel Worm Gear | Transfers motor shaft rotation to driving sprocket; absorbs shock loads. |
| Logic Control Board | 45ACT / 050DCTWF Series | 120VAC Line / 5VDC & 24VDC Secondary Logic | Manages force limits, radio receivers, Wi-Fi telemetry, and optical sensors. |
| Motor Starting Capacitor | 30B532 (53-64 MFD) | 220VAC Non-Polarized Electrolytic | Creates phase shift for AC motor winding startup torque. |
| RPM Sensor / Encoder | 41C4398A | 5VDC Dual Optical Interrupter | Monitors motor shaft rotation speed and travel direction for safety force trip. |
| Safety Sensor Eyes | 41A5034 / 041-0136 | 6VDC Pulsed Infra-Red Transceiver Array | Optoelectronic beam prevents door closure if optical path is obstructed. |
| Trolley Assembly | 41A3489 (Chain) / 41A3589 (Belt) | Stamped Steel with Mechanical Emergency Release | Connects drive belt/chain to door curved arm; disconnects for manual operation. |
Within the powerhead chassis, the electric motor connects directly to a dual-gear shaft assembly. On standard AC models, the motor drives a steel worm gear that meshes with an acetal nylon helical gear (Part #41A2817). This nylon gear acts as an intentional mechanical sacrifice point, preventing motor burnout during severe door binding. In modern DC models, an integrated planetary gearbox replaces the external nylon assembly, providing lower noise levels and variable-speed soft start/stop modulation.
The logic control board sits at the rear of the powerhead, housing the main micro-controller unit (MCU), RF receiver modules, and quick-connect terminal blocks. Low-voltage power (5VDC to 24VDC) is derived via an onboard step-down transformer and bridge rectifier setup. The board directly reads inputs from the RPM sensor module mounted adjacent to the main motor shaft. This optical interrupter wheel turns past a phototransistor to calculate travel distance, door position, and speed deceleration profile. If you are servicing related hardware, review complete overhead door tensioning procedures to ensure mechanical resistance does not overload the gear cluster.
How to Read the Chamberlain Garage Door Opener Schematic and Wiring Layout
Reading a chamberlain garage door opener parts diagram requires translating mechanical structural views alongside electrical circuit flow. Visual schematics use exploded component views with numerical callouts, while wiring layouts detail terminal strip polarities and conductor routing across the chassis.
To systematically navigate the system layout, follow this four-stage reading and diagnostic process:
- Stage 1: Trace the High-Voltage Primary Input Path. Locate the 120VAC line cord entering the powerhead housing. The black (hot) conductor feeds through an inline thermal overload protector attached to the motor housing before connecting to the main relay contacts on the logic board. The white (neutral) wire ties to the common bus and motor common winding, while the green earth ground fastens directly to the metal frame chassis to dissipate stray electrostatic charge.
- Stage 2: Map the Low-Voltage Secondary Circuits. Low-voltage control routing originates at the quick-connect terminal strip on the logic board edge. Terminal 1 (Red) and Terminal 2 (White) provide a 12VDC–24VDC multiplexed signal to the wall-mounted Smart Control Panel. Terminals 2 (White) and 3 (Grey) feed the Safety Reversing Sensor array, outputting a 6VDC pulsed current. Wire polarities must be maintained; reversing the solid white and white/black striped conductors on the sensor line will cause system faulting.
- Stage 3: Inspect the Reduction Drive Linkage. On the mechanical overview blueprint, trace the energy transfer from the motor shaft pin up through the helical gear housing. Note the location of the upper and lower shaft bearings, retaining ring clips, and thrust washers. Ensure thrust washer sequence (bronze washer, nylon washer, retaining ring) is accurately documented during teardown to avoid excessive shaft endplay.
- Stage 4: Locate Force & Limit Setup Controls. Legacy units feature mechanical limit switch assemblies driven by a plastic worm drive screw parallel to the main shaft. Modern Security+ 2.0 systems utilize digital positioning, calculating motor revolutions exclusively through the 5VDC optical RPM sensor module connected to 4-pin header J2 on the logic board.
When reassembling the drive gear assembly and logic board housing, follow strict factory torque parameters: Gear kit retainer screws must be torqued to 25–30 in-lbs (2.8–3.4 Nm). Chassis mounting screws require 35–40 in-lbs (4.0–4.5 Nm). Motor housing tie-bolts must be evenly cross-torqued to 45 in-lbs (5.1 Nm) to prevent rotor shaft misalignment and bearing binding.
Recommended Best Deal Products
For reliable signal transmission, external field wiring (wall control and safety sensors) should utilize 18 to 22 AWG solid copper wire. Strip wire ends to exactly 7/16-inch (11mm) before depressing push-in terminal tabs. Avoid stranded or tinned wire, as improper lug retention can introduce intermittent resistance drops that trigger false sensor diagnostics.
When analyzing electrical schematic paths during board replacements, cross-reference wire color callouts against current LiftMaster circuit board diagnostics to confirm terminal header compatibility, particularly when converting legacy 390MHz receivers to Security+ 2.0 radio platforms.
Troubleshooting System Failures Using the Opener Mechanical Blueprint
Executing accurate repair procedures relies on using the schematic layout to correlate operational symptoms with isolated physical failures. Mechanical wear, component electrical breakdown, and force calibration failures present distinct technical signatures.
Disconnect 120VAC primary line power before removing the powerhead cover panel. Standard AC models contain a 220VAC motor capacitor capable of storing lethal energy even when unplugged. Always short out capacitor terminals using a 20,000-ohm, 5-watt resistor prior to touching chassis components. Never release the emergency trolley while the garage door is in the open position unless the door opening is physically clear and spring tension is verified.
Use the detailed diagnostic breakdown below to systematically resolve common mechanical and electrical fault conditions mapped on the blueprint:
1. Main Drive Gear Failure (Stripped Helical Teeth)
Symptom: Motor runs and hums continuously, but the drive chain or belt sprocket remains completely stationary during activation.
Root Cause: Mechanical stripping of the white acetal nylon gear (Part #41A2817) caused by extreme door imbalance, broken torsion springs, or improper force adjustments.
Diagnostic Step: Remove powerhead housing cover. Inspect the bottom of the chassis frame beneath the drive gear. The presence of white plastic shavings confirms gear tooth failure. Verify motor shaft endplay does not exceed 1/16-inch (1.6mm). Replace the gear and worm assembly, ensuring high-pressure silicone grease is liberally applied across all gear teeth mesh points.
2. AC Motor Starting Capacitor Failure
Symptom: Motor emits a low 60Hz hum, draws high amperage, thermal overload trips within 3 to 5 seconds, and drive shaft fails to rotate.
Root Cause: Electrolytic breakdown of the 53-64 MFD 220VAC motor starting capacitor (Part #30B532), preventing the creation of a phase-shifted secondary magnetic field in the motor auxiliary winding.
Diagnostic Step: Isolate the capacitor. Set a digital multimeter (DMM) to test Microfarads (µF/MFD). Discharge the component safely. Measure across the two spade terminals. If the reading falls outside the ±10% tolerance threshold (below 47 MFD), replace the capacitor immediately.
3. Safety Sensor Circuit Malfunction
Symptom: Door opens normally but refuses to close automatically, producing 10 main housing light flashes along with audible diagnostic clicks from the logic board.
Root Cause: Physical optical misalignment, damaged 22 AWG wire run, or internal optoelectronic sensor failure.
Diagnostic Step: Measure DC voltage across Terminals 2 and 3 at the powerhead using a DMM. Voltage must measure between 5.0VDC and 6.5VDC steady state. A reading of 0VDC indicates a shorted board output or shorted wiring; a reading above 7VDC indicates an open circuit loop. Check alignment LEDs on both emitting (amber) and receiving (green) sensors. For structural installation details, consult comprehensive drive belt replacement guidelines.
4. RPM Sensor / Optical Encoder Faults
Symptom: Opener moves 6 to 8 inches, halts abruptly, reverses direction, and flashes the UP/DOWN arrow LEDs in a 1-5 diagnostic code sequence.
Root Cause: Faulty phototransistor on the RPM board, missing interrupter wheel blade, or heavy grease contamination blocking the optical sensor gap.
Diagnostic Step: Remove the RPM sensor cover clip. Inspect the slotted interrupter wheel for missing plastic fins or grease buildup. Clean the optical sensor channel with electronic contact cleaner. Inspect the 4-pin harness wire connection to the logic board for damaged pin tension.
Chamberlain Garage Door Opener System Diagram Frequently Asked Questions
Where Can You Find the Model Number on a Chamberlain Opener Blueprint?
The exact model number is located on a physical serial label affixed beneath the light lens cover or on the rear wiring panel of the powerhead chassis. On the parts diagram layout, this number determines whether your system uses an AC chain drive, DC belt drive, or wall-mount RJO (Direct Drive) layout. Always reference this model string when ordering gear kits or logic boards, as components vary significantly between design generations.
Are Chamberlain and LiftMaster Parts Interchangeable on the Blueprint?
Yes, Chamberlain and LiftMaster openers are manufactured on identical electromechanical platform architectures by The Chamberlain Group (CGI). Drive gear kits (such as 41A2817), safety sensors (41A5034), rail assemblies, and capacitors are fully interchangeable between equivalent models. However, logic control boards must match the specific frequency generation (e.g., Security+ 315MHz vs Security+ 2.0 MyQ) to ensure wall control and remote transmitter compatibility.
What Wire Gauge Does the Chamberlain Safety Sensor Circuit Require?
The safety sensor circuit requires solid copper two-conductor wire between 18 AWG and 22 AWG. Using stranded wire, oversized wire gauge, or wire runs exceeding 100 feet (30.5 meters) can cause impedance drops or loose connections at the quick-connect terminal block, leading to intermittent safety beam reversal faults.
How Do You Test the Motor Starting Capacitor on a Chamberlain Drive System?
Disconnect 120VAC line power to the powerhead. Safely discharge the capacitor terminals using a 20k-ohm 5W resistor. Set a digital multimeter to the capacitance range (MFD or µF). Touch the meter leads to the two spade terminals. A healthy Chamberlain starting capacitor should read within its rated specification of 53 to 64 MFD. A reading below 47 MFD or an open loop (OL) reading requires immediate component replacement.
What Voltage Should the Logic Board Output to the Safety Sensors?
The logic board outputs a pulsed DC signal between 5.0VDC and 6.5VDC across Terminals 2 (white common) and 3 (grey/black sensor line) when operational. If your multimeter reads 0VDC directly at the board terminals with field wires disconnected, the low-voltage power supply on the logic circuit board has failed, requiring a logic board replacement.
Step-by-Step Guide to Understanding the Chamberlain Garage Door Opener Parts Diagram
Identify – Locate your specific Chamberlain model number on the motor unit label to match the correct parts diagram layout.
Locate – Find the target component, such as the drive gear kit or logic board, within the exploded diagram view.
Reference – Match the diagram callout numbers to the official replacement part numbers before ordering or installing parts.
Route – Follow the schematic layout to properly connect low-voltage wires from safety sensors to logic board terminals 2 and 3.
Verify – Reassemble the housing, restore 120V AC power, and perform the safety reversal test to confirm proper door operation.
Troubleshoot – Consult the diagnostic LED flash codes on the logic board panel if the opener fails to operate after assembly.
