John Deere 410 Backhoe Parts Diagram: HVAC Repair 2026

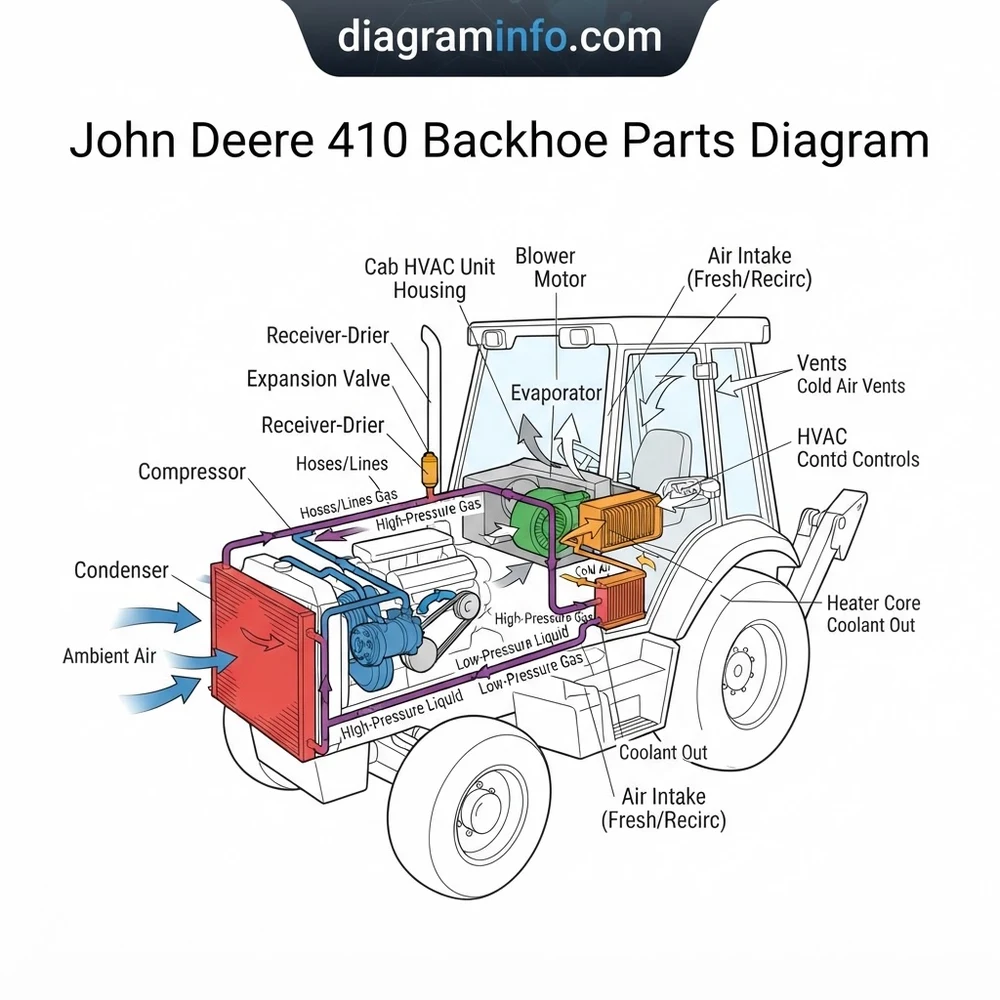

The John Deere 410 backhoe HVAC schematic details the cab air conditioning circuit. The belt-driven compressor sits on the upper-right engine block, feeding high-pressure R134a refrigerant to the nose-mounted condenser. Low-pressure vapor routes back from the cab roof-mounted evaporator and blower motor assembly through insulated suction lines.
📌 Key Takeaways
- R134a system operates at 25-35 PSI low-side and 150-200 PSI high-side under standard ambient conditions.
- The HVAC blower motor assembly is located within the upper cab headliner enclosure.
- Always evacuate refrigerant using proper recovery equipment before disconnecting compressor lines.
- A worn compressor clutch or clogged expansion valve is the leading cause of poor cab cooling.
- Self-service component replacement is manageable, but refrigerant charging requires certified recovery tools.
Maintaining operator comfort and positive cab air pressurization in heavy earthmoving equipment demands a complete understanding of climate control schematics. The john deere 410 backhoe parts diagram for the heating, ventilation, and air conditioning (HVAC) system provides the master schematic required to service, troubleshoot, and overhaul cab environmental controls. Whether servicing a classic John Deere 410, 410B, 410D, 410E, or 410G series loader backhoe, navigating the electrical circuits, mechanical drive belts, and closed refrigerant loops requires precise OEM specification data. This technical breakdown details each critical component within the overhead air handler assembly, high-pressure refrigeration loop, and cab heating circuit.
John Deere 410 Backhoe Parts Diagram: HVAC Component Breakdown
To execute accurate field repairs on John Deere cab climate units, technicians must cross-reference part numbers and mechanical positions using the official john deere 410 backhoe parts diagram. The HVAC system operates as a dual-loop thermal management unit, combining a sealed vapor-compression refrigeration circuit with an engine-coolant hydronic heat exchanger housed inside a overhead or under-seat air handler assembly.
The core elements depicted on the standard cab parts breakdown include:
- Refrigerant Compressor: Typically a belt-driven Sanden SD7H15 or Nippondenso 10PA17C heavy-duty unit mounted to the front engine timing gear cover bracket. It pressurizes low-pressure gaseous refrigerant into a high-temperature, high-pressure superheated gas.
- Condenser Assembly: A heavy-gauge tube-and-fin or parallel-flow heat exchanger mounted directly forward of the engine coolant radiator. It dissipates thermal energy absorbed from the cab, condensing high-pressure gas into a liquid state.
- Evaporator Core: Located inside the main cab air handler assembly, this copper/aluminum heat exchanger absorbs interior heat as low-pressure liquid refrigerant expands into a vapor state across its fin array.
- Blower Motor Assembly: A dual-shaft, three-speed 12-volt DC motor equipped with twin squirrel-cage impellers. The blower motor draws recirculated air through the return duct and forces it across the evaporator core and heater matrix.
- Thermal Expansion Valve (TXV): Positioned at the inlet of the evaporator core, the TXV meters liquid refrigerant flow based on evaporator outlet temperature and pressure, preventing liquid slugging back to the compressor.
- Receiver-Drier / Accumulator: Inline storage tank containing XH-9 desiccant beads and an internal filter to trap moisture, debris, and non-condensable gases from the circulating refrigerant loop.
- Return Duct & Cabinet Filter: Integrated interior ductwork housing a washable mechanical media filter that seals against the rear interior cab bulkhead to clean incoming and recirculated air.
Tracing Climate Control Schematics on the John Deere 410 Backhoe
Reading the john deere 410 backhoe parts diagram requires systematic tracking of fluid lines and 12-volt electrical paths through the cab structure. The HVAC system is divided into two operational physical zones: the engine bay mechanical loop and the interior cab blower assembly.
To trace the mechanical refrigerant circuit, begin at the belt-driven compressor outlet. High-pressure discharge lines (typically 1/2-inch barrier hose) lead directly from the compressor manifold to the top header of the front-mounted condenser coil. From the lower condenser outlet, liquid refrigerant flows through a 3/8-inch high-pressure line into the receiver-drier assembly, which incorporates an inline binary or trinary pressure switch.
When tracing lines through ROPS/Cab structural pillars on John Deere 410-series backhoes, verify that rubber grommets are intact where refrigerant lines pass through floorboards or roof bulkheads. Chafed aluminum barrier lines are the primary cause of slow system pressure loss in high-vibration applications.
From the receiver-drier output, fluid travels up through the cab corner pillar wiring/hose channel into the roof-mounted air handler enclosure. Here, the line feeds into the thermal expansion valve inlet port. As the refrigerant expands into the lower-pressure environment of the evaporator, heat is extracted from ambient cab air pulled in through the lower return duct intake grille.
Electrically, current flows from the primary cab ignition relay through a 25-amp inline circuit breaker. The circuit passes through the rotary three-speed fan control switch to the resistor block mounted directly in the blower motor airflow plenum. A secondary lead connects from the thermostat control switch to the binary high/low pressure safety cut-out switch before energizing the electromagnetic compressor clutch coil.
Diagnosing HVAC Failures with the John Deere 410 Backhoe Parts Diagram
Systematic troubleshooting of the John Deere 410 climate control system prevents unnecessary component replacement and minimises equipment downtime. When diagnosing system faults, match symptoms directly to schematic connection points on the john deere 410 backhoe parts diagram.
1. Total Loss of Cooling (Compressor Clutch Fails to Engage)
If the blower motor operates but the A/C compressor clutch does not pull in when the thermostat switch is rotated to max cold, perform electrical probing at the binary switch connector pin 1. Verify 12V DC presence using a digital multimeter grounded to the chassis frame.
- If voltage is present at the input pin but absent at the output pin, connect manifold gauges to test static system pressure. Static pressure below 30 PSI indicates system charge loss, triggering the low-pressure cutout.
- If static pressure exceeds 50 PSI and 12V passes through the binary switch, test for voltage at the coil wire on the compressor manifold. Check coil resistance with power off; OEM Sanden clutch coils should measure 3.2 to 4.1 Ohms at 70°F (21°C). High resistance indicates a burned clutch coil.
2. Low Airflow Output from Cab Air Handler Vents
Insufficient airflow through the dash vents is usually linked to mechanical restrictions inside the air handler unit or electrical resistance in the fan motor speed circuit. Refer to the interior cab layout section of your parts manual to inspect these specific points:
- Return Duct Filter Blockage: Inspect the primary return duct foam filter element located behind the operator seat panel. A clogged filter starves the blower motor, causing evaporator icing.
- Evaporator Core Debris Accumulation: Fine dust entering past missing cab seals collects on the damp external surfaces of the evaporator heat exchanger, forming a thick mud barrier.
- Blower Motor Resistor Failure: If the blower motor operates on speed 3 (High) but fails on speeds 1 or 2, the ceramic resistor package mounted inside the air handler plenum is open-circuit and requires replacement.
Always recover residual R134a or R12 refrigerant using certified recovery equipment prior to opening hose fittings, removing the thermal expansion valve, or extracting the evaporator coil from the overhead air handler housing. Never vent refrigerant to the atmosphere.
3. Evaporator Core Freeze-Up and Liquid Floodback
If airflow drops steadily during continuous backhoe operation accompanied by ice buildup on the low-pressure suction line, the thermostatic expansion valve or anti-ice sensor switch has failed. Inspect the thermostatic capillary bulb mounted on the evaporator outlet tube as shown in the cab housing schematic. Ensure the capillary tube is securely wrapped with insulating butyl tape and clamped tightly to the copper tailpiece.
John Deere 410 Backhoe HVAC Specifications and Wiring Reference
When performing field maintenance, cross-referencing factory electrical codes, mechanical torque specs, and fluid charges against technical service manuals is essential. Technicians servicing cab wiring harnesses can also refer to the John Deere backhoe electrical schematic guide to trace main chassis power distribution lines feeding the cab HVAC relay network.
Standard factory specifications for late-model John Deere 410 Series cab climate control retrofits require 2.4 lbs (1.09 kg) of R134a refrigerant charged into a fully evacuated system (29.9 in-Hg vacuum for minimum 45 minutes) with 135cc of PAG 100 viscosity synthetic compressor oil.
| Component / Circuit | Factory Wire Color / ID | OEM Spec / Part Ref | Operating Parameter / Value |
|---|---|---|---|
| Compressor Clutch Supply | Dark Blue / Yellow Strip (Wire 210) | AT163829 / Sanden SD7H15 | 12.6 V DC / 3.8 Amps draw |
| High/Low Binary Safety Switch | Orange / Black Stripe (Wire 214) | AT175294 | Cutout: <28 PSI or >380 PSI |
| Blower Motor High Speed Relay | Red / White Stripe (Wire 105) | AR56221 / Bosch 30A Relay | 18.5 Amps continuous load |
| Blower Resistor Block | Brown / Yellow / Green Leads | AT168531 | Low: 2.1Ω / Med: 0.8Ω / Hi: Direct |
| Evaporator TXV Valve | Mechanical Assembly | AT154182 | Superheat setting: 8°F to 12°F |
| Refrigerant Line Torque (O-Ring) | N/A (Fitting connection) | HNBR Green O-Rings (#6, #8, #10) | #6: 11-13 lb-ft / #8: 15-20 lb-ft / #10: 21-25 lb-ft |
When working on comprehensive cab overhauls involving major chassis electrical work, combine this HVAC diagram with the broader John Deere engine cooling system manual and the John Deere cab electrical harness layout. Proper cross-referencing ensures that auxiliary heater control valves and cooling fan clutch interlocks align correctly with engine-driven components.
John Deere 410 Backhoe Parts Diagram HVAC Questions Answered
How do I identify a failing climate control compressor on the John Deere 410 parts diagram?
On the engine mechanical section of the parts diagram, the compressor is identified as item #1 attached to the front accessory bracket assembly. Common physical signs of failure include oil slinging around the clutch drive plate seal, metallic rattling noises from worn internal swashplate bearings, or metal shavings visible inside the suction manifold port when hose fittings are uncoupled. Electrically, measure resistance across the clutch coil leads; readings outside 3.0 to 4.5 Ohms signal internal coil insulation breakdown.
What refrigerant charge capacity is listed in the John Deere 410 backhoe parts diagram manual?
Early-production John Deere 410, 410B, and 410C machines originally used R12 refrigerant charged to 3.0 lbs (1.36 kg) with 525-viscosity mineral oil. Updated 410D, 410E, and 410G factory systems or retrofitted early cabs use R134a refrigerant with a system capacity of 2.2 to 2.5 lbs (1.00 to 1.13 kg) along with PAG 100 synthetic lubricant. Always check the silver factory specification tag located inside the engine compartment side panel to confirm exact specs for your chassis serial number.
Where is the HVAC return duct and air handler blower motor assembly located?
In most John Deere 410-series enclosed operator cabs, the air handler assembly containing the blower motor, evaporator core, and heater core matrix is installed in the overhead roof liner unit or inside the lower rear cab console enclosure behind the seat. The return duct is accessed directly by removing the exterior louvered plastic panel on the rear cab bulkhead, exposing the washable foam element filter and the primary air intake opening.
How do I diagnose restricted refrigerant flow across the evaporator heat exchanger?
Connect a manifold gauge set to the low-pressure and high-pressure service ports located near the compressor. A restricted thermal expansion valve or blocked evaporator core shows up as abnormally low suction pressure (often dropping into deep vacuum) paired with normal or slightly elevated high-side discharge pressure. If frost forms exclusively on the inlet side of the expansion valve rather than evenly across the evaporator body, the valve orifice is plugged with debris or moisture ice and requires replacement.
What are the common wiring faults on the John Deere 410 HVAC blower motor circuit?
The most frequent electrical failure on the 410 backhoe HVAC circuit occurs at the 3-speed blower motor switch and resistor block connector plugs. High current draw (over 18 Amps on continuous High mode) causes heat buildup that melts plastic spade terminals on the wiring harness plug. If speed 3 operates but speeds 1 and 2 fail, inspect the ceramic resistor mounted in the air stream for burned wire coils. Always test current draw on replaced blower motors to ensure internal armature windings have not shorted.
Step-by-Step Guide to Understanding the John Deere 410 Backhoe Parts Diagram
Identify – Locate the specific HVAC section within the john deere 410 backhoe parts diagram to identify refrigerant line paths and component locations.
Locate – Find the engine compressor, nose condenser, and cab-mounted blower motor based on the schematic reference numbers.
Reference – Cross-check electrical relay terminals and pressure switch wire colors on the diagram against your physical harness.
Connect/Route – Install replacement AC lines and blowers according to diagram routing paths, ensuring proper O-ring seat alignment.
Verify – Perform a vacuum hold test at 30 in-Hg to confirm system sealing before refilling refrigerant.
Troubleshoot – Inspect the high-pressure safety switch continuity on the diagram if the compressor clutch fails to engage.
