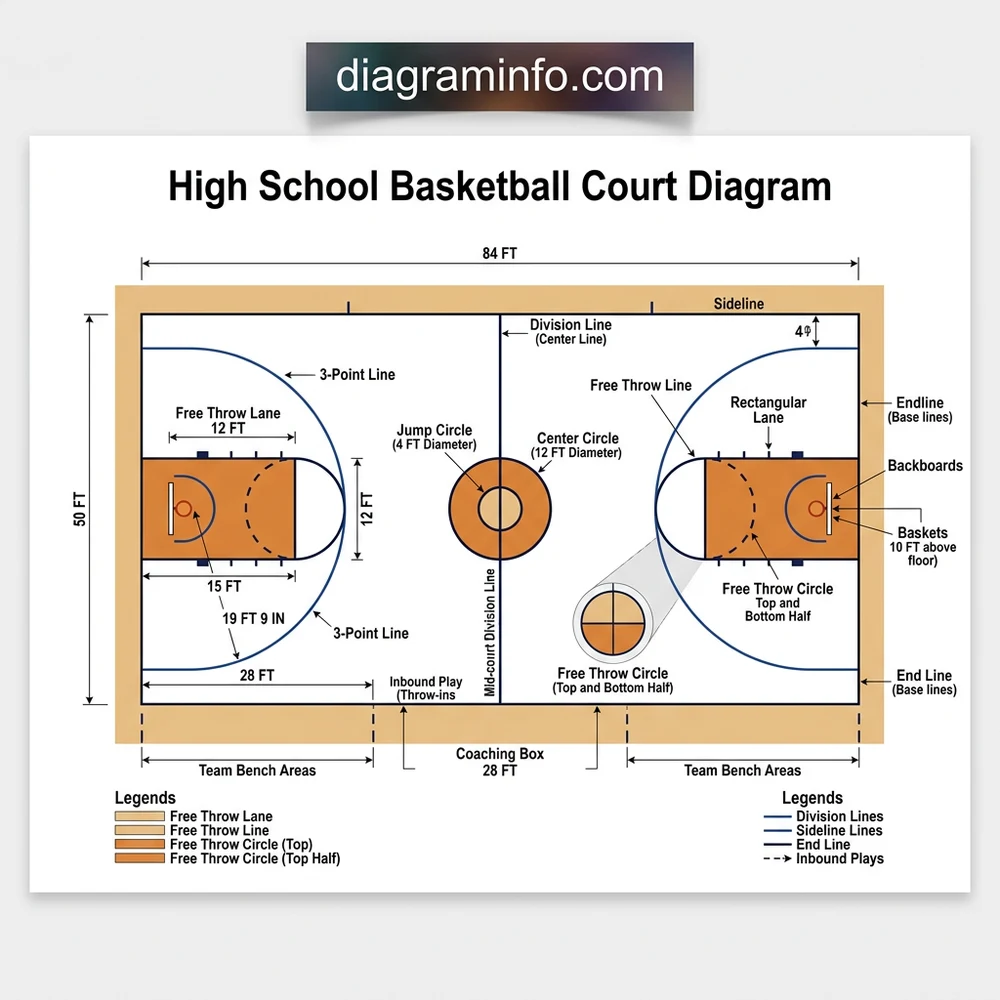

Standard NFHS high school basketball court diagram layout measures 84 feet long by 50 feet wide. Key structural dimensions include a 12-foot wide free-throw lane, a 15-foot free-throw line from the backboard, a 19-foot 9-inch three-point arc, and rims mounted exactly 10 feet high with a 4-foot overhang.
📌 Key Takeaways
- Overall floor dimensions measure 84 feet in length by 50 feet in width with a mandatory 3-foot outer safety buffer.
- Free-throw key structure is 12 feet wide, with the foul line positioned 15 feet from the face of the backboard.
- High school three-point line configuration features a 19-foot 9-inch radius measured from the basket center.
- Goals feature a 10-foot rim height and a 4-foot backboard offset from the baseline playing boundary.
- Standard court layout requires uniform 2-inch wide line markings throughout the entire hardwood system.
Precision execution during athletic facility construction requires complete adherence to an official high school basketball court diagram. Standardized by the National Federation of State High School Associations (NFHS), these dimensional schematics define exact layout boundaries, paint line widths, key geometries, and structural goal anchor placements. Whether laying maple tongue-and-groove systems, pouring athletic polyurethane, or striping multi-purpose synthetic surfaces, installation contractors and site engineers must work strictly off compliant blueprints. This technical manual details component dimensions, schematic reading protocols, structural anchor specs, and real-world alignment troubleshooting for high school court configurations.
High School Basketball Court Diagram Component Breakdown
Every standard high school basketball court layout blueprint establishes a overall court dimension of 84 feet (1,008 inches) in length by 50 feet (600 inches) in width. This overall perimeter creates a playing surface area of 4,200 square feet, flanked by a mandatory 3-foot clearance run-off zone (5 feet recommended for player safety). Understanding individual component dimensions within the overall structure ensures proper tape layout and striping accuracy.
All official playing lines must be painted 2 inches (5.08 cm) wide using single-color, high-durability aliphatic polyurethane paint. When measuring, line width is inclusive within the main playing area, except for the baseline and sidelines, where measurements are taken from the outer edges of the lines. Reference our gymnasium wood flooring installation guide to verify subfloor expansion joints before marking perimeter lines.
| Court Feature / Component | NFHS Standard Measurement | Measurement Point / Location |
|---|---|---|
| Overall Court Perimeter | 84′ 0″ L x 50′ 0″ W (1,008″ x 600″) | Outside edge to outside edge |
| Free Throw Lane (The Key) | 12′ 0″ Wide x 19′ 0″ Deep | Outside edge of lane lines to baseline |
| Free Throw Line distance | 15′ 0″ (180 inches) | Front face of backboard to front edge of line |
| 3-Point Arc Radius | 19′ 9″ (237 inches) | Center of rim projected to floor to outer line edge |
| Backboard Overhang | 4′ 0″ (48 inches) | Inside edge of baseline to front of backboard face |
| Center Restraining Circle | 12′ 0″ Outer Diameter / 4′ 0″ Inner | Measured from center intersection point |
Backboard Specifications: NFHS standard backboards measure 72 inches wide by 42 inches high. Rim mounting height must equal exactly 10 feet (120 inches) above the finished floor, with a vertical height tolerance of +/- 1/16 inch. Rims must feature a breakaway spring mechanism calibrated to release under 180–230 lbs of static load.
How to Interpret a High School Basketball Court Layout Schematic
Translating a high school basketball court diagram into precision floor layout requires establishing accurate construction baselines and geometric control points. Never rely on existing concrete walls or facility perimeters, as masonry structures frequently feature minor out-of-square deviations.
Step 1: Benchmark the Center Point and Main Axis Lines
Establish the primary longitudinal axis by finding the exact mid-point of the floor length (42 feet from end-lines) and transversal width (25 feet from side boundaries). Mark this intersection as Benchmark Zero (0,0). Strike chalk lines along the longitudinal axis (end-to-end) and transverse axis (side-to-side) to divide the blueprint space into four equal quadrants.
Step 2: Square Perimeter Boundaries Using Pythagorean Triangles
To ensure perfect 90-degree corner angles, apply the 30-40-50 feet Pythagorean theorem. Measure 30 feet out from a corner intersection along the baseline and 40 feet up the sideline. The hypotenuse distance between these two points must measure exactly 50 feet 0 inches. Adjust layout marks until all four corners achieve zero margin of error.
Step 3: Plot the Goal Assembly and Free Throw Key
Locate the plumb line dropping from the center of the basketball rim. According to NFHS specifications, this point lies exactly 63 inches (5 feet 3 inches) inward from the inside edge of the baseline (48 inches backboard overhang plus 15 inches from backboard face to rim center). From the baseline centerline, mark 6 feet to the left and right to establish the 12-foot free-throw lane width.
Step 4: Strike the 3-Point Arc Vector
Secure a non-stretching steel measuring cable to the floor anchor directly below the center of the rim. Extend the cable exactly 19 feet 9 inches to the outside edge of the tape line. Swing the arc from its intersection with the baseline on the left to its intersection with the baseline on the right. Maintain constant cable tension during arc scribing to prevent radial distortional drift.
When layout technicians use masking tape prior to line painting, select low-tack 3M precision vinyl tape. Burnish the tape edges using a rigid rubber roller at 20 PSI to prevent paint bleed under the edges, ensuring sharp line definition across wood grain or synthetic textures.
Correcting High School Basketball Court Diagram Alignment Errors
Installation technicians frequently encounter real-world field deviations when mapping court schematics onto finished subfloors or existing concrete slabs. System configuration issues usually stem from structural wall misalignments, incorrect anchor embedments, or improperly calibrated marking instruments.
Issue 1: Key Geometry Out of Square
If diagonal measurements across the 12′ x 19′ free-throw lane (from baseline corner to opposite free throw line intersection) do not match equally (should measure precisely 22 feet 5-1/8 inches), the lane key is skewed. Re-check the perpendicular angle from the baseline using a 3-4-5 layout tool. Do not apply paint until both key diagonals match within 1/16th of an inch tolerance.
Issue 2: Goal Post Anchor Overhang Discrepancies
In wall-mounted or ceiling-suspended goal setups, the physical structure may drift forward or backward from design specs. If structural framing restricts backboard overhang to 46 inches instead of 48 inches, all internal court measurements (free-throw line, 3-point arc) must shift relative to the actual face of the backboard, not the baseline. Review our commercial goal anchor bolt specifications to verify overhead framing anchor ratings before adjusting extension arms.
Issue 3: Subfloor Moisture and Paint Bleed
Painting line systems over high-moisture concrete slabs causes edge peeling and bleed. Always run ASTM F2170 in-situ relative humidity testing prior to line installation. Concrete subfloors must register below 75% RH before applying prime coats and line paint.
Floor Anchor Torque Specs: Base plates for portable or fixed goal assemblies anchored into concrete slabs require 3/4-inch Grade 5 wedge anchor bolts. Torque all anchor bolts to exactly 85 ft-lbs using a calibrated torque wrench. Over-tightening risks concrete spalling, while under-tightening causes dangerous structural sway during dynamic rim loading.
High School Basketball Court Diagram and Blueprint FAQ
What are the exact overall dimensions on a high school basketball court diagram?
An official NFHS high school basketball court measures 84 feet long by 50 feet wide. This is 10 feet shorter than college (NCAA) and professional (NBA) courts, which measure 94 feet by 50 feet. The free throw lane width (12 feet) remains identical across high school, college, and professional configurations.
How far is the 3-point line from the hoop in high school basketball?
The high school 3-point line is 19 feet 9 inches from the center of the basket to the outer edge of the 3-point arc. In contrast, the NCAA men’s and women’s 3-point distance is 22 feet 1.75 inches, and the NBA 3-point arc extends to 23 feet 9 inches at the top of the key.
What are the anchor bolt torque specifications for main basketball goal structures?
Main court goal structures anchored to floor sleeves or concrete footings utilize 3/4-inch sleeve anchors or J-bolts. Manufacturer specs require tightening floor anchor bolts to 85 ft-lbs (115 Nm) of torque. Overhead wall-mount structure bracket bolts (1/2-inch Grade 8 hardware) require 55 ft-lbs of torque into reinforced concrete or structural steel beams.
How does a high school court layout differ from NCAA or NBA schematics?
Beyond the overall length difference (84 ft high school vs. 94 ft college/NBA), high school court diagrams do not feature a restricted area arc (the 4-foot arc under the rim present in NCAA/NBA layouts). Additionally, high school coaching boxes extend 28 feet toward the baseline starting from the mid-court line, whereas professional lines differ in position and length. For detail on surface coatings, consult our athletic line marking paint selection guide.
Step-by-Step Guide to Understanding the High School Basketball Court Diagram
Identify – Establish outer perimeter boundary lines measuring 84 feet long by 50 feet wide using a 100-foot measuring tape.
Locate – Mark the division line at 42 feet and construct the center circle system with a 6-foot outer radius.
Reference – Position backboard structural mounts 4 feet inside each baseline toward the court center.
Layout – Measure and mark the 12-foot wide free-throw lane key structure extending 19 feet from the baseline.
Verify – Swing a 19-foot 9-inch arc centered on the floor point directly beneath the basket ring to mark the 3-point line.
Troubleshoot – Measure diagonal corner-to-corner distance (97 feet 8.5 inches) to fix non-square layout framing before tape application.
