DeWalt Miter Saw Parts Diagram: Component Breakdown 2026
A DeWalt miter saw parts diagram illustrates the internal structural layout, mapping key components like the motor armature, field assembly, carbon brushes (N039397), switch module, kerf plate, and lower guard linkage. It details how the arm pivot assembly connects to the miter base and bevel scale system, ensuring precise alignment during maintenance.
📌 Key Takeaways
- Carbon brushes should be replaced when worn below 1/4 inch (6.35 mm) to prevent armature damage.
- Exploded diagrams identify precise OEM part numbers and component layout within the motor housing and guard assembly.
- Always disconnect power (120V AC or battery) and release spring tension before servicing the lower blade guard mechanism.
- The most common failure points include carbon brush wear, switch spring degradation, and misaligned miter detent plates.
- Electrical switch wiring and carbon brush replacement are suitable for DIYers, but field coil re-winding requires professional service.
Deciphering a DeWalt miter saw parts diagram is essential for performing accurate teardowns, replacing worn internal components, and maintaining factory tolerances on heavy-duty sliding compound saws such as the DWS779, DWS780, and DW716 series. According to OEM technical service manuals, proper identification of exploded-view assemblies prevents damage to aluminum castings, precision trunnion bearings, and armature windings during overhaul. This technical breakdown analyzes the primary system layout, structural configurations, electrical schematics, and mechanical assemblies, enabling professional mechanics and equipment repair technicians to quickly diagnose equipment failures, source correct OEM replacement parts, and execute precise repairs.

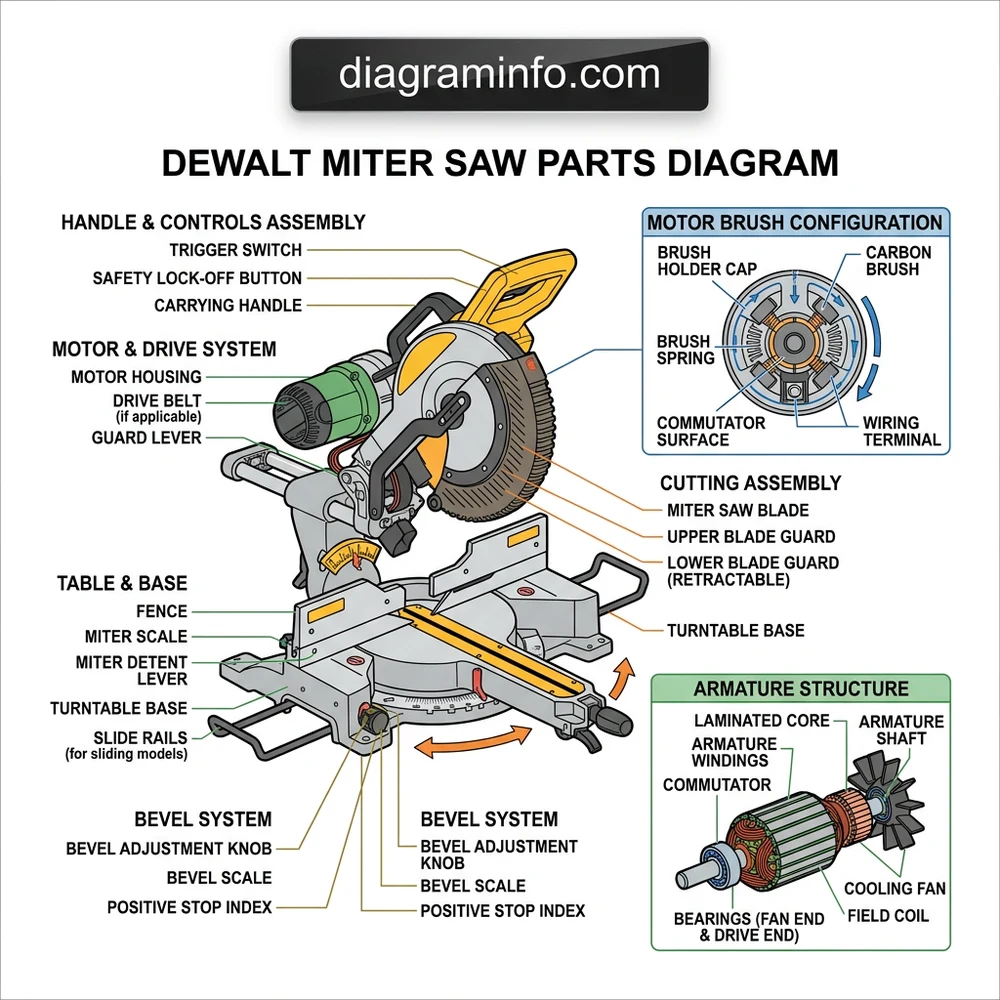

DeWalt Miter Saw Parts Diagram: Core System Layout
A comprehensive DeWalt miter saw structure is divided into four major sub-assemblies: the motor and gear casing, the pivot and trunnion system, the table and base configuration, and the lower guard linkage. Each section uses indexed callout numbers mapped directly to OEM part lists. Understanding how these mechanical modules interface guarantees correct reassembly after teardown.
- Motor and Armature Assembly: Contains the 15-Amp universal motor, armature commutator, carbon brush holders, field coil, and primary drive bearings. This module transforms AC power into high-torque rotational speed via a helical gear reduction set.
- Pivot and Trunnion Structure: Acts as the central hinge connecting the powerhead to the base. It incorporates bevel detent pawls, torsion springs, and heavy-duty casting pins that establish 0°, 22.5°, 33.9°, and 45° bevel alignment.
- Table and Miter Base Configuration: Consists of the machined aluminum base table, stainless steel miter detent plate, kerf board insert, and adjustable sliding fences. It provides the foundation for angular workpiece support.
- Blade Drive and Guard System: Integrates the lower blade guard, guard actuator link, outer flange, inner clamp washer, and arbor screw. This system maintains blade enclosure during operation while ensuring smooth retraction upon downward head pressure.
Factory Fastener Torque Specifications: Arbor Screw (Left-Hand Thread): 18–22 ft-lbs (24–30 Nm); Gear Case Housing Screws (T25 Torx): 35–40 in-lbs (4–4.5 Nm); Handle Housing Screws: 20–25 in-lbs (2.2–2.8 Nm); Miter Detent Plate Bolts: 80–90 in-lbs (9–10 Nm).
The reference table below details key structural components commonly identified across standard DeWalt miter saw parts diagrams:
| Sub-Assembly Zone | Key Structural Component | Typical OEM Part Ref # | Technical Function |
|---|---|---|---|
| Motor Group | 120V Armature Assembly | N028043 / 624157-02 | Drives gear system; houses commutator commutator plates |
| Motor Group | Carbon Brush Set (2-Pack) | N032747 / 381028-08 | Transfers current from field coil to rotating commutator |
| Trunnion / Bevel | Bevel Detent Pawl | 385915-00 | Locks trunnion casting into standard preset bevel angles |
| Blade Guard | Lower Guard Link Arm | N043046 / 393960-00 | Actuates guard movement as the powerhead lowers |
| Base & Table | Kerf Plate Set | N014381 / 147107-02 | Provides zero-clearance blade path support on table surface |
Reading the DeWalt Miter Saw Schematic and Exploded View
Interpreting a technical schematic requires tracing both physical mechanics and electrical schematics simultaneously. Manufacturer blueprints use standardized callout index lines pointing from a central explosion line to specific hardware fasteners, casting components, and electrical leads.
Navigating Sub-Assemblies and Index Callouts
When viewing a DeWalt miter saw blueprint, solid lines link hardware fasteners directly to their corresponding tapped holes in adjacent castings. Dotted lines indicate internal sub-assemblies—such as armature bearings sliding into the inner rubber sleeve of the gear case. Always match the callout index number to the specific Type revision (e.g., Type 1 vs. Type 20) on your tool nameplate, as cast parts and brush holder configurations frequently change between manufacturing generations.
Arbor screws on modern DeWalt compound miter saws use left-hand threads (LH). When consulting the drive shaft layout diagram, remember that turning the bolt clockwise loosens it, while counter-clockwise tightens it against the outer flange assembly.
Tracing Electrical Wire Routes and Wiring Diagrams
The electrical schematic section illustrates power delivery from the 14 AWG power cord through the handle switch to the field coil and carbon brushes. The main black line leg connects directly to terminal 1 on the trigger switch, while the white neutral leg routes to the field coil lead harness. Red secondary wiring handles electronic braking functions when the switch trigger is released. If your switch replacement involves a XPS LED light module, refer to our related guide on DeWalt carbon brush replacement procedures to safely inspect commutators during electrical servicing.
Identifying Fastener Screw Heads and Thread Profiles
DeWalt equipment relies heavily on Torx head fasteners (T20, T25, and T30) alongside specialized pan-head thread-forming screws. The diagram layout distinguishes structural machine screws from thread-cutting screws used in plastic housing assemblies. Never substitute standard ISO metric fasteners where thread-forming screws are specified in the parts catalog, as doing so will strip plastic handle housings.
Diagnosing Failures with a Dewalt Miter Saw Parts Diagram
A parts blueprint serves as a logical troubleshooting roadmap. When equipment exhibits excessive vibration, failure to start, or angular drift, technicians can isolate faulty components by cross-referencing failure symptoms against mechanical schematics.
Motor Commutator Arcing and Loss of RPM
If intense sparking occurs inside the motor housing, consult the motor group diagram section. Inspect callout items corresponding to the brush caps, brush springs, carbon brushes, and armature commutator. Wear beyond 1/4-inch (6mm) on the carbon block causes spring tension loss, leading to severe arcing and burning on the commutator segments. If field resistance strays from factory specifications (typically 0.4 to 0.8 Ohms across field windings), replace the field coil assembly immediately.
Always disconnect the power supply cord or remove the 60V FLEXVOLT battery package before servicing internal motor components or adjusting linkage springs. Tension springs within the trunnion assembly are under heavy preload and can release unexpectedly during disassembly.
Trunnion Wear, Bevel Slop, and Angle Drift
Incurring angular inaccuracy when making bevel cuts points to wear in the trunnion pivot area. Check the exploded diagram around the trunnion casting pin, bevel lock bolt, and detent pawl plate. Over time, heavy jobsite vibration can loosen the detent plate mounting bolts, resulting in table play. For comprehensive alignment procedures, refer to our step-by-step article on miter saw table recalibration.
Lower Guard Binding and Linkage Spring Fatigue
When the lower blade guard fails to retract smoothly upon lowering the cutting head, reference the guard linkage layout. Common root causes include binding in the roller link wheel, bent steel guard arms, or a stretched torsion spring attached to the inner guard hub. Clean pitch buildup from guard tracks before replacing physical spring components.
Dewalt Miter Saw Parts Diagram Technical FAQ
Where is the Type or Revision Number Located on DeWalt Saws?
The Type number (e.g., Type 1, Type 2, Type 10) is stamped directly onto the main motor rating plate next to the model number. Because DeWalt alters internal parts—such as brush designs or gear casing bearings—between production runs, matching the exact Type number to your parts diagram is mandatory prior to ordering replacement parts.
What Distinguishes the DWS779 Diagram from the DWS780 Schematic?
While both saws share identical motor housings, bases, and 12-inch sliding arm configurations, their parts diagrams differ in the shadow line/light alignment subsystem. The DWS780 schematic includes a factory-installed CUTLINE LED driver transformer, wiring harness, and power switch, whereas the DWS779 diagram uses a standard rear casting plug without integrated light wiring.
How Are Reversed Arbor Bolts Indicated in Parts Diagrams?
On DeWalt technical schematics, left-hand threaded fasteners are designated with an “LH” suffix or a directional arrow drawn on the blade washer callout. The blade bolt (typically OEM part 145344-01) uses a 1-inch hex head with a left-hand M8 thread metric pitch.
How Do Wire Color Codes Map Out on DeWalt Motor Wiring Diagrams?
Standard DeWalt 120V single-phase motor schematics utilize Black for line voltage (switch input), White for switch/field neutral connections, Red for the electronic brake winding loop, and Green/Yellow for chassis grounding attached directly to the aluminum motor housing field case.
How Do I Adjust the Bevel Detent Plate Using the Schematic Layout?
Locate the four T25 Torx screws securing the stainless steel detent plate to the base. Loosen the screws half a turn, align the saw blade to 90 degrees using a precision square, seat the detent pawl into the 0-degree notch shown in the diagram, and torque the fasteners to 80 in-lbs in a cross pattern. Learn more in our detailed bevel detent plate adjustment walkthrough.
Step-by-Step Guide to Understanding the Dewalt Miter Saw Parts Diagram
Identify – Match your saw’s exact model and type number with the appropriate parts diagram variant.
Locate – Find the target sub-assembly, such as the motor, handle switch, guard mechanism, or miter base system.
Reference – Cross-check the numerical callout on the schematic layout with the OEM part numbers list.
Connect/Route – Disassemble components carefully, noting wire lead routing within the handle housing before replacing parts.
Verify – Reassemble structural components, verify guard spring return tension, and check bevel angle stops with a square.
Troubleshoot – Perform continuity tests on switch contacts and inspect brush contact if the saw fails to start.
