John Deere Skid Steer Parts Diagram: Component Guide 2026
A John Deere skid steer parts diagram illustrates the machine’s structural layout, mapping hydraulic hose routing, engine configuration, hydrostatic drive assemblies, and electrical wiring systems. Using key part numbers, exploded views display fastener torque specs, seal configurations, and valve block layouts essential for precise component assembly and troubleshooting.
📌 Key Takeaways
- Always verify machine Product Identification Number (PIN) as sub-assemblies shift between serial break ranges.
- Exploded layout diagrams specify exact O-ring boss (ORB) fitting sizes and seal orientation details.
- Hydraulic circuit diagrams detail system operating pressures, relief valve settings, and hose routing channels.
- Misidentifying drive chain or hydrostatic pump part numbers remains the leading cause of fitment errors.
- Basic component replacement is DIY-friendly, but hydrostatic internal overhauls require professional hydraulic bench testing.
Navigating a John Deere skid steer parts diagram effectively allows fleet technicians and heavy equipment mechanics to execute precise repairs, identify OEM part numbers, and analyze complex machine assemblies. Whether servicing a G-Series loader (such as the 317G, 320G, or 332G) or earlier E-Series machinery, understanding the structural layout of the hydrostatic drive motor, hydraulic control valves, and chassis sub-structures is vital. This comprehensive schematic overview breaks down component callouts, hydraulic configurations, and structural layouts. By leveraging standardized diagrams, service personnel ensure accurate component identification and minimize equipment downtime during major field overhauls.
Understanding the John Deere Skid Steer Parts Diagram and Main Subsystems

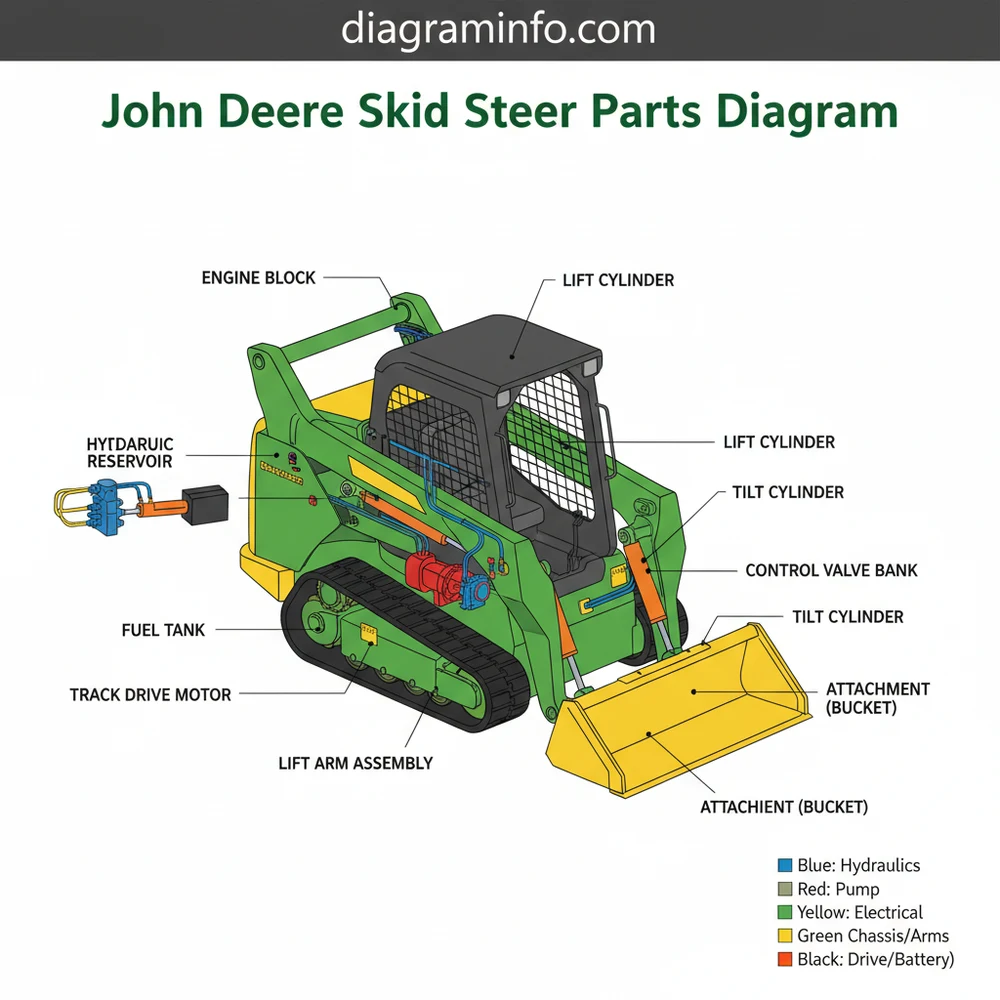

A standard John Deere skid steer diagram relies on an exploded-view structure to isolate distinct mechanical, hydraulic, and electrical sub-assemblies. The machine architecture is categorized into primary functional zones: the power unit (diesel engine and hydrostatic tandem pumps), the drive system (axles, drive chains, and planetary final drives), the lift link structure (boom arms and quick-attach assemblies), and the auxiliary hydraulic control system.
According to manufacturer specs, hydrostatic charge pressure across standard G-Series configurations must maintain 350 to 410 PSI (2.41 to 2.82 MPa) at high idle (2300 RPM) with oil temperature at 65°C (150°F). Always verify charge relief settings on the pump blueprint before adjusting main relief valves.
In the main hydraulic circuit breakdown, axial piston variable displacement pumps supply flow to the drive motors, while a separate gear-type hydraulic pump drives the loader controls. The lift and tilt cylinders utilize O-Ring Face Seal (ORFS) fittings to maintain high-pressure integrity under working loads exceeding 3,450 PSI. Understanding how these parts connect on the diagram prevents cross-threading or line misalignment during reassembly.
| Subsystem | Primary Components Shown | Standard Factory Specifications |
|---|---|---|
| Hydrostatic Drive System | Tandem Piston Pumps, Piston Drive Motors, Drive Chains | System Relief: 4,800–5,200 PSI; Chain Tension Sump Depression: 12-19mm |
| Hydraulic Control Valve | Proportional Solenoids, Main Relief Valve, Spool Assemblies | Main Relief Pressure: 3,450 PSI (23.8 MPa); Pilot Pressure: 450 PSI |
| Axle & Final Drive | Axle Shafts, Tapered Roller Bearings, Triple-Lip Seals | Axle Retaining Nut Torque: 410 lb-ft (556 Nm); Synthetic Gear Lube 80W-90 |
| Loader Boom Linkage | Pivot Pins, Hardened Steel Bushings, Lock Bolts | Pin Retention Bolt Torque: 110 lb-ft (149 Nm); Daily Lithium Grease Spec |
When referencing the chassis layout, technicians must pay close attention to hardware torque callouts listed in the parts key. Fasteners on the drive motor mounting plates typically utilize Grade 8 metric bolts (M16 x 2.0 thread pitch), requiring precise torque execution to prevent looseness due to continuous vibration. For deeper mechanical repairs, review our detailed hydrostatic drive motor rebuild guide to ensure complete system alignment.
How to Read a John Deere Skid Steer Parts Diagram Layout

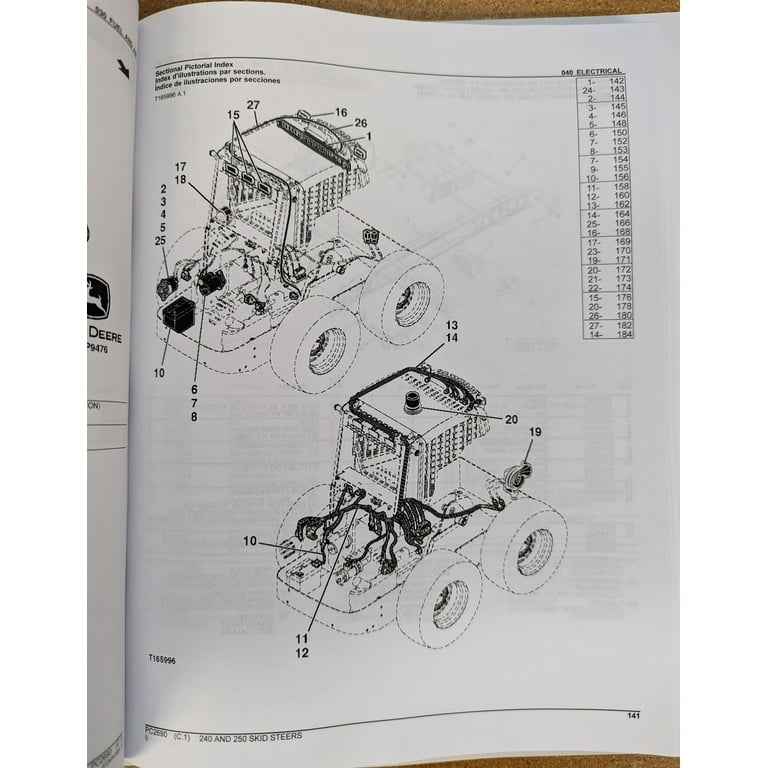

Reading a technical machine schematic requires a systematic approach to match visual callouts with the index table. Modern John Deere diagrams rely on spatial exploded views where dashed lines (flow lines or assembly vectors) indicate the exact insertion path of fasteners, seals, and internal components.
Key callout numbers inside circles refer directly to the part list entry. A key number enclosed in a square or dashed border signifies a complete sub-assembly, which includes all smaller components contained within that boundary.
Follow this step-by-step method to navigate the schematic blueprint:
- Identify the Machine Serial Number Split: OEM parts diagrams vary widely based on production year and machine PIN/serial breaks. Check whether the diagram applies to machines “Below Serial Number 250000” or “Above Serial Number 250001.”
- Locate the Base Assembly: Start at the central structural component—such as the main mainframe or hydraulic valve housing—and trace outward along the alignment vectors.
- Cross-Reference Callout Index Numbers: Match the numeric callout on the layout diagram to the parts index table to locate the exact OEM part number, description, and required quantity per machine.
- Analyze Sub-Assembly Frames: If servicing an Electro-Hydraulic (EH) control valve, locate the dashed box marked “Valve Sub-Assembly.” This indicates that individual seals, spools, and solenoid coils can be purchased separately or as a full rebuild kit.
- Check Standard Hardware Codes: Hardware items like washers, M10 flange bolts, and snap rings often display direct dimensional specs (e.g., M10x25mm, Grade 10.9) alongside part numbers to verify thread pitch before installation.
Understanding these conventions eliminates ordering errors and allows mechanics to cross-reference replacement components with secondary documentation, such as the electro-hydraulic control calibration procedure.
Troubleshooting John Deere Skid Steer Systems Using Schematics
When diagnosing functional failures—such as weak boom lift capacity, drive tracking drift, or slow auxiliary response—combining a mechanical parts breakdown with a functional hydraulic schematic is essential. For instance, if a machine experiences sluggish right-hand travel, technicians should reference the drive system blueprint to isolate whether the fault lies in the mechanical chain drive, the hydrostatic motor seal kit, or the dual-path control solenoid.
High-pressure hydraulic fluid hazard. Fluid escaping under pressure can penetrate skin, causing severe surgical emergencies. Relieve all hydraulic system pressure using the manual relief procedure before loosening fittings identified on the hydraulic layout.
To troubleshoot low hydraulic pressure issues using the blueprint:
- Locate the main pressure diagnostic port (typically labeled ‘TP1’ or ‘GP1’ on the main valve block diagram).
- Attach a calibrated 0-5000 PSI pressure gauge to the quick-disconnect diagnostic coupler.
- Compare real-time gauge readings against factory specifications (e.g., 3,450 PSI for loader functions).
- If pressure is low, trace upstream on the diagram to the main relief valve assembly. Inspect the relief valve O-rings (Callouts 4 and 5 on most valve blueprints) for bypass tears.
- If electrical faults trigger EH fault codes, trace wire harnesses using the color-coded electrical layout: Circuit 100 (Red) for unswitched power, Circuit 010 (Black) for ground, and Circuit 400 series for proportional valve control loops.
Technicians addressing severe hydraulic contamination should also consult our hydraulics troubleshooting manual to properly perform system flushing protocols alongside mechanical repairs.
John Deere Skid Steer Parts Diagram Questions Answered
How do I locate the exact serial number split on a John Deere skid steer parts schematic?
Serial number splits are located in the header or footnote section of the diagram parts table. John Deere identifies these splits using machine PIN ranges, indicated as “( -XXXXXX)” for models up to a specific serial number, or “(XXXXXX- )” for models starting from that serial number onward. Always verify the 17-digit Product Identification Number on the chassis tag before selecting parts.
What do dotted or dashed outline boxes signify on a John Deere blueprint or part diagram?
Dashed or dotted outline boxes identify complete sub-assemblies. Components enclosed within these lines are supplied together as a pre-assembled unit under a primary part number, though individual internal parts may also have specific callout numbers for field servicing.
Where can I find electrical harness wire color codes within the schematic overview?
Electrical wire colors are detailed in the electrical system schematic section. Wire callouts feature a numeric circuit number followed by a color code abbreviation (e.g., 100 RED, 010 BLK, 412 YEL/BLK). The numeric prefix indicates the specific circuit function within the main machine harness.
How do OEM John Deere hydraulic diagrams indicate O-ring sizes and seal kits?
Individual hydraulic O-rings on John Deere diagrams are designated with standard dash-size numbers (e.g., -012 or -116) or specific metric dimensions (Inner Diameter x Cross Section) within the parts list description. Comprehensive seal repair kits are designated by a primary key callout encompassing all internal dynamic and static seals for cylinders or pumps.
Step-by-Step Guide to Understanding the John Deere Skid Steer Parts Diagram
Identify – Locate the skid steer product identification number (PIN) plate to ensure correct diagram selection.
Locate – Find the specific system subgroup, such as hydraulics, drive train, or electrical layout.
Reference – Match callout numbers on the exploded schematic to the part list to obtain OEM part numbers.
Connect/Route – Follow diagram line paths to correctly route hydraulic hoses, wiring harnesses, and linkages.
Verify – Inspect seal orientations, mounting bracket configurations, and apply torque specs up to 150 lb-ft as noted.
Troubleshoot – Check pressure relief valves, loose hardware, or misaligned fittings if leakages or operational faults persist.
