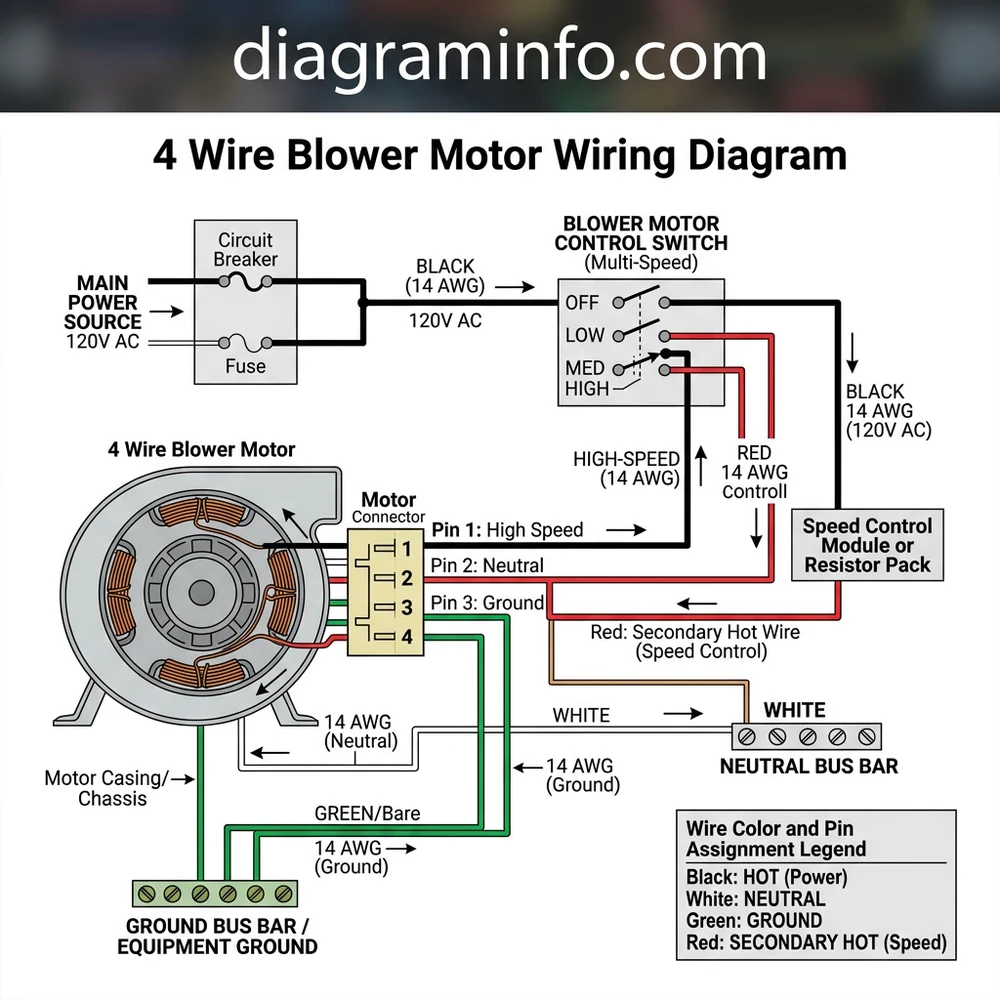

4 Wire Blower Motor Wiring Diagram 2026: Installation Setup
The 4 wire blower motor wiring diagram shows component layout, connection points, and routing paths. Use it to identify parts, diagnose issues, and follow correct installation or repair procedures.
📌 Key Takeaways
- Understanding the 4 wire blower motor wiring diagram is essential for proper implementation
- Each component has a specific role and connection point
- Following safety guidelines prevents common mistakes
- This diagram serves as a reference for practical applications
- Regular review helps maintain accurate understanding
Understanding the intricate wiring of a 4-wire blower motor is paramount for technicians and advanced DIY enthusiasts engaged in automotive or heavy equipment maintenance. This detailed guide and accompanying wiring diagram aim to demystify the connections, ensuring proper functionality, safety, and longevity of your HVAC system’s critical air-moving component. Correct identification of each wire’s function—whether it’s the main power, ground, control signal, or feedback—is essential for accurate diagnosis, replacement, and repair, preventing system damage and ensuring optimal cabin climate control.
WIRE COLOR REFERENCE TABLE
The following table outlines common wire color codes and their associated functions for a typical 4-wire variable-speed blower motor system, often found in modern automotive and heavy equipment applications. While these are prevalent, always consult your specific equipment’s OEM service manual for exact wire color codes and terminal identification, as variations exist across manufacturers and model years.
| Wire Color (Typical) | Function | Pin/Terminal (Example) | Notes |
|---|---|---|---|
| Red / Thick Red (often with stripe) | Main Power (B+, Hot Wire) | Pin 1 / Power In | Constant 12V or 24V from fused source. Ensure correct gauge for current. |
| Black / Thick Black | Ground (B-) | Pin 2 / Ground | Connects to chassis ground. Crucial for motor operation and noise suppression. |
| Blue / Blue with stripe | PWM Signal Input (Control) | Pin 3 / Signal Input | Pulse Width Modulation signal from HVAC control module; dictates motor speed. |
| Green / Green with stripe | Feedback (Tachometer/Sense) | Pin 4 / Signal Output | Provides motor speed data back to the HVAC control module for verification. |
Modern 4-wire blower motors are often brushless DC (BLDC) motors integrated with an internal control module. This module interprets the PWM signal to vary motor speed and outputs a feedback signal. Unlike older systems that used a series of resistors to change fan speeds, these variable-speed motors offer finer control, improved efficiency, and reduced noise levels. The gauge of the main power and ground wires is critical due to the high current draw of blower motors; typically, 10-12 AWG is specified for power delivery, while signal wires are often 18-20 AWG. Always verify specified wire gauge in the OEM manual for your particular application.
STEP-BY-STEP CONNECTION GUIDE
Executing the correct wiring sequence for a 4-wire blower motor is crucial for operational integrity and to prevent electrical faults. This guide outlines the precise steps for connection, assuming you have safely disconnected power and prepared the necessary components. Refer to the provided wiring diagram, your vehicle’s service manual, and the wire color reference table for specific identification.
Before commencing any electrical work, always disconnect the negative terminal of the battery to eliminate any potential for accidental shorts or electrical shock. Failure to do so can result in serious injury or damage to electrical components, including the vehicle’s ECU or HVAC control module.
1. Verify Power Disconnection: Double-check that the vehicle’s battery is completely disconnected. Use a multimeter to confirm zero voltage at all connection points before proceeding.
2. Identify Motor Terminals: Examine the new 4-wire blower motor or the existing motor’s connector. Modern motors typically use a multi-pin connector. The pins are often numbered or labeled (e.g., B+, Gnd, PWM, Feedback) on the motor housing or connector itself. Match these labels with the functions in the Wire Color Reference Table.
3. Connect the Ground Wire: Locate the thick Black wire (or designated ground wire as per your OEM diagram). This is your ground wire (B-). Connect this wire securely to the designated ground terminal on the blower motor. Ensure the connection is clean, tight, and free of corrosion. A poor ground connection can lead to erratic motor operation or failure. For terminal block connections, apply a torque specification of 2-3 Nm (1.5-2.2 ft-lb) if specified, or ensure a firm, non-wobbling connection.
4. Connect the Main Power Wire: Identify the thick Red wire (or designated main power wire) that carries battery voltage (B+, hot wire). Connect this wire to the corresponding main power input terminal on the blower motor. This wire supplies the primary operating voltage to the motor’s internal control module. Confirm proper pin assignment to prevent reverse polarity, which can instantly damage the integrated electronics.
5. Connect the PWM Signal Input Wire: Locate the Blue wire (or designated PWM signal wire) from the HVAC control module. This wire carries the variable pulse width modulation signal that instructs the blower motor’s integrated controller on the desired speed. Connect this wire to the appropriate PWM input terminal. This connection is sensitive; ensure a clean, stable connection.
6. Connect the Feedback Wire: Find the Green wire (or designated feedback wire) that returns a signal from the blower motor back to the HVAC control module. This feedback loop allows the control module to monitor the actual rotational speed of the motor and detect faults. Connect this wire to the blower motor’s feedback output terminal. This typically involves a low-current signal.
7. Secure All Connections: Once all four wires are correctly connected to their respective terminals, ensure that all connectors are fully seated and latched. If using crimped terminals, verify that each crimp is solid and provides excellent electrical contact. Protect exposed wiring with appropriate loom or electrical tape to prevent abrasion or short circuits.
8. Final Voltage and Continuity Checks: Before reconnecting the battery, perform continuity checks from the harness connector back to the motor pins to ensure no open circuits. Once satisfied, reconnect the battery’s negative terminal.
9. System Test: Turn the vehicle or equipment ignition to the “ON” position (do not start the engine unless necessary for HVAC system activation). Activate the HVAC system and test the blower motor through all its speed settings. Observe for smooth operation, appropriate airflow, and listen for any unusual noises. Verify that the system responds correctly to speed changes. Check for any diagnostic trouble codes (DTCs) using an appropriate scan tool, especially if a new motor or module was installed.
For automotive 12V systems, main power (hot wire) and ground wires should typically be 10 or 12 AWG to handle current draws of 20-30+ amps. Signal wires (PWM and Feedback) typically operate with much lower currents and voltages, often 18-20 AWG. Always adhere to manufacturer’s recommended wire gauges to prevent overheating and voltage drop. Verify proper terminal tension; loose connections can cause intermittent operation, arcing, and heat buildup.
COMMON WIRING MISTAKES & TROUBLESHOOTING
Even experienced technicians can encounter issues during blower motor wiring. Understanding common mistakes and their troubleshooting steps is essential for efficient problem resolution.
1. Reverse Polarity on Main Power (B+ and Ground):
Mistake: Swapping the main power (hot wire) and ground wire connections. While modern BLDC motors often have internal protection, some older or simpler units may not. Even with protection, the internal circuitry can be stressed or damaged.
Consequence: Immediate motor non-operation, internal fuse blowing within the motor’s control module, or in severe cases, damage to the motor or the vehicle’s fuse panel/wiring. The HVAC control module might also log a fault code.
Fix: Disconnect power immediately. Carefully re-identify the main power and ground wires using the wiring diagram and a multimeter. Connect the positive terminal to the designated B+ input and the negative (ground) terminal to the designated ground input. Test for continuity and correct voltage before applying full power.
2. Poor Ground Connection:
Mistake: The ground wire (B-) is not securely fastened to the motor or chassis, or the contact point is corroded, leading to high resistance.
Consequence: Intermittent blower operation, reduced motor speed even at high settings, excessive heat buildup at the ground connection point, or a complete lack of operation. Voltage drop across the ground circuit will be significant.
Fix: Disconnect the battery. Inspect all ground connections from the motor to the chassis. Clean any corrosion on terminals, chassis points, and wire ends. Use a wire brush for chassis contact points. Ensure the ground wire is of the correct gauge and securely crimped or bolted. Measure resistance between the motor ground terminal and the battery negative terminal; it should be very close to 0 ohms.
3. Incorrect Signal Wire Connections (PWM/Feedback):
Mistake: Swapping the PWM input wire with the feedback output wire, or connecting either to an incorrect terminal.
Consequence: The blower motor may not operate at all, operate only at a single speed, or operate erratically. The HVAC control module will likely detect an open circuit or an incorrect feedback signal and log a DTC.
Fix: Disconnect power. Carefully verify the pin assignments for the PWM input and feedback output wires against the OEM wiring diagram. Use a multimeter to check continuity from the HVAC control module connector to the blower motor connector. For PWM signal verification, an oscilloscope is ideal to observe the pulse train; a specialized scan tool might also read PWM duty cycle. If the module cannot read the feedback signal, it may disable the motor. For further diagnostic guidance, consult resources on HVAC control module diagnostics.
4. Incorrect Wire Gauge or Damaged Insulation:
Mistake: Using a wire gauge that is too small for the current requirements of the main power and ground circuits, or existing wiring having compromised insulation due to wear, heat, or abrasion.
Consequence: Undersized wires will overheat, leading to increased resistance, voltage drop, and potential fire hazards. Damaged insulation can cause short circuits, blowing fuses, or unexpected power drains.
Fix: Replace any undersized wiring with the correct gauge as specified by the manufacturer (refer to the Spec Box above for typical gauges). Inspect the entire wiring harness for signs of chafing, melting, or cuts. Repair or replace damaged sections of the harness using proper soldering and heat-shrink tubing techniques. Ensure proper routing to prevent future damage.
5. Corroded or Loose Terminal Block Connections:
Mistake: Connectors at the blower motor, fuse box, or HVAC control module are corroded, bent, or not fully seated, leading to high resistance or intermittent contact.
Consequence: Symptoms can range from intermittent motor operation, reduced speed, flickering lights (due to voltage fluctuations under load), or complete motor failure. The high resistance generates heat, which can further damage connectors and wiring.
* Fix: Disconnect the battery. Inspect all multi-pin connectors involved in the blower motor circuit. Look for green or white corrosion, bent pins, or signs of overheating (discolored plastic). Clean corroded terminals with electrical contact cleaner and a small brush. If pins are bent, carefully straighten them or replace the terminal/connector if severely damaged. Ensure all connectors are fully engaged and secured with their locking tabs. This is often a critical step in automotive wiring harness repair.
FAQ
Can I replace a 4-wire blower motor with a 3-wire or 2-wire motor?
No, a 4-wire blower motor is fundamentally different from 2-wire or 3-wire variants due to its control mechanism. A 4-wire motor typically utilizes a PWM signal for variable speed control and often provides feedback to the HVAC module. Simpler motors (2-wire, 3-wire) are usually controlled via a resistor pack or direct voltage switching. Substituting a different motor type will result in non-operation, improper speed control, or even damage to the HVAC control module. Always replace with the exact specified motor type.
What tools are essential for accurately diagnosing 4-wire blower motor wiring issues?
For accurate diagnosis, you will need a digital multimeter (DMM) capable of reading DC voltage, resistance (ohms), and continuity. An oscilloscope is highly recommended for accurately verifying the PWM signal’s duty cycle and frequency, as well as the feedback signal. Additionally, wire strippers, crimpers, terminal release tools, and electrical contact cleaner are standard tools for harness repair. A vehicle-specific scan tool is crucial for reading HVAC system DTCs and live data related to blower motor operation.
Why do wire color codes vary so significantly between vehicle manufacturers and models?
Wire color codes are not universally standardized across the automotive or heavy equipment industry. Each manufacturer typically develops its own color coding scheme, which can even change between different model years or platforms within the same brand. This necessitates always consulting the specific OEM wiring diagram for your exact make, model, and year. Relying on generic color codes can lead to incorrect connections and potential damage. For general troubleshooting, understanding principles of wire color code identification is beneficial.
What voltage should I expect on the main power and PWM signal lines?
For 12V automotive systems, the main power (B+) will typically read battery voltage (12.6V to 14.4V when the engine is running). For heavy equipment, this could be 24VDC. The PWM signal line will show a varying voltage when measured with a DMM, but this is an average. With an oscilloscope, you would observe a square wave signal, usually between 0V and battery voltage (e.g., 12V), with its duty cycle (percentage of time the signal is “on”) varying to control motor speed. The feedback signal will also be a pulsed signal, typically 0V to 5V or 0V to 12V, whose frequency corresponds to motor RPM.
