Fender Jazz Bass Wiring Diagram: Installation Setup 2026
A classic passive Fender Jazz Bass uses two 250k volume pots and one 250k tone pot with a 0.047µF capacitor. Pickup hot wires attach to lug 2 of their respective volume pots, ground wires solder directly to pot casings, and lug 1 connects to ground for volume attenuation.
📌 Key Takeaways
- Standard passive J-Bass harnesses use two 250k volume pots (neck/bridge) and one 250k tone pot with a 0.047µF capacitor.
- Pickup hot wire leads connect to the middle lug (lug 2) of each volume pot, while pickup ground wires solder to pot backs.
- A dedicated bridge ground wire must run to the control cavity to eliminate electrostatic buzz when touching strings.
- Cold solder joints on potentiometer casings are the primary cause of signal dropouts and excessive single-coil hum.
- Basic harness rewiring is a straightforward DIY task, but active preamp conversions require extra cavity routing and battery space.
Servicing, upgrading, or assembling a classic passive offset bass circuit requires absolute adherence to established schematic standards. Utilizing an accurate fender jazz bass wiring diagram is essential to maintaining signal integrity, preventing ground loops, and ensuring proper dual-volume, master-tone (VVT) interaction. Whether you are wiring vintage-spec single-coil pickups, replacing worn potentiometers with 250k CTS components, or diagnosing output attenuation, precise execution of terminal lug pin assignments and soldering points is required. This technical guide outlines component values, wire color codes, output voltage expectations, and step-by-step assembly sequences for professional technicians and luthiers.

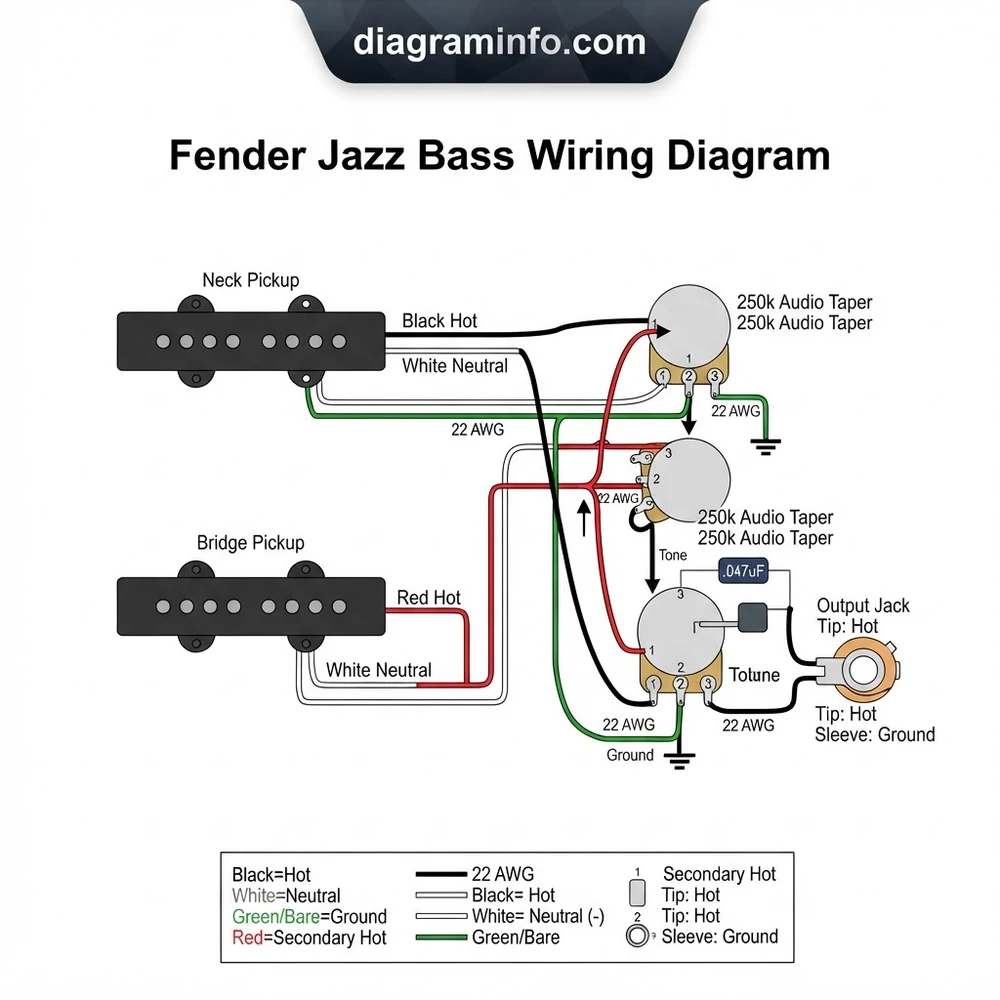

Standard Fender Jazz Bass Wiring Diagram Color Codes and Terminal Assignments
The standard passive Fender Jazz Bass control cavity utilizes two volume potentiometers and one master tone potentiometer controlling two distinct single-coil pickups. According to original equipment manufacturer (OEM) specifications, signal routing relies on dedicated hot lead colors paired with grounded black wire returns. The table below details the wire color code conventions, terminal assignments, and routing functions across standard vintage and modern reissue control plates.
| Wire Color Code | Circuit Function | Pin / Terminal Assignment | Technical Notes |
|---|---|---|---|
| White or Yellow (Pickup Lead) | Neck Pickup Hot Wire Signal | Neck Vol Potentiometer (Terminal 3) | Carries positive AC audio signal (~100–250 mV) |
| Black (Neck Pickup Lead) | Neck Pickup Ground Wire | Neck Vol Potentiometer Casing | Soldered directly to the chassis ground plane |
| Black, Red, or Blue (Bridge Lead) | Bridge Pickup Hot Wire Signal | Bridge Vol Potentiometer (Terminal 3) | Carries positive AC audio signal (~100–250 mV) |
| Black (Bridge Pickup Lead) | Bridge Pickup Ground Wire | Bridge Vol Potentiometer Casing | Reverse wound/polarity return path |
| Solid Copper / Bare Wire | Bus Ground Wire Interconnect | Potentiometer Casings (Vol 1 to Vol 2 to Tone) | 18–20 AWG solid tinned wire establishing continuous ground |
| Black (Bridge Ground) | Hardware Electrostatic Ground Wire | Bridge Volume Casing to Bridge Plate | Bleeds string noise; passes under metal bridge plate |
| White / White Pushback Lead | Main Output Hot Signal | Master Tone (Terminal 2) to Output Jack (Tip) | Primary unshielded hot wire to 1/4″ mono jack tip |
| Black / Black Pushback Lead | Main Circuit Ground Return Wire | Master Tone Casing to Output Jack (Sleeve) | Completes ground return loop to amplifier chassis |
Electrical Specifications, Wire Gauges, and Output Voltage Dynamics
The standard passive Fender Jazz Bass harness relies on specific passive component values to form a low-pass filter and voltage divider network. The tone pot operates via a variable resistor placed in series with a capacitor to ground, bleeding higher audio frequencies while preserving low-end resonance. The table below highlights critical electrical parameters required to maintain original factory output curves.
• Potentiometer Specifications: 250k-Ohm Audio Taper (A250K), Low Torque CTS 450S Series.
• Tone Capacitor Specification: 0.047 µF (Microfarad) Polyester Film or Paper-in-Oil, Rated at 50V–100V.
• Conductor Wire Gauge: 22 AWG Stranded, Pre-tinned, Vintage Cloth-Covered Pushback Wire.
• Pickup DC Resistance: Neck: 7.2kΩ – 7.8kΩ | Bridge: 7.5kΩ – 8.5kΩ (Standard Vintage Spec).
• Peak Signal AC Voltage Output: 150 mV to 350 mV Peak-to-Peak under heavy string attack.
• Output Jack Specs: Switchcraft #11 1/4″ Open-Frame Mono Output Jack with 3/8″ Threaded Bushing.
When measuring circuit performance, passive single-coil pickups produce a low-voltage AC signal generated via magnetic induction. The average output voltage varies based on pickup height, magnet type (Alnico II vs. Alnico V), and string gauge, typically reading between 100 mV RMS during steady play up to 350 mV peak during aggressive plucking. Because single-coil pickups are susceptible to electromagnetic interference (EMI), wire routing must minimize parallel runs between signal leads and raw ground runs unless shielded braid is utilized.
The wire gauge choice directly affects mechanical durability and solder joint density inside the compact control cavity. Factory specifications call for 22 AWG tinned stranded wire. Using a larger gauge (such as 16 AWG) risks excessive thermal mass requirements during soldering, potentially damaging internal potentiometer carbon tracks. Using a smaller gauge (such as 28 AWG) increases mechanical fragility at stress points near lug connections.
Step-by-Step Assembly Guide for the Fender Jazz Bass Wiring Diagram
Following a methodical assembly sequence prevents thermal breakdown of components and ensures correct pin assignment connections. Prepare your workstation with a 30W–40W temperature-controlled soldering iron, 63/37 rosin-core solder, wire strippers, and a brass control plate mounting template.
1. Potentiometer Alignment and Lug Terminal Preparation
Mount the three 250k potentiometers to the metal control plate in standard orientation (Lugs facing toward the bottom edge of the plate). Identify terminal pins on each pot: facing the back of the casing with lugs down, left is Terminal 1, center wiper is Terminal 2, and right is Terminal 3.
On both the Neck Volume and Bridge Volume potentiometers, bend Terminal 1 upward until it makes contact with the side of its respective potentiometer casing. Solder Terminal 1 directly to the metal casing on both volume pots to create the local ground tie point. Leave Terminal 1 on the Master Tone pot unconnected to the casing; it will serve as the attachment point for the 0.047 µF tone capacitor.
2. Installing the Bus Ground Wire and Terminal Isolation
Run a length of 18 AWG or 22 AWG bare ground wire across the backs of all three potentiometer casings. Solder the ground wire sequentially to the Neck Volume casing, Bridge Volume casing, and Master Tone casing. This establishes a continuous low-impedance ground plane across all controls.
If utilizing a terminal block or terminal strip for modern solderless pickup switching or active preamp conversions, secure the block inside the cavity wall. Connect the terminal block ground pin directly to this main bus ground line using a 22 AWG black jumper wire.
3. Wiring Pickup Leads to Volume Potentiometers
Route the two conductor wires from the neck pickup into the control cavity through the drilled body port. Strip 1/4 inch of insulation from the leads if non-pushback wire is used.
- Solder the neck pickup white (hot) wire to Terminal 3 of the Neck Volume potentiometer.
- Solder the neck pickup black (ground) wire to the Neck Volume potentiometer casing.
- Route the bridge pickup wires into the cavity. Solder the bridge pickup hot wire (white, red, or blue depending on manufacturer) to Terminal 3 of the Bridge Volume potentiometer.
- Solder the bridge pickup black (ground) wire to the Bridge Volume potentiometer casing.
4. Interconnecting Volume Potentiometer Wipers to Tone Control
To allow independent volume mixing without shorting the master output signal when one volume is rolled off, the wipers (Terminal 2) act as the variable signal output junctions:
- Run a length of 22 AWG insulated wire from Terminal 2 (Wiper) of the Neck Volume pot to Terminal 2 (Wiper) of the Bridge Volume pot.
- Run a second jumper wire from Terminal 2 of the Bridge Volume pot directly to Terminal 3 of the Master Tone potentiometer. This routes the blended pickup AC signal into the tone circuit.
5. Tone Control Capacitor and Output Jack Wire Terminations
Insert one leg of the 0.047 µF capacitor into Terminal 1 of the Master Tone potentiometer. Solder the connection. Bend the remaining leg of the capacitor to contact the metal back of the Master Tone potentiometer casing, and solder it securely. Terminal 2 of the Master Tone pot serves as the primary hot signal output junction.
Strip the ends of a 22 AWG white output hot wire and a 22 AWG black output ground wire. Connect them to the Switchcraft #11 output jack as follows:
- Solder the white output hot wire from Terminal 2 of the Master Tone pot to the Tip Terminal Pin of the 1/4″ output jack.
- Solder the black ground wire from the Master Tone potentiometer casing to the Sleeve Terminal Pin of the output jack.
- Solder the long black bridge ground wire (extending from beneath the metal bridge plate) directly to the Bridge Volume potentiometer casing.
Advanced Ground Wire Shielding and Terminal Isolation Procedures
In high electromagnetic interference (EMI) environments, executing a standard fender jazz bass wiring diagram requires extra attention to cavity shielding and ground loop mitigation. Standard single-coil pickups produce hum when operated individually; however, hum-canceling performance is achieved when both pickups are at full volume, provided they are reverse-wound, reverse-polarity (RWRP) relative to each other.
While original vintage designs relied on the metallic control plate to bridge ground points between pots, mechanical oxidation over time creates resistance between pot bushings and the plate. Establishing an explicit soldered wire ground bus across all pot casings guarantees zero-ohm continuity, preventing intermittent noise regardless of mechanical plate corrosion.
When lining the control cavity with conductive copper foil tape, maintain continuity by overlapping foil strips and soldering across seams. Ensure that copper tape extends slightly onto the top edge of the body cavity so it makes firm physical contact with the chrome control plate upon reassembly.
When inserting the wired control plate assembly into a copper-shielded cavity, the output jack tip terminal can easily twist and short against the shielded cavity wall. Shorting the hot wire terminal pin to ground instantly silences the instrument. Rotate the output jack terminal lugs at a 45-degree angle relative to the plate and insulate the jack cavity wall with electrical tape or shrink tubing.
For custom instruments incorporating non-standard active preamps, active EQ conversion, or piezo saddles, a dedicated multi-pin neutral terminal block or bus bar simplifies connection management. Ensure that signal ground and power neutral return paths from battery harnesses maintain dedicated star-ground paths to prevent switching pop artifacts during active/passive toggle transitions.
Common Fender Jazz Bass Wiring Diagram Errors and Diagnostic Troubleshooting
System failures in newly wired control plates generally stem from thermal potting damage, terminal shorting, or misidentified pin assignments. The table below lists common failure modes, root causes, and technical diagnostic procedures using a digital multimeter (DMM).
1. Total Loss of Output Voltage (Complete Signal Silence)
Cause: The tip terminal pin on the 1/4″ output jack is touching the ground foil in the cavity wall, or Terminal 1 on a volume pot was incorrectly bridged to Terminal 2 (wiper), shorting the hot signal directly to the grounded casing.
Fix: Set DMM to Resistance mode (20kΩ range). Measure resistance across the output jack Tip and Sleeve with all controls set to maximum. A reading of 0 Ohms indicates a direct short to ground. Inspect jack terminal clearance inside the cavity and re-examine terminal pin assignments on all potentiometers.
2. Volume Knob Operates in Reverse or Acts as an On/Off Switch
Cause: Pickup hot wire and ground wire input pins were reversed on the volume potentiometer, or Terminal 1 and Terminal 3 pin assignments were swapped.
Fix: Verify that the pickup hot wire connects strictly to Terminal 3 (right pin when looking at back of pot with lugs down). Confirm that Terminal 1 is soldered directly to ground. If Terminal 3 is grounded instead of Terminal 1, the pot will decrease volume when turned clockwise.
3. Severe 60-Hz Electrostatic Hum When Touching Strings or Hardware
Cause: The bridge hardware ground wire is disconnected, cold-soldered, or missing from under the bridge plate, causing the player’s body to act as an antenna adding electrostatic noise instead of grounding through the circuit.
Fix: Touch one DMM probe to the outer sleeve of the instrument output jack and the other probe to the metal bridge plate. Resistance must read under 0.5 Ohms. If resistance reads open circuit (infinity), remove the bridge plate, strip fresh insulation from the 22 AWG bridge ground wire, and re-clamp it tightly under the metal bridge plate.
4. Excessive Tone Muffling or Ineffective Frequency Roll-off
Cause: Incorrect capacitor installation. A 0.47 µF capacitor was used instead of a 0.047 µF capacitor (10x over-capacity), or the capacitor leads are bridging directly across Terminal 2 and Terminal 3 without referencing ground.
Fix: Check capacitor markings. Standard codes must read “473” (0.047 µF). Verify one leg connects to Master Tone Terminal 1 and the opposing leg connects directly to the pot casing ground wire line.
Frequently Asked Questions Regarding Fender Jazz Bass Wiring Diagrams
What is the standard potentiometer resistance value and taper for a Fender Jazz Bass wiring diagram?
The OEM standard for a passive Fender Jazz Bass calls for 250k-Ohm audio (logarithmic) taper potentiometers for both volume controls and the master tone control. Audio taper potentiometers provide a smooth, human-ear-linear decrease in volume and treble response as the control is rolled back. Linear taper pots (250k-B) can be used for volume controls if a more rapid initial drop-off is desired, but 250k-A audio pots remain the standard spec. Using 500k pots increases high-frequency resonance, making single-coil pickups sound overly bright or glassy.
How does reverse-wound, reverse-polarity (RWRP) pickup wiring eliminate hum in a Jazz Bass circuit?
When both the Neck and Bridge volume controls are set to 100% output, a standard Jazz Bass acts as a humbucking system. The neck pickup magnetic pole pieces are oriented North Up with clockwise coil winding, while the bridge pickup pole pieces are oriented South Up with counter-clockwise winding. Common-mode electromagnetic interference (EMI) strikes both pickup coils identically and is canceled out due to the phase inversion when the two AC signal voltages combine in parallel at the wiper terminals, preserving the primary string vibration audio signal.
Why does turning down one volume control slightly alter the tone of the other pickup in a passive circuit?
In a standard passive Jazz Bass circuit, the two volume potentiometers are wired as un-isolated parallel variable voltage dividers. Because there are no active buffer stages separating the two pickups, lowering the volume of one pickup changes the total load impedance seen by the other pickup. This interaction shifts the resonant peak of the combined circuit slightly, causing a minor alteration in midrange response. This physical interaction is normal for passive VVT offset instrument circuits.
Can I install a 0.022 µF capacitor instead of the standard 0.047 µF capacitor on the master tone pot?
Yes. Changing the capacitor value alters the knee frequency of the passive low-pass RC filter. A standard 0.047 µF capacitor rolls off frequencies above ~720 Hz, producing a deep, dark bass tone when fully rolled back. Installing a 0.022 µF capacitor shifts the roll-off frequency higher up the spectrum (~1.5 kHz), retaining more upper-midrange attack while removing harsh high-frequency noise. This modification is popular among players using modern roundwound strings who require tighter low-mid definition.
What solder composition and soldering iron temperature should be used for wiring bass control plates?
Use 63/37 Sn/Pb (Tin/Lead) rosin-core solder or Lead-Free SAC305 solder with a high-quality rosin flux. Temperature-controlled soldering irons should be set to 650°F–700°F (343°C–371°C) for small terminal lug connections. When soldering heavy ground wires or bus lines directly to the back of steel potentiometer casings, increase iron temperature to 750°F (398°C) using a wide chisel tip. Heat the casing surface rapidly for 3–5 seconds to flow the joint cleanly without heat-soaking internal carbon resistance tracks.
