Central Air Conditioning System Diagram: Complete Layout Guide
A central air conditioning system diagram illustrates the configuration of indoor and outdoor units, showing how components like the compressor, evaporator coil, and ductwork interact. It provides a visual guide to the refrigeration cycle, helping you identify parts and understand the airflow structure for efficient cooling and maintenance.
📌 Key Takeaways
- Map the connection between the indoor handler and outdoor condenser
- Identify the compressor and evaporator coil for troubleshooting
- Ensure proper airflow clearance around the outdoor unit structure
- Use the diagram to locate filter and drain line access points
- Essential for planning maintenance or diagnostic repairs
Understanding your home’s cooling infrastructure begins with a clear central air conditioning system diagram. Whether you are a homeowner facing a sudden repair or a DIY enthusiast planning a new installation, having a detailed schematic is essential for navigating the complex web of refrigerant lines, electrical connections, and ductwork. This guide provides a comprehensive overview of how these systems are structured, helping you identify every critical component and understand its role in the cooling cycle. By the end of this article, you will be able to interpret professional blueprints, troubleshoot common performance issues, and ensure your HVAC configuration remains efficient for years to come.

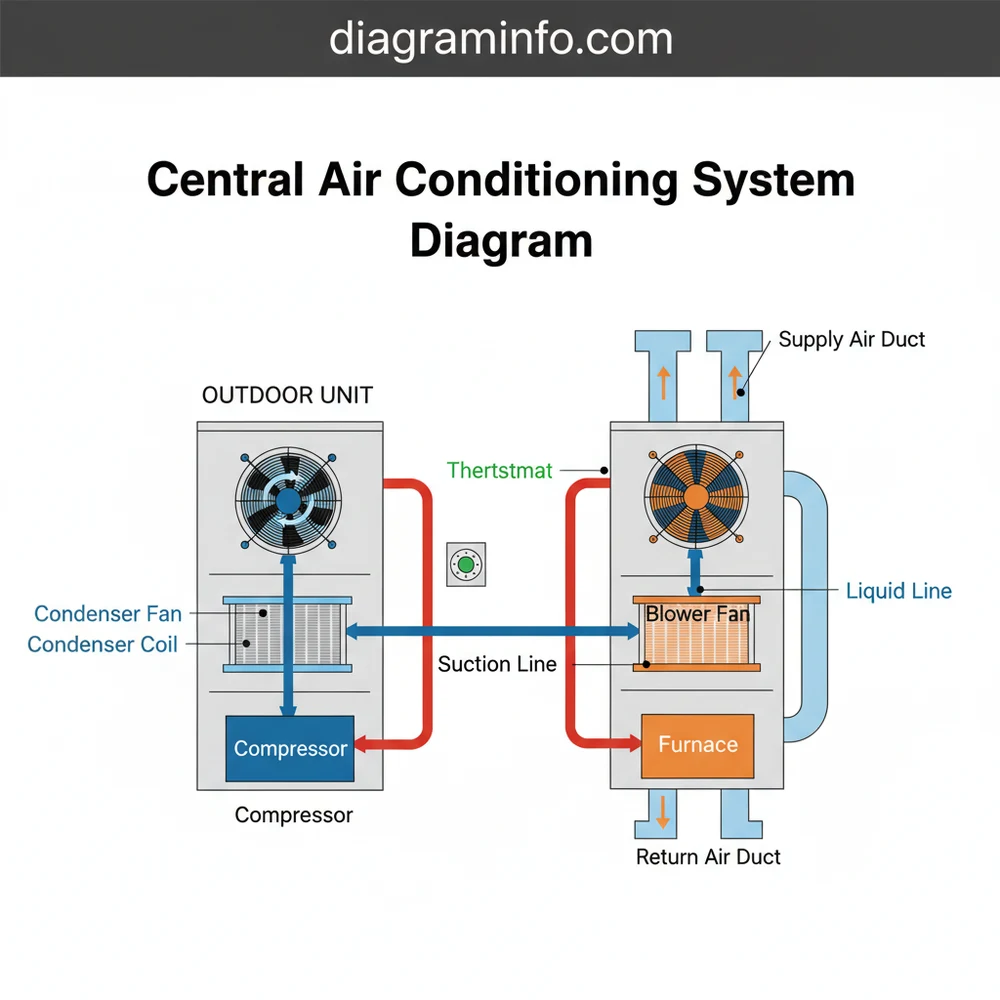

Deconstructing the Central Air Conditioning System Diagram
A central air conditioning system diagram is more than just a map; it is a visual representation of the laws of thermodynamics in action. To read it correctly, you must first understand that the system is typically divided into two primary zones: the indoor unit (evaporator) and the outdoor unit (condenser). The diagram uses specific symbols and line weights to represent the flow of refrigerant and air between these two environments.
The layout usually begins at the compressor, which is the heart of the system. In most blueprints, the compressor is depicted as a circular or cylindrical component located within the outdoor cabinet. From here, you will see a high-pressure line leading to the condenser coil. The condenser is illustrated as a series of serpentine lines, often color-coded in red or dark orange to signify high-heat discharge. A fan symbol is positioned near these coils to indicate how heat is pulled away from the refrigerant and released into the atmosphere.
Moving indoors, the diagram follows the refrigerant line to the expansion valve. This component is a critical gateway, represented by a small valve or orifice symbol. Beyond this point, the refrigerant enters the evaporator coil, which is usually drawn in blue or light cyan to represent the cooling phase. The blower motor and fan assembly are depicted nearby, showing how warm air from your home is drawn over the cold coils and distributed through the ductwork layout.
💡 Key Information
Most modern diagrams use a “Split System” configuration. In this setup, the “hot side” lives outdoors to protect your home from compressor noise and heat, while the “cold side” is integrated with your furnace or air handler indoors.
How to Read and Interpret Your System Blueprint
Interpreting a central air conditioning system diagram requires a systematic approach. You cannot simply look at the lines; you must follow the logical flow of energy and matter. Use the following steps to master the interpretation of your HVAC schematic.
- Identify the High and Low Pressure Sides: Every diagram is split into a “high side” (liquid line) and a “low side” (suction line). Look for the expansion valve; everything between the compressor discharge and the expansion valve is the high-pressure zone. Everything from the evaporator outlet back to the compressor inlet is the low-pressure zone.
- Trace the Refrigerant Loop: Start at the compressor. Follow the line to the condenser, through the expansion device, into the evaporator, and back to the compressor. This circular path is the backbone of the entire system structure.
- Locate the Electrical Control Circuit: Most diagrams include a secondary set of thinner lines representing the 24V thermostat wiring. Find the “R”, “Y”, “G”, and “C” terminals. These lines dictate when the contactor in the outdoor unit engages the compressor and when the indoor blower motor starts.
- Analyze the Airflow Path: Look for arrows indicating air direction. The return air (warm air from the house) enters through a filter, passes over the evaporator coil, and exits through the supply ducts as conditioned air. If the diagram shows a bypass or a damper, take note of how these affect the air layout.
- Check the Condensate Management: A proper diagram will show a drain pan beneath the evaporator coil and a condensate line leading outdoors or to a floor drain. This is essential for understanding how the system removes humidity from the air.
- Verify Component Labels: Cross-reference the symbols on the blueprint with the legend provided by the manufacturer. Components like the start capacitor, run capacitor, and thermal overload switch have unique symbols that are vital for electrical troubleshooting.
⚠️ Warning
Never attempt to service the internal electrical components or refrigerant lines of your HVAC system without proper training and certification. Central air units contain high-voltage electricity and pressurized chemicals that can be hazardous if mishandled.
To effectively use the diagram during a physical inspection, you will need a few basic tools:
- ✓ A non-contact voltage tester to ensure safety before opening panels.
- ✓ A multi-meter for checking continuity and voltage at terminal blocks.
- ✓ A flashlight to inspect the coils and blower housing for physical damage.
- ✓ The manufacturer-specific wiring schematic, usually found inside the service panel.
Troubleshooting Common System Failures via the Diagram
When your air conditioner fails, the central air conditioning system diagram becomes your most valuable diagnostic tool. Most HVAC issues can be traced back to a specific “break” in the path shown on the schematic.
One frequent problem is the “compressor won’t start” scenario. By looking at the electrical portion of your diagram, you can trace the path from the thermostat to the contactor. If the 24V signal is reaching the contactor but the compressor isn’t humming, the diagram points you toward the capacitor or the compressor itself. If the signal isn’t reaching the contactor, the blueprint helps you find the break in the low-voltage wiring or a fault in the thermostat.
Another common issue is reduced airflow or “icing up” of the indoor coils. The diagram shows the relationship between the blower motor and the evaporator coil. If the blower is running (indicated by the “G” circuit in the schematic) but the air is weak, you know to check the filter or the ductwork layout for obstructions. If the coils are freezing, the diagram helps you identify the expansion valve or the refrigerant charge as the likely culprit, as these regulate the temperature of the evaporator lines.
✅ Pro Tip
Keep a laminated copy of your system’s wiring schematic inside the outdoor service panel. Exposure to the elements can fade the original sticker over time, making future troubleshooting much more difficult.
Maintenance and Long-Term Efficiency Best Practices
Maintaining the integrity of your central air conditioning system diagram and the physical components it represents is a matter of consistency. A well-maintained system operates at peak efficiency, lowering your monthly utility bills and preventing premature component failure.
First and foremost, focus on airflow. In your system layout, the air filter is the first line of defense. A clogged filter restricts the air passing over the evaporator coil, causing the system to work harder and potentially leading to a burnt-out blower motor. Replace your filters every 30 to 90 days depending on usage and air quality.
Secondly, keep the outdoor condenser unit clear of debris. Referencing your diagram, the condenser relies on the unrestricted flow of outdoor air to reject heat. If grass clippings, leaves, or shrubs surround the unit, the heat-exchange process becomes inefficient. Use a garden hose to gently wash the fins of the condenser coil annually to remove dust and pollen buildup.
For long-term reliability, pay attention to the condensate drain system. As indicated in the diagram, the evaporator coil generates significant moisture. If the drain line becomes clogged with algae or debris, water can back up into your home, causing significant damage. Pouring a cup of white vinegar down the condensate drain once a year can prevent these clogs from forming.
When it comes to quality components, always opt for OEM (Original Equipment Manufacturer) parts when a repair is necessary. While “universal” capacitors or fan motors may seem like a cost-saving measure, they often deviate from the specific tolerances mapped out in your system’s original blueprint, which can lead to inefficiency or secondary failures down the line.
Finally, schedule a professional inspection at least once a year. A licensed technician can use the central air conditioning system diagram to perform a thorough check of refrigerant pressures and electrical draws that are beyond the scope of DIY maintenance. They can identify small leaks or failing capacitors before they turn into expensive emergency repairs during the peak of summer.
Conclusion: Mastering Your Home Cooling Infrastructure
Understanding a central air conditioning system diagram empowers you to take control of your home’s comfort and mechanical health. By recognizing the critical relationship between the compressor, condenser, expansion valve, and evaporator, you move beyond seeing your AC as a “black box” and begin to see it as a logical, maintainable machine.
Whether you are using a schematic to identify a faulty capacitor or simply tracing the ductwork to improve airflow in a specific room, the information contained in these blueprints is the key to HVAC longevity. Remember that while a diagram provides the roadmap, regular maintenance and safety-conscious troubleshooting are the vehicles that will keep your system running smoothly. With a clear central air conditioning system diagram in hand, you are well-equipped to manage your system’s configuration, oversee professional repairs, and ensure a cool, comfortable environment for your household.
Step-by-Step Guide to Understanding the Central Air Conditioning System Diagram: Complete Layout Guide
Identify the indoor and outdoor sections – Start with identifying the separate components of the split system layout.
Locate the refrigerant lines – Locate the suction and liquid lines connecting the condenser to the evaporator.
Understand how airflow moves – Understand how the blower fan pulls air through filters and pushes it across coils.
Connect the electrical logic – Trace the wiring from the thermostat to the control board and contactor.
Verify that drainage is clear – Verify that the condensate drain line is positioned to remove moisture from the indoor unit.
Complete the visual inspection – Complete the process by checking all connections against the system diagram for accuracy.
Frequently Asked Questions
Where is the evaporator coil located?
The evaporator coil is typically located inside the indoor air handler or attached to the furnace. In a standard central air conditioning system diagram, you will find it positioned within the ductwork structure where it absorbs heat from the indoor air before the cooled air is distributed.
What does a central air conditioning system diagram show?
This diagram shows the complete configuration and layout of the cooling system. It illustrates the relationship between the outdoor condenser unit, the indoor evaporator coil, the refrigerant lines, and the ductwork, providing a blueprint for how refrigerant cycles through the system to provide cooling.
How many refrigerant lines does the system have?
A standard split system configuration features two copper refrigerant lines connecting the indoor and outdoor units. One is the larger, insulated suction line that carries cool gas, and the other is the smaller liquid line that transports high-pressure liquid refrigerant back to the indoor evaporator coil.
What are the symptoms of a bad component like the compressor?
Symptoms of a failing compressor include the outdoor unit making loud grinding noises, the system blowing warm air, or the circuit breaker frequently tripping. The diagram helps you locate the compressor within the outdoor unit’s structure to check for visible damage or electrical connectivity issues.
Can I replace the thermostat myself?
Replacing a thermostat is a common DIY task if you follow the wiring layout carefully. Most modern systems use low-voltage wiring, but you must ensure the power is off at the breaker. Always compare your existing wire configuration with the new thermostat’s terminal labels for safety.
What tools do I need for system maintenance?
Basic maintenance requires a screwdriver set, a fin comb for the condenser coils, a wet/dry vacuum for the condensate drain line, and a voltmeter for electrical testing. Referencing the system diagram helps you identify which panels to remove to access these internal components safely and efficiently.
