Troy Bilt Pony 42 Belt Diagram: Easy Routing Guide
The Troy Bilt Pony 42 belt diagram illustrates the routing path for the deck and drive belts around various pulleys and idlers. To route it, start at the engine pulley, thread through the stationary and adjustable idlers, and loop around the outer blade spindles to ensure proper tension and blade rotation.
📌 Key Takeaways
- Correct routing is essential for blade engagement and mower speed.
- Identify the tensioner pulley as the primary component for belt removal.
- Safety first: Always disconnect the spark plug wire before working on belts.
- Use high-quality OEM belts to match the exact deck structure and length.
- Refer to this diagram during annual maintenance or if the belt slips.
Maintaining a riding lawn mower requires a clear understanding of its mechanical guts, particularly the belt routing system that powers the cutting blades. If you are currently facing a snapped belt or a confusing pile of pulleys, finding an accurate troy bilt pony 42 belt diagram is the first step toward getting your lawn back in order. This guide provides a comprehensive overview of the belt layout, identifying every critical component from the engine drive pulley to the individual deck mandrels. By the end of this article, you will understand how to read the schematic, how to troubleshoot common tension issues, and the exact steps required to install a new belt with professional precision.
The troy bilt pony 42 belt diagram serves as a blueprint for the complex interplay between the engine’s power and the deck’s cutting action. In a standard 42-inch deck configuration, the system relies on a single continuous belt that navigates a series of fixed and adjustable pulleys. The layout typically begins at the engine pulley (located at the front of the machine, under the frame), travels back toward the mowing deck, and wraps around two main mandrel pulleys that spin the blades. Between these points, the belt must pass through a system of idler pulleys—some are stationary to maintain the belt’s path, while others are spring-loaded to provide the necessary tension for operation.
Understanding the visual layout requires looking at the deck from a top-down perspective. The primary keyword in this layout is the “V-path.” The belt is designed with a specific “V” shape that fits into the grooves of the pulleys. When looking at the schematic, you will notice that the “V” side of the belt always sits inside the grooved pulleys, while the flat side of the belt typically makes contact with the flat, smooth idler pulleys. This distinction is vital for a successful installation; reversing the belt can lead to rapid wear or immediate failure. Furthermore, the 42-inch deck on the Pony model often features belt guards or “pins” located near the pulleys. These small metal rods are designed to keep the belt from jumping off during use, but they can make the initial routing process a bit of a puzzle for the uninitiated.

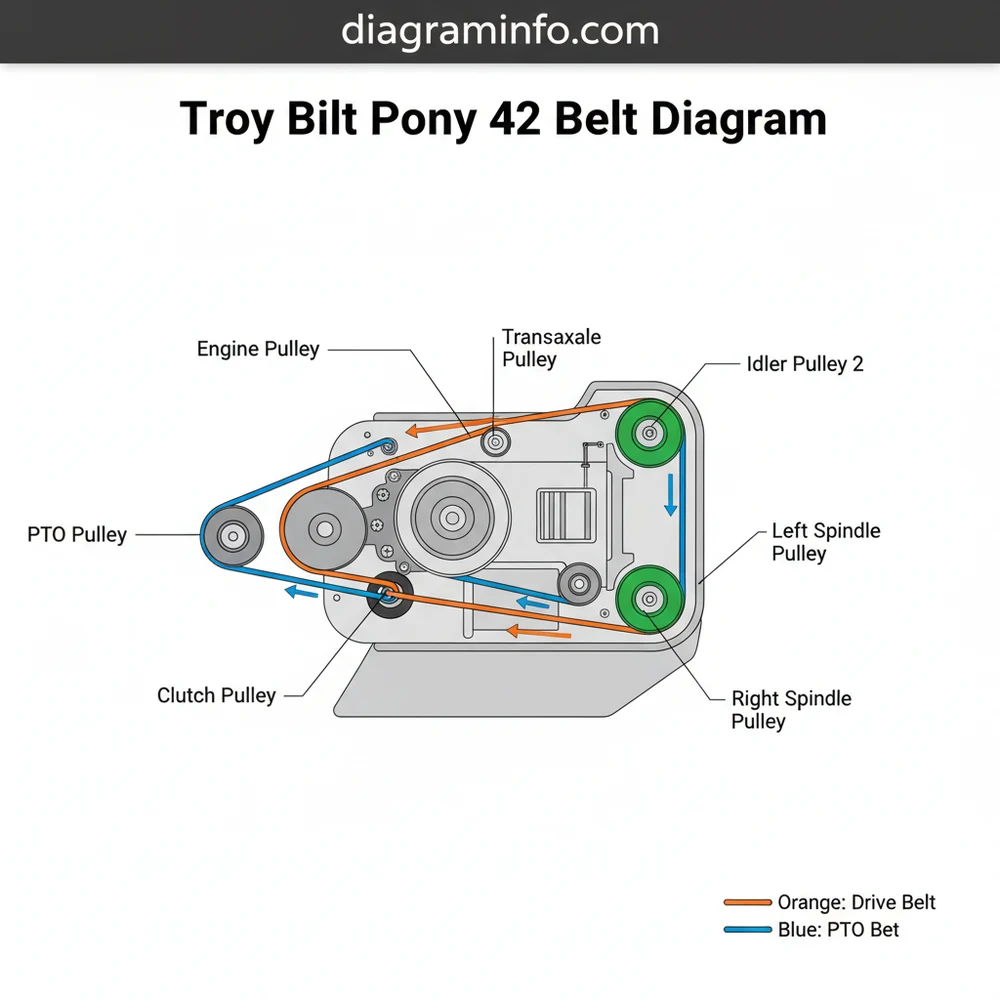

A detailed Troy Bilt Pony 42 Belt Diagram showing the engine pulley, idler pulleys, and mandrel pulleys in a top-down configuration.
To effectively utilize a schematic or blueprint for your mower, you must first identify the individual components within the system. The structure of the Troy Bilt Pony 42 deck consists of several key elements:
- ✓ Engine Pulley: The drive source located under the front of the tractor.
- ✓ Mandrel Pulleys: Two large pulleys located directly over the cutting blades.
- ✓ Engagement Idler: A movable pulley connected to the deck engagement lever or cable.
- ✓ Stationary Idler: A fixed pulley that helps guide the belt around obstacles.
- ✓ Belt Guides: Small metal pins that prevent the belt from slipping off the pulleys.
Most Troy Bilt Pony 42 models use a belt that is approximately 96 to 97 inches in length. However, always check your specific model number under the seat to ensure you purchase the correct part, as deck designs can vary slightly between manufacturing series.
Reading and implementing the troy bilt pony 42 belt diagram is a task that requires patience and the right set of tools. Before you begin, ensure you have a 9/16-inch socket or wrench, a pair of needle-nose pliers, and heavy-duty work gloves to protect your hands from the sharp edges of the mower deck.
Step 1: Preparation and Safety
First and foremost, park the mower on a flat, level surface. Turn off the engine, remove the ignition key, and disconnect the spark plug wire. This is a non-negotiable safety step to prevent accidental startup while your hands are near the blades or pulleys. Engage the parking brake and lower the mowing deck to its lowest possible position.
Step 2: Accessing the Deck
To make the installation easier, many homeowners prefer to remove the deck entirely, though it is possible to replace the belt with the deck attached. If you choose to leave it on, you will need to remove the plastic belt covers located on either side of the deck. Use your socket wrench to remove the bolts securing these covers. This will expose the mandrel pulleys and the existing belt (or what remains of it).
Step 3: Releasing Tension
Locate the engagement idler pulley. This pulley is attached to a spring that keeps the belt tight during operation. To install a new belt, you must move this idler to create slack. You can often do this by hand or by using a pry bar to gently move the idler arm away from the belt’s path. If the belt is still intact but needs replacing, slip it off the engine pulley first, as this usually provides the most immediate slack.
Step 4: Routing the Belt According to the Schematic
Starting at the engine pulley (at the front), loop the belt into the groove. Bring both ends of the belt back toward the deck. Following the troy bilt pony 42 belt diagram, route the belt around the left-side mandrel pulley (from the driver’s perspective). The “V” side of the belt must face inward toward the mandrel. Continue the path through the idler pulleys. One side of the belt will likely pass through a stationary idler, while the other side interacts with the tensioning idler.
Step 5: Wrapping the Final Mandrel
Pull the belt toward the right-side mandrel pulley. This is often the most difficult part of the process because the belt is becoming tight. Ensure the belt is properly seated inside all belt guides and pins. If the belt is stuck on a guide pin, do not force it; instead, loosen the pin slightly with your wrench to allow the belt to pass through, then tighten it back down.
Step 6: Final Tension Check
Once the belt is routed around all pulleys—the engine pulley, the two mandrels, and the idlers—manually engage the deck lever (with the engine off) to check the tension. The belt should be tight with no significant sagging. Double-check the configuration to ensure the belt is not twisted and that the flat side is only touching flat pulleys.
Step 7: Reassembly
Replace the plastic belt covers and tighten the bolts. If you removed the deck, slide it back under the mower and reattach the hanging links and the engagement cable. Reconnect the spark plug wire and start the engine. Engage the blades at a low throttle setting first to ensure everything is rotating smoothly without vibration or unusual noise.
Never attempt to adjust the belt while the engine is running or while the spark plug is connected. The tension in the spring-loaded idler is high; use caution to avoid pinching your fingers between the belt and the pulley.
Even with a perfect troy bilt pony 42 belt diagram in hand, issues can arise during and after installation. One of the most common problems is the belt slipping or “smoking.” This usually happens when the belt is routed on the wrong side of a guide pin, causing friction that heats the rubber. If you smell burning rubber, stop the mower immediately and inspect the path.
Another frequent issue is a belt that keeps jumping off the pulleys. This often indicates a worn idler pulley bearing or a bent mandrel. If a pulley has even a slight wobble, it will throw the belt during high-speed operation. Furthermore, if the tensioning spring has lost its elasticity, the belt will not stay tight enough to maintain its position on the engine pulley. Use the diagram to verify that the spring is attached to the correct anchor point on the mower frame; sometimes, these springs can be hooked into the wrong hole, leading to insufficient tension.
If you notice uneven cutting after a belt replacement, it may not be the belt at all, but a sign that the deck is no longer level after being removed for maintenance. Always check the deck pitch after a belt change to ensure the front is slightly lower than the back (usually by about 1/4 inch).
Before removing an old belt, take a photo of the routing with your phone. While the schematic is helpful, a real-world photo of your specific machine’s layout can be an invaluable reference during the reinstallation process.
To maximize the lifespan of your mower’s belt system, maintenance is key. Debris is the enemy of any belt-driven system. Grass clippings, leaves, and twigs can accumulate under the belt covers and around the pulleys. This debris traps moisture, leading to rust on the pulleys and premature rot in the belt. After every few mows, use a leaf blower or compressed air to clear out the deck area.
When it comes to replacement parts, quality matters. While generic belts are cheaper, they often lack the Kevlar or Aramid cord reinforcement found in OEM (Original Equipment Manufacturer) belts. Given the high heat and stress a mower belt endures, investing in a high-quality component can save you the labor of replacing a snapped belt mid-season. Check the pulleys for “shiny spots” or pitting. A pulley should be smooth; if it is rough, it will act like sandpaper on your new belt.
Understanding the layout and configuration of your machine’s drive system is the hallmark of a responsible owner. The troy bilt pony 42 belt diagram is more than just a drawing; it is a vital tool that ensures your mower operates safely and efficiently. By following the structured steps outlined in this guide and paying close attention to the schematic’s details, you can handle belt maintenance with confidence. Whether you are performing a routine check or a full replacement, keeping the belt path clear and properly tensioned will ensure your Troy Bilt Pony continues to deliver a clean, professional cut for years to come.
Proper belt management is the difference between a mower that lasts a decade and one that constantly requires expensive repairs. Always keep a copy of the belt routing schematic in your garage or saved on your phone for quick reference. With the right layout knowledge and a proactive approach to troubleshooting, your mowing experience will be smoother, faster, and much more rewarding.
Step-by-Step Guide to Understanding the Troy Bilt Pony 42 Belt Diagram: Easy Routing Guide
Identify the belt type and ensure you have the correct OEM replacement part for your specific 42-inch deck model.
Locate the engine pulley and the belt keepers that prevent the belt from slipping off during normal operation.
Understand how the belt twists between the idlers and the spindles to maintain the correct rotational direction for cutting.
Connect the new belt by looping it around the rear-most pulleys first before stretching it over the engine drive pulley.
Verify that the belt is seated deep within the grooves of every pulley and is not pinched by any metal guards.
Complete the installation by re-engaging the tensioner spring and testing the blade engagement lever while the engine is off.
Frequently Asked Questions
Where is the drive belt located?
It is located under the chassis, connecting the engine pulley to the rear transmission. It is distinct from the deck belt, which sits lower and drives the cutting blades. Accessing it usually requires removing the mower deck to see the full layout and pulley configuration.
What does the deck belt diagram show?
This diagram shows the specific path the belt takes around the engine pulley, the idler pulleys, and the two blade spindles. It ensures the belt provides the correct rotational direction for the blades while maintaining tension through the spring-loaded idler system for efficient cutting.
How many pulleys are in the 42-inch deck system?
The 42-inch deck system typically features five main pulleys: the engine drive pulley, two blade spindle pulleys, a stationary idler, and a spring-loaded tensioner idler. This configuration ensures the belt stays tight during operation while allowing the operator to engage or disengage the blades safely.
What are the symptoms of a bad deck belt?
Common symptoms include frayed edges, visible cracks, or a burnt rubber smell during operation. If the belt slips frequently, vibrates excessively, or fails to engage the blades, the internal structure is likely compromised, requiring immediate replacement to prevent damage to the pulley system or spindles.
Can I replace the belt myself?
Yes, replacing the belt is a straightforward DIY task that takes about 30 to 60 minutes. By following the Troy Bilt Pony 42 belt diagram, you can navigate the pulley layout without specialized mechanical knowledge, though a second set of hands helps when tensioning the spring.
What tools do I need for belt replacement?
You will primarily need a 1/2-inch or 9/16-inch wrench or socket set to remove pulley guards and the belt keepers. A pair of pliers or a spring puller tool is also helpful for disconnecting the heavy-duty tensioner spring from the deck frame during the process.
