Dodge Ram Vacuum Line Diagram: Routing & Repair 2026
The Dodge Ram vacuum system manages critical engine functions including brake assist, emissions (EGR, purge valve), and crankcase ventilation (PCV valve). Vacuum lines, typically black or color-coded, connect these components to the intake manifold, ensuring proper engine operation and fuel efficiency. Consult a specific model diagram for exact routing.
📌 Key Takeaways
- A healthy Dodge Ram vacuum system typically operates between 17-21 in. Hg (inches of mercury) at idle, crucial for engine performance and emissions.
- Identifying brittle or cracked vacuum lines, especially near heat sources or sharp bends, is critical for preventing driveability issues.
- Always use appropriate vacuum hose sizes and materials (e.g., silicone for high-temp areas) to ensure a secure, leak-free seal.
- The PCV valve hose and brake booster vacuum line are common failure points due to heat exposure and constant vacuum fluctuations.
- While basic leak detection can be DIY, complex issues involving the EGR vacuum or canister purge system may require professional diagnostic tools.
The Dodge Ram’s vacuum system is integral to the proper operation of numerous engine and ancillary components, influencing everything from fuel economy and emissions control to braking performance. This intricate network of lines, hoses, and valves utilizes engine `intake manifold vacuum` to actuate various components. Understanding your specific `Dodge Ram vacuum line diagram` is crucial for accurate diagnosis, efficient repairs, and maintaining optimal vehicle performance and emissions compliance, particularly given the variations across different model years and engine configurations.

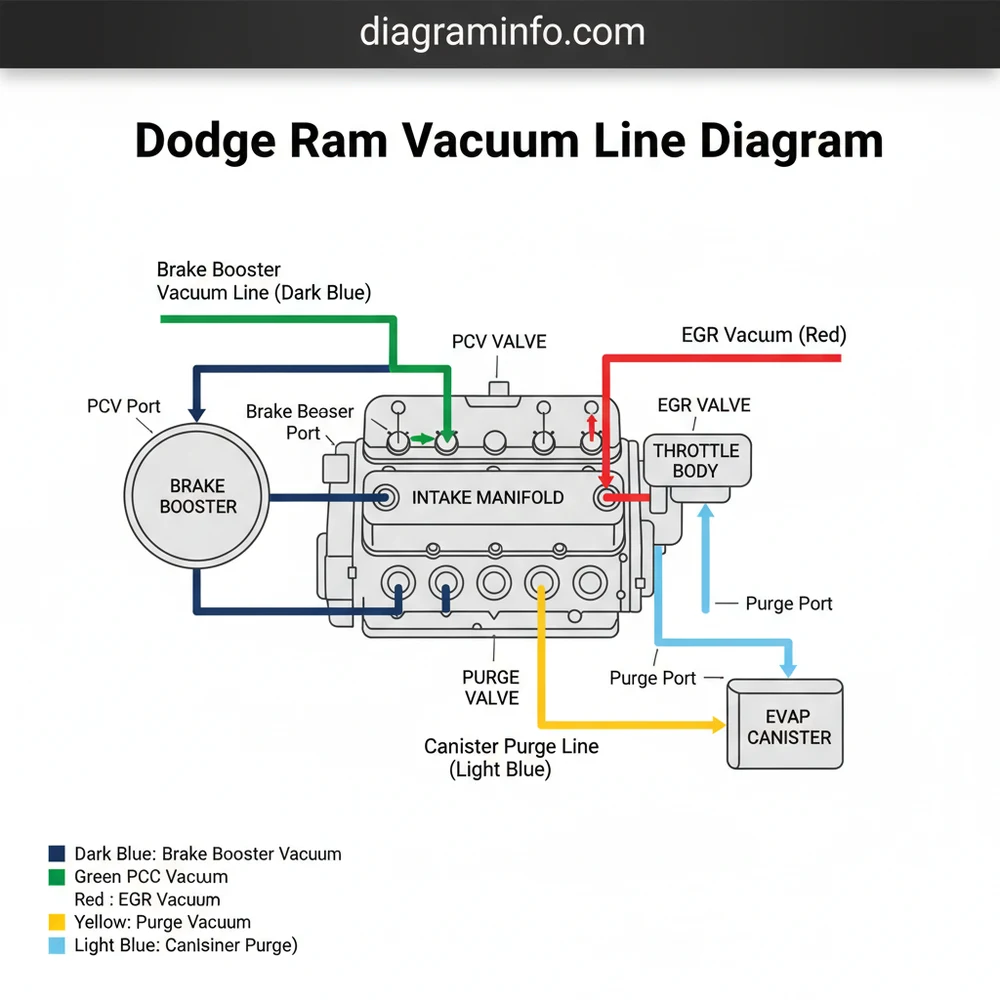

VACUUM LINE COLOR & ROUTING TABLE
| Line/Hose Designation | Routing From → To | Function |
|---|---|---|
| Large Black Hose | Intake Manifold Vacuum Port → Brake Booster Check Valve → Brake Booster | Provides vacuum assistance for power braking. A critical component for safety. |
| PCV Valve Hose (often black/corrugated) | Valve Cover/Crankcase → PCV Valve → Intake Manifold Vacuum Port | Recirculates crankcase gases to be burned in the engine, preventing sludge buildup and emissions. |
| EVAP Purge Line (typically small diameter) | EVAP Canister Purge Solenoid → Intake Manifold Vacuum Port | Draws fuel vapors from the `canister purge` system into the engine for combustion, reducing evaporative emissions. |
| EGR Vacuum Line (often green or red) | EGR Vacuum Solenoid → EGR Valve | Controls the `EGR vacuum` valve opening to recirculate exhaust gases, lowering combustion temperatures and NOx emissions. |
| Vacuum Reservoir Line (small diameter) | Intake Manifold Vacuum Port → Vacuum Reservoir → HVAC Controls / 4WD Actuator | Stores vacuum for accessory operation (e.g., HVAC blend doors, 4WD engagement) during low manifold vacuum conditions. |
| Fuel Pressure Regulator (FPR) Line (small) | Intake Manifold Vacuum Port → Fuel Pressure Regulator | Modulates fuel pressure relative to `intake manifold vacuum`, ensuring optimal fuel atomization across engine loads. (More common on older models) |
COMMON VACUUM LEAK SYMPTOMS
Vacuum leaks in a Dodge Ram’s system can manifest in a variety of performance issues, often misleading technicians without a clear understanding of the vacuum diagram. The symptoms typically stem from unmetered air entering the engine, leading to an incorrect air-fuel ratio. Expect a rough idle, which may present as stumbling or an inconsistent RPM, often more pronounced when the engine is cold or under light load. A lean condition, detected by the Oxygen (O2) sensors, will trigger the Check Engine Light (CEL) with various Diagnostic Trouble Codes (DTCs) such as P0171 (System Too Lean Bank 1) or P0174 (System Too Lean Bank 2).
On engines with variable valve timing (VVT) or cylinder deactivation, vacuum leaks can also affect the proper function of related actuators, potentially causing additional DTCs related to engine performance or VVT system errors. Always consider the integrated nature of modern engine controls.
Beyond engine performance, a failing `brake booster vacuum` line or `check valve` will result in a hard brake pedal requiring excessive force to stop the vehicle. HVAC controls, especially those for vent selection, might default to defrost or fail to switch modes due to insufficient vacuum. Similarly, `canister purge` system leaks can lead to rough idle, especially after refueling, and trigger EVAP-related DTCs. Identifying the source of these issues requires methodical inspection, beginning with visual checks and progressing to more advanced diagnostic methods.
DIAGNOSIS & REPAIR STEPS
Diagnosing a vacuum leak requires a systematic approach to pinpoint the exact location and component failure. Follow these steps for accurate identification and effective repair:
1. Initial Visual Inspection: Begin with a thorough visual inspection of all accessible vacuum lines, hoses, and connections. Pay close attention to elbows, T-fittings, and areas where hoses pass through firewalls or near heat sources. Look for cracks, dry rot, disconnections, or melted sections. Examine the `brake booster vacuum` hose, which is often large and prominently routed, for any signs of collapse or damage.
2. Listen for Auditory Cues: With the engine running at idle, carefully listen for a distinct hissing sound, particularly around the intake manifold, throttle body, and vacuum-actuated components. A mechanic’s stethoscope can help localize faint leaks.
3. Vacuum Gauge Test: Connect a calibrated vacuum gauge to a reliable `intake manifold vacuum port` on the engine. A healthy engine should display a steady reading between 18-22 inches of mercury (inHg) at idle, depending on altitude and specific engine. A fluctuating or low reading often indicates a vacuum leak or an internal engine issue. If the needle fluctuates rapidly, it could suggest a burned valve or ignition problem; a slow, regular drop and rise might indicate a sticking valve. Consult OEM specifications for your specific Dodge Ram model year.
4. Smoke Machine Test: This is the most effective method for locating elusive leaks. Introduce smoke from a professional smoke machine into the intake system (typically through a vacuum port or the PCV system). Observe where smoke escapes from hoses, gaskets, or components like the `EGR vacuum` diaphragm or `purge valve`. Ensure the engine is cool for this procedure.
5. Propane or Carb Cleaner Test (Use with Caution): While less precise than a smoke test, carefully spraying small bursts of unlit propane or carburetor cleaner around suspect vacuum lines and intake gaskets can identify leaks. If the engine RPM temporarily increases, you’ve located a leak. Exercise extreme caution with flammable materials and ensure adequate ventilation.
6. Component-Specific Testing:
PCV Valve: Remove the `PCV valve` and shake it; it should rattle. Block the manifold port and feel for strong vacuum. Consult your service manual for flow test procedures.
Check Valves: Many vacuum systems, including the `brake booster vacuum` line, utilize `check valve`s. These are one-way valves. Test by applying vacuum from one side and ensuring it holds, then applying from the other side and verifying air flows freely. A common failure point, especially in older Ram models, where a failing `check valve` can lead to poor braking or loss of stored vacuum.
* Solenoids & Actuators: Test vacuum solenoids (like the `canister purge` solenoid or EGR vacuum solenoid) using a vacuum pump and a multimeter. Verify they hold vacuum and that their electrical circuits are functioning according to manufacturer specifications (e.g., resistance values).
7. Repair and Verify: Replace damaged hoses with high-quality, OEM-grade vacuum hose of the correct diameter. Use appropriate clamps where specified. For internal linking, consider consulting our detailed guide on Dodge Ram EVAP System Diagnostics for specific `canister purge` issues. After repairs, clear DTCs and conduct a road test. Monitor fuel trims with a scan tool; they should return to within +/- 5% range at idle and cruise. Refer to our Troubleshooting Ram PCV System Issues article for further guidance on PCV-related repairs. For issues related to braking, refer to our Brake Booster Replacement Guide.
Always disconnect the battery before working on electrical components. When using flammable materials for leak detection, ensure the area is well-ventilated and avoid open flames or sparks. Improper handling can lead to fire or injury.
FAQ
What is the typical lifespan of Dodge Ram vacuum lines?
The lifespan of vacuum lines in a Dodge Ram can vary significantly based on material quality, exposure to engine heat, and environmental factors. Generally, rubber vacuum lines have a service life of 8-15 years. However, high-quality silicone hoses can last considerably longer. Regular inspection, especially after 7 years or 100,000 miles, is recommended as heat and age cause rubber to become brittle, leading to cracks and leaks.
How does a faulty brake booster vacuum line affect driving?
A compromised `brake booster vacuum` line will drastically reduce or eliminate power assist to the brakes. This means the driver will experience a significantly harder brake pedal and require substantially more physical effort to apply the brakes, making stopping distances longer and vehicle control more difficult. This is a critical safety concern and should be addressed immediately upon detection.
Can a vacuum leak cause a Dodge Ram to fail emissions testing?
Absolutely. A vacuum leak introduces unmetered air, causing the engine to run lean. This lean condition directly affects exhaust gas composition, leading to elevated NOx emissions and potentially impacting catalytic converter efficiency. The resulting lean fault codes (P0171, P0174) and any related EVAP system codes (e.g., from a faulty `canister purge` valve or line) will almost certainly cause an emissions test failure.
Are vacuum line diagrams year-specific for Dodge Rams?
Yes, `Dodge Ram vacuum line diagram`s are highly year-specific and can also vary by engine type (e.g., 5.7L HEMI, 3.6L Pentastar, 4.7L, 5.9L Magnum, Cummins diesel for accessory vacuum) and trim level. Minor routing changes, component additions (like additional vacuum solenoids for 4WD actuators), or even complete system overhauls (such as the transition from mechanical EGR to electronic) necessitate consulting the exact diagram for your vehicle’s model year and engine code to ensure accuracy.
Step-by-Step Guide to Understanding the Dodge Ram Vacuum Line Diagram: Routing & Repair 2026
Identify – Visually inspect all accessible vacuum lines for cracks, kinks, disconnections, or brittleness, especially around the PCV valve and brake booster vacuum.
Locate – Pinpoint the origin and destination of suspected lines using the dodge ram vacuum line diagram in your service manual.
Reference – Consult the specific Dodge Ram vacuum line diagram to confirm correct hose routing, component connections (EGR, purge valve, canister purge), and color codes if applicable.
Connect/Route – Replace any damaged lines with new, appropriately sized vacuum hose, ensuring proper routing away from heat sources and moving parts, matching the diagram precisely.
Verify – Start the engine and use a vacuum gauge to confirm manifold vacuum is within specifications (typically 17-21 in. Hg). Listen for hissing sounds and recheck connections.
Troubleshoot – If issues persist, consider a smoke test or professional diagnosis, as leaks might be internal to components like the brake booster or EGR valve, or the purge valve.
Frequently Asked Questions
What are the symptoms of a vacuum leak in dodge ram vacuum line diagram?
Symptoms include rough idle, stalling, poor acceleration, reduced fuel economy, and an illuminated check engine light (CEL) with codes like P0171/P0174. You might also hear a hissing sound from the engine bay. These issues often stem from compromised lines affecting components like the PCV valve or brake booster vacuum.
How do I find a vacuum leak in dodge ram vacuum line diagram?
Start with a visual inspection for cracked or disconnected lines. Use a smoke machine to introduce smoke into the vacuum system, revealing leaks by where smoke exits. Alternatively, spray carb cleaner or unlit propane around suspected areas; a change in engine RPM indicates a leak. Focus on the brake booster vacuum and EGR vacuum lines.
What color are the vacuum lines on dodge ram vacuum line diagram?
Dodge Ram vacuum lines are predominantly black, but some systems, particularly older models or emission-related ones (like EGR or purge valve lines), may use color-coded plastic lines (e.g., green, red, yellow) for specific functions. Always refer to your specific model’s service manual or diagram for accurate color identification.
What does the dodge ram vacuum line diagram EVAP system do?
The EVAP (Evaporative Emission Control) system on a Dodge Ram prevents fuel vapors from escaping into the atmosphere. It uses components like the charcoal canister and purge valve. The canister purges stored fuel vapors into the engine to be burned, controlled by vacuum, which is a critical part of maintaining emissions compliance and fuel system integrity.
How do I replace vacuum lines on dodge ram vacuum line diagram?
To replace vacuum lines, first identify the correct line using the diagram. Carefully disconnect old lines, noting their routing. Cut new vacuum hose to the appropriate length, ensuring a snug fit over connectors. Use pliers for stubborn connections and zip ties for securing. Ensure proper routing to avoid kinks, especially for the PCV valve and brake booster vacuum lines.
What tools do I need to diagnose dodge ram vacuum line diagram vacuum issues?
